Industrial Waste Metal Recovery Separator Sorting Line - Steinert

This line is in good working condition. It came from a recycling plant and was used to separate metals from waste and to sort the metals by material.

The line consists of:
- Steinert Induction Sorting System
- Eriez Eddy Current Separator
- Steinert Overband Magnet Conveyor
- Steinert Vibratory Tray Feeder

---------

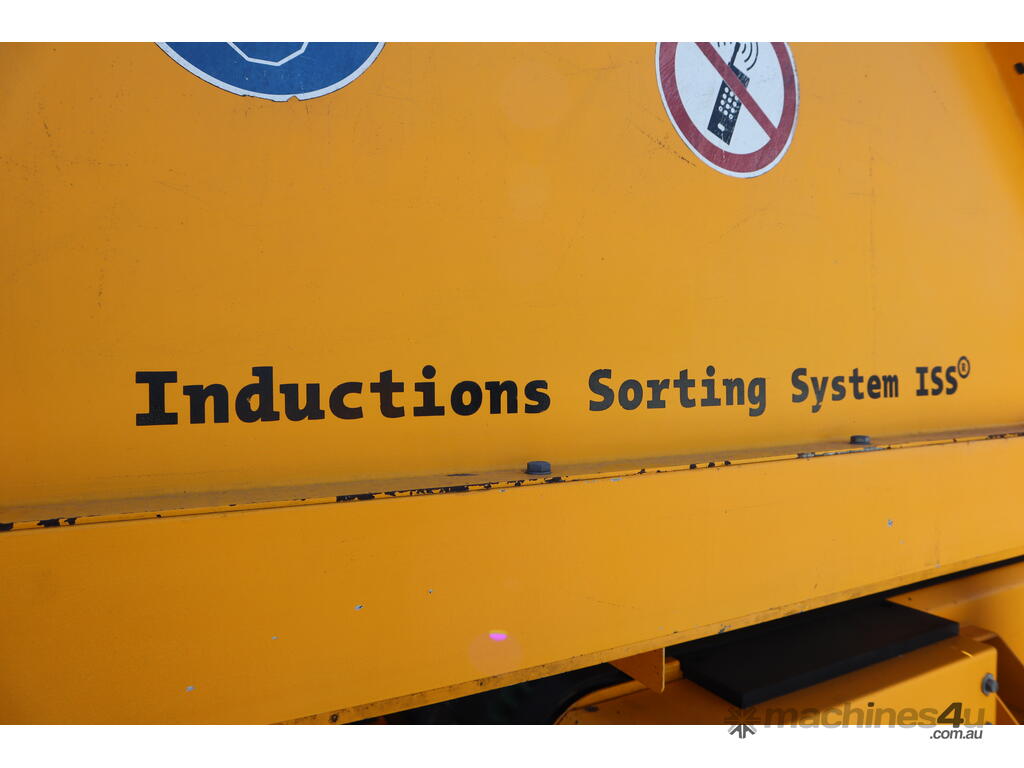

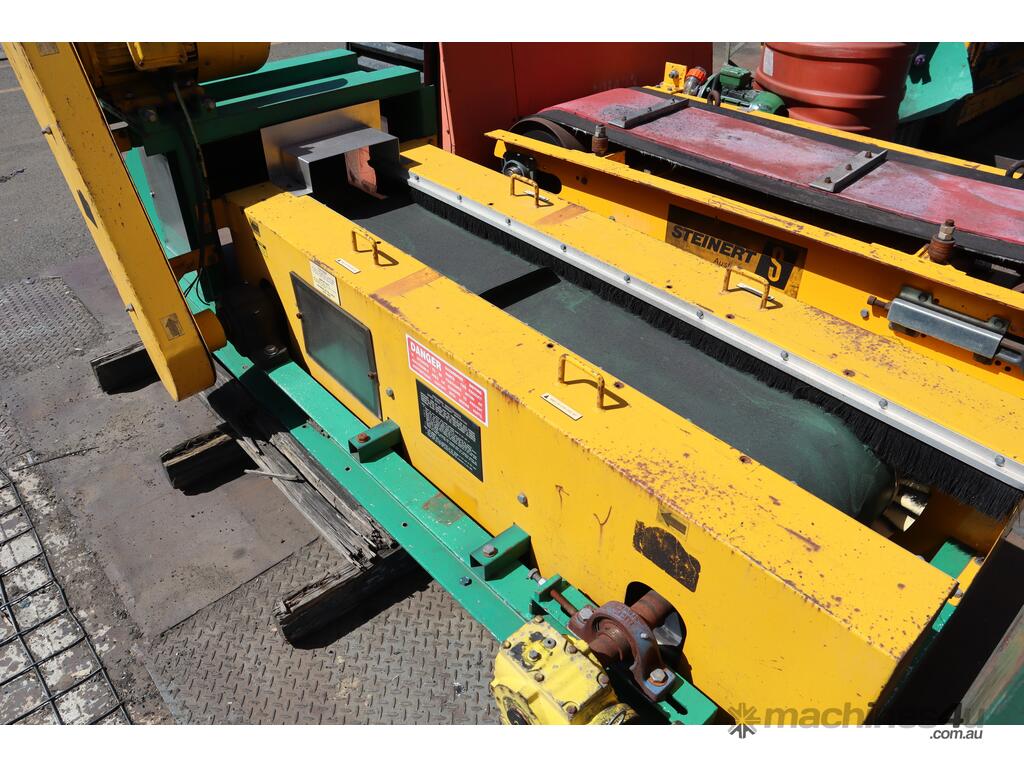

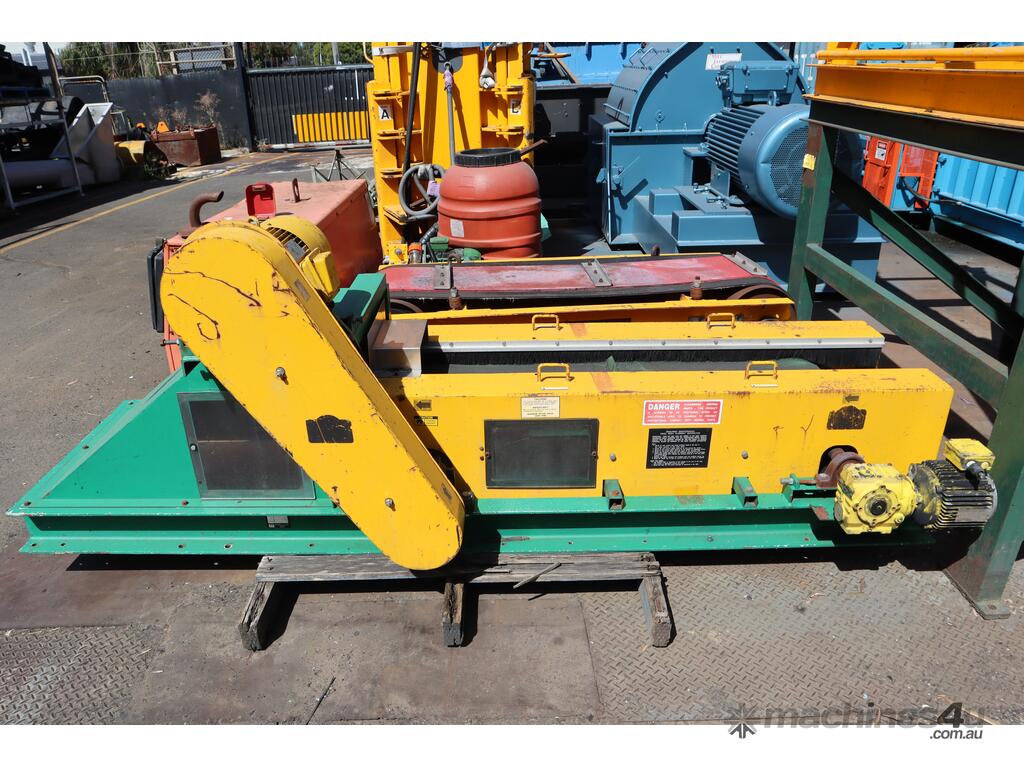

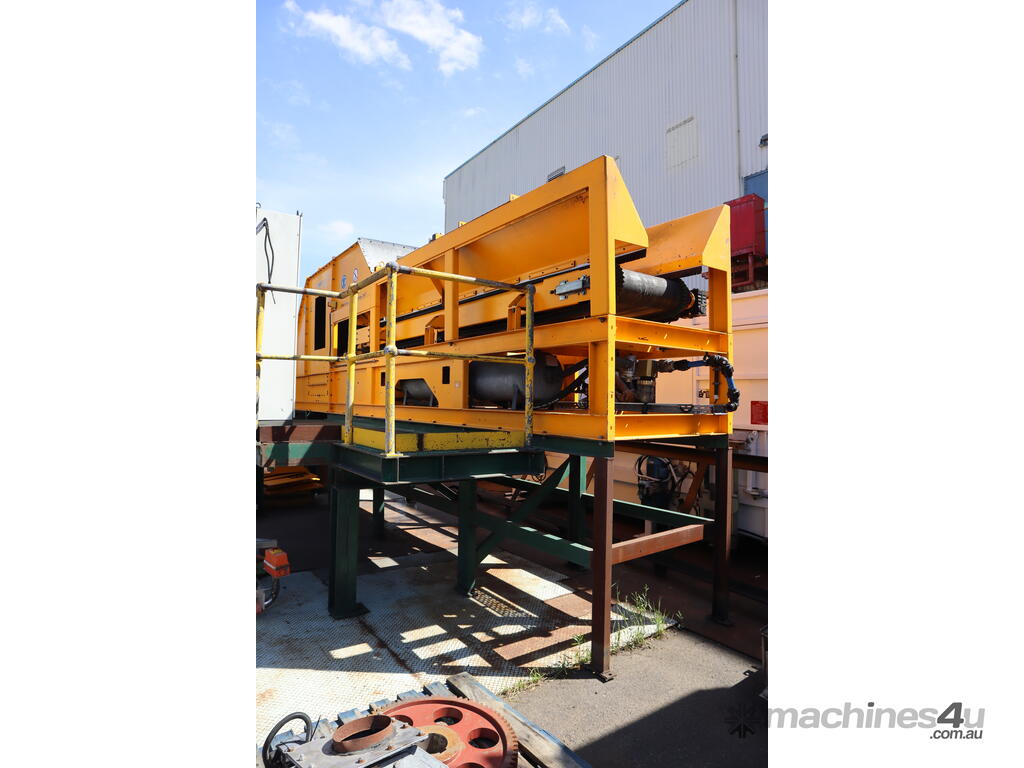

Induction Sorting System

For separation of heavy metals with low conductivity, especially stainless steel.
The concentrates recovered by the ISS® can be profitably marketed owing to their purity. The non-metal scrap fraction can be disposed of at significantly lower costs and in a more environmentally-friendly manner.

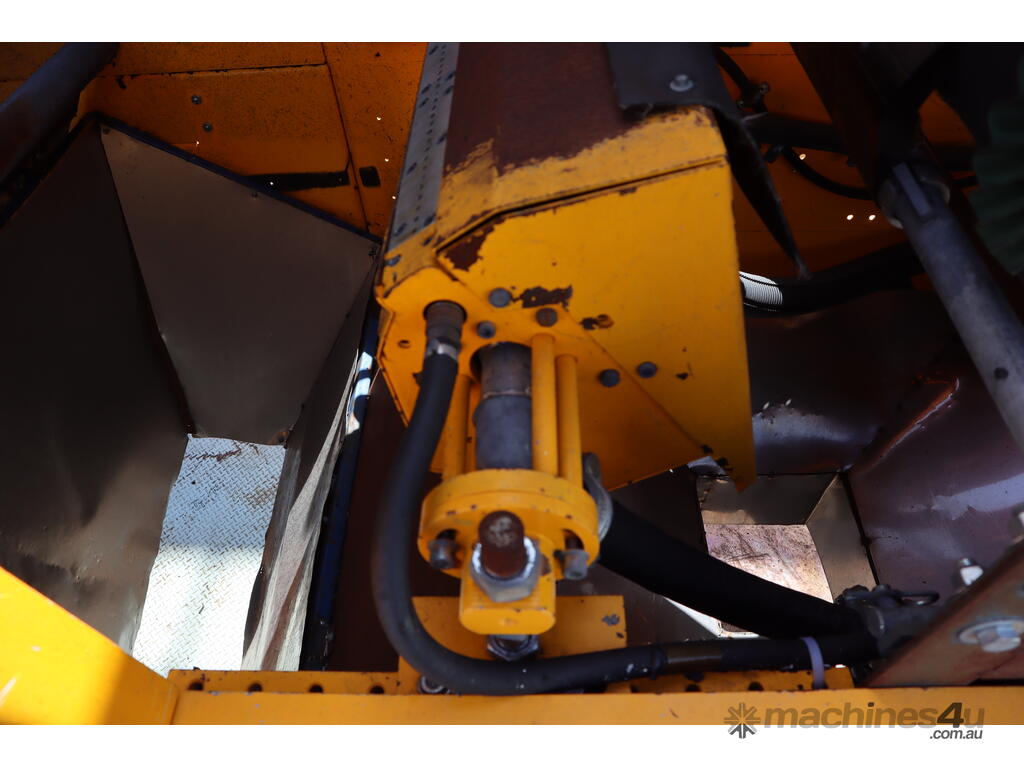

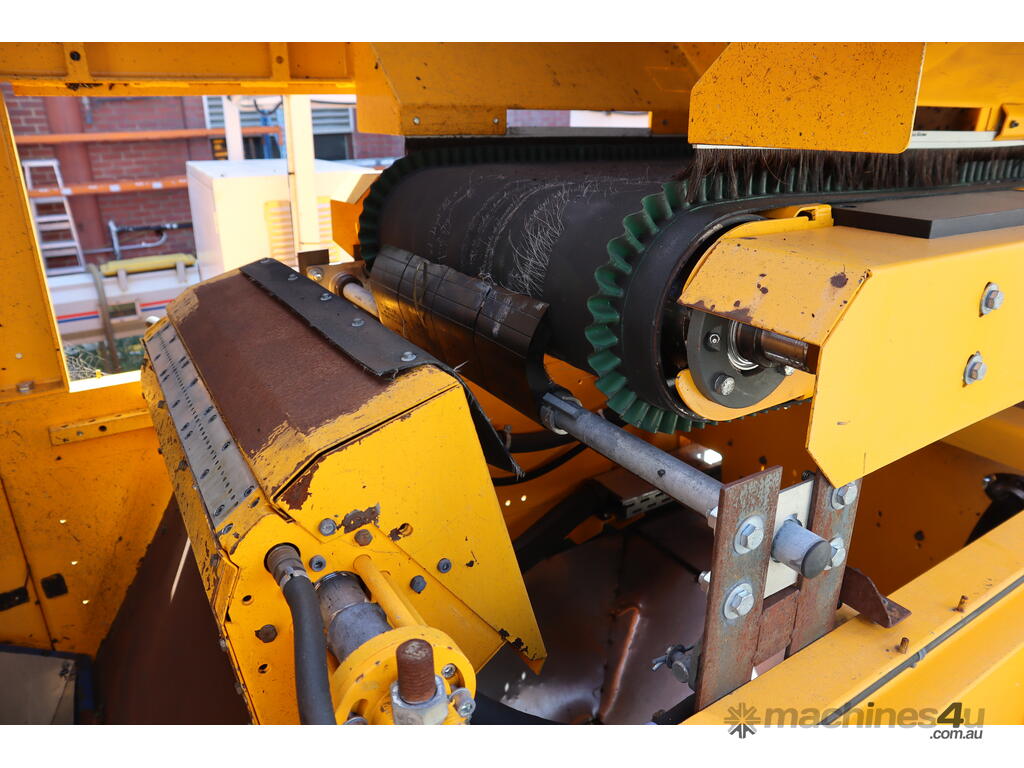

A sensor fixed beneath the conveyor route (just in front of the discharge) detects the metals on the conveyor belt and activates the corresponding pneumatic valves located on a strip situated low down in front of the discharge drum. The detected metals are ejected from the flow of material. The metal detection is based on inductive resonance, which causes a piece of metal to change the voltage in a current-carrying coil as it passes it.

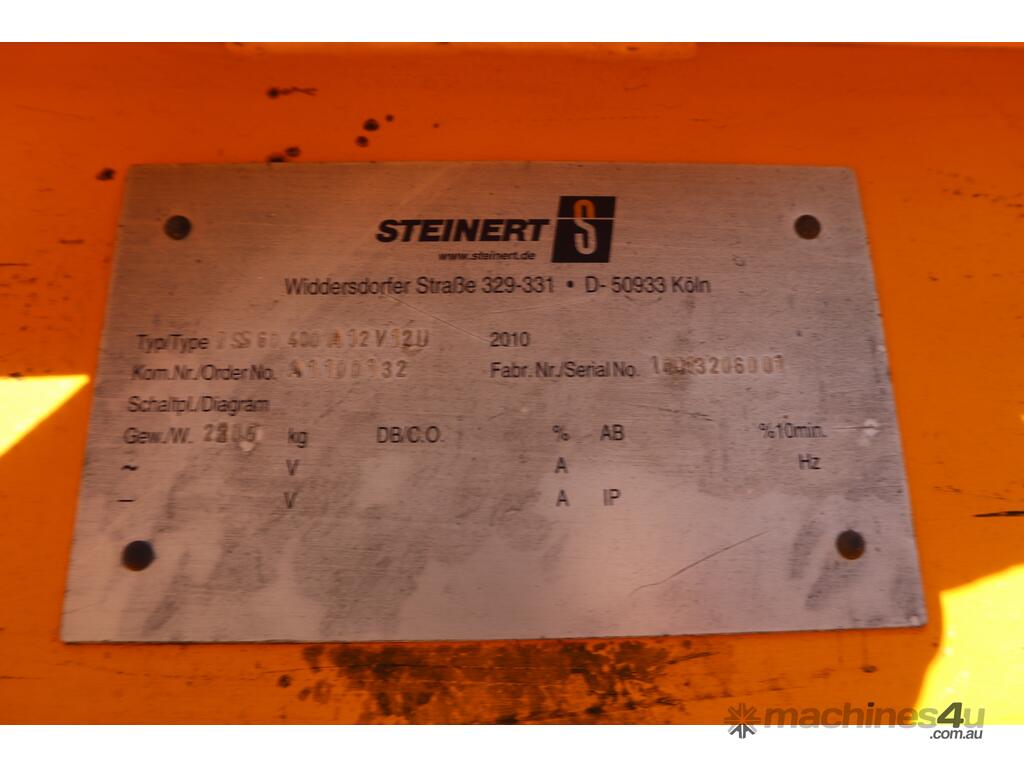

Make: Steinert
Model: ISS 60 400 A12 V12 U
Year: 2010

Operating Pressure: 10 Bar
Power Consumption (Drive motor, conveyor belt): 3kW
Optimal Conveyor Speed: 2.5m per second
Material Quantity Approx.: 1.2 - 3.6 tons per hour
Grain Size Approx.: 5 - 100mm
Feed Width Approx.: 550mm
Overall Dimensions: 7500 x 2800 x 3500mm

---------

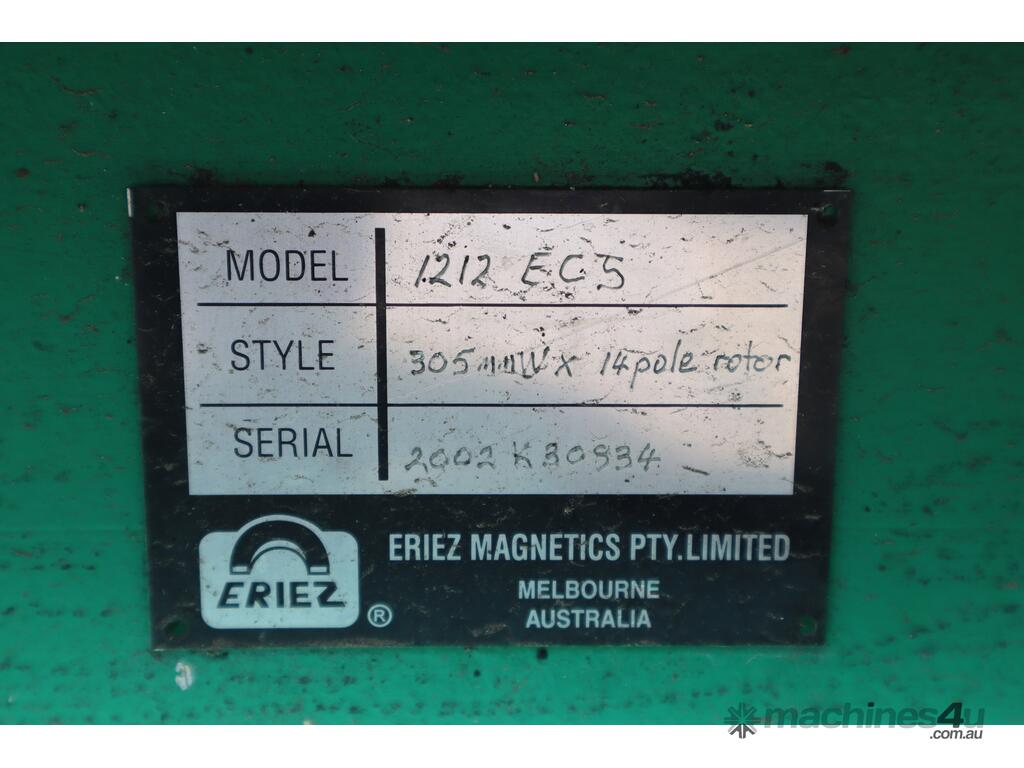

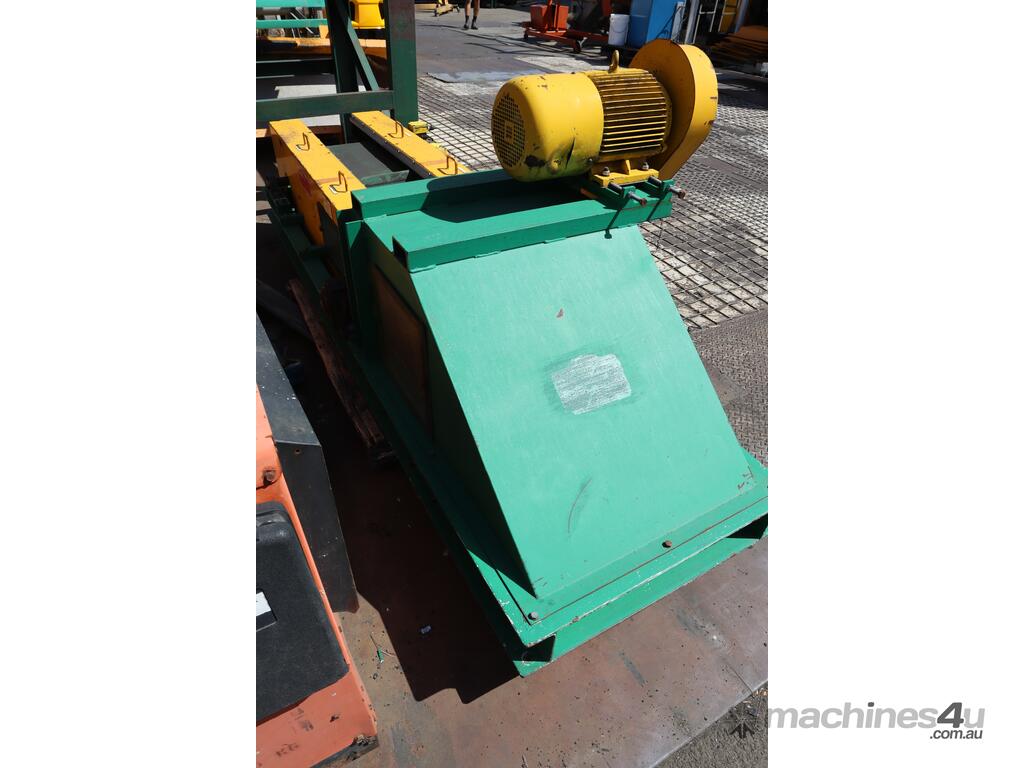

Eddy Current Separator

Great for fine nonferrous metals, it has a 14 pole rotor (regular eddy currents usually have 8).

Make: Eriez
Model: 1212 EC5

Channel Width: 255mm
Rotor Width: 305mm
Rotor Pole Count: 14 Pole
Overall Dimensions: 2900 x 1050 x 1020mm
---------

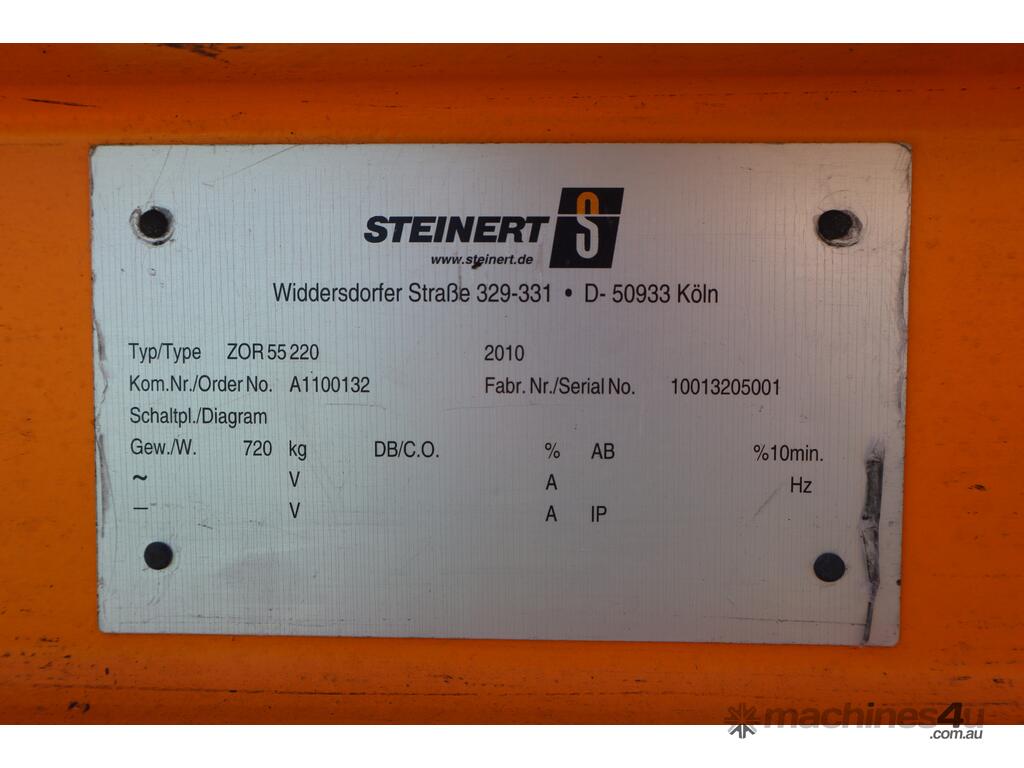

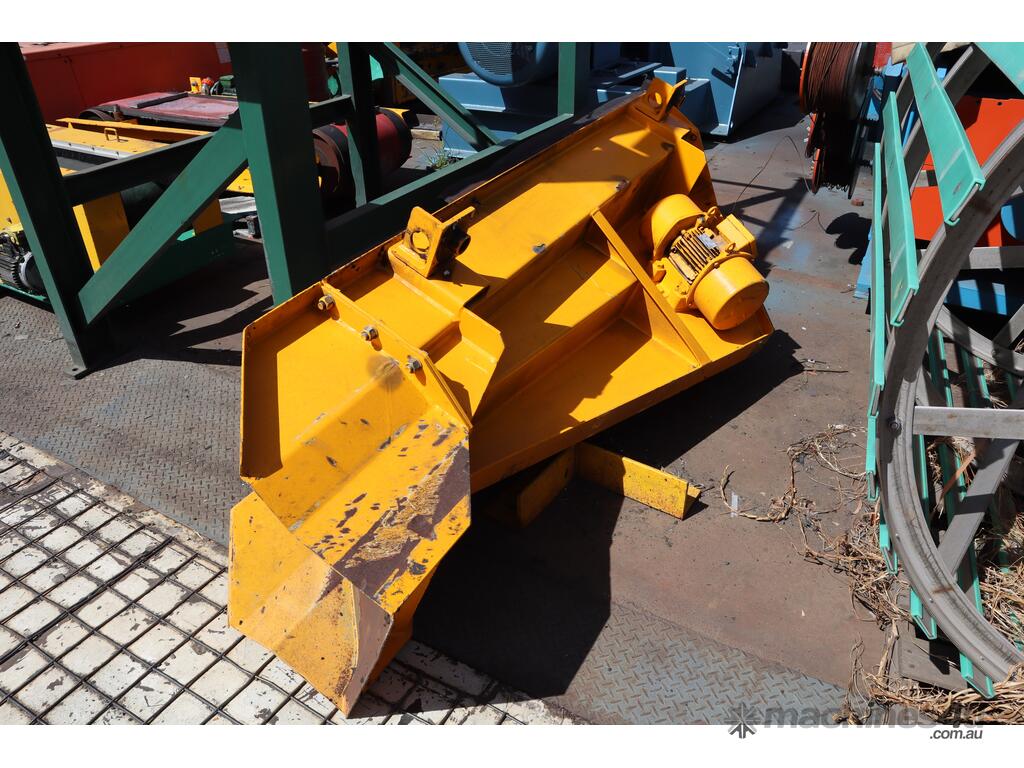

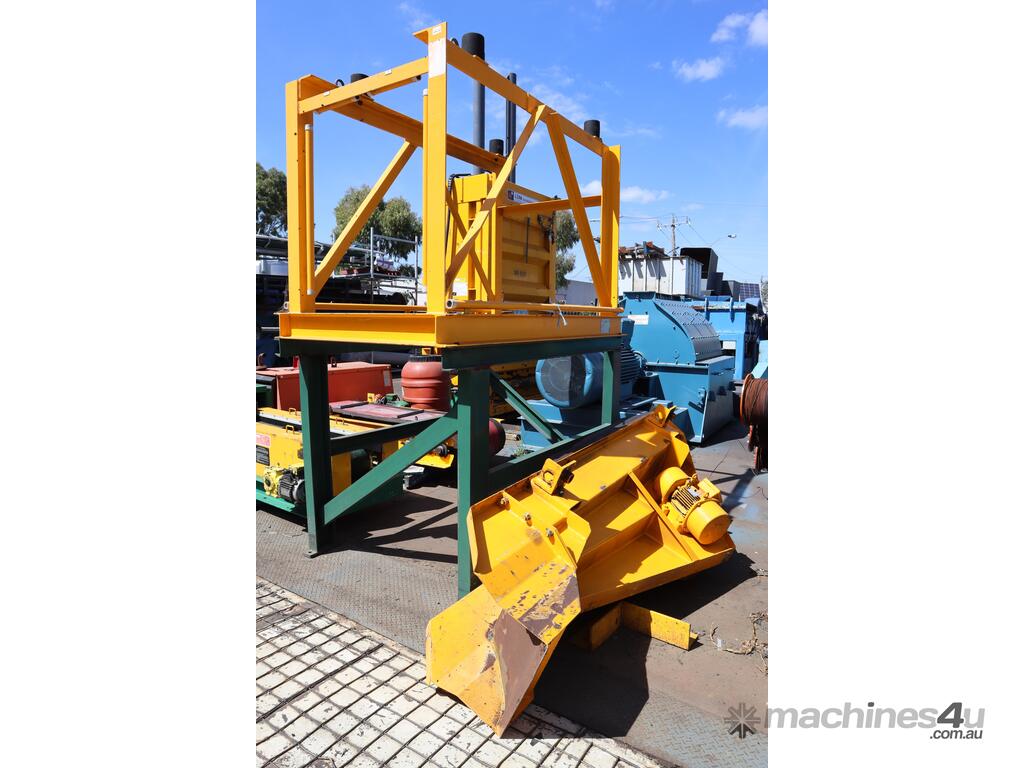

Vibratory Feeder

Make: Steinert
Model: ZOR 55 220
Year: 2010

Channel Width: 550mm

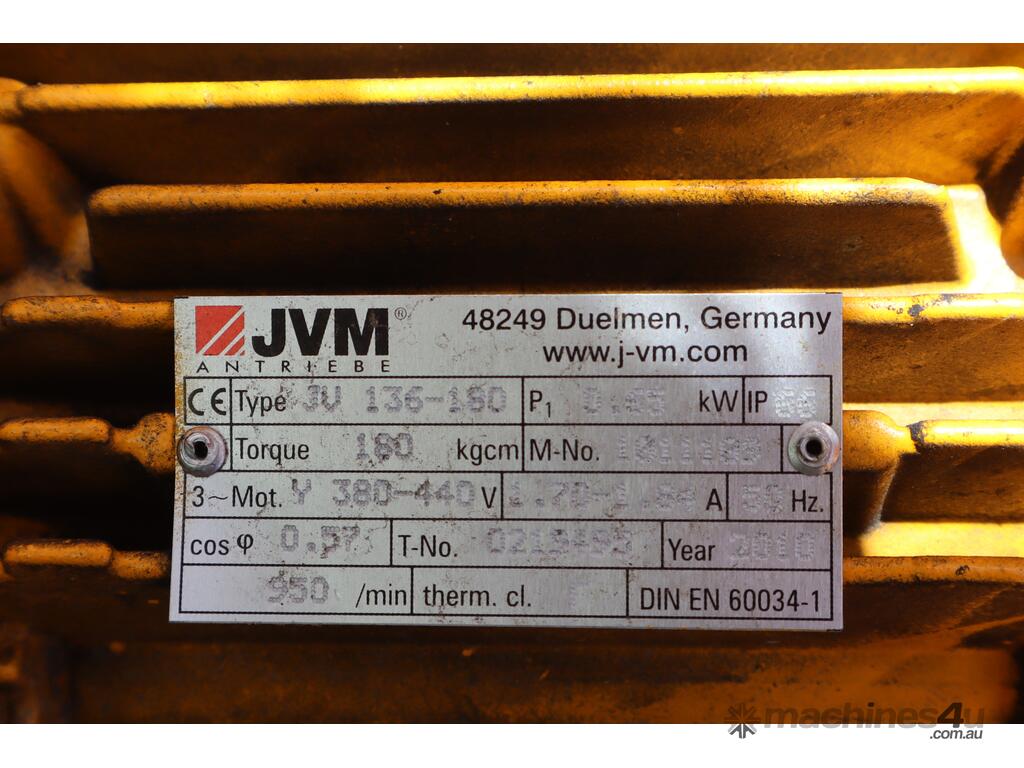

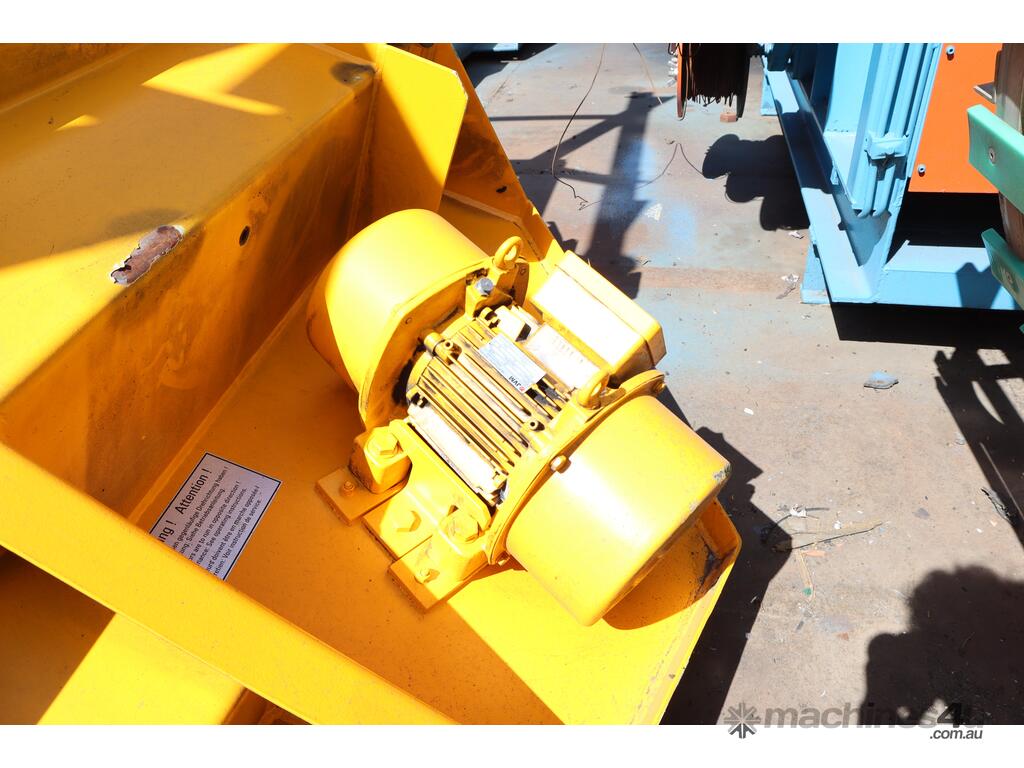

Off-Balance Rotary Motor Power: 2 x 0.95kW
Throughput Approx.: 1.2 - 3.6 tons per hour
Overall Dimensions: 2350 x 1250 x 3000mm

---------

Overband Magnet Conveyor

Recovers clean iron scrap for recycling at extremely fast belt speeds (? 7.5 m/s), great working distances up to 1 m and high dumping heights.

Make: Steinert
Model: DFC1220

Belt Width: 600mm
Grain size: 10 – 300 mm
Cut height: up to 1m
Overall Dimensions: 2050 x 1240 x 440mm
