Designed for production applications and loads up to 1100 lbs, the CLK-Series is the latest addition to Ingersoll Rand's line of air chain hoists. Exceptional durability with an ASME HST-5 rating of A5 (FEM/ISO mechanism classification of 1Am/M4) the CLK Series hoist are duty-rated to operate 800 full-load hours between overhauls. Learn how to choose the appropriate CLK Hoist.
Features and Benefits
• Meets ASME HST-5 Specifications and OSHA requirements
• Rugged, lightweight and compact design
• Disc brake is non-asbestos and spring engaged with air release
• Internal muffler reduces sound levels to a best-in-the-industry 75 dBA
• High-strength aluminum housing for maximum portability and weather resistance. Strong yet lightweight with a durable powdercoated finish.
• Upper and lower limit stops prevent dangerous over-travel of the hook
• 100% duty cycle multi-vane (6) air motor offers a high-torque and low-maintenance design. Air porting under the vanes creates smooth operation, positive starting, and long life.
• Bottom latch-type swivel hooks meet OSHA requirements and are supported by anti-friction needle type thrust bearings.

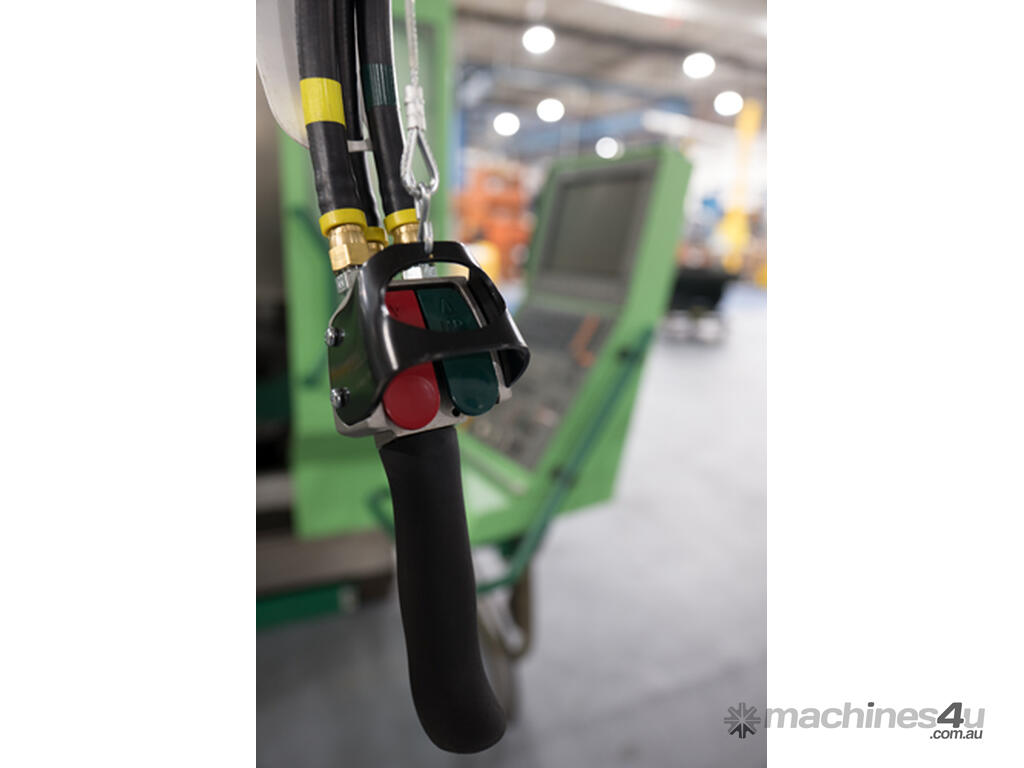

• Ergonomic pendent handle is rugged and durable. Guard covers both levers and can be used with or without gloves.
Please see the attached brochure for the complete technical specifications.
CAPS Australia offer a wide range of air compressors, power generators & tools. Available all around Australia, with 9 branches located nationwide.
Engineered around your needs, all of our compressors & power generators are built tough for Australian conditions and are backed by our 24/7 service guarantee. Whatever you need, we've got you covered, easy access to over 40 years of local hands-on technical expertise, global capabilities and our renowned aftermarket service programs.
Our Range:
Our precision engineered, European-designed compressor range includes:
• Ingersoll Rand reciprocating, rotary screw and centrifugal air compressors (4.6 – 28200 cfm)
• Airman portable diesel air compressors (55 - 1800 cfm)
• CAPS reciprocating & rotary screw air compressors (6.3 – 1910 cfm)
• Oil free air compressors (27 – 28200 cfm)
• Kohler & Airman Power Generators (10.5 - 4200 kVA)
• Ingersoll Rand & CAPS Tools
• Air Treatment Equipment & Accessories
Our service solutions include:
• Servicing (Compressors and Power Generators)
• Extensive spare parts
• Compressed air audits
• Installation and commissioning
Custom Solutions
CAPS has its own ISO9001 certified manufacturing facility that can modify a compressor to suit your needs. Even the toughest Mine Site specifications can be met.
Flexible Finance Options
Having the right equipment and assets is crucial for the growth of any business. Through our trusted partner, we not only provide short and long-term funding for your equipment, but can tailor our finance to suit your specific budget or requirements.
The best equipment does not have to be out of reach - explore CAPS range of finance options to drive your business forward.
Your local team of experts will guide and assist you in choosing the right equipment for the job. Call us today!
