Intermach - Han's Laser 3015 3kW J Series Fiber Laser Cutting Machine

China's largest and most trusted fiber laser producer is finally available in Australia with local support!!!

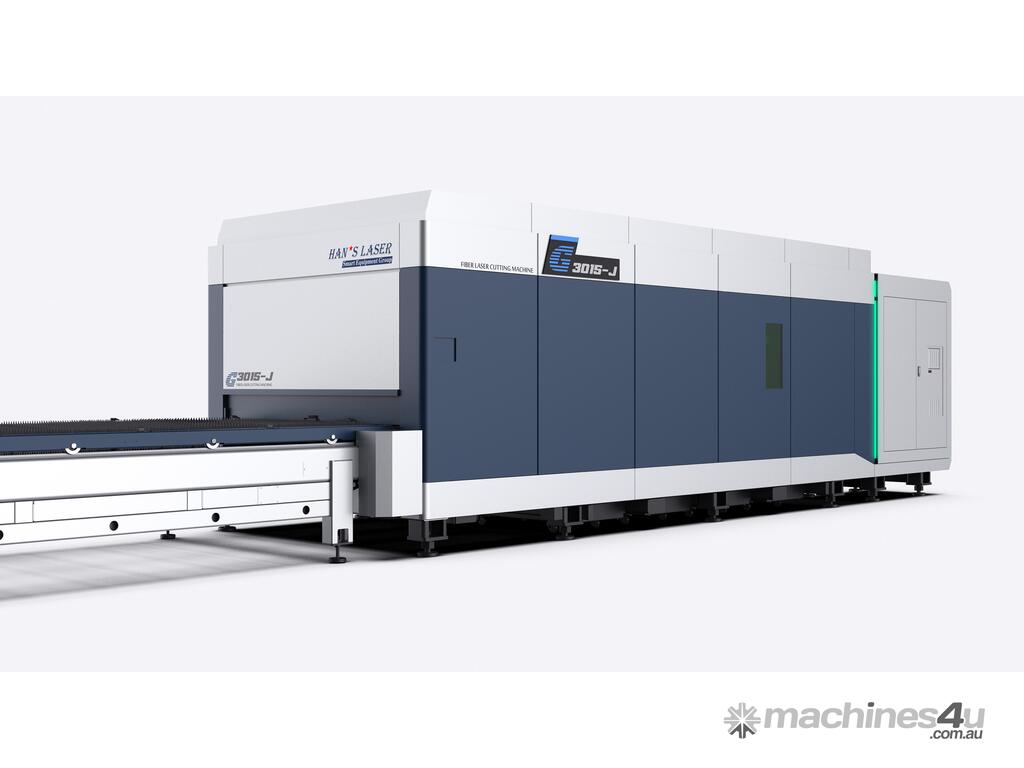

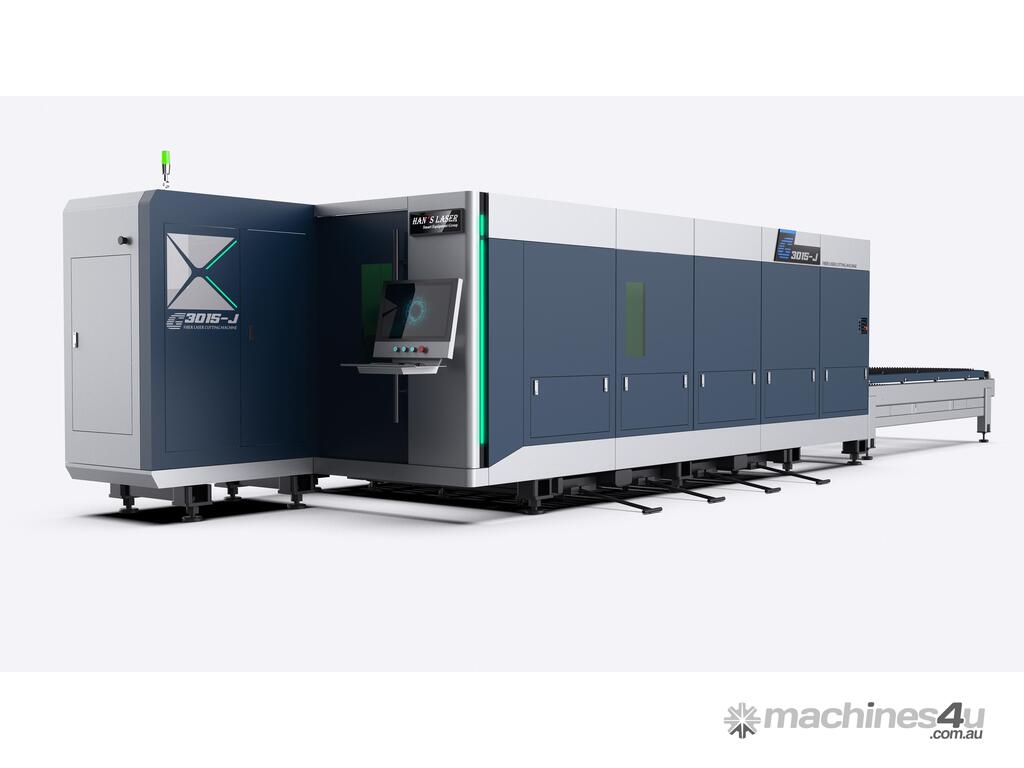

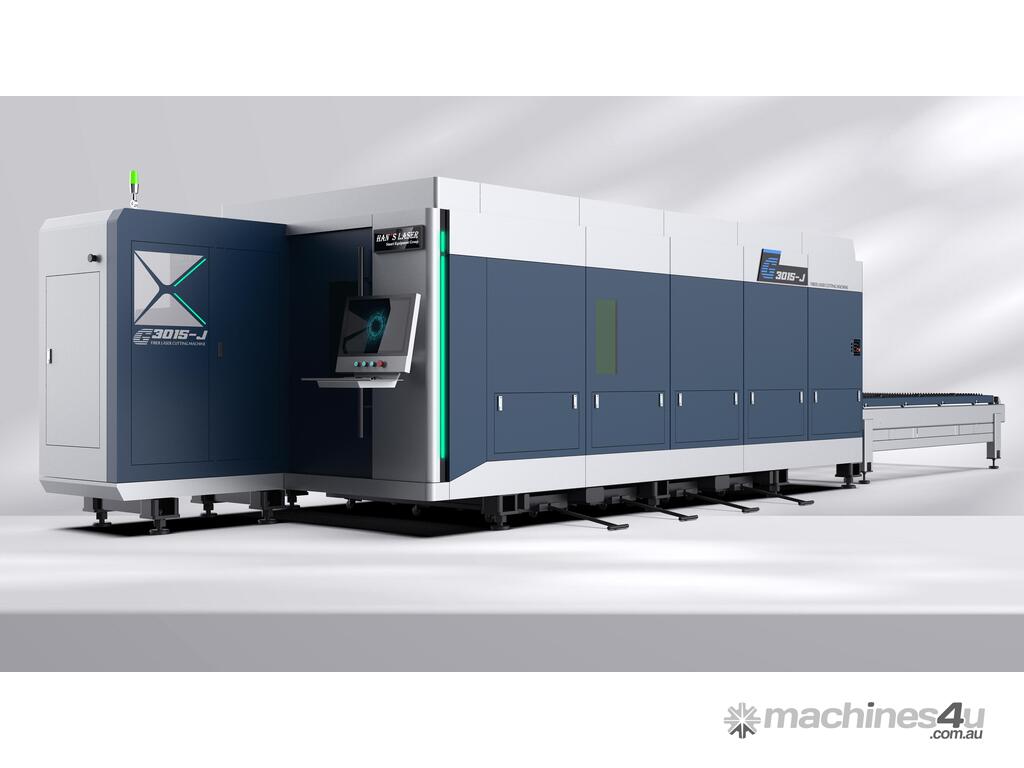

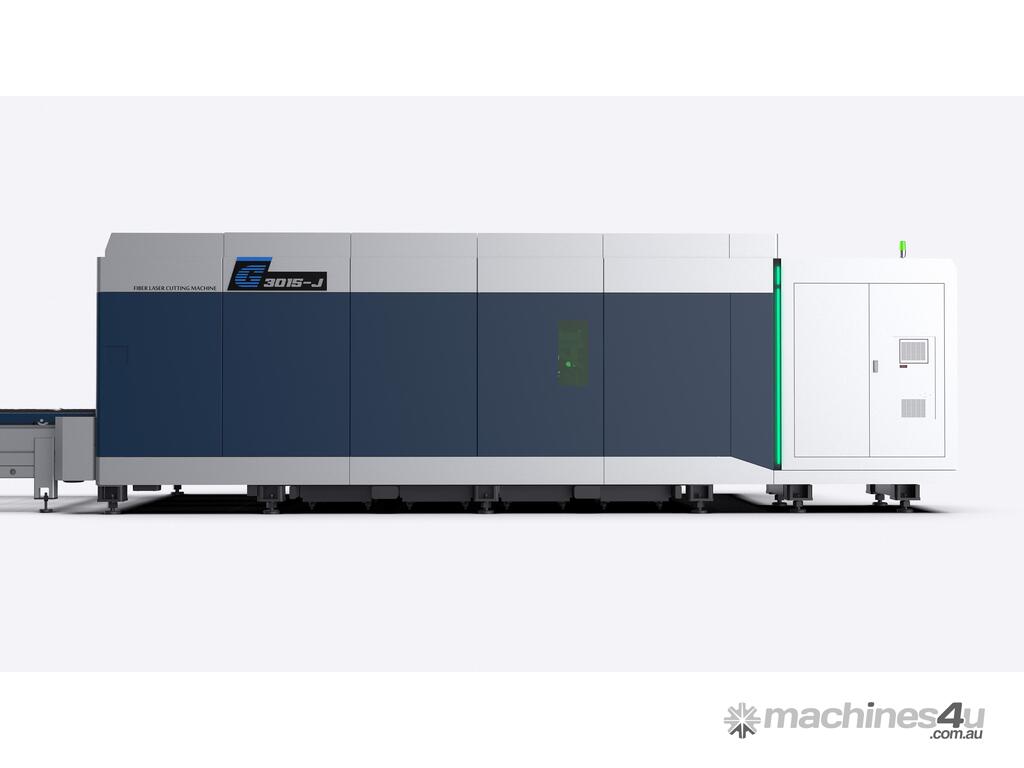

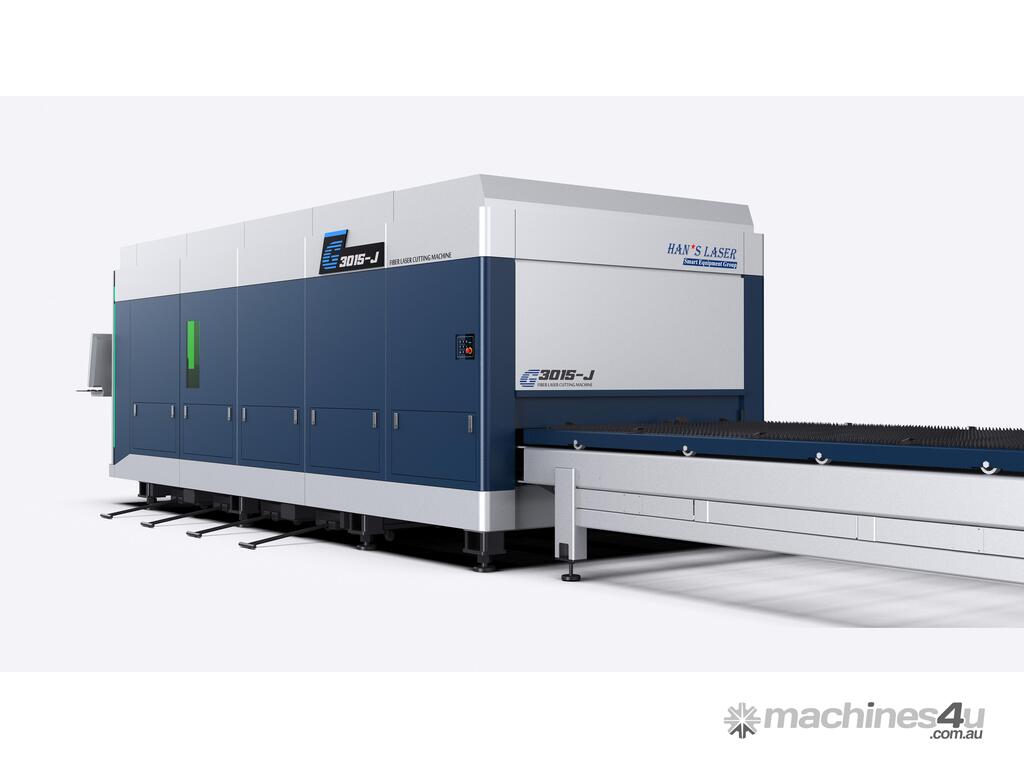

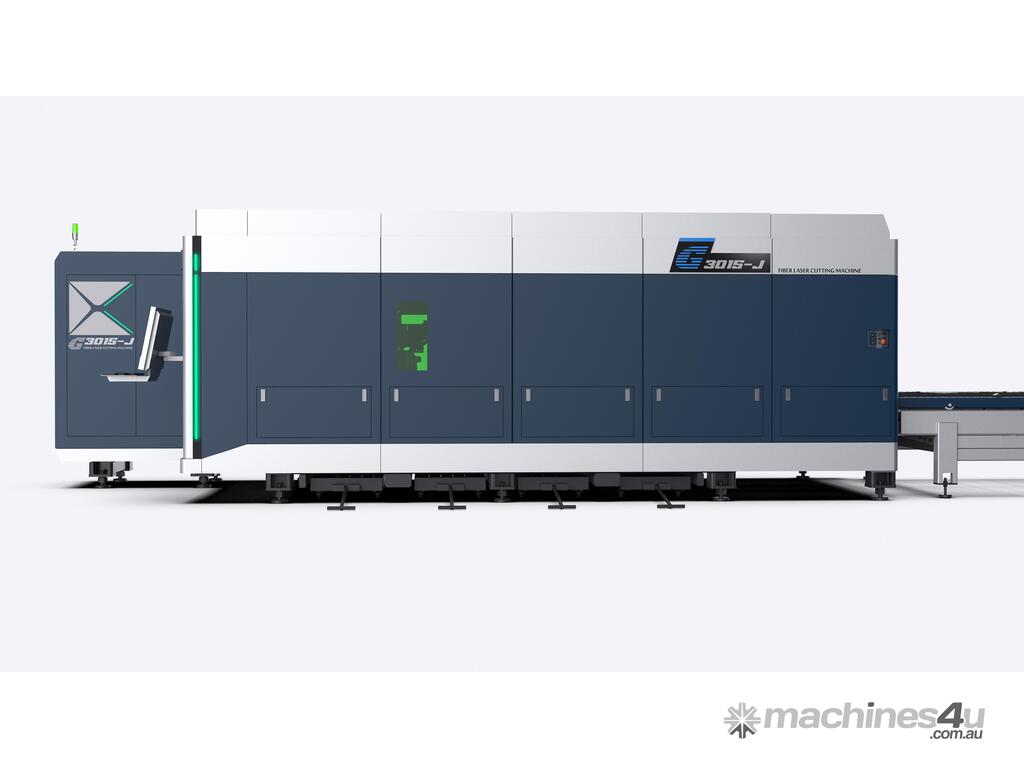

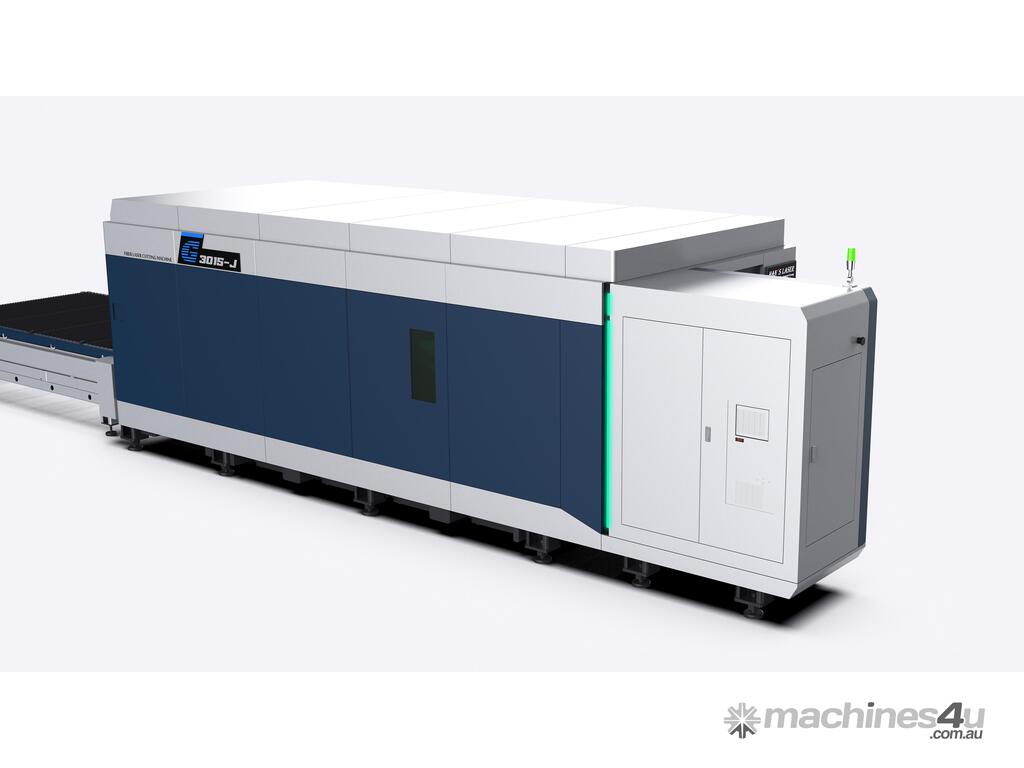

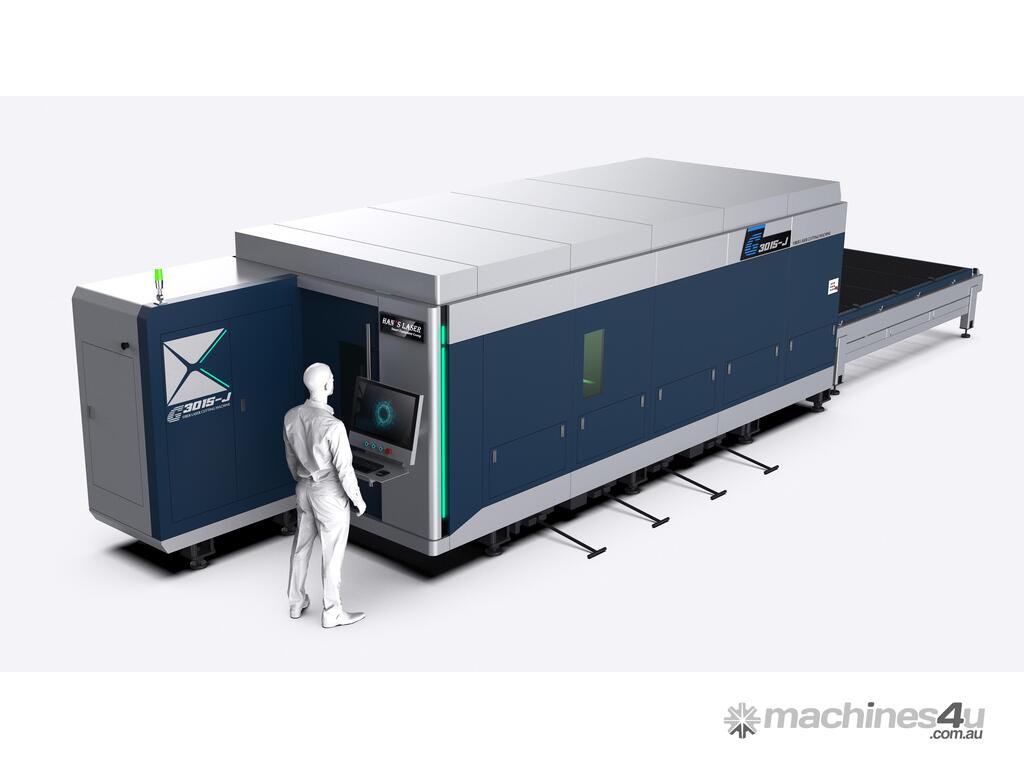

Introducing the Han's Laser J Series fiber laser.

The J Series Fiber Laser Cutting Machine adopts a gantry dual drive structure, with the overall bed body welded and annealed from carbon steel, the crossbeam is processed and formed from high-strength aluminum alloy, and heat treated for extra strength and rigidity whilst maintaining it’s lightness.

Components are processed by rough machining, vibration aging treatment, and precision machining helping to achieve extremely high form and position tolerance accuracy. In terms of transmission, it is equipped with high-efficiency transmission mechanisms, precision reducers, grinding gears and racks and high-precision linear guides which are both extremely rigid and highly accurate. This ensures the long-term stable operation of the equipment.

The J series is a true G Code machine with Han's own 1201 CNC advanced nesting System paired with your choice of either Lantek or Metalix. It is a purpose built high performance Industrial fiber laser however has maintained a fantastic price point aimed at allowing every metal shop to purchase a high end machine without having to sell the farm!

Advanced options:
- loading and unloading Automation and Sheet Storage
- Mixed Gas advanced Cutting: For burr free high speed cutting on thin mild steel an option usually reserved for only the most advanced EUROPEAN or JAPANESE machines is now available on the Han's J Series. Allowing for cooler, cleaner and faster cutting without being 100% reliant on N2.
- Upgraded Heavy Duty German Bosch Rexroth Servo motors for faster acceleration and longer service life


FEATURES:
----------------------------------------------------------------------------------------------------------------------------------:

- 3m X 1.5m working bed
- 3kW MAX Photonics Laser Source
- Han’s Laser Autofocus temperature sensing cutting head
- Full CE certified cutting enclosure
- NC Auto gas Selection (No2, O2 and Compressed Air)
- Dynamic Extraction Bays
- OD Safety Viewing windows
- Internal Monitoring Camera’s
- Dual Circuit Industrial Chiller
- Voltage Transformer and Stabaliser
- Air Conditioned Cabinet for Laser Source
- Dual Exchange tables
- Han’s 801 CNC Operating Software
- Exchange Table movement controlled from main working station
- Choice of Metalix or Lantek Advanced Nesting Software
- Safety Light Guarding to Rear Exchange table


SPECIFICATIONS:
----------------------------------------------------------------------------------------------------------------------------------

Processing Surface (L X W) 3000 mm × 1500 mm
X Axis Stroke 3030 mm
Y Axis Stroke 1520mm
Z Axis Stroke 120 mm
Positioning accuracy of X, Y and Z axles ±0.05 mm/m
Repeated positioning accuracy of X, Y and Z axles ±0.03 mm
Maximum positioning speed of X and Y axles 120m/min
X/Y Axis max Acceleration 1.6G
Dimension(L × W× H) 8050mm × 2935mm× 2070mm


See below detail brochure for further information, or alternatively call one of our friendly team to book in your DEMO today.

----------------------------------------------------------------------------------------------------------------------------------

With over 100 Fiber lasers installed in Australia and NZ the team at intermach Here at Intermach, we offer:

- FREE DEMOS of the machines we have in our showroom.

- FREE EXPERT CONSULTATIONS to help you select a machine that suits your operational and financial requirements.

- CONSISTENT AND COMPETITIVE PRICING for our machines based on their capacity.

- CONSUMABLES AND SPARES, we stock all you will ever need to keep your machine in tip top shape!

- AND A LOCAL SUPPORT TEAM OF HIGHLY EXPERIENCED ENGINEERS who are on call for swift repair of any issues that might arise with a machine.

As part of our mission statement, Intermach prioritises customer satisfaction. To that end, we have a growing wealth of references nation-wide who can attest to the high quality of our machines and service.



Phone our sales team now to book a demonstration or a consultation. We look forward to hearing from you!

----------------------------------------------------------------------------------------------------------------------------------
