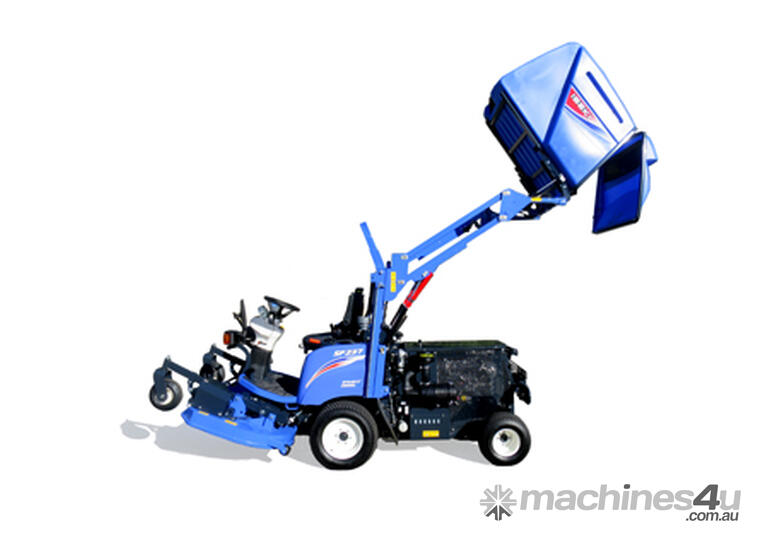

Iseki SF237 Out-Front Rotary Mower-Collector

INTRODUCING THE NEW ISEKI SF237
OUT-FRONT MOWER COLLECTOR.

This model acts as the superseding model to the popular SF235 mower, offered with a powerful Stage V compliant 35 horsepower diesel engine.

The SF range of out-front mowers are renowned for their flexibility and superior build quality, designed with a clear understanding of what commercial users want.

With a choice of cutting decks measuring 54” or 60” wide, these high performance out-front mower-collectors are designed to facilitate grass cutting in the most difficult areas.

Routine servicing and maintenance is refreshingly easy with excellent access to the engine, radiator and service points.

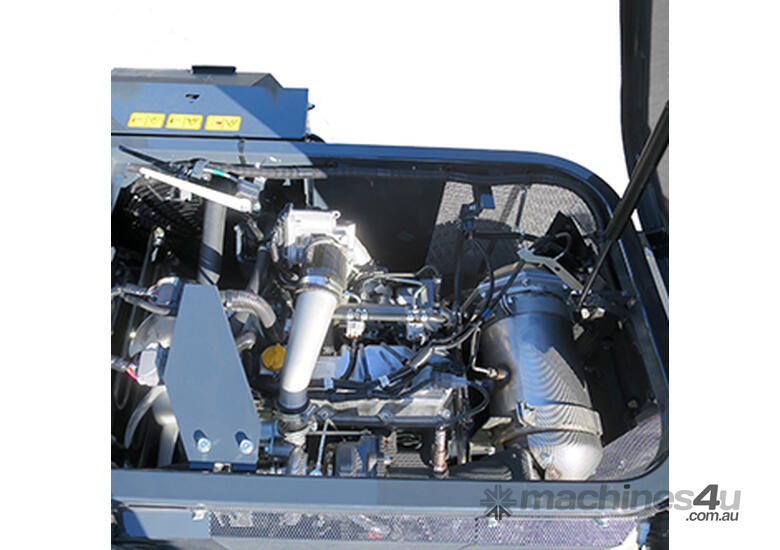

Engine
35.4 Hp Iseki engine

High torque at low revs

Incredible fuel efficiency and performance

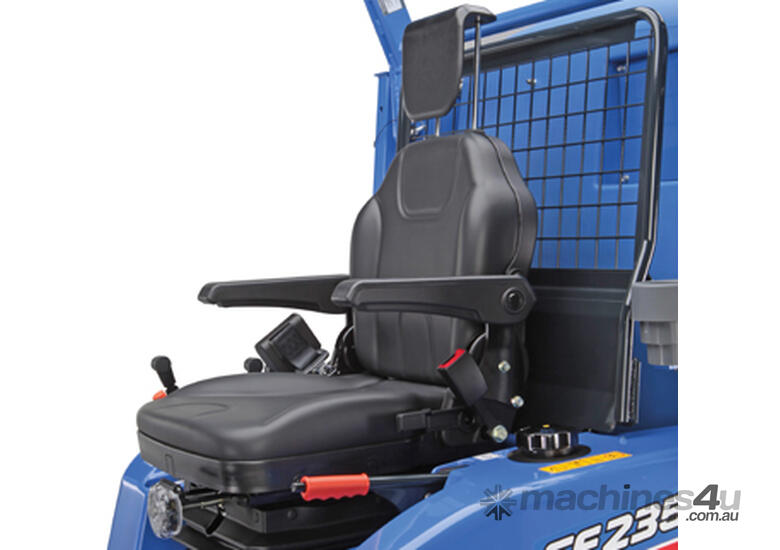

Operator’s Platform
Ergonomic layout reduces operator fatigue

Comfortable ergonomic seat

Adjustable steering column

High-dump Catcher
Large 950L turbine-driven, high-tip collector

Impressive 2.1m dumping height

Maximum performance in tough conditions

PTO Performance
Straight, strong design

Less wear and tear means greater longevity

Independent PTO control for fast, easy engagement

Options and Specifications
STAGE V ENGINE
ENGINE
Type Iseki E3FH
No. of cylinders 3
Displacement/Cyl 1836/3
Rated Power HP 35.4
Fuel capacity 40 litres
PTO
Clutch Multi Wet Disc
Max Speed 2000
TRANSMISSION
Type Hydrostatic
STEERING Power Steering
GROUND SPEED
Forward 15 km/h
Reverse 10 km/h
4WD Auto or 4WD
BRAKES Dry drum
TYRES
Type Turf
Front 23 x 10.50 – 12
Rear 18 x 8.5 – 8
DIMENSIONS
Length 2790mm
Wheelbase 1325mm
Height 2120mm
Weight 1060kg

MOWER DECK SCMB60
Type Rotary rear discharge
Cutting Width 60?
No. of blades 2
Adjustment 1 action lever
Min. cutting height 2mm
MOWER DECK SCMBA54
Type Rotary rear discharge
Cutting width 54?
No. of blades 2
Adjustment 1 action lever
Min. cutting height 25mm
MOWER DECK SSM54
Type Rotary side discharge
Cutting width 54?
No. of blades 3
Adjustment Pin type
Min. cutting height 25mm
COLLECTOR SBC950
Capacity 950 litres
Blower Turbine fan
Dump & lift Hydraulic
Dump height 2100mm
