Iseki TG Series Compact Tractors TG6490H.4C

36 HP – 60 HP
Iseki TG Series sets the benchmark for compact tractors. Designed for demanding environments and high performance applications, the TG Series boast power, reliability and versatile options that make them ideal compact tractors for commercial farming, municipal councils as well as larger property owners.

Iseki TG Series compact tractors are available with the choice of 3 or 4 cylinder engines that combine efficiency with high torque at low revs. Fingertip power shuttle controls make loader work easy and fast and Iseki’s 1780kg three point linkage lift capacity means the TG is a versatile workhorse capable of handling a range of implement attachments.

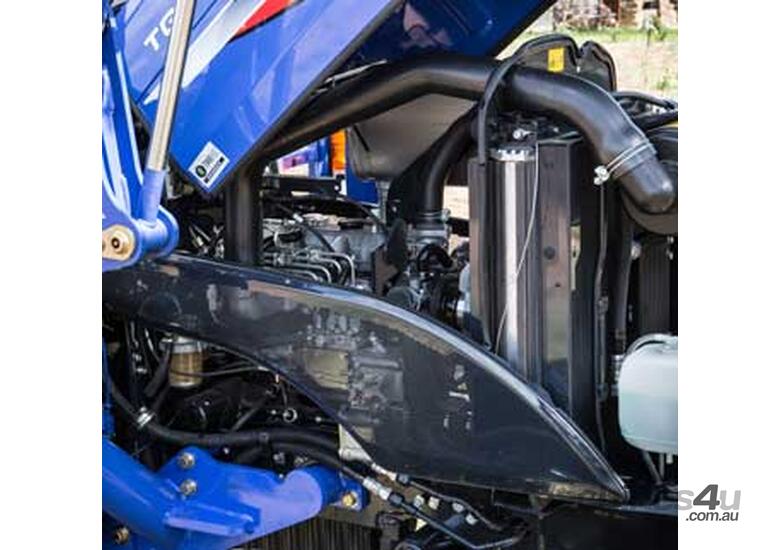

3 or 4 Cylinder Engines
Quiet and efficient
Full power at low revs
Easy maintenance access

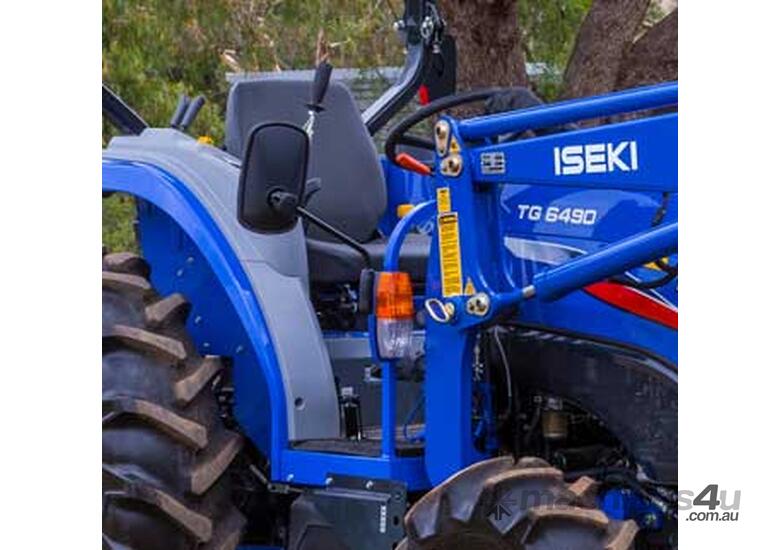

Operator’s Platform
Rubber mounts isolate vibration
Ergonomically located controls
Comfortable design seats

Hydrostatic Transmission
Three range transmission
Single forward/reverse pedals with shuttle lever
4WD & diff lock

Hydraulics & Linkage
Two rear and two mid-mounted remotes
Up to 48.6 l/m hydraulic flow
Up to 1780KG three point linkage lift capacity

Model TG6370P.4R TG6400H.4R TG6400H.4C TG6490H.4C TG6490P.4R TG6490P.4C TG5570.4R TG5570.4C
Platform ROPS ROPS CAB CAB ROPS CAB ROPS CAB
ENGINE
Displacement/Cyl 1647cc/3 1498cc/3 1498/3 2197/4 2197/4 2197/4 2995/4 2995/4
Rated Power Kw/HP 26.6/35.7 28.7/38.5 28.7/38.5 35.1/47.1 35.1/47.1 35.1/47.1 44.1/60 44.1/60
PTO
Type Independent Independent Independent Independent Independent Independent Independent Independent
Speeds Rear/Mid 540/1000 540/1000
TRANSMISSION
Type 4-Speed Synchronised Mesh Hydrostatic 3/3 Hydrostatic 3/3 Hydrostatic 3/3 4 -Speed Synchronised Mesh 4 -Speed Synchronised Mesh N/A N/A
Clutch Type Dry Single N/A N/A N/A Dry Single Dry Single Pwr Shuttle Pwr Shuttle
Shuttle STD STD STD STD STD STD STD STD
HYDRAULICS
Max Flow Ltr/Min 52.4 52.4 52.4 52.4 52.4 52.4 48.6 48.6
Lift Capacity 1780 1780
Remote outlets rear 2 2
3-Point Linkage/ Capacity Cat 1/1270 KG Cat 1/1270 KG Cat 1/1270 KG Cat 1/1580 KG Cat 1/1580 KG Cat 1/1580 KG 1780 1780
Tyre Options Turf, Ag, Industrial Turf, Ag, Industrial Turf, Ag, Industrial Turf, Ag, Industrial Turf, Ag, Industrial Turf, Ag, Industrial Ag Ag
