Isuzu 8X4 Water Truck WT20000 - HP Mine spec 20,000L ROPS - Australian Made

Operator Friendly, Comfortable, and extremely easy to operate. Australian designed and built with the latest safety features, our new Isuzu water truck is ready for your next project.

Heavy duty steel 20,000 L tank constructed from 6mm plate with 10mm floor. Pressed ends, baffles and sides for greater strength. Quality paint system. Abrasive blasted to class 2.5 inside and out, with 2 pack epoxy internal tank liner and high gloss automotive exterior finish. Steel guards with mud flaps.

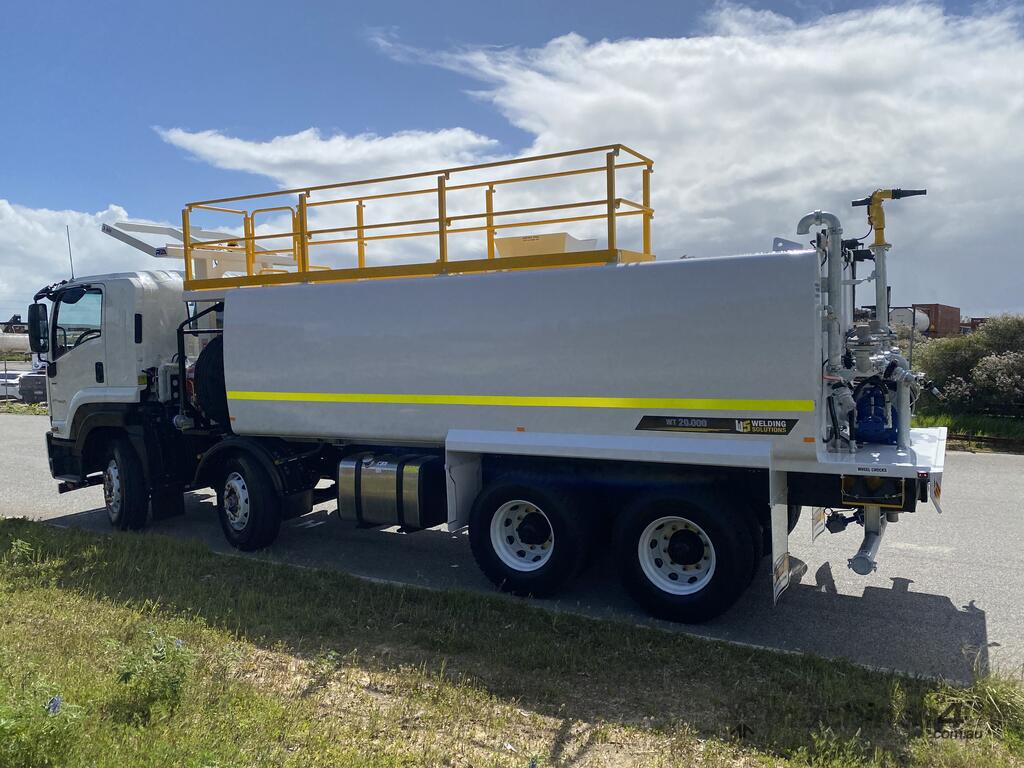

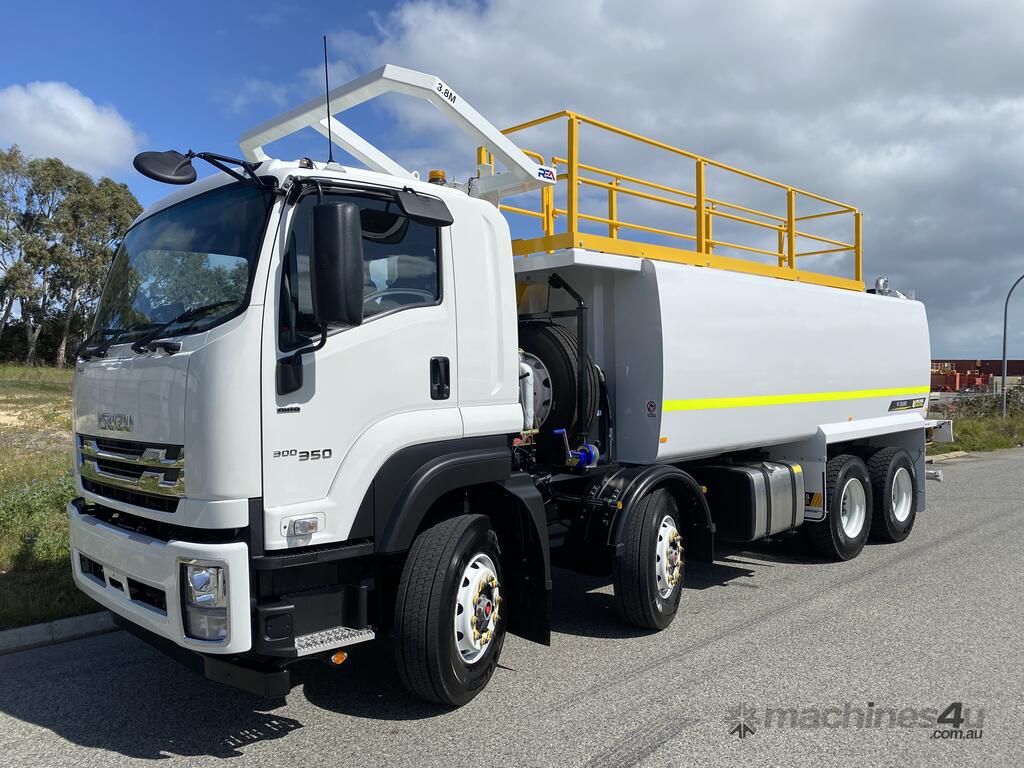

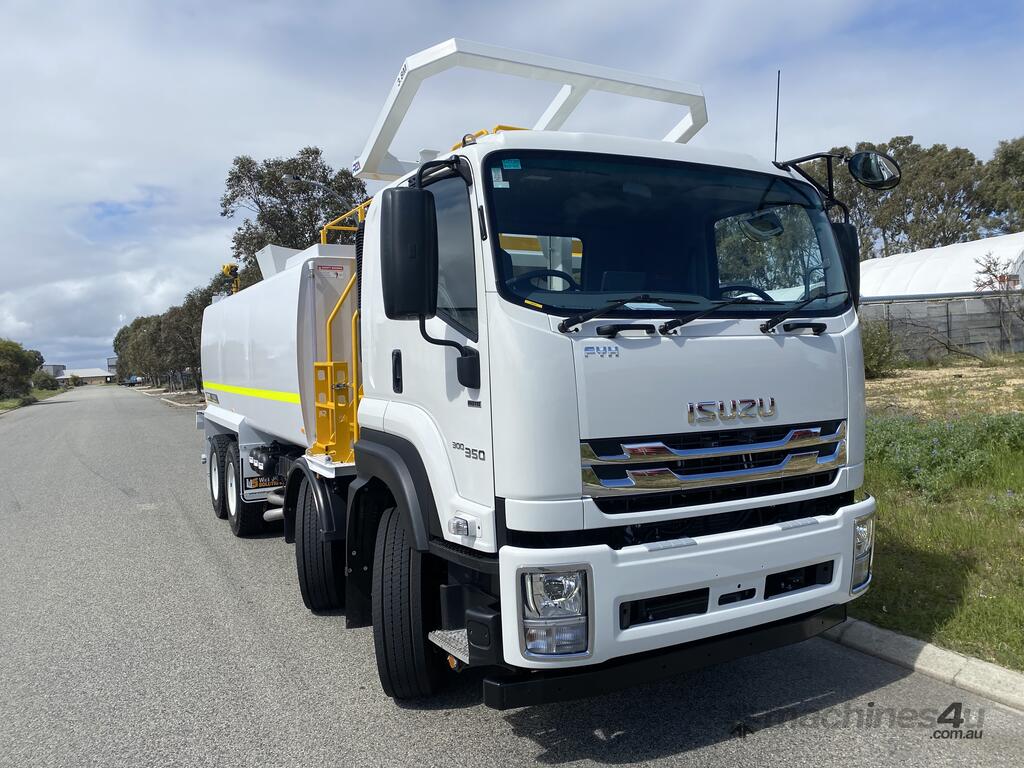

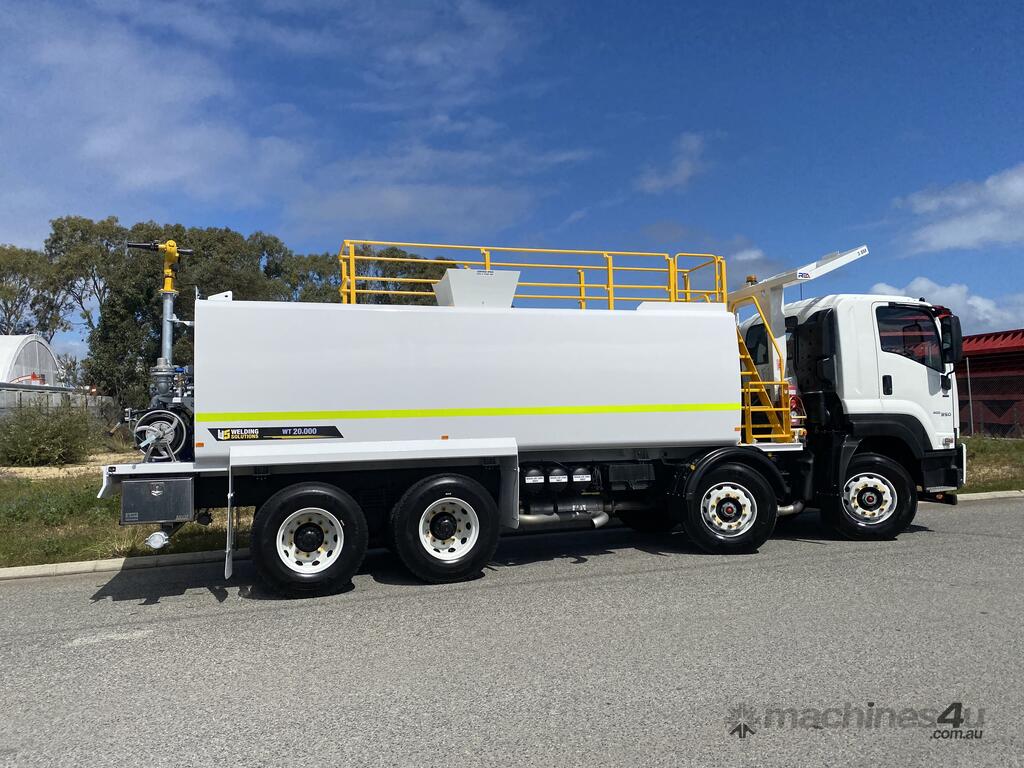

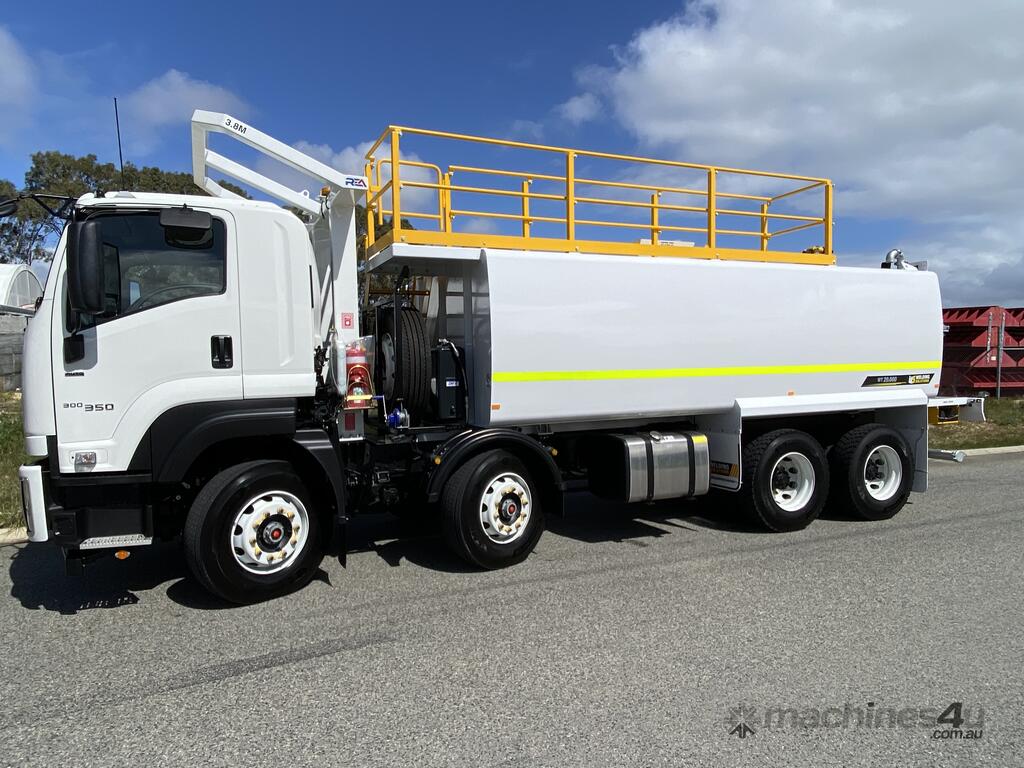

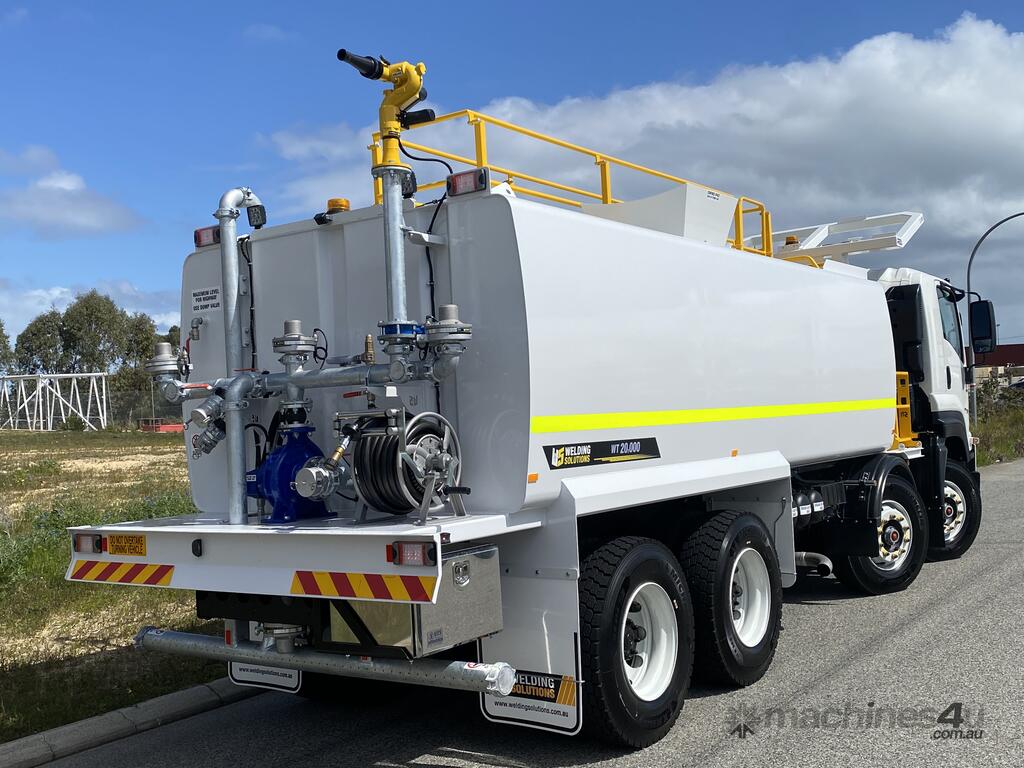

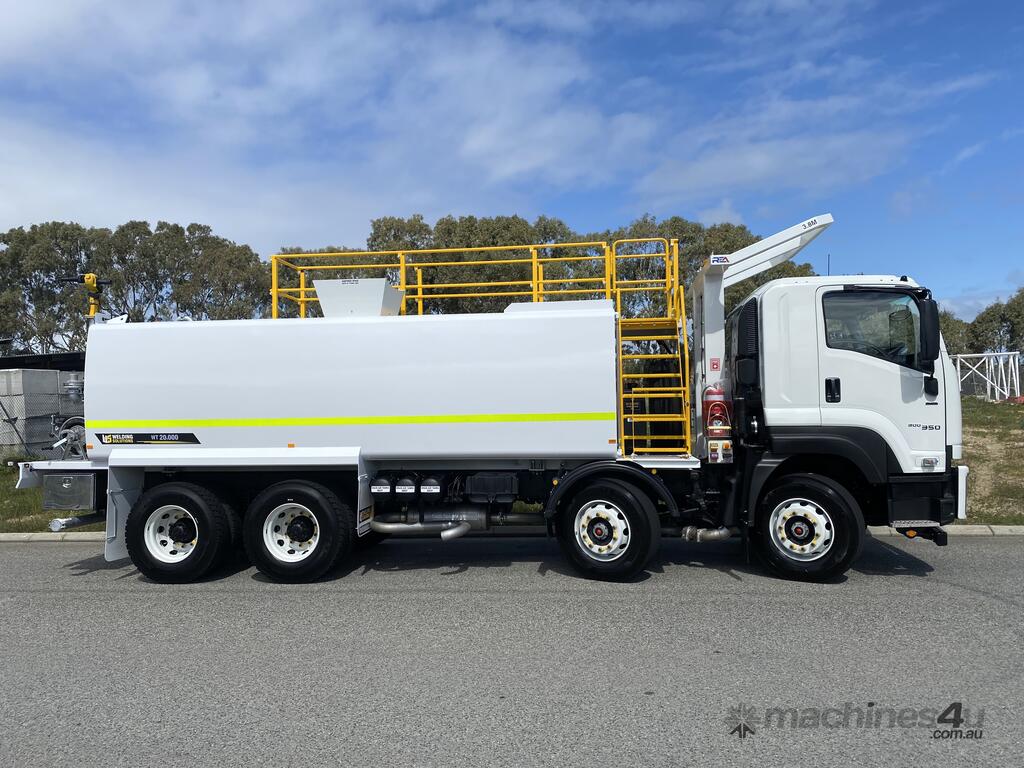

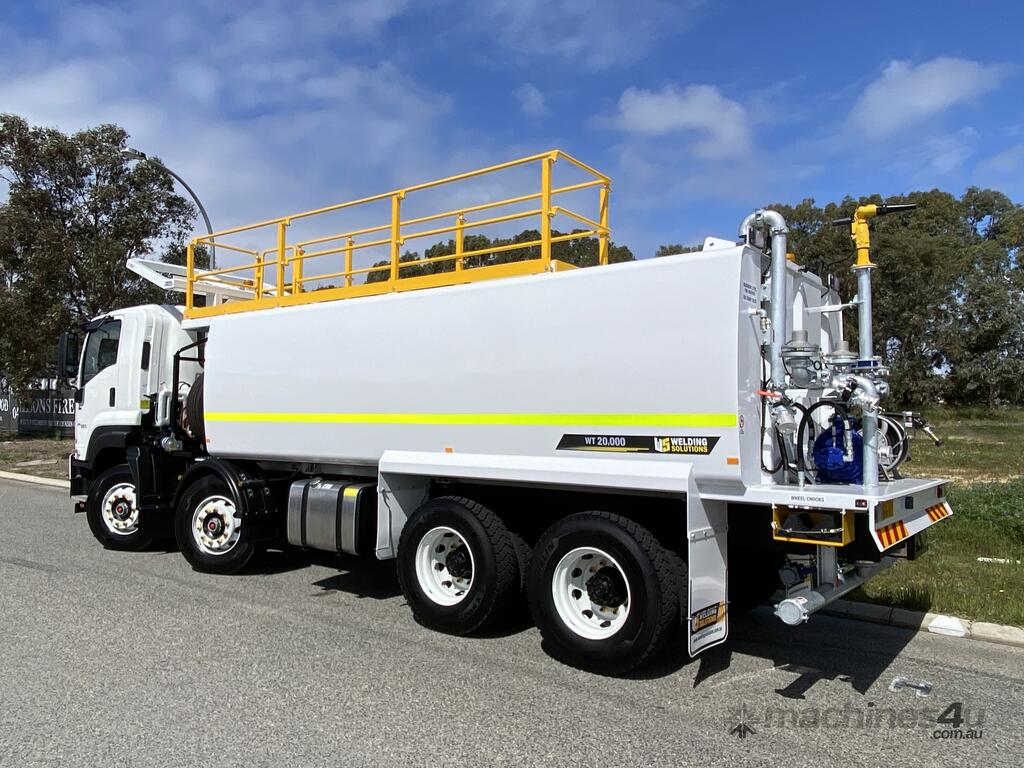

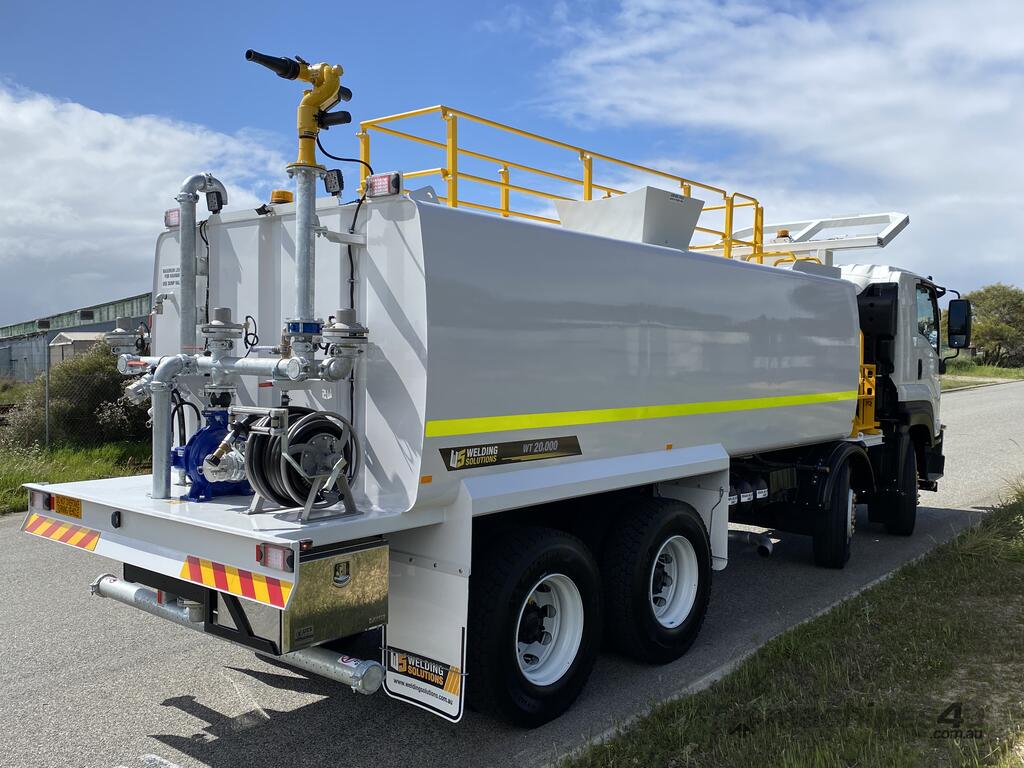

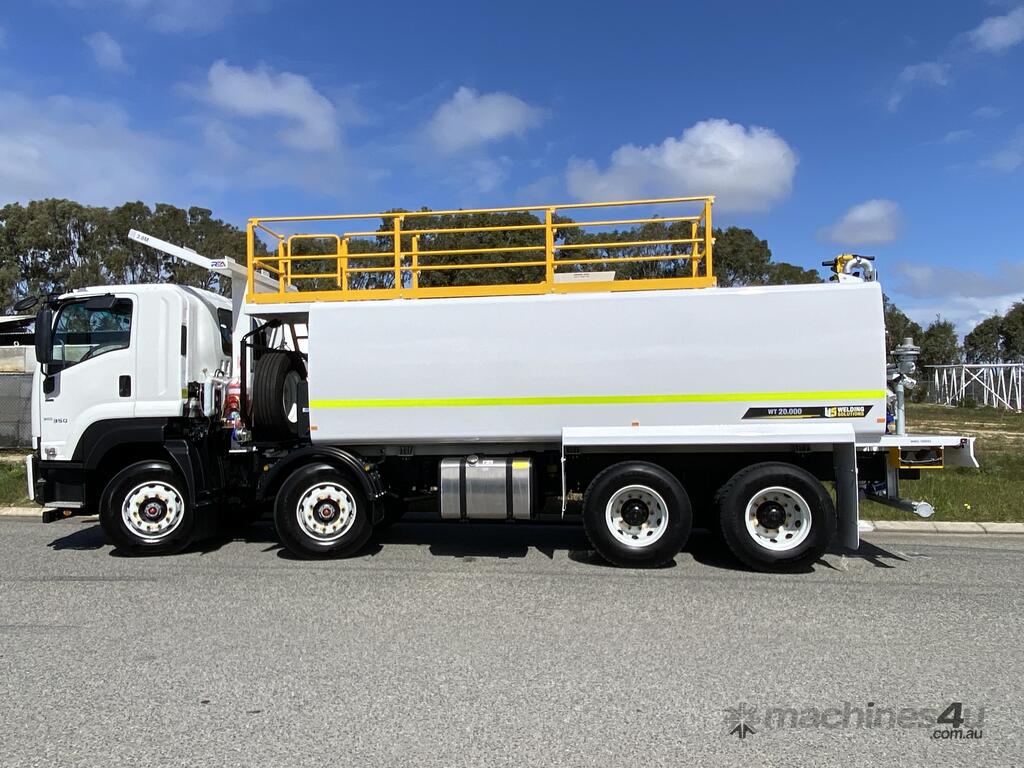

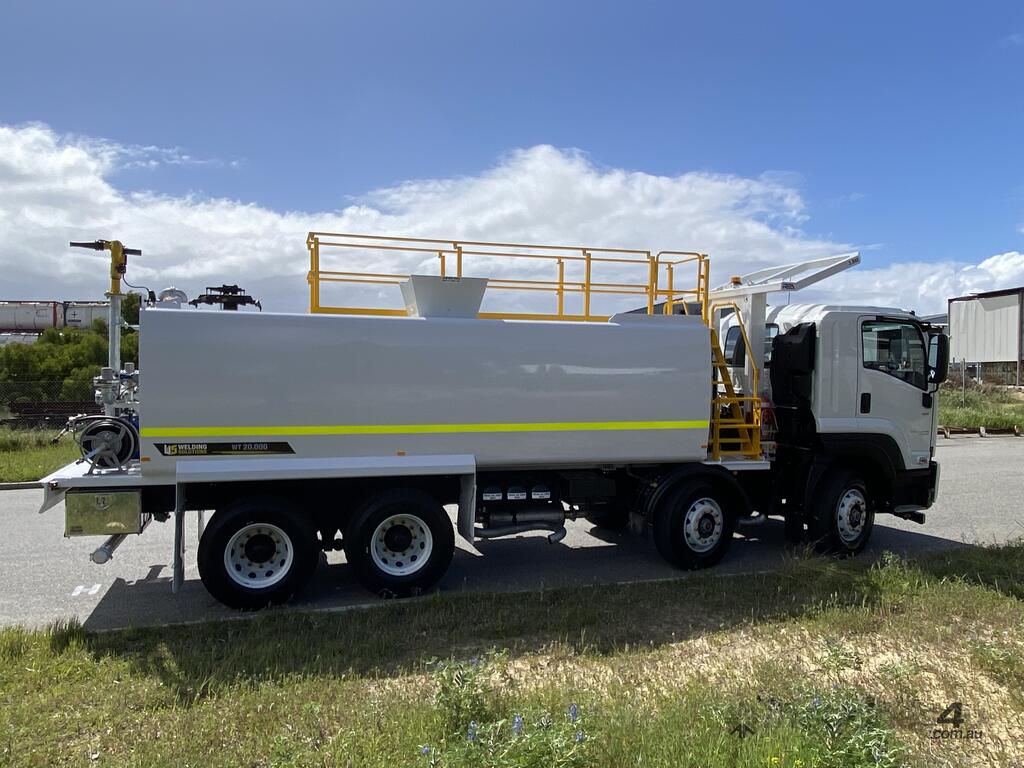

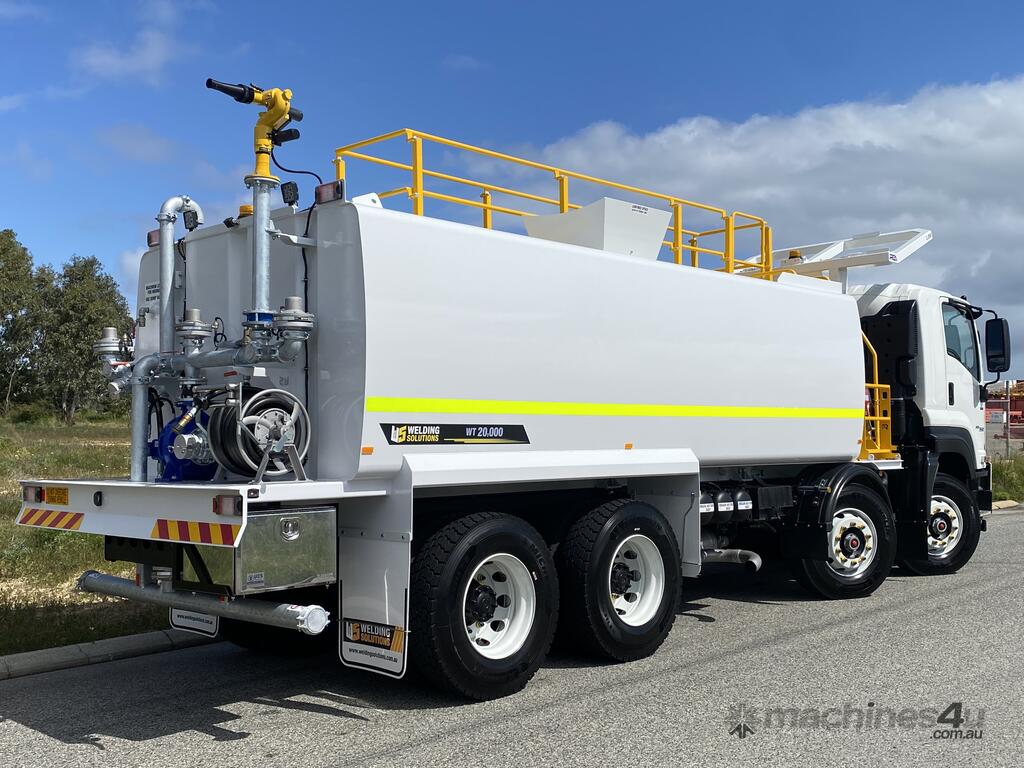

NEW ISUZU FYH 350 HP Mine spec water truck with 20,000 Litre water tank and ROPS.
Australian made to the highest standard for mining conditions.


Water Tank
• Australian made tank built strong for the mining industry.
• Steel guards with flexible mudflaps will be fitted.
• Top fill funnel for standpipe filling, fitted off centre for ease of standpipe alignment, fitted with lockable cover.
• Road legal dump valve at highway level, 1” Ball valve.
• Splash guard around the front of the water tank preventing water run off over front of tank.
• Remote gearbox breather fitted.
• Spring mounted to new 8X4 Isuzu 8X4 AUTO.

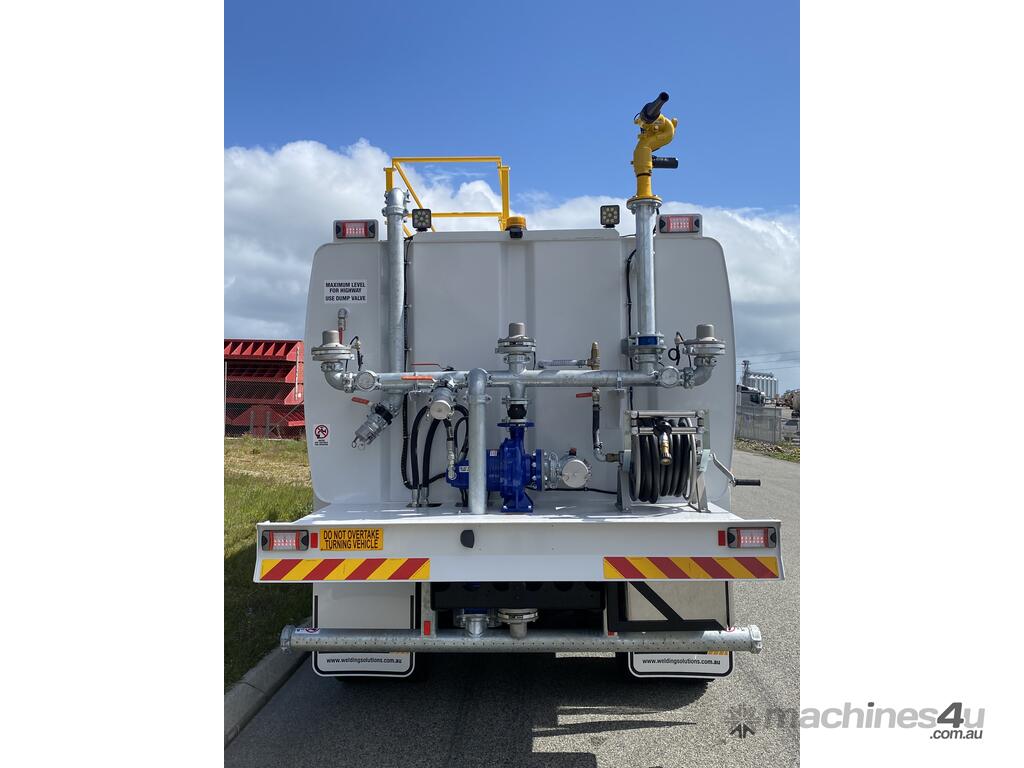

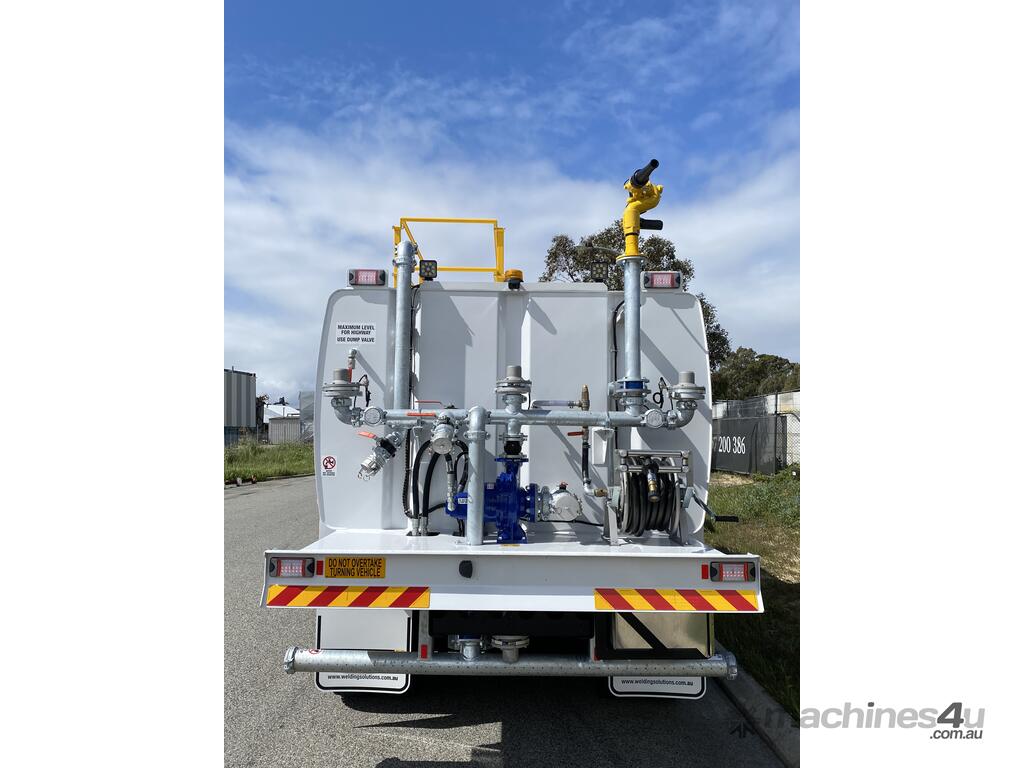

Pumping equipment and hydraulics:
• Southern Cross water pump size 100 x 65 x 250 hydraulically driven coupled, low maintenance with no coupling required.
• Hot shift PTO and pump for hydraulic circuit
• Pressure relief valve on hydraulic circuit pressure set on commissioning.
• Behind cab hydraulic tank with 200 L of 68 grade hydraulic oil with high flow spin on return filter.
• WS Heavy duty aluminium manual retractable 1” rubber hose and adjustable fire fighting nozzle.
• 3 x 3” Spray Head valves Air operated from in-cab control box. Left, Right, centre, sprays.
• Quick exhausts valves fitted to all valves for quicker action.
• 1 x 3” discharge outlet with manual valve for water transfer duties.
• 3” Rear fill point at chassis level with ball valve, cam lock fitting and cap.
• Pipe work set up with creek suction for self-filling,
• 4” Dribble bar gravity fed.

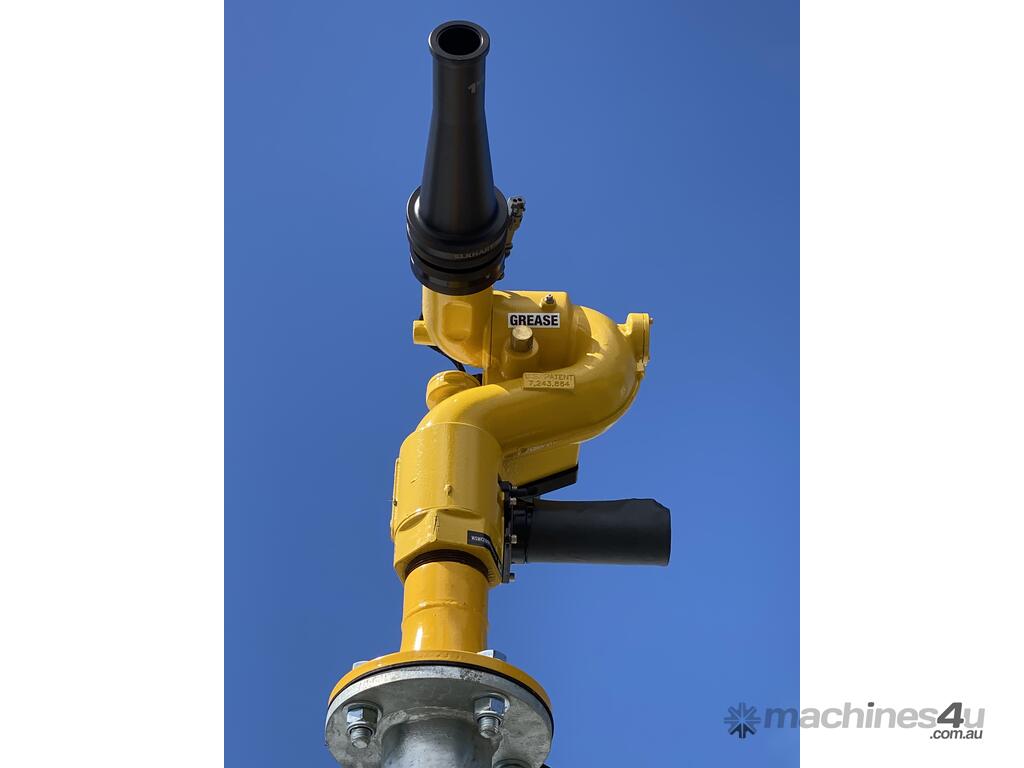

• Elkhart Brass 65 mm Nitro electric water cannon, Heavy duty swivels, made in the USA. Straight stream nozzle, Optional electric adjustable nozzle.
• Pressure relief valve on water circuit to prevent cavitation of water pump when sprays are closed.

Electrical work:
• Electrical work to mining specifications
• 4 X Hella LED tail lights to rear bumper and on top of tank,
• 2x LED work lights,
• 2 x LED amber revolving beacon, 1 on ROPS, 1 on rear top of tank.
• Reverse alarm,
• Number plate light
• Pad lockable Locksafe battery and starter isolators,
• 2 x Emergency stops, 1 inside cab 1 outside.
• Buggie whip aerial
• Side clearance lights,
• Headlight’s On kit
• Jump start receptacle

Safety:
• Safety labels around the vehicle and on the tank module for identification.

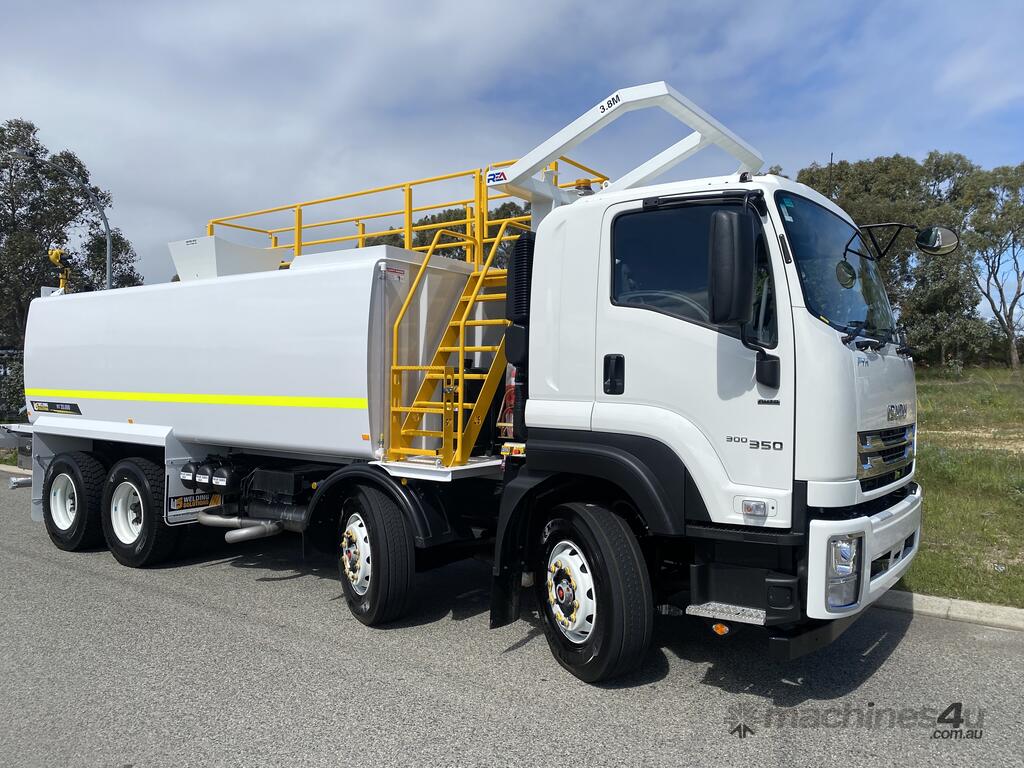

• Safety hand railing with stairway, new quick fold down system, lays down in 1 motion saving time and eliminates lost railing during mobilisations. Blasted and painted Safety yellow.
• Non slip surface to top of tank.
• Tested and tagged 2X 9 KG dry powder fire extinguisher fitted to over centre holding brackets, fitted to ROPS
• High Visibility reflective yellow tape around the vehicle 75 mm width.
• Operators and spare parts manual in cab.

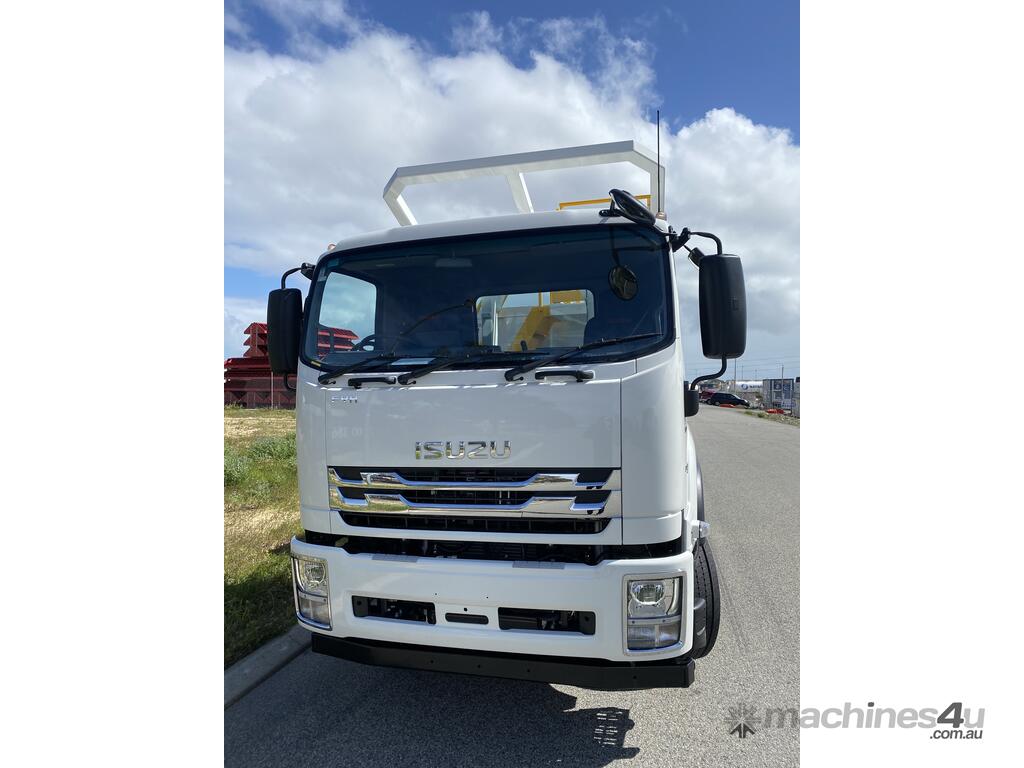

• Certified ROPS fitted
• Spare wheel carrier with 300 KG braked hand winch.
• Warranty on tank: 12 months manufacturer’s warranty on parts and labour. Excluding consumable items.

*CLICK ON THE PDF SPEC BROCHURE FOR MORE INFORMATION *

Welding Solutions is an industry leader in water truck manufacturing due to our high-quality innovative designs. We supply to Australia’s largest Mining, Civil and Plant Hire companies.

Our water trucks are manufactured in Australia at our fabrication facility in Bibra lake WA. Postproduction our water trucks undergo stringent testing to ensure they can operate efficiently in the harshest of Australian conditions.
We can supply a turnkey water truck package ready to go or we can manufacture to suit specific client requirements.
