Italian Made Drill and Dowel Insertion Machine

Name: Italian Made Drill and Dowel Insertion Machine
Brand: omal
SKU: 667413
Availability: InStock

INGLEBURN, NSW

Play Video

Contact this seller for accurate pricing

Finance Repayment Calculator

Get a quote from our independent finance provider

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Dowel Inserter

Make:

OMAL

Model:

INSERT 1300

Year:

Not specified

Member Since: May 2019

Platinum Member

Listings: 185

Description

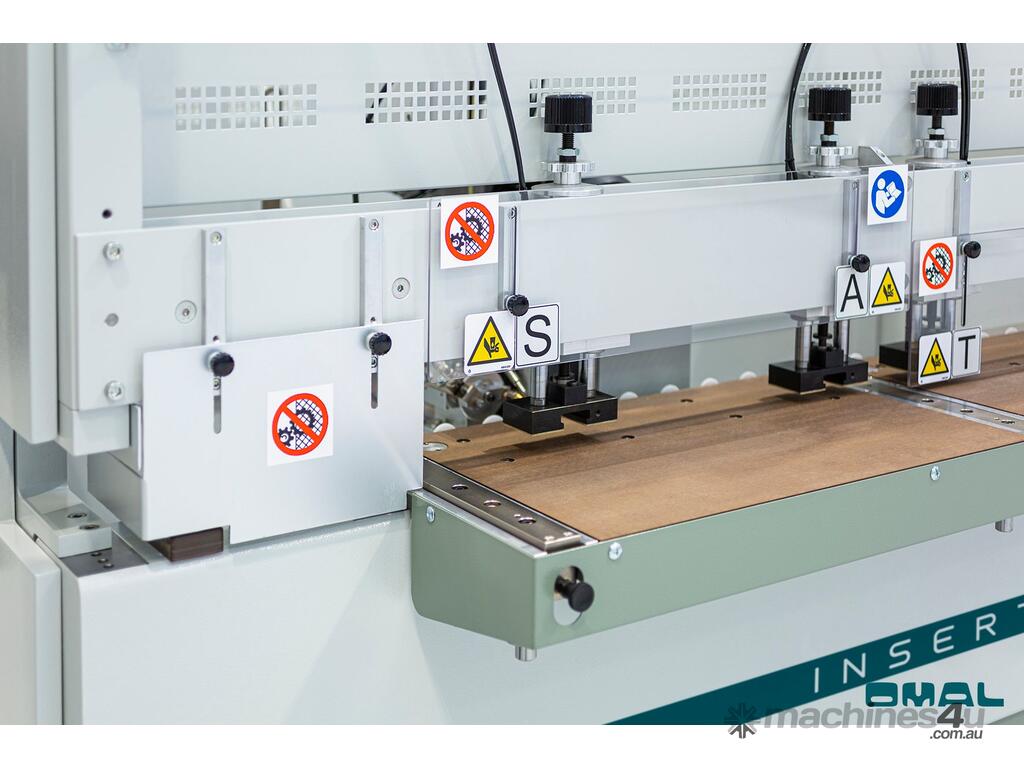

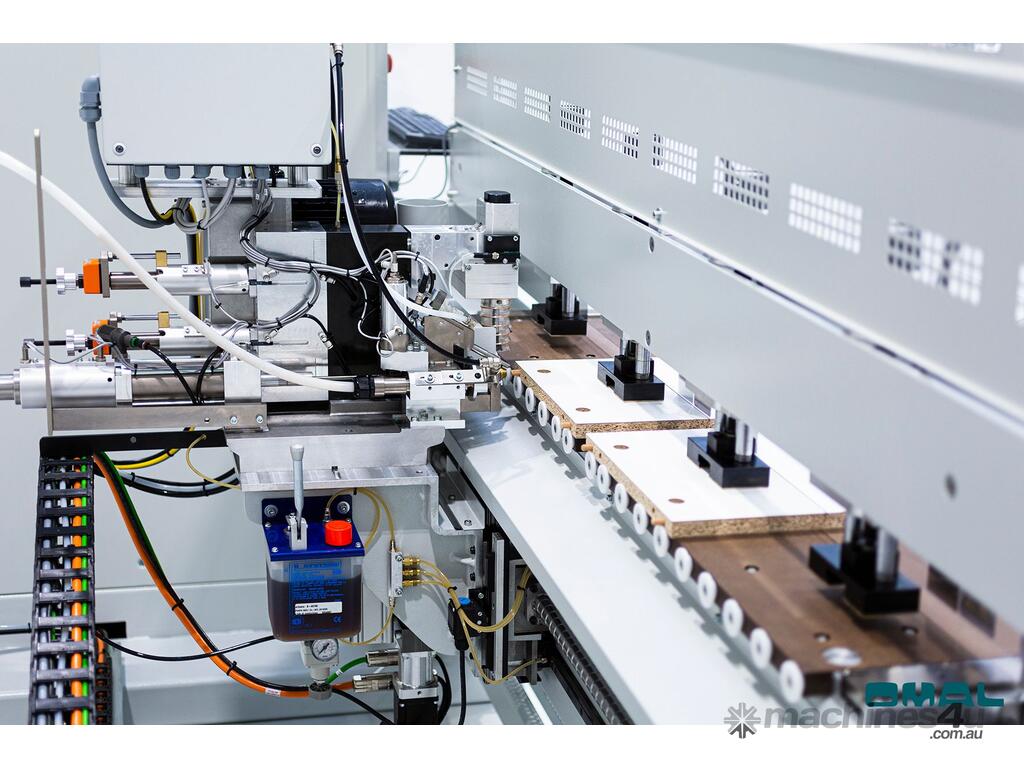

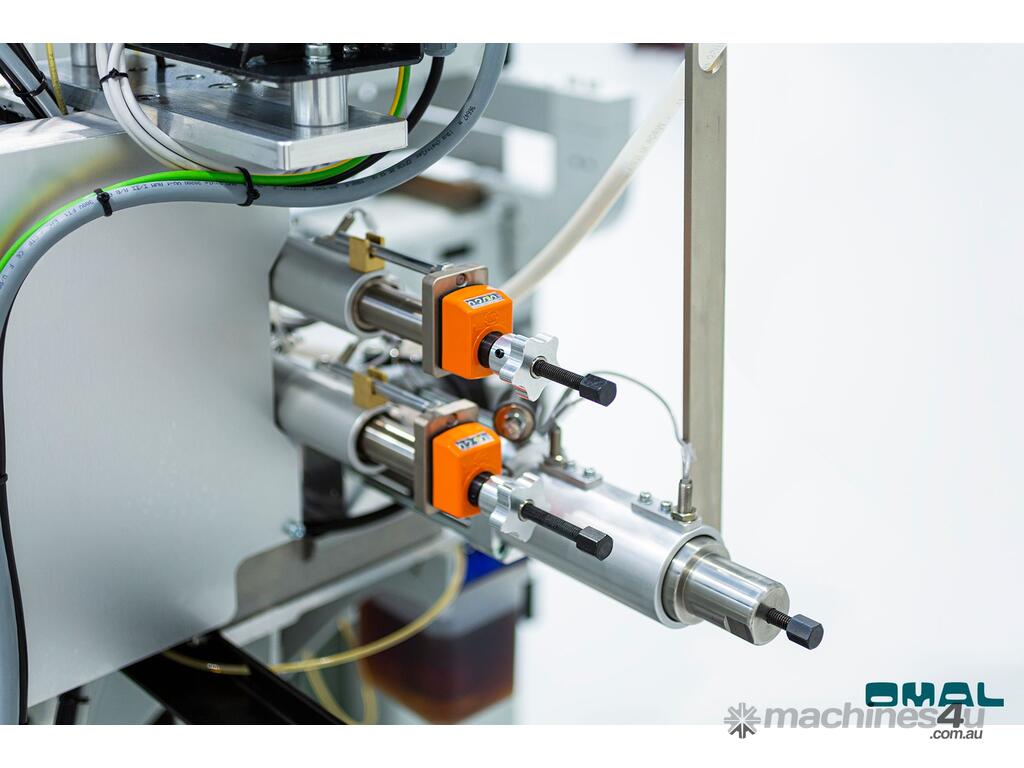

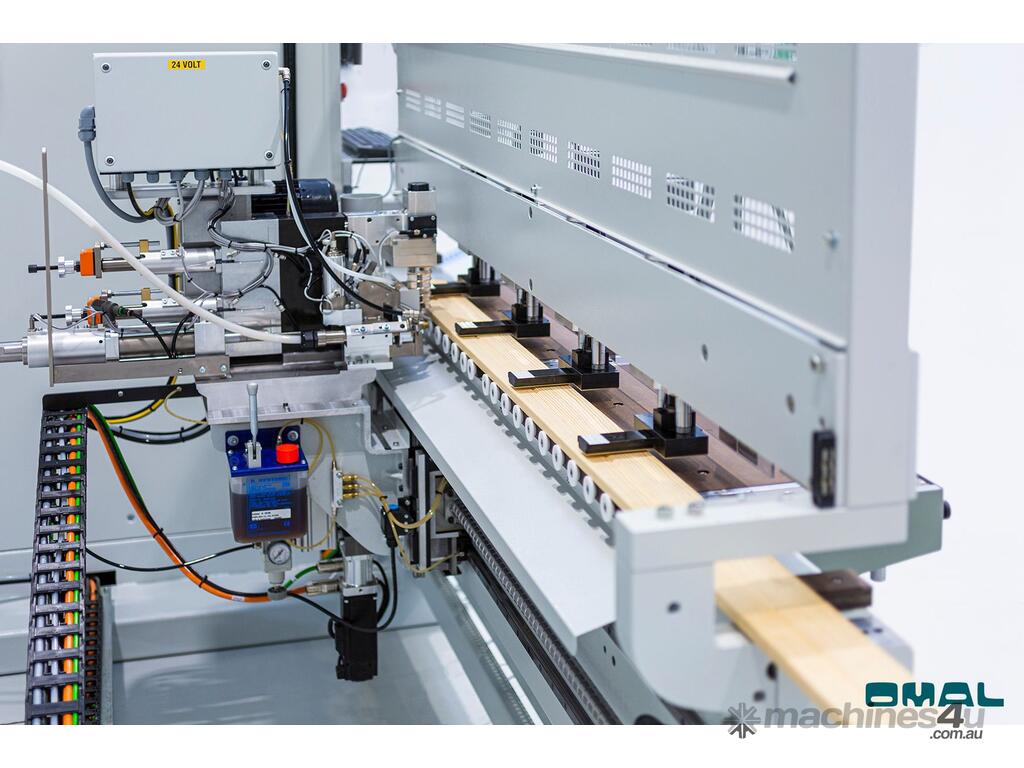

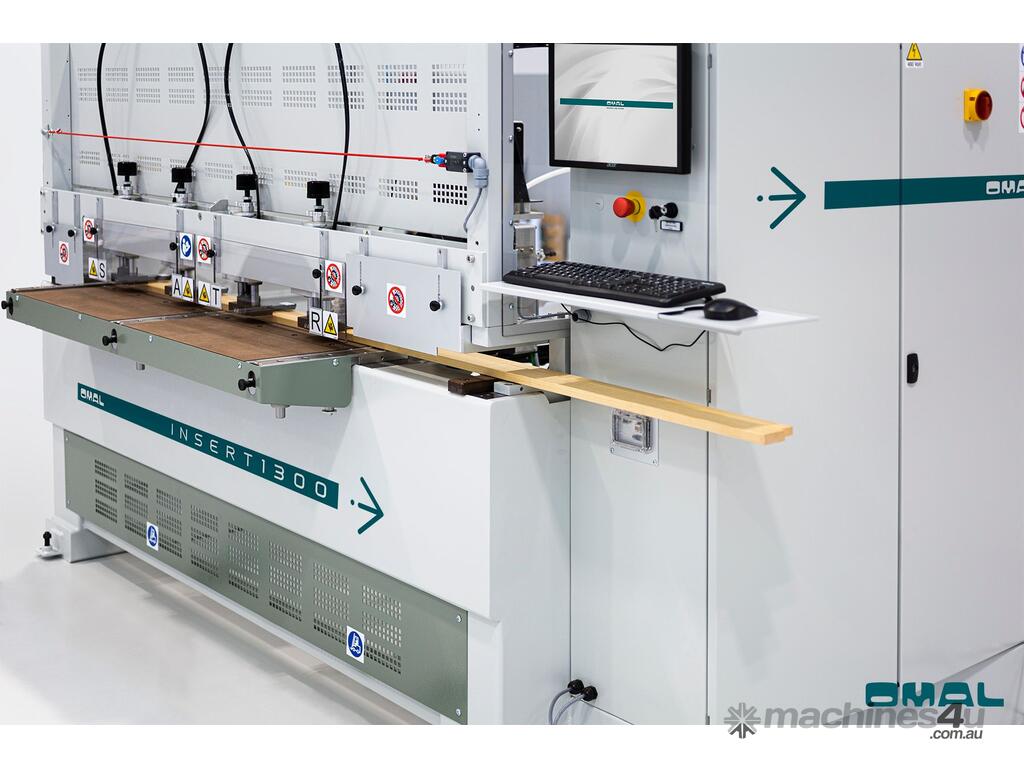

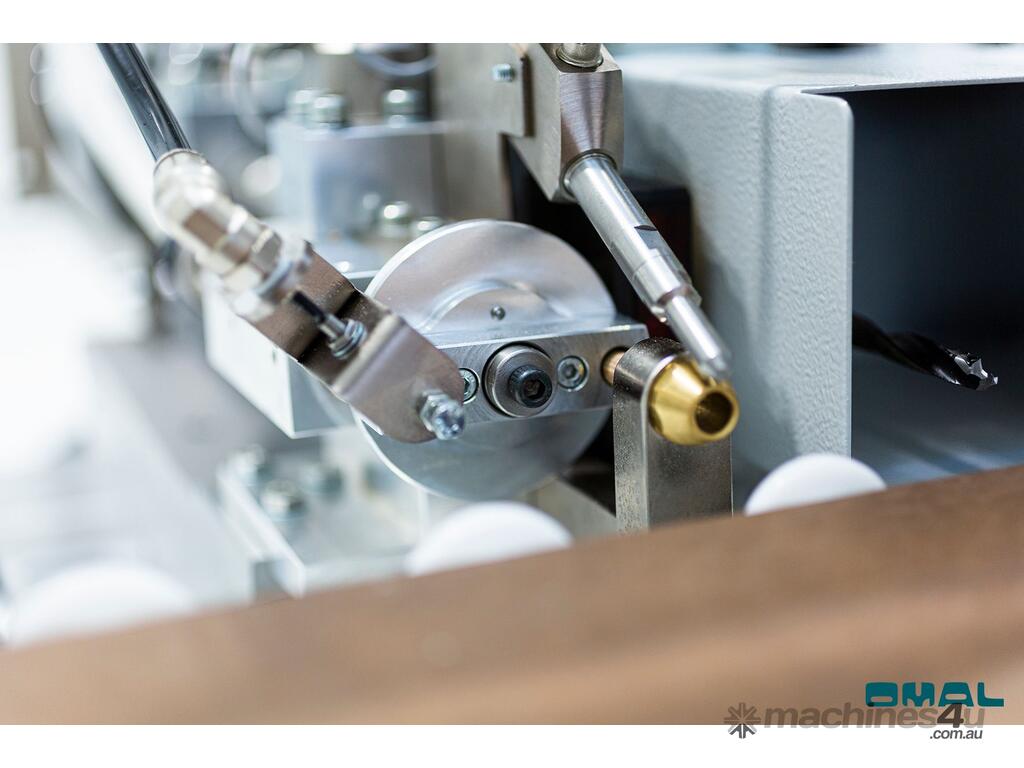

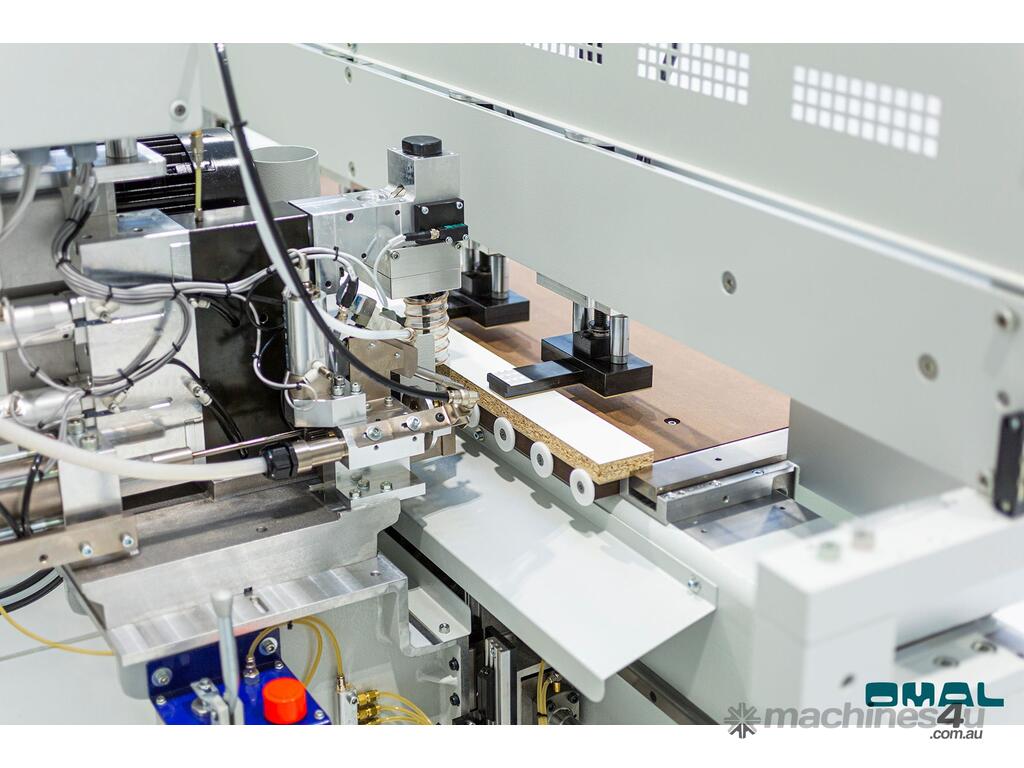

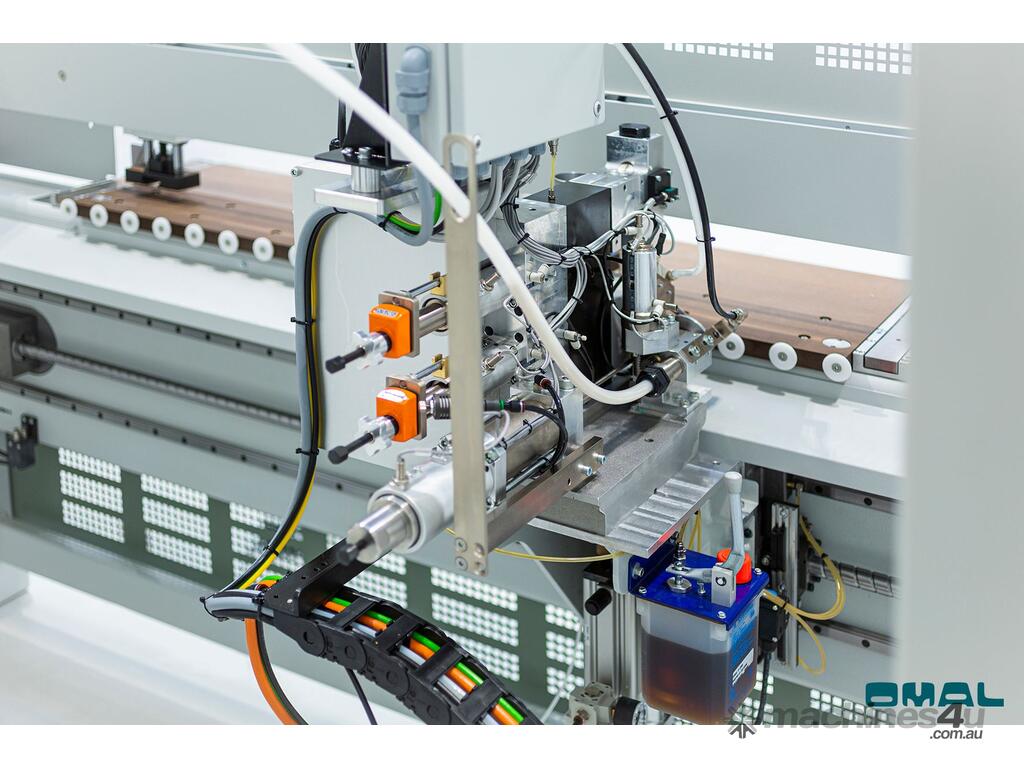

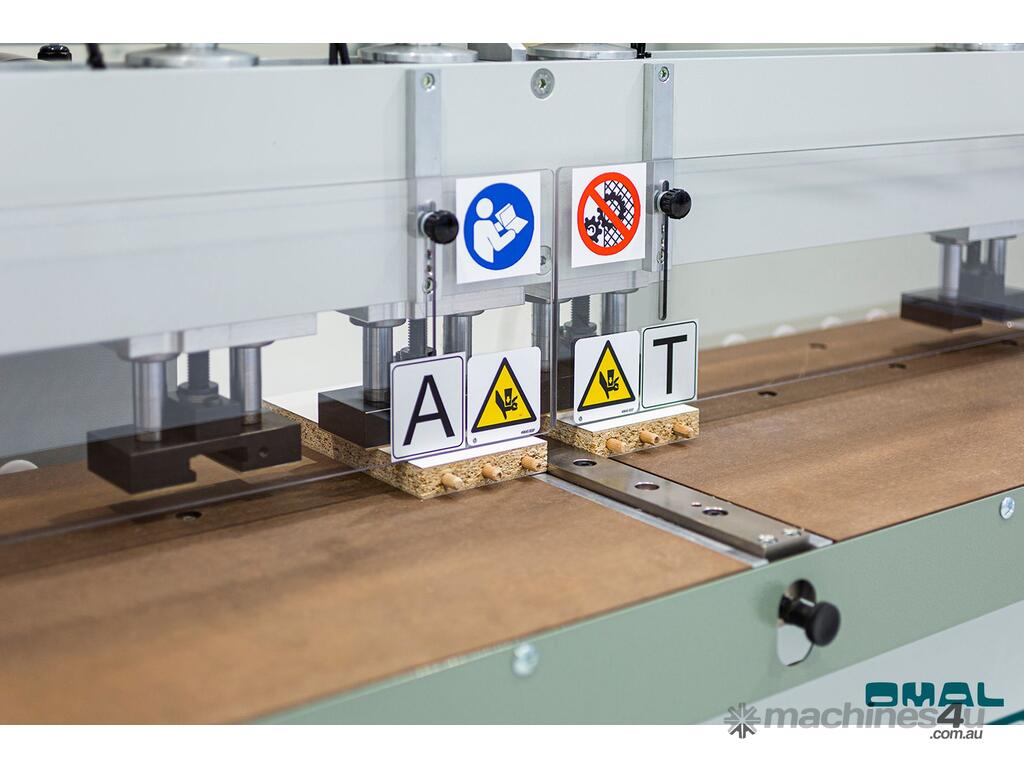

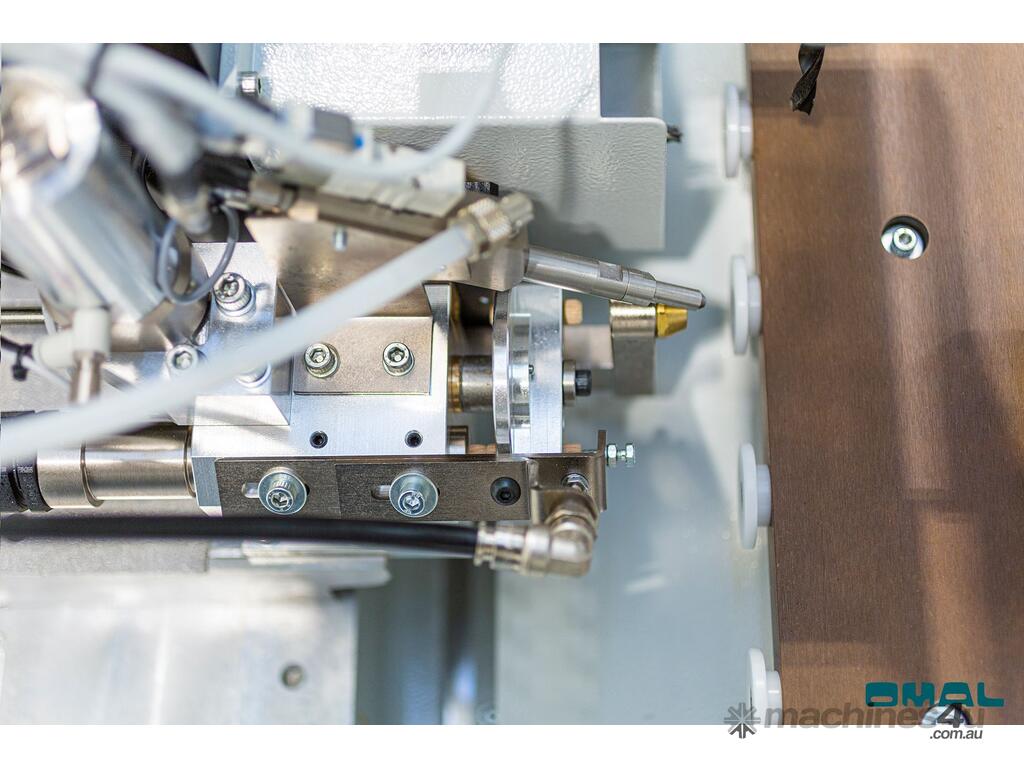

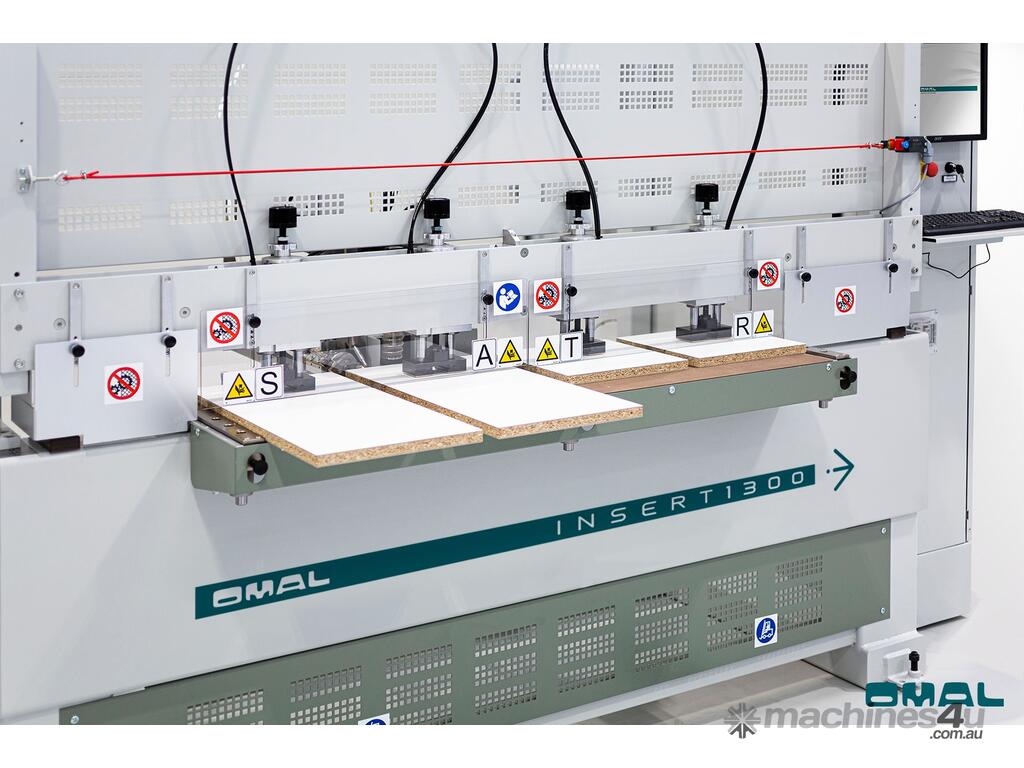

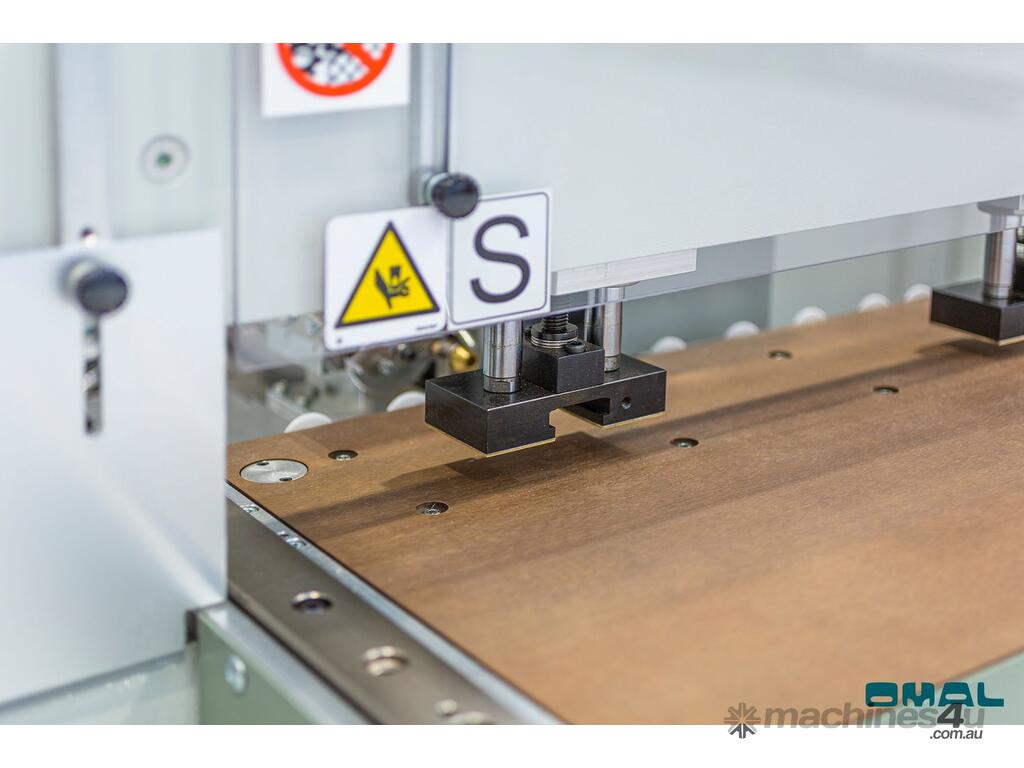

CNC controlled machine designed to flexibly and efficiently bore, glue and dowel panel and solid wood pieces.

The machine has a 1300 mm working field divided in two zones 650 each with up to 4 independent zones and pendulum processing. Full PC based with extremely user friendly interface. A large variety of possible options can be added to the basic composition to accommodate many production requirements including face drilling, hinge drilling, drilling for hardware like the Rafix and Minifix, pocket screwing, grooving, horizontal and vertical routing, etc.

Advantages of the Insert 1300:
- Increased efficiency with high speed of working cycle and flexibility;
- CNC drilling and dowel insertion with perfect accuracy eliminating any possible mistake;
- Easiness of assembling;
- Ideal solution for just in time production or large batches thanks to the minimum cycle time;
- Zero set up time and possibility to work with different boring pattern in different fields;
- Thanks to the different options available, it is possible to concentrate different edge machining operations on the same
single side machine.

Technical Data:
Panel length: 20 - 1300mm
Panel width: 50mm +
Panel thickness: 10-40 mm
Installed power: 5 KW
Compressed air (bar): min 7
Dust extraction hood: 60 mm (+ 80 mm only with vertical drilling)
Total weight: 1100kg

Please contact us with any queries or for a quote
