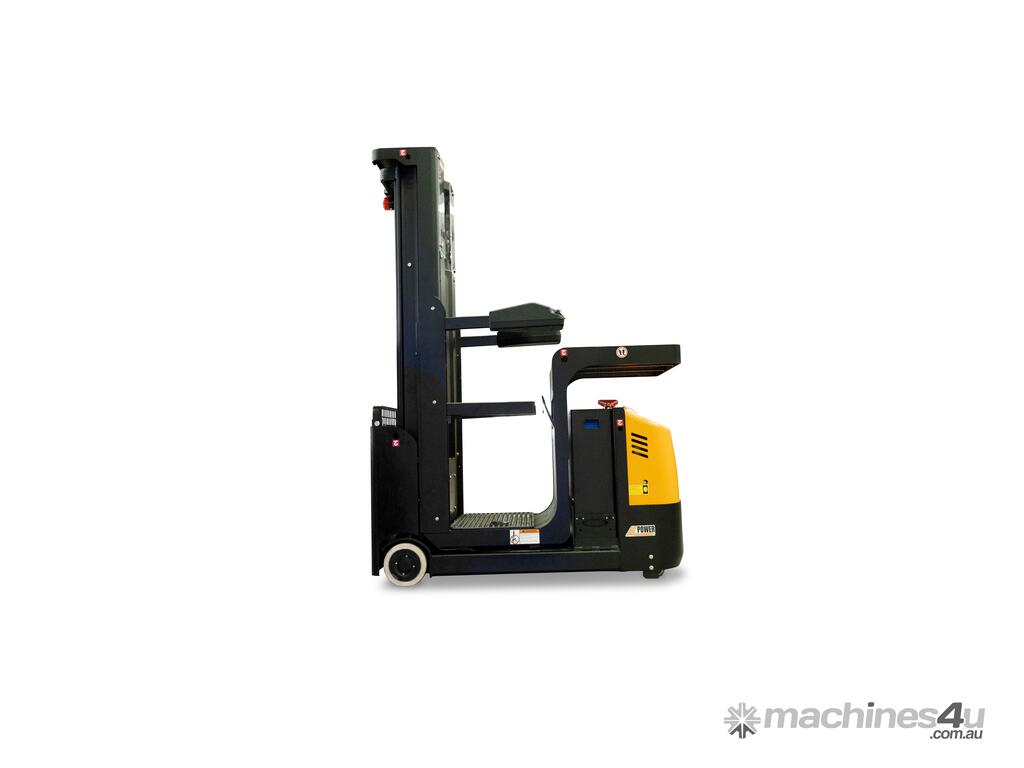

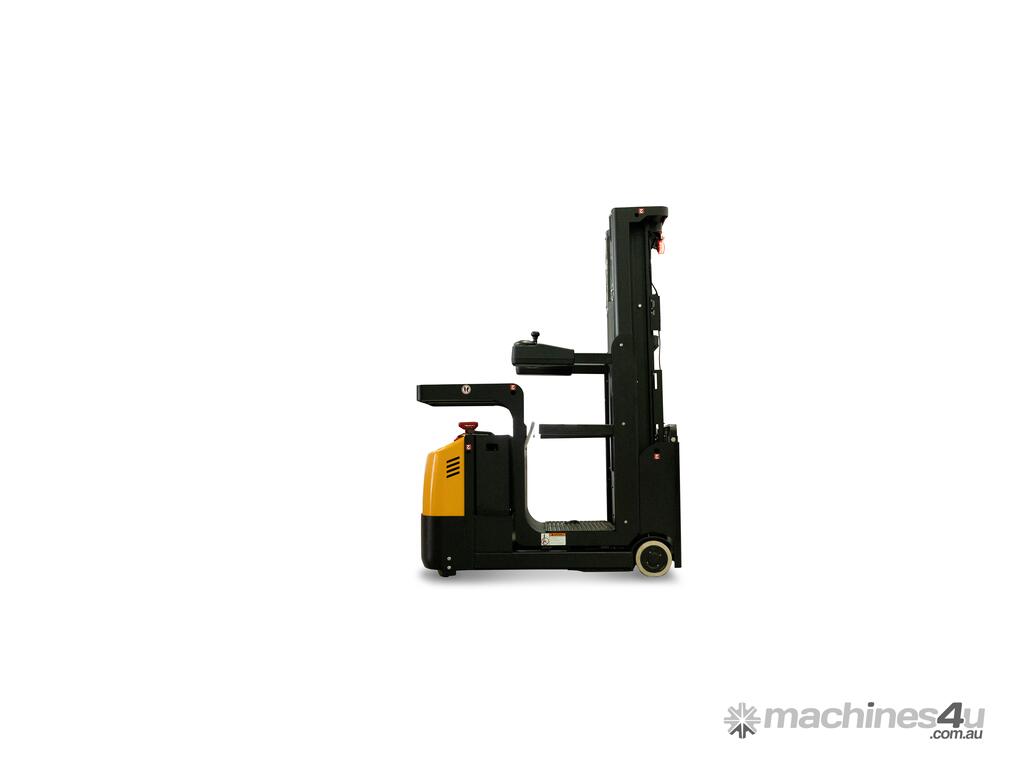

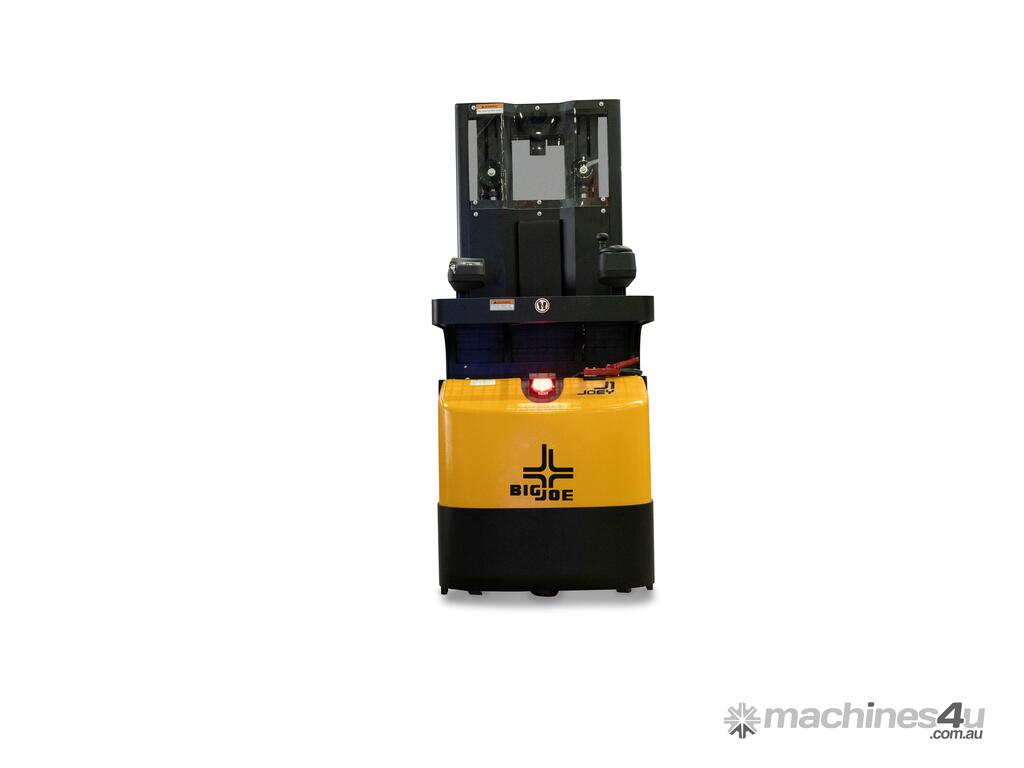

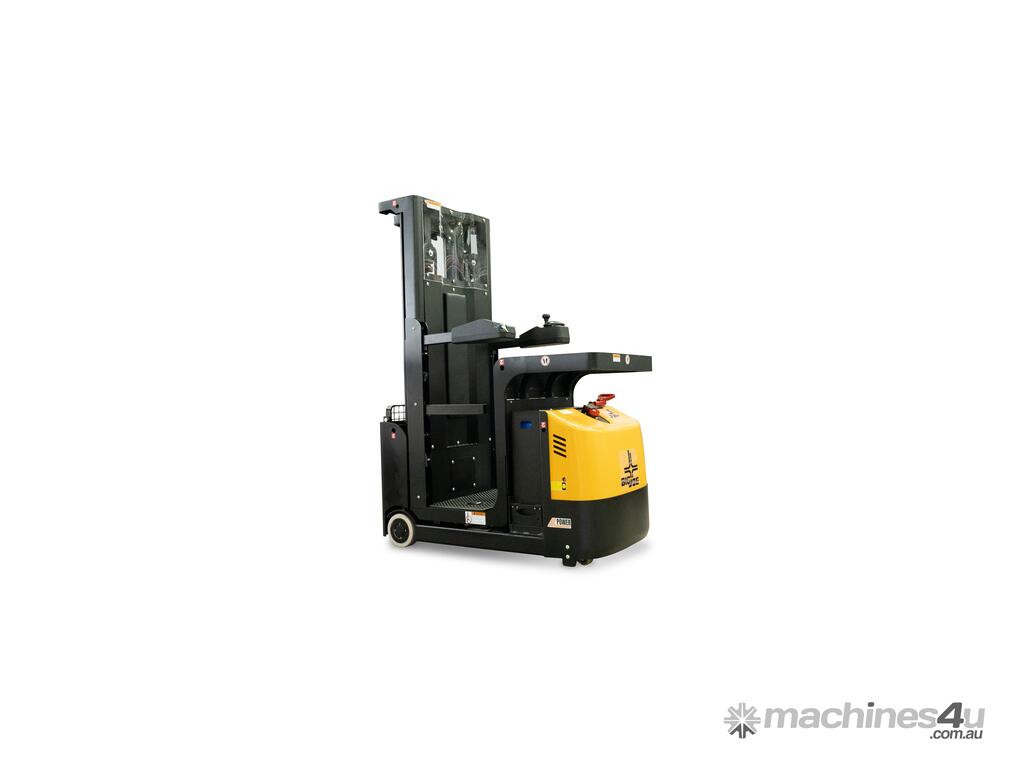

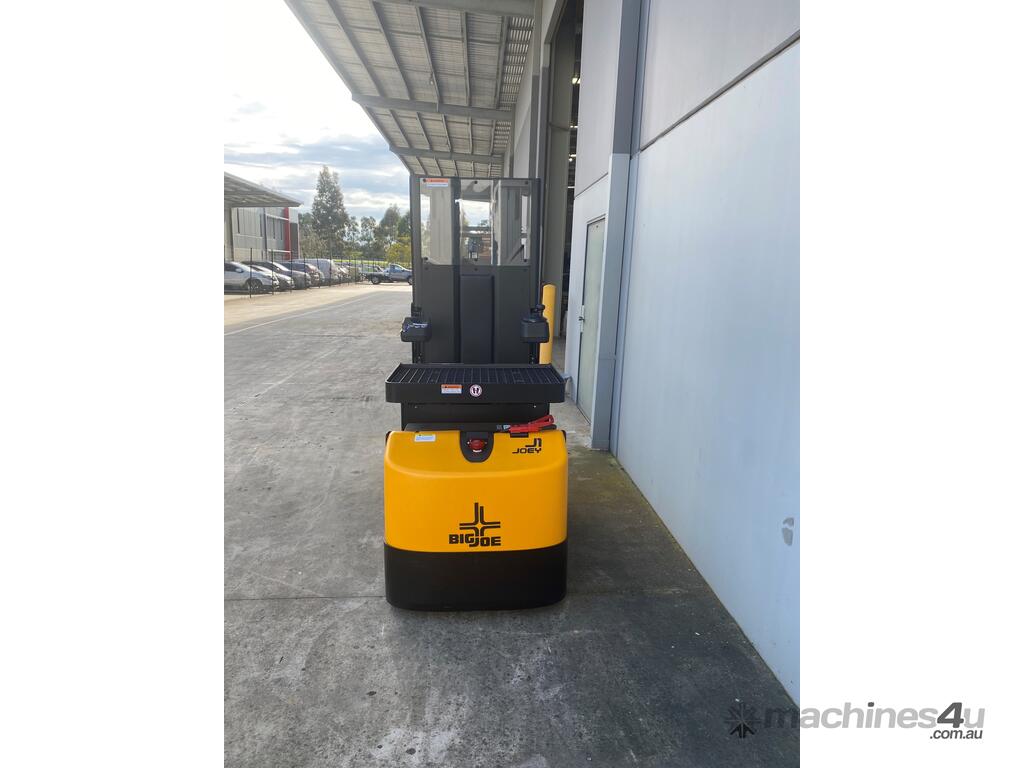

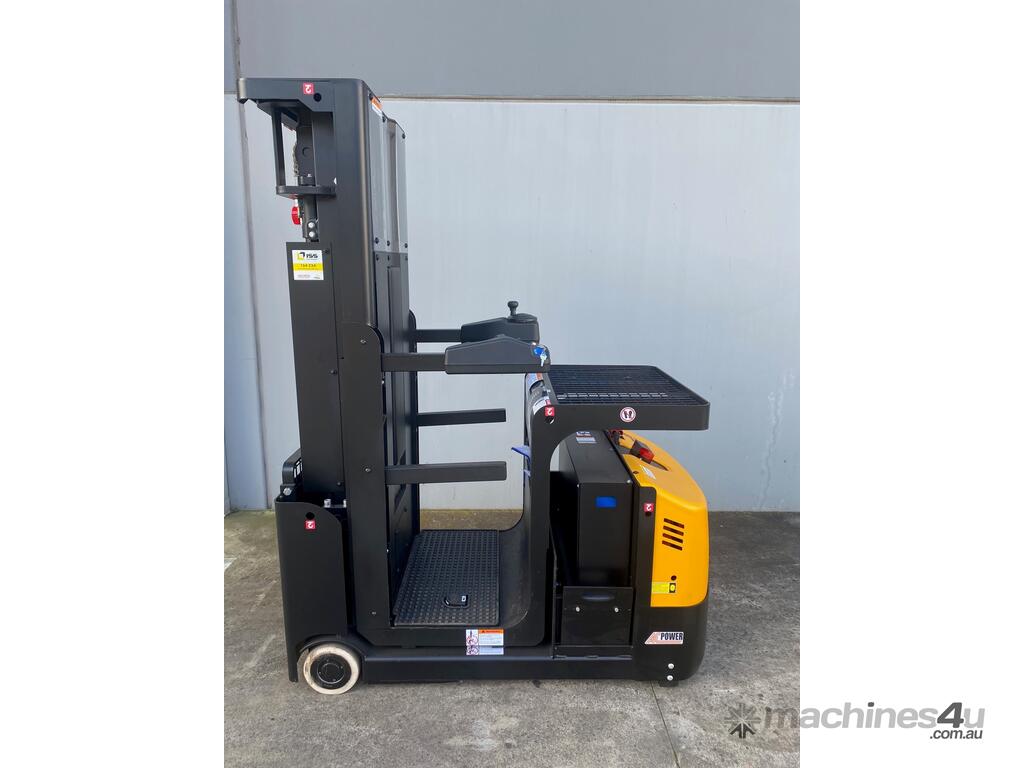

J1 JOEY Task Support Vehicle -240V Electric 3.2m height

The J1 ``JOEY`` Task Support Vehicle combines attributes of elevating work platforms, order pickers and tuggers in a compact vehicle design.

The unique design of the Joey is protected by the US patent office D730,614, D733,389, D733,390, and 9,440,830

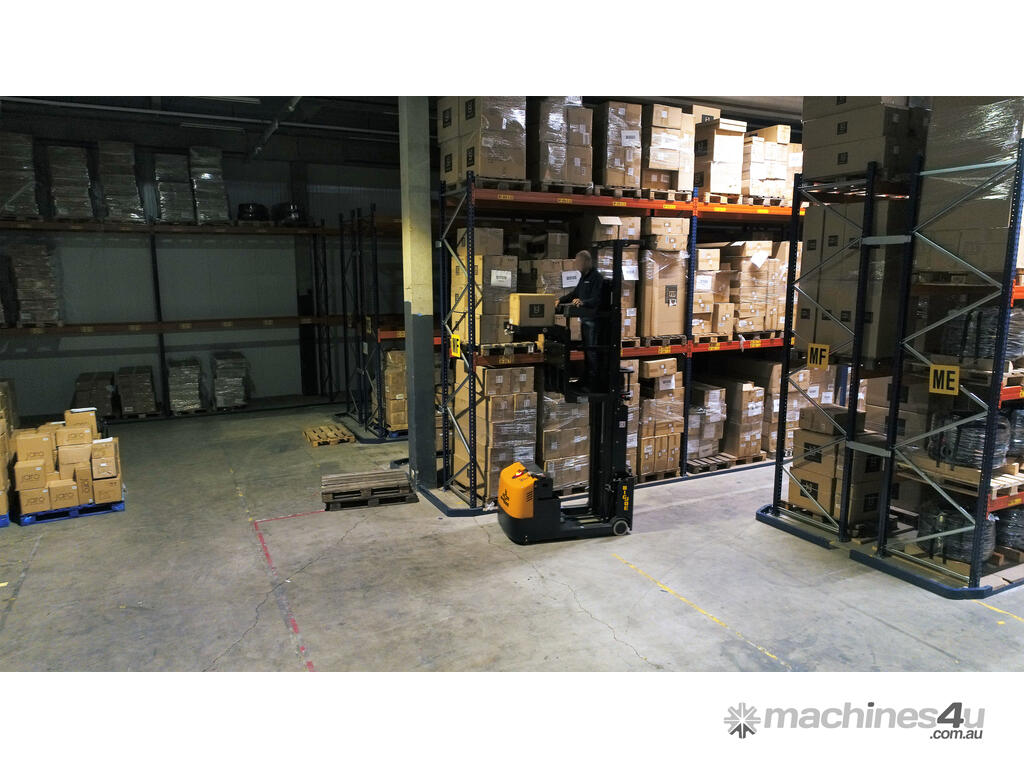

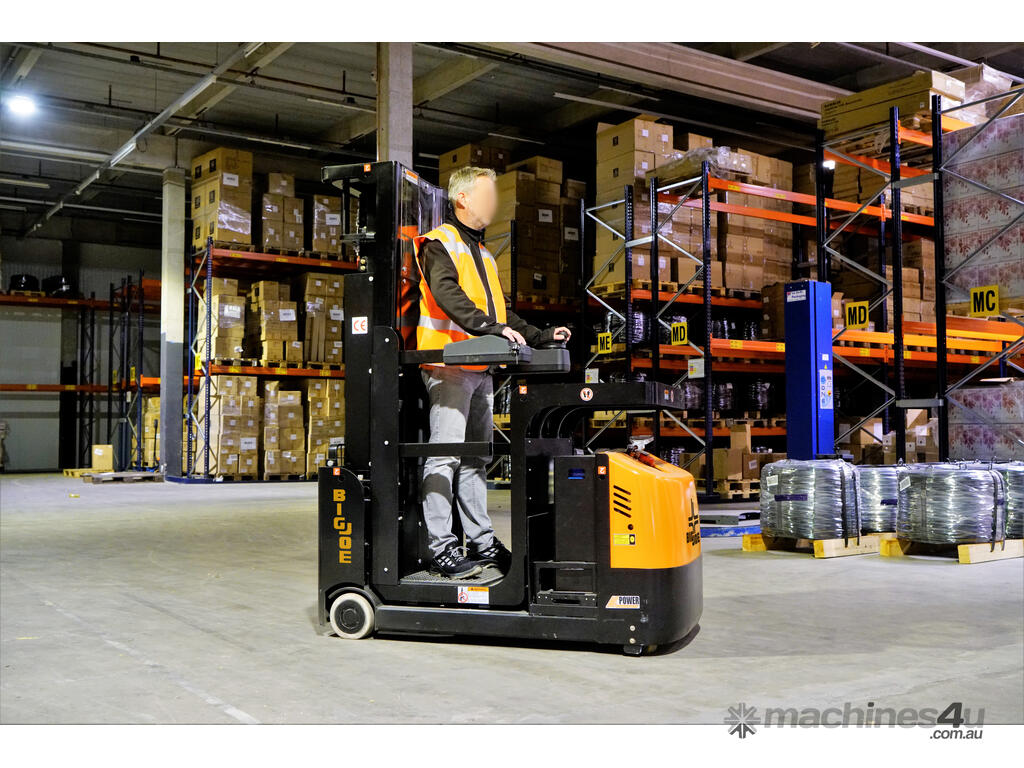

Developed as an alternative to rolling ladders or other larger equipment, the Joey can support tasks from general overhead maintenance to order picking.

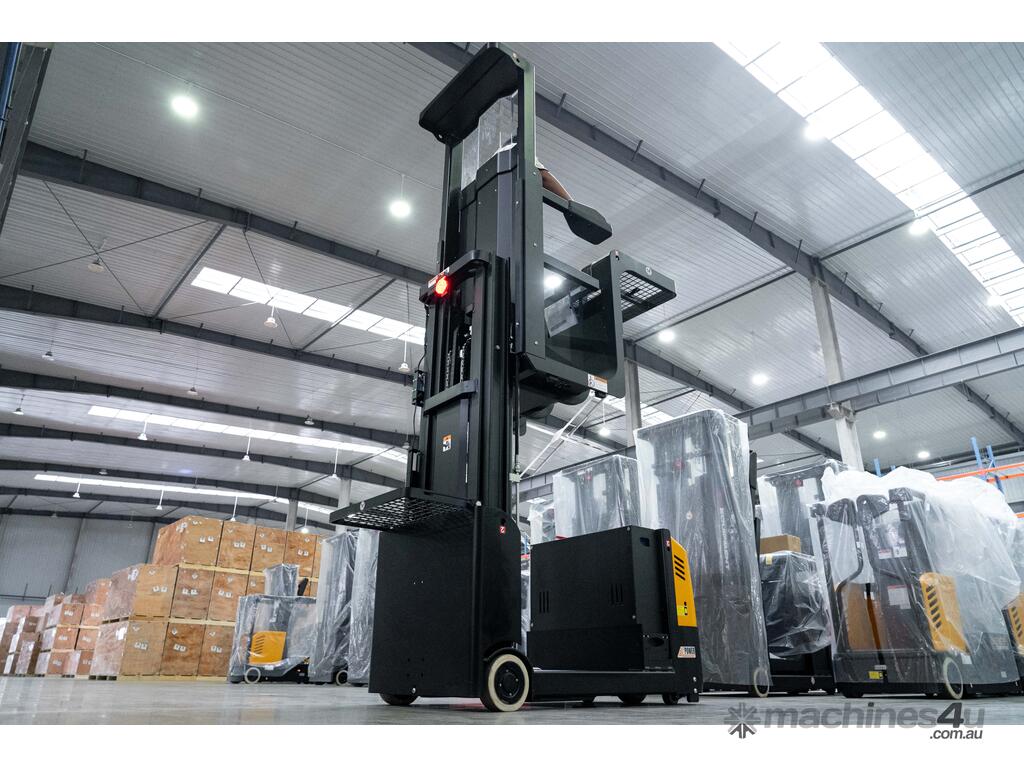

The Joey can elevate an operator up to as much as 4880mm platform height allowing to pick products from 6670mm the floor, turn around in as little as 1830mm, and can be driven at height to move from elevated pick location to another elevated pick location. Travel is provided by a high efficiency AC drive motor that can be programmed through the onboard LCD dash, while power comes from a 224AH AGM maintenance free battery pack that supports opportunity charging from a standard 120v outlet or an industrial battery and external charger which is required on the J1-192.

The J1 JOEY Features:
• Up to a 454KG. total vehicle capacity including a carrying capacity of 227KG. front tray, 131KG. operator, 91KG rear tray*
• LCD dash display with selectable travel settings and diagnostics
• Electronic power steering with infinitely variable speed control
• Finger tip controls integrated into retractable vehicle guardrails
• Premium steel I-beam mast construction and unitized steel frame
• 180 degree articulating driveline with 1830mm minimum turn radius
*Consult factory for capacity derate information on J1-162 and J1-192

The J1 JOEY Specifications:
• Vehicle Type
Task Support Vehicle
• Maximum Capacity
454KG. (227KG front / 131KG operator / 91KG rear)
• Power
24 volt AC electric with Zapi transistor control
• Max. Lift Height
Operator platform raises to 126`` 3200mm /162`` 4115mm /192 4880mm + allow approx. 1800mm for persons height for picking level
• Collapsed Height
62.6`` / 82`` / 83``
• Vehicle Dimensions
Consult specification page
• Battery Capacity
224AH AGM pack / Industrial (req on J1-192)
• Charger
Integral 240v in pack / Industrial (req on J1-192)
