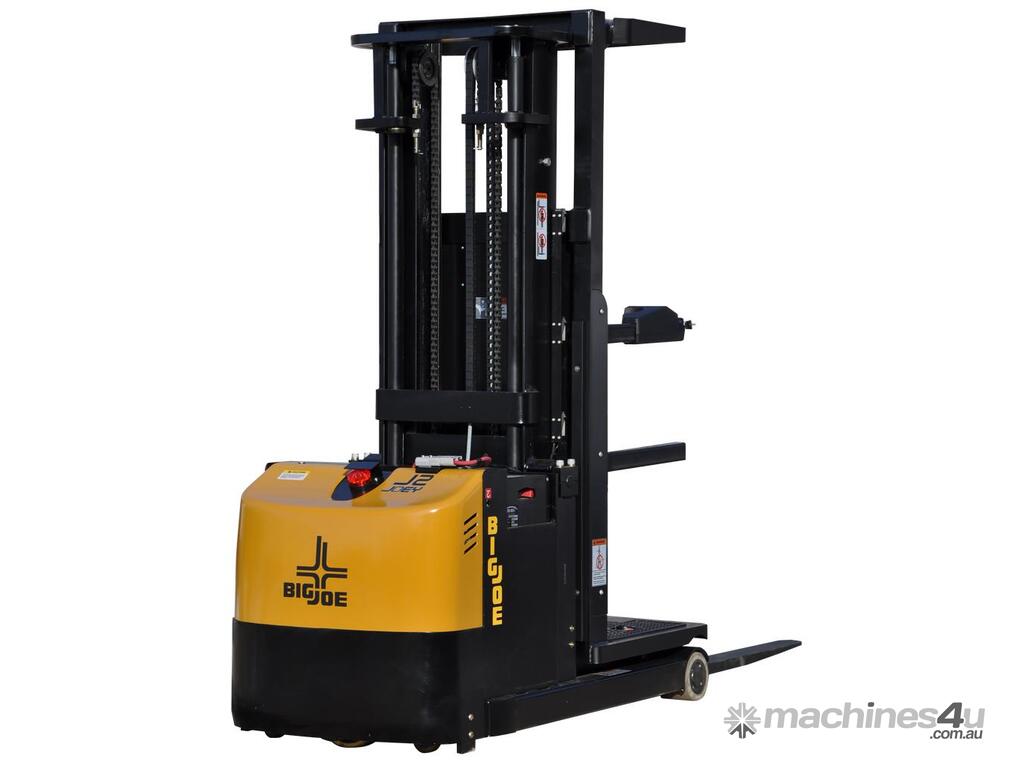

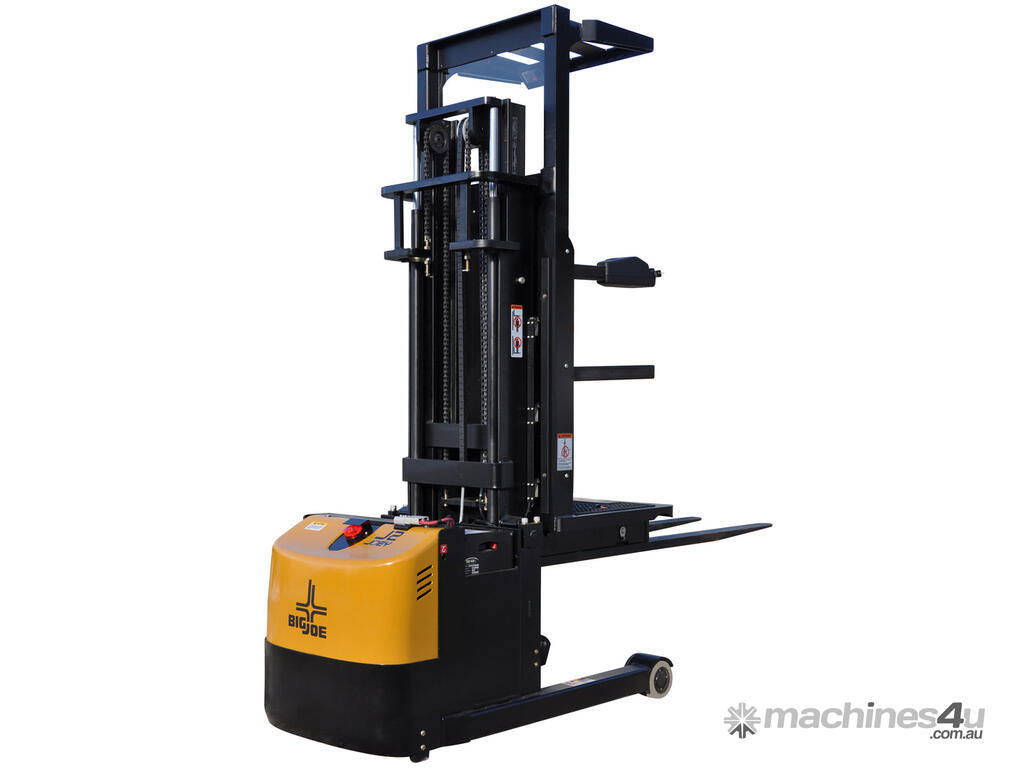

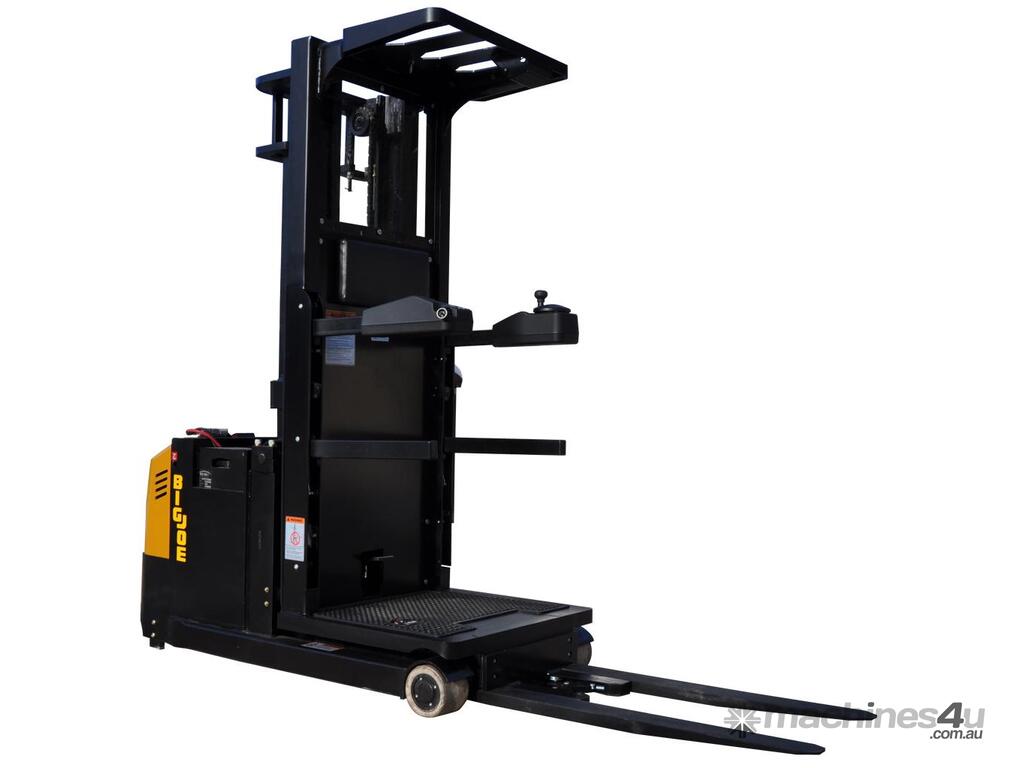

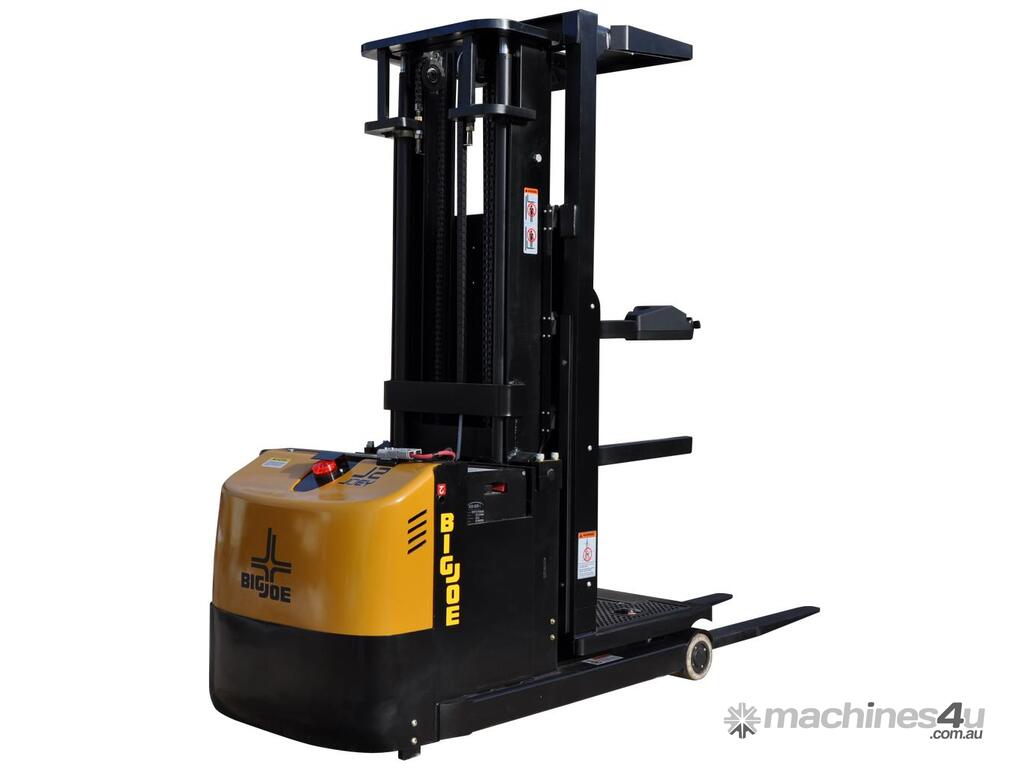

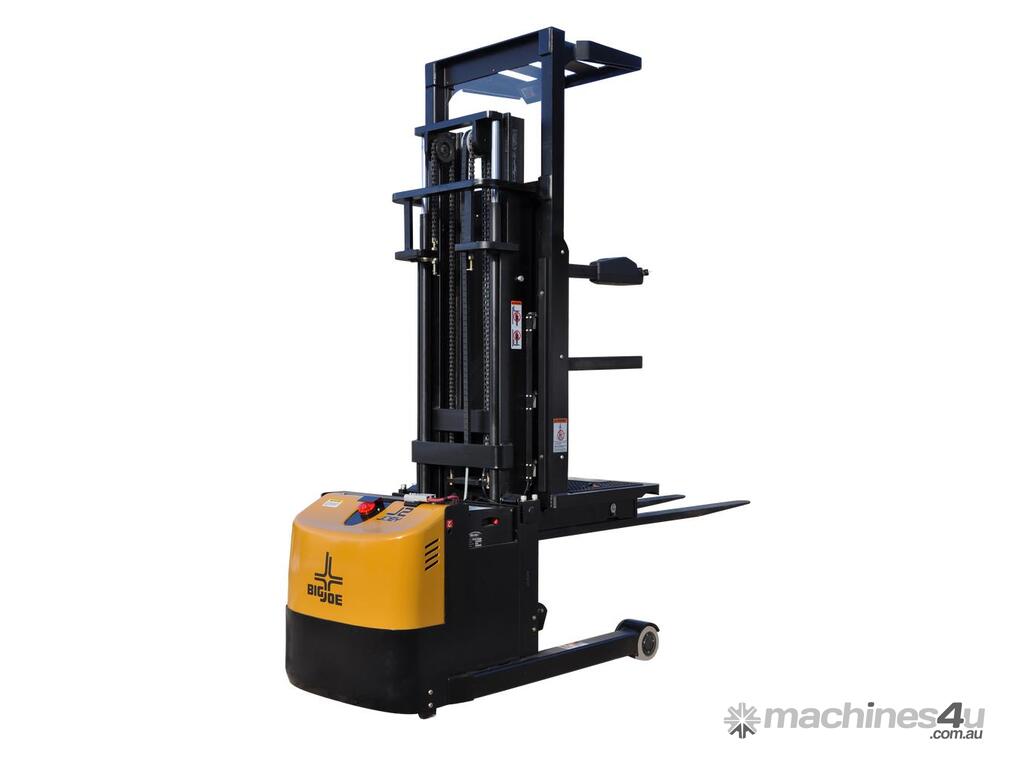

J2 JOEY Mid Level Order Pickers

Choose The J2 JOEY For Effective Mid Level Order Picking And Pallet Staging.

The J2 ``JOEY`` Mid Level Order Pickers combines the compact design and exceptional maneuverability of our J1 Task Support Vehicle with attributes of a counterbalanced forklift. The result is a versatile machine that can be used for mid level order picking, and staging of pallets.

Utilizing many of the same reliable components as the J1, the J2 Mid Level Order Pickers come in two configurations. The J2-126 can elevate an operator to 132`` and attain fork elevations of 126``. The J2-144 can elevate an operator to 150`` and attain fork elevations of 144``. The J2 Mid Level Order Pickers require a tether and harness to be worn and come with both an overhead guard and pallet clamp. Both J2 vehicles offers travel speeds up to 4.5 mph at ground level with speed reduction based on elevation to slow speed at maximum height.

J2 Joey vehicles can be used to effectively order pick from mid level locations and improve access to pick faces close to the floor. Travel is provided by a high efficiency AC drive motor on each unit that can be programmed through the onboard LCD dash. Power comes from a 340AH industrial battery.

Capacities

J2-126 / J2-144: 2,000 lbs. 24” LC on forks to 126``
J2-144: 1,500 lbs. 24`` LC on forks above 126``

The J2 JOEY Mid Level Order Pickers Features:
• LCD dash display with selectable travel settings and diagnostics

• Electronic power steering with infinitely variable speed control

• Finger tip controls integrated into retractable vehicle guardrails

• 180 degree articulating driveline with compact minimum turn radius


J2 Joey Mid Level Order Pickers have multiple patents pending

The J2 JOEY Mid Level Order Pickers Specifications:
• Vehicle Type

Low Level Order Pickers

• Maximum Capacity

2,000lbs 24`` LC

• Power

24 volt AC electric with Zapi transistor control

• Max Operator Height

132” or 150”

• Max Fork Height

126” or 144”

• Vehicle Dimensions

See specification sheet

• Battery Capacity

340AH Industrial battery pack

• Charger

External of Integral 120v smart charger


ISS Equipment is a leading provider of high-quality material handling and warehouse solutions in Australia. Specializing in a wide range of equipment since 1993, including forklifts, stackers, and pallet trucks, ISS Equipment delivers innovative and cost-effective solutions to meet the demands of diverse industries. With a commitment to exceptional customer service, the company offers comprehensive sales, rental, and maintenance options, ensuring that businesses operate efficiently and safely. Backed by a team of experts with in-depth industry knowledge, ISS Equipment stands as a trusted partner, dedicated to delivering excellence and supporting the growth of its clients.

Go to the ISS Equipment showroom on Machines4u to see the range of machinery available for national delivery, send ISS Equipment a message about the item you are interested in or give ISS Equipment a call, we are more than happy to answer any of your questions.

* Click on the pdf spec sheet for more detailed information *
