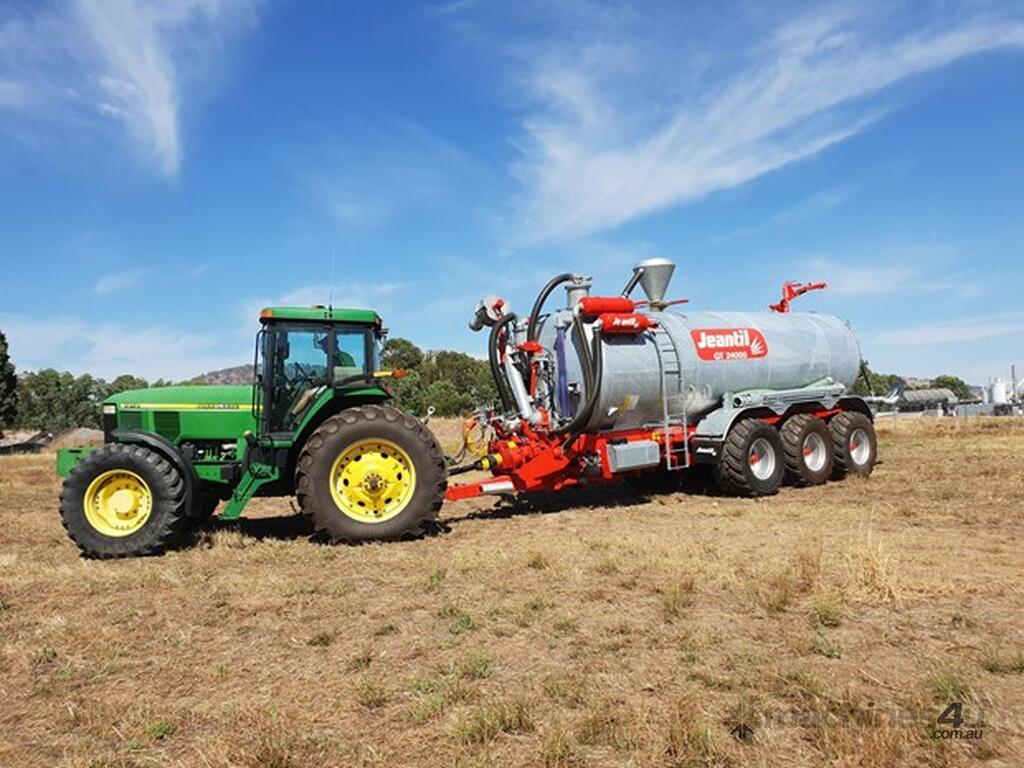

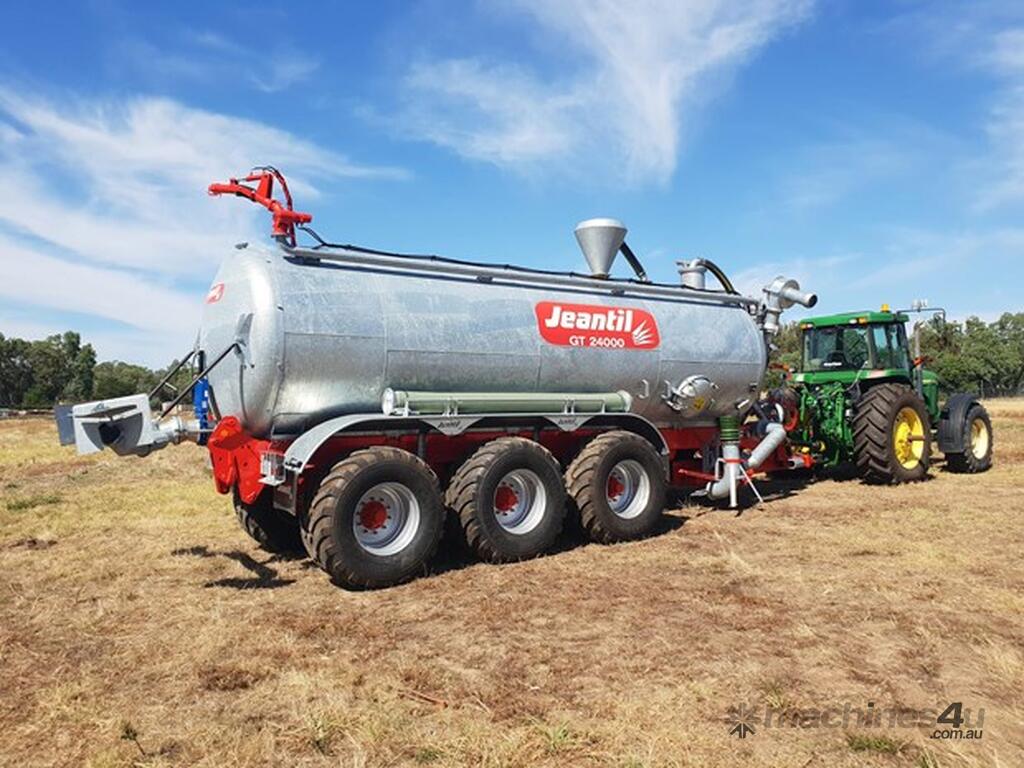

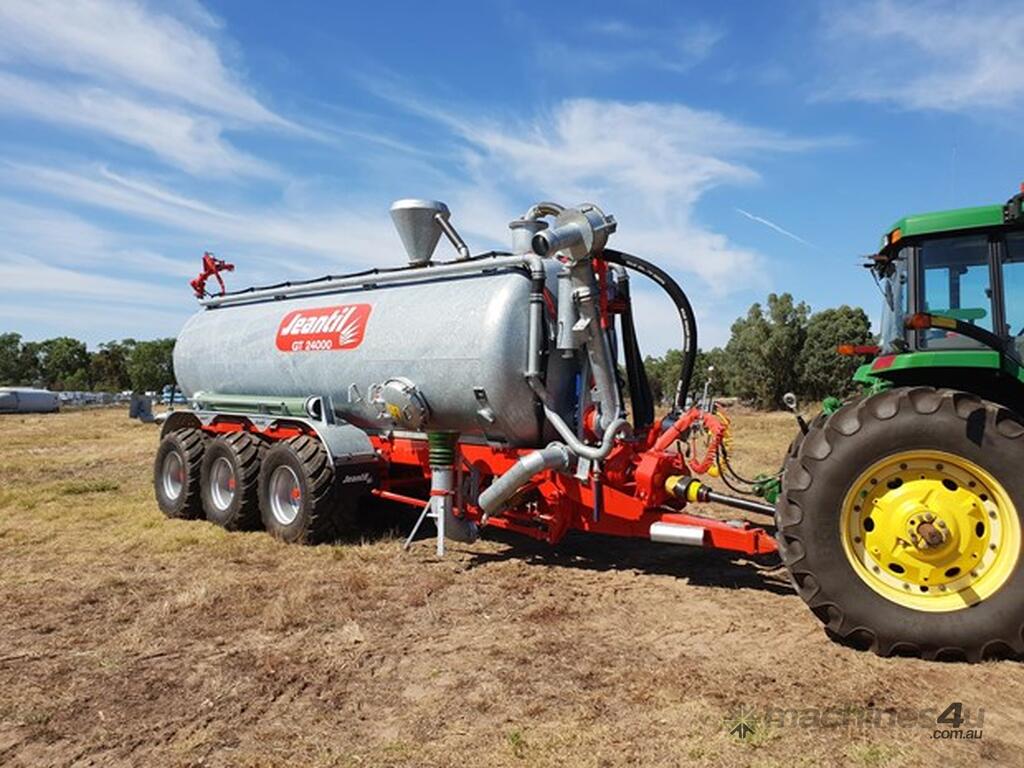

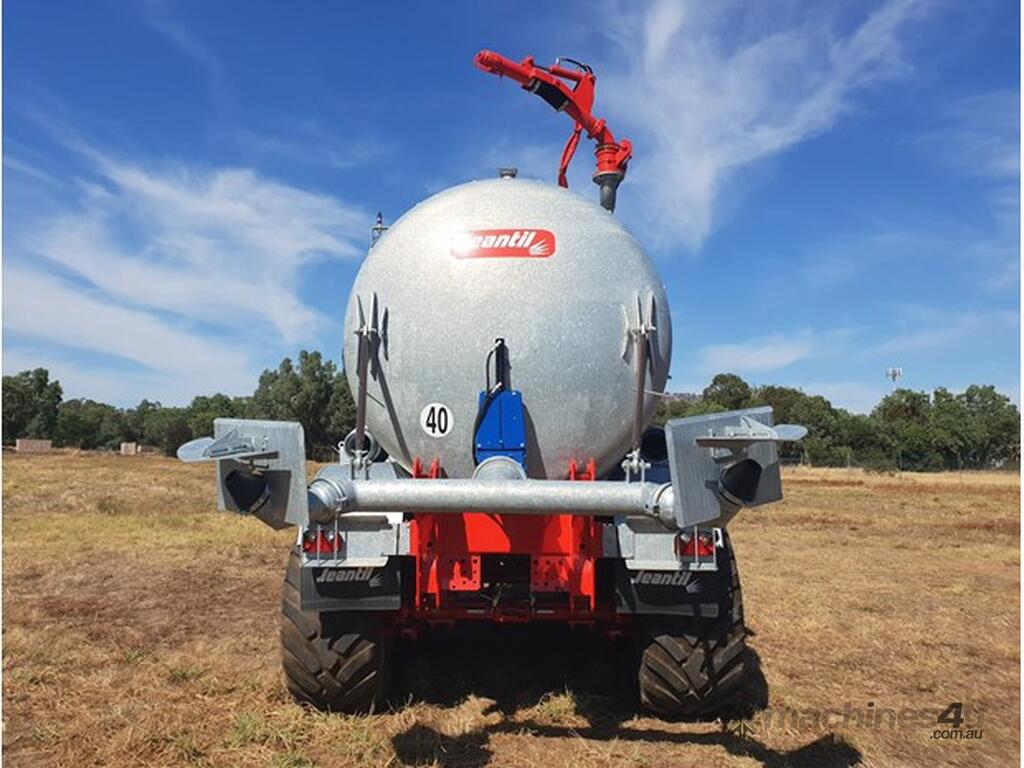

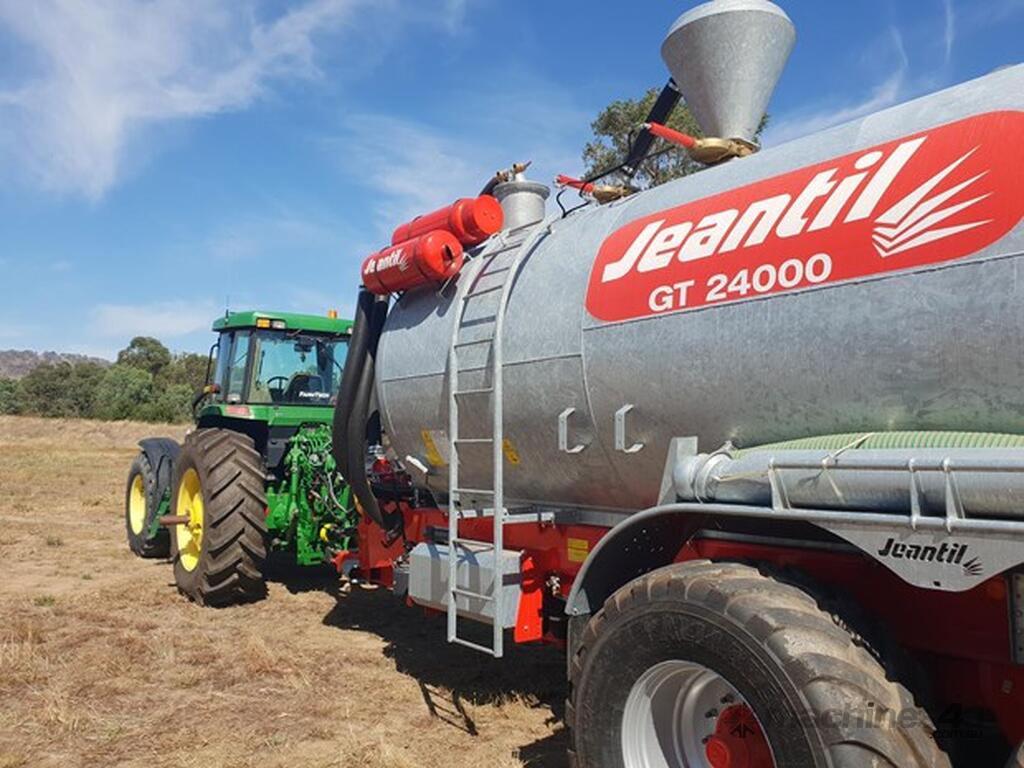

JEANTIL GT 24000 SLURRY TANKER (24,000L)

With tank capacities from 8,500 to 24,000 litres, the GT range of slurry tankers offers attractive solutions in terms of pumping rate, spreading quality and ride comfort. Designed for perfect performance, this range makes slurry spreading simple and straightforward.

Pumping in all circumstances

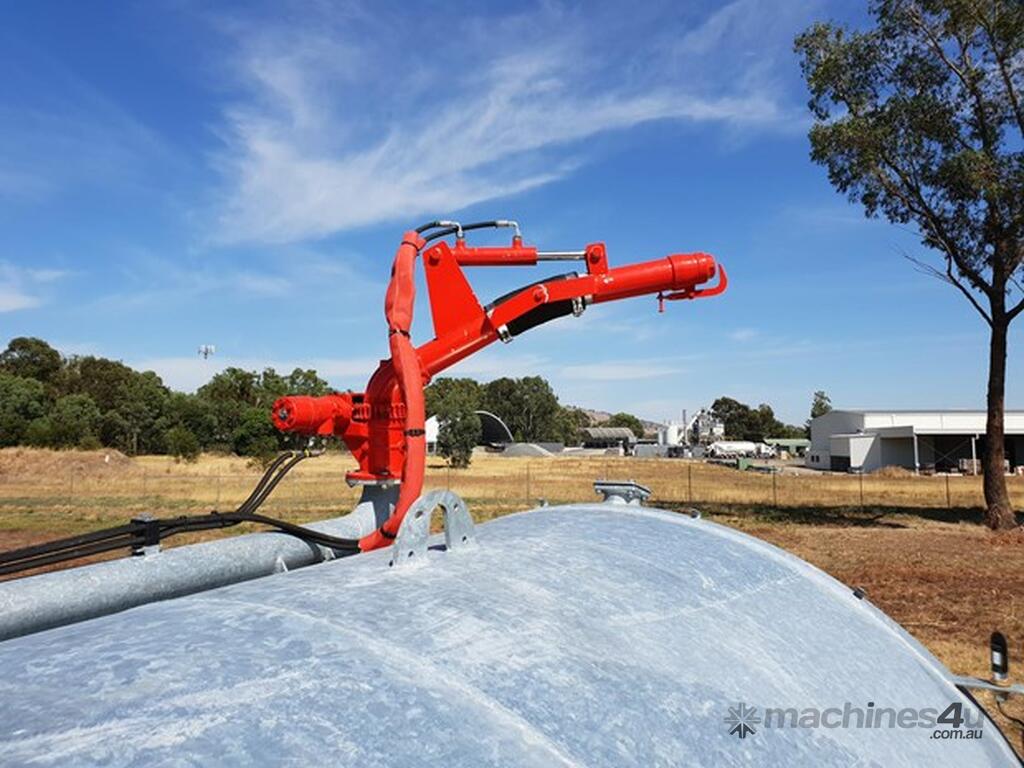

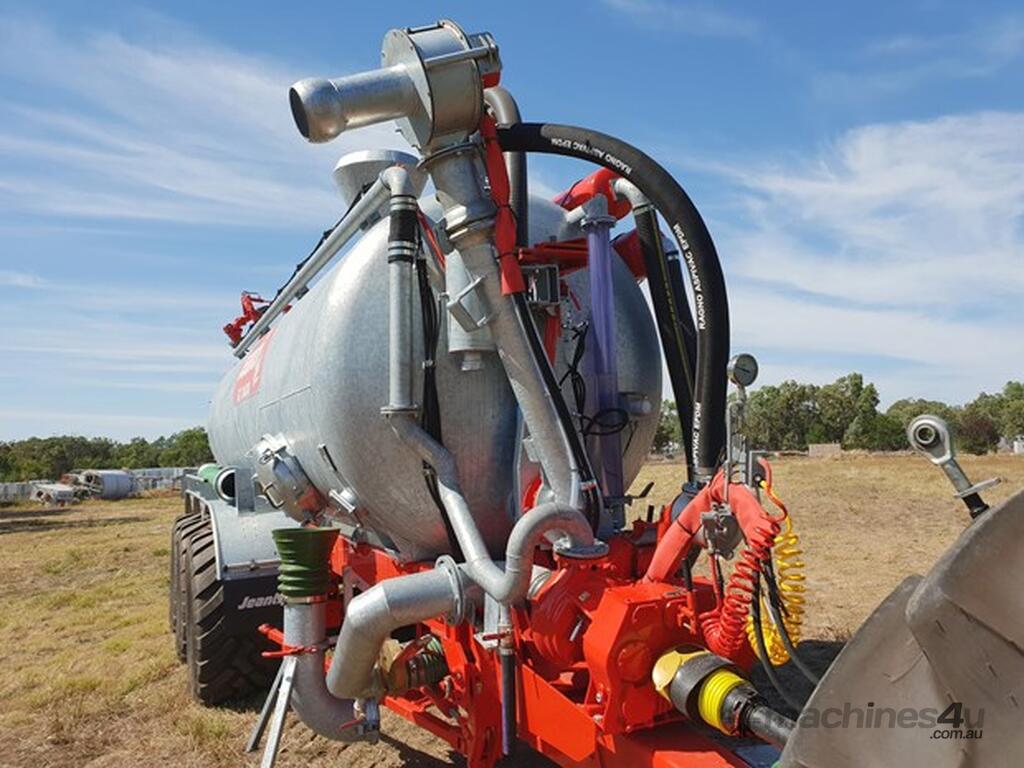

The various pumping arms can reach all slurry storage points: the simple and functional arm at the front of the tanker; the «Virgule» arm whose effectiveness has been approved; and the Turbo Max arm which can suit all situations.

Precise and rapid spreading
The numerous spreading booms, from 9 to 30 m wide, and the various injectors from 2.4 to 6.5 m wide deliver high-quality spreading at impressive work rates. Automatic dose regulation, via the SMART Control system, applies the right quantity for the volumes delivered.

High-quality manufacture
To reduce the stresses in the tank, every model in the range is assembled as a painted tubular chassis which is bolted to the tank. This construction complies with the PED (Pressure Equipment Directive).

Efficient and safe filling of the entire tank

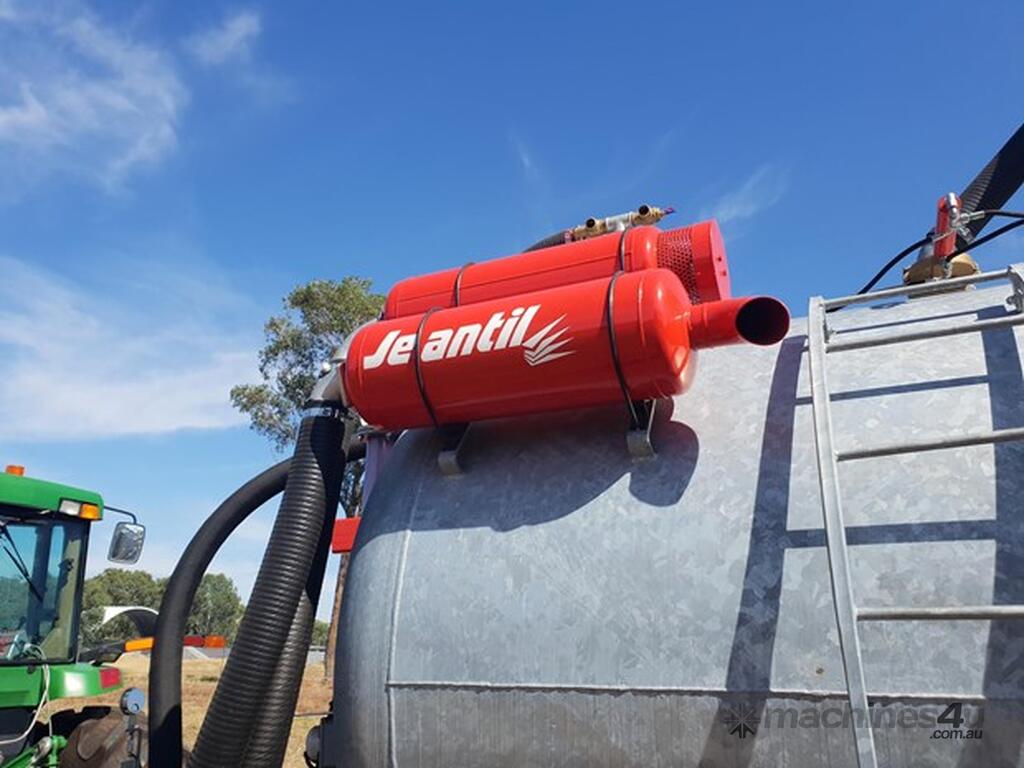

A wide range of vane and lobe compressors delivers efficient filling under all circumstances. Safe filling of the entire tank is possible thanks to a high filling stack, a high-volume dirt separator and the combination of a pumping accelerator and a high-capacity filling turbine.

Stability under all conditions

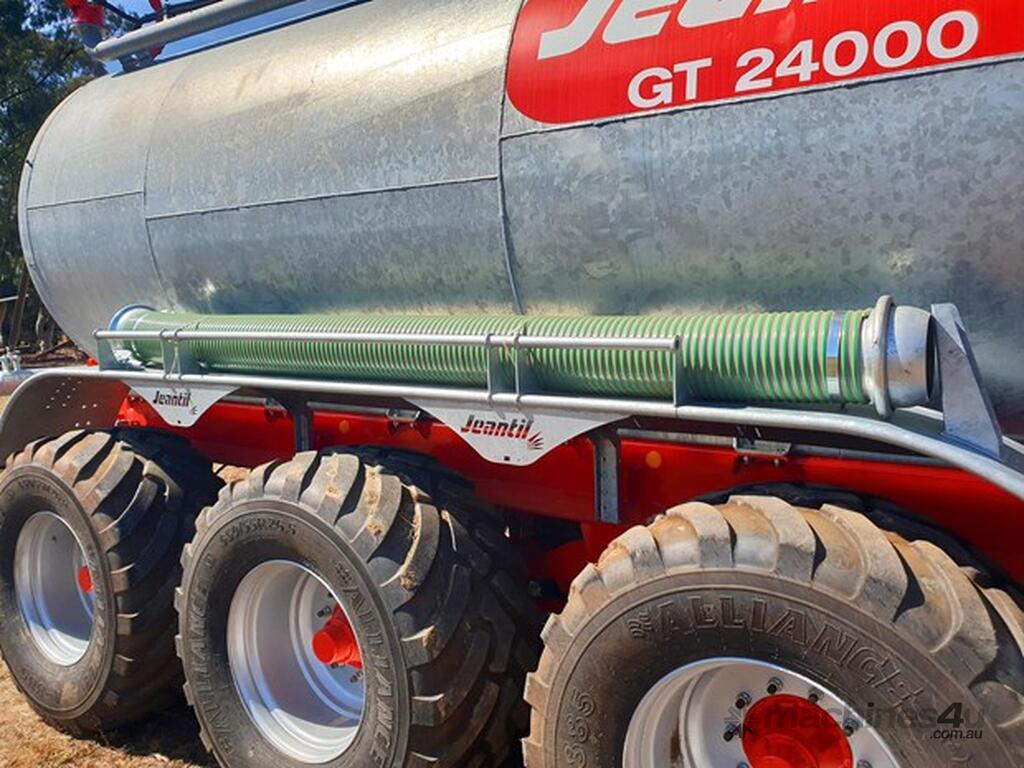

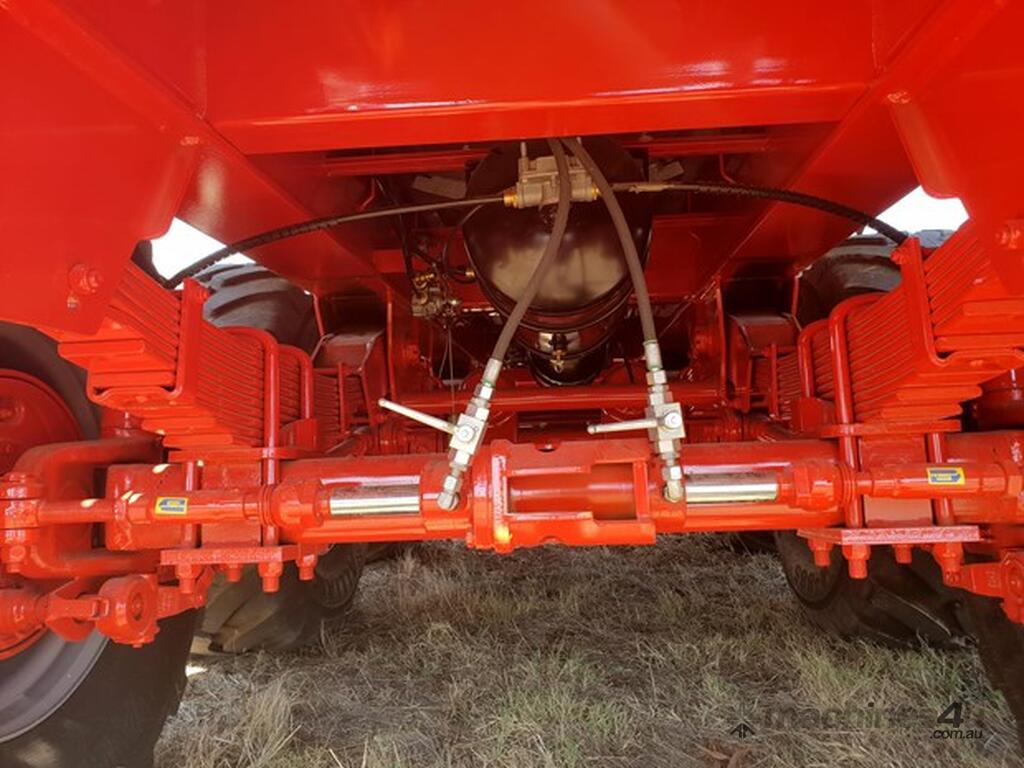

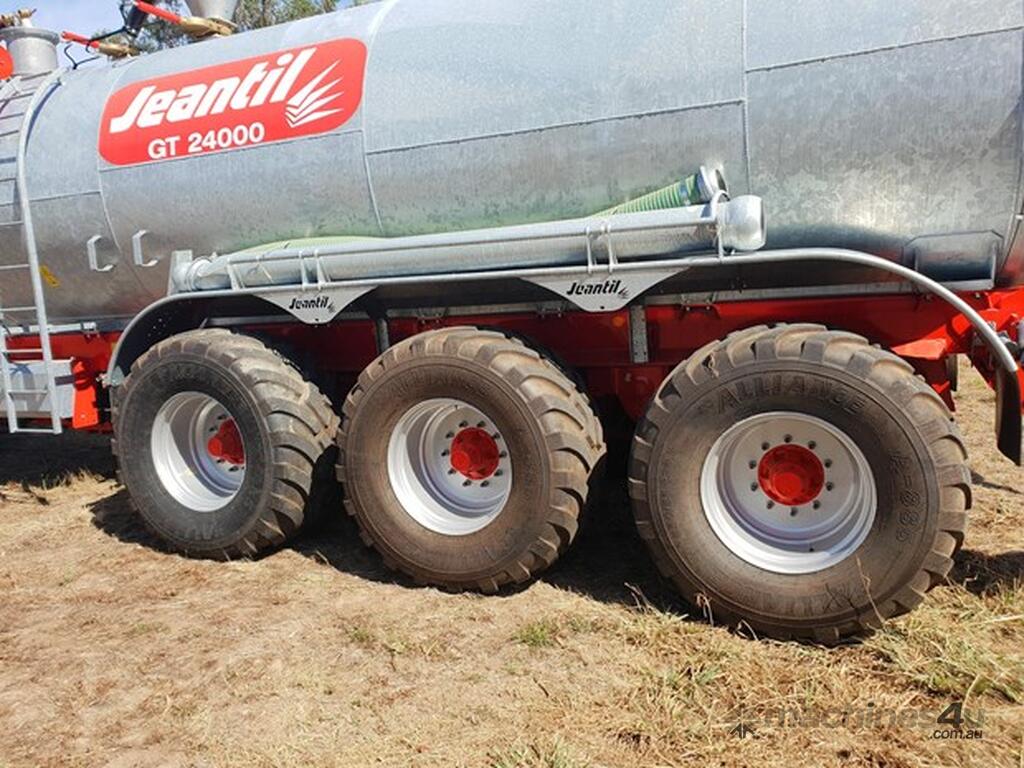

The tanker is easy to tow and comfortable to use at speeds of 25 and 40 km/h thanks to the various running gear options (single axle, bogie, tandem, tridem or hydraulic suspension) and the wide range of tyre options. The recessing of the wheel lowers the vehicles centre of gravity considerably.

Specifications
Tank capacity (l): 23,729
Max. admissible weight (kg): 32,000
Unladen weight (kg): 11,000
Tank Ø (mm): 2,000
Tank wall thickness (mm): 6
Anti-surge baffle plate: 3
Sight glass: Column
Front valve hole: R and L
Standard wheels: 560/60R22,5
Tank length: 7860
Overall length: 10240
Overall width: 2550
Overall height: 3755

Many options available, just ask.

Machine/Equipment base price only, additional price for optional extras.
