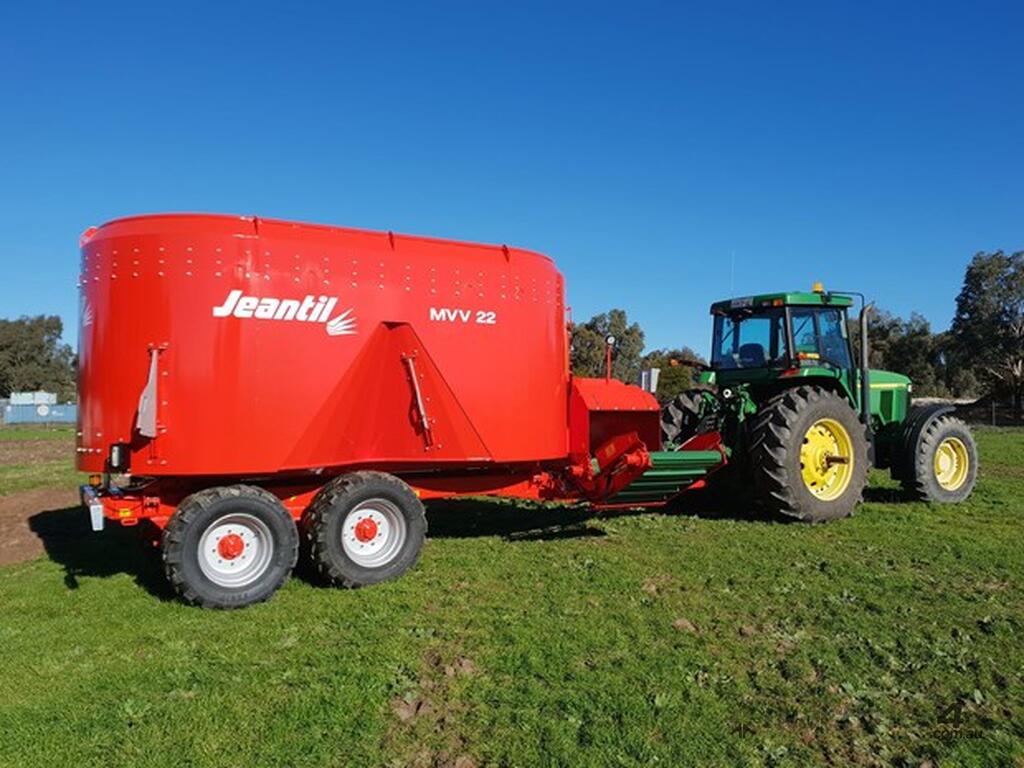

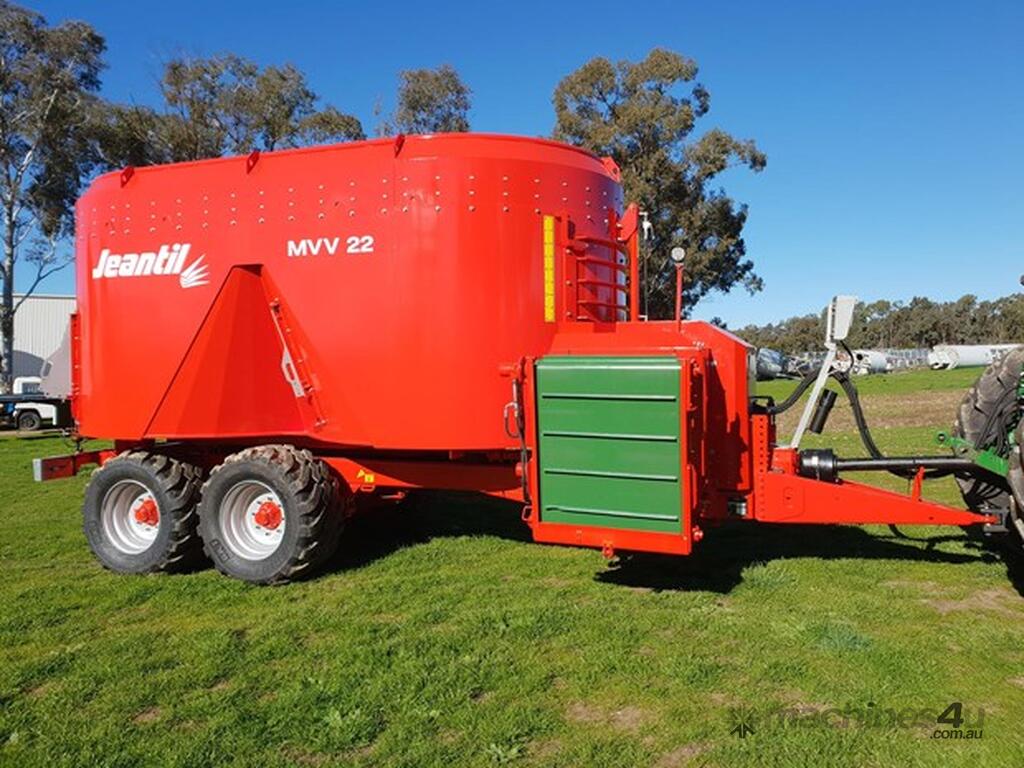

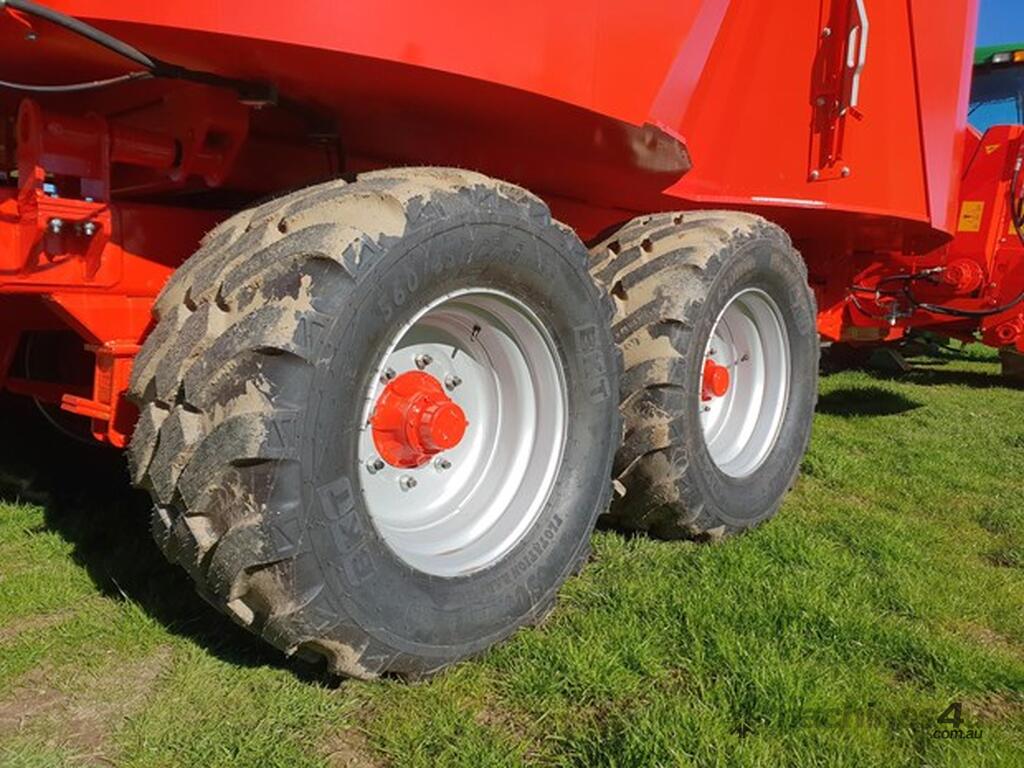

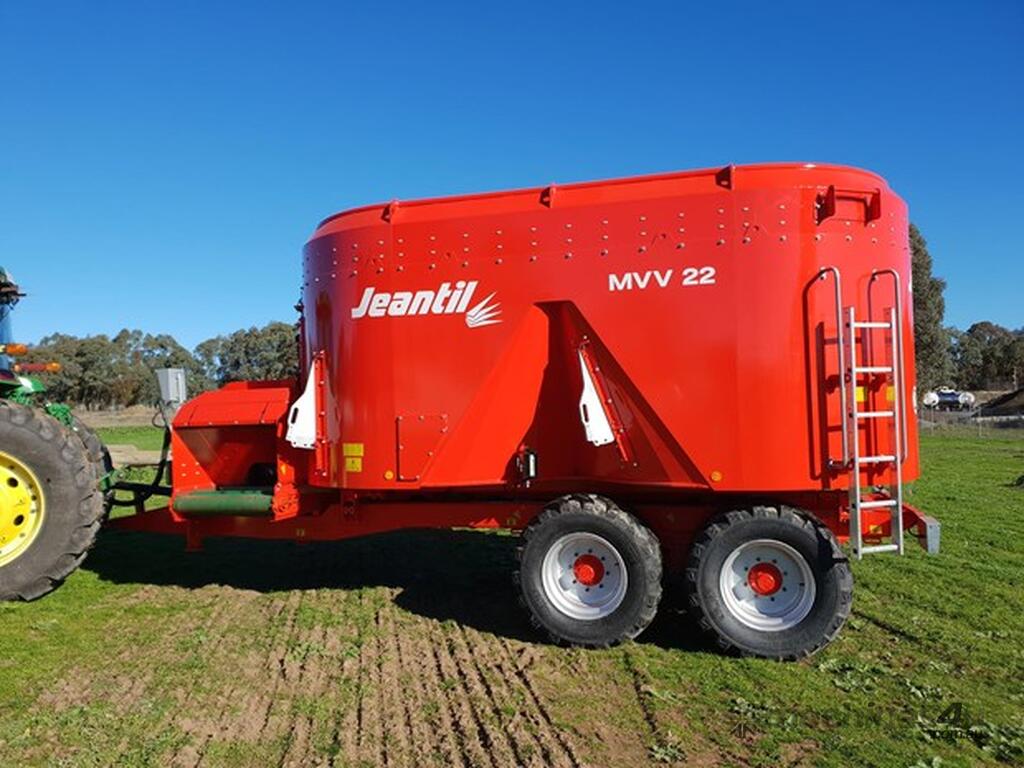

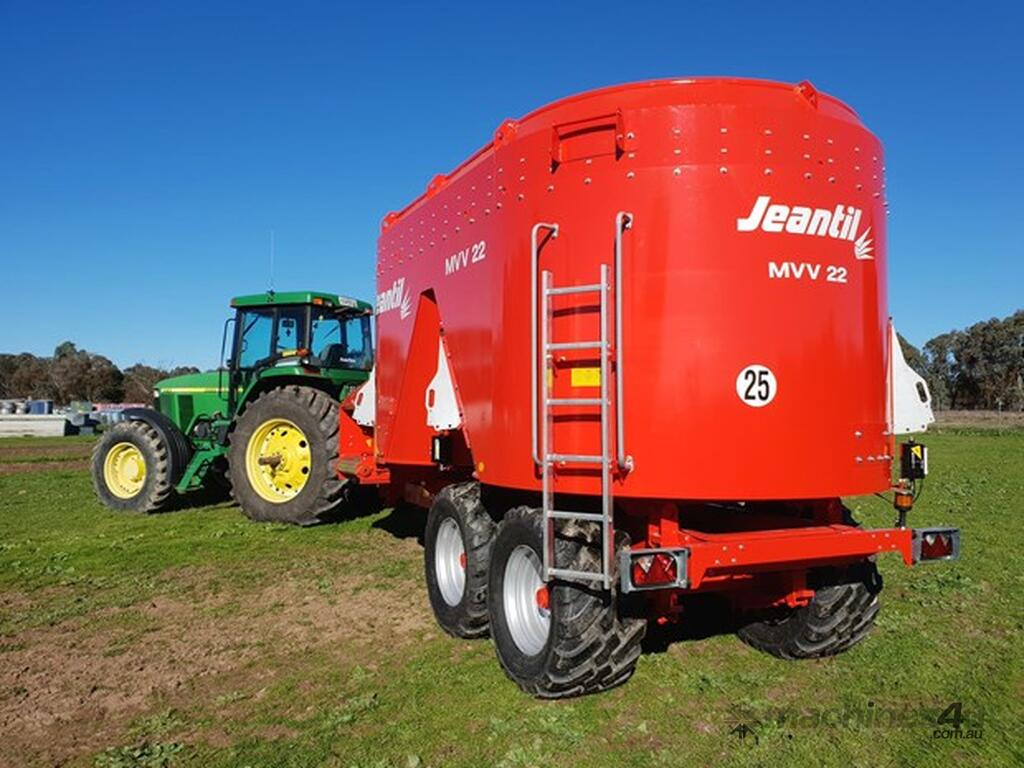

22.0m3 vertical feed mixer with 1.1m discharge elevator , floatation tyres 560/45-22.5 radial BKT. Twin screw, Tandem axle, wide body, High Quality, heavy duty, French made feed mixer.

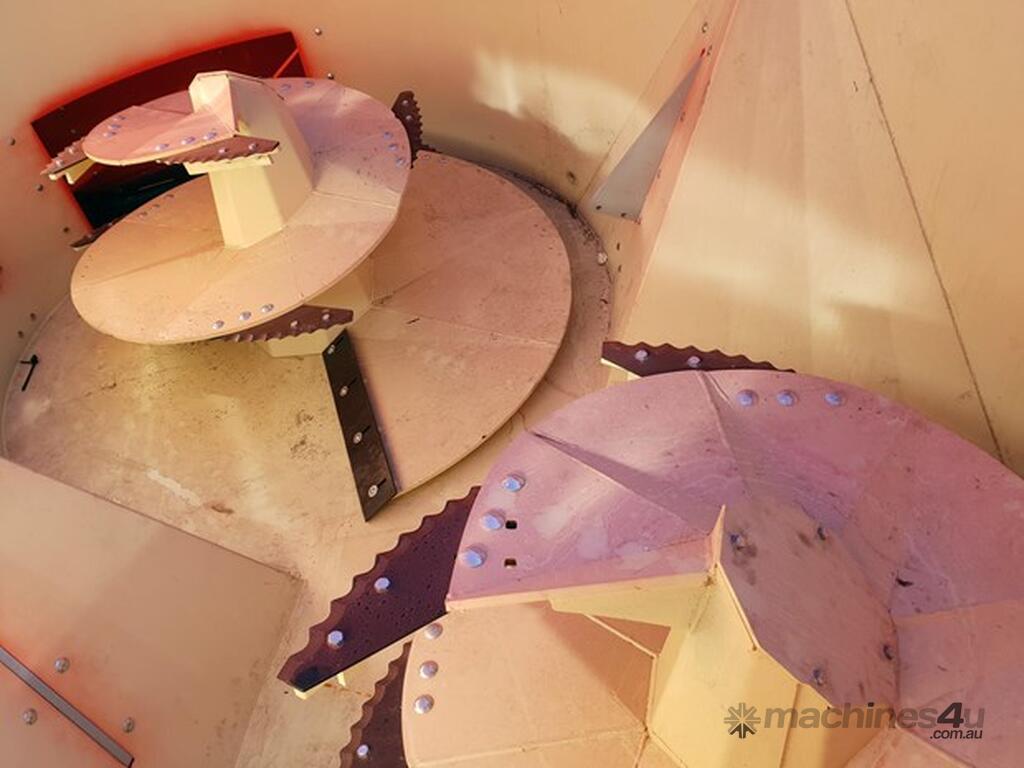

VERTICAL AUGERS :
Fast mixing and regular distribution, thickness 15 mm with double attack coil.
7 knives with variable angle per auger, treated with tungsten carbide.
Automatic running of the counterknives Top Cut 2 hydraulic counterknives

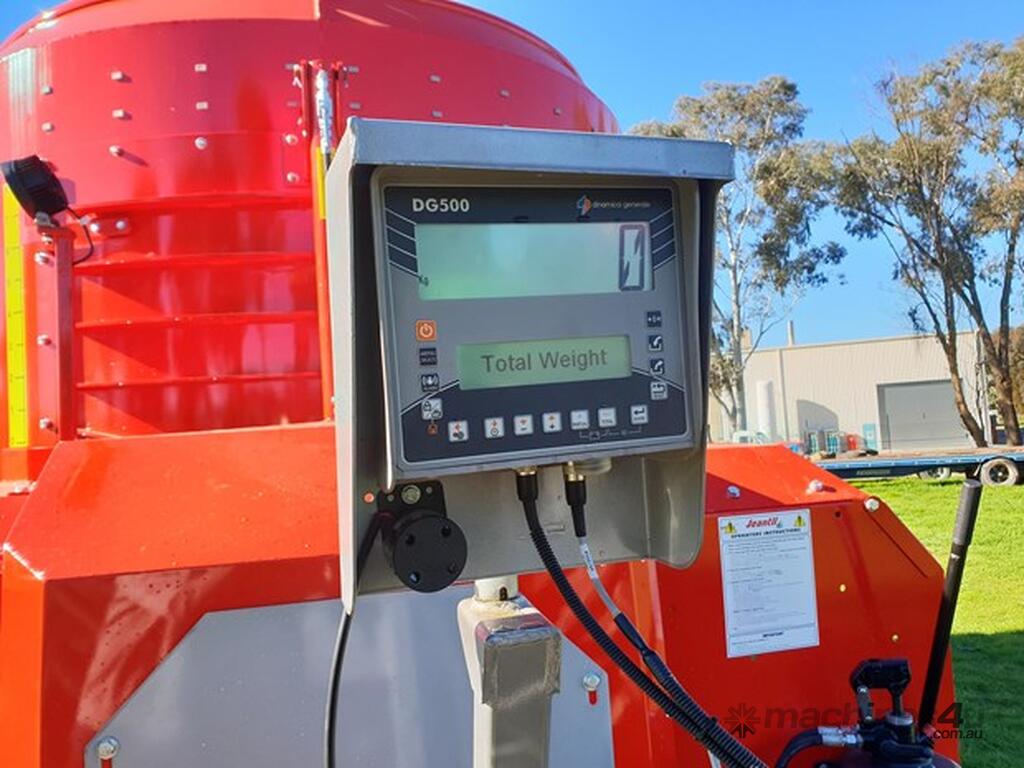

WEIGHING SYSTEM :
Precision mounting with 3 bolted sensors.
Programmable weighing system
AUGER DRIVE :
Fast mixing by industrial speed reducer with planetary gearbox.
2 speeds 18/33 rpm for power reduction (540 PTO).
COUPLING :
2 wheels 445/45R19.5 (axle 8 holes)
Hydraulic stand (double acting/manual pump), .
hydraulic braking and
Road lights

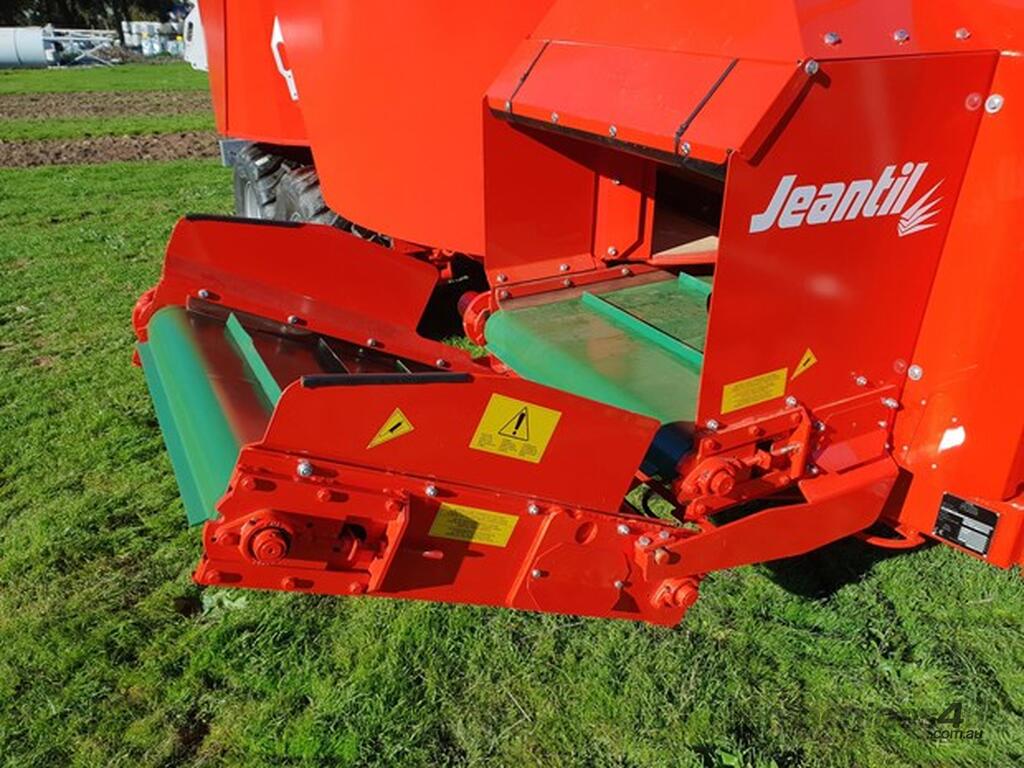

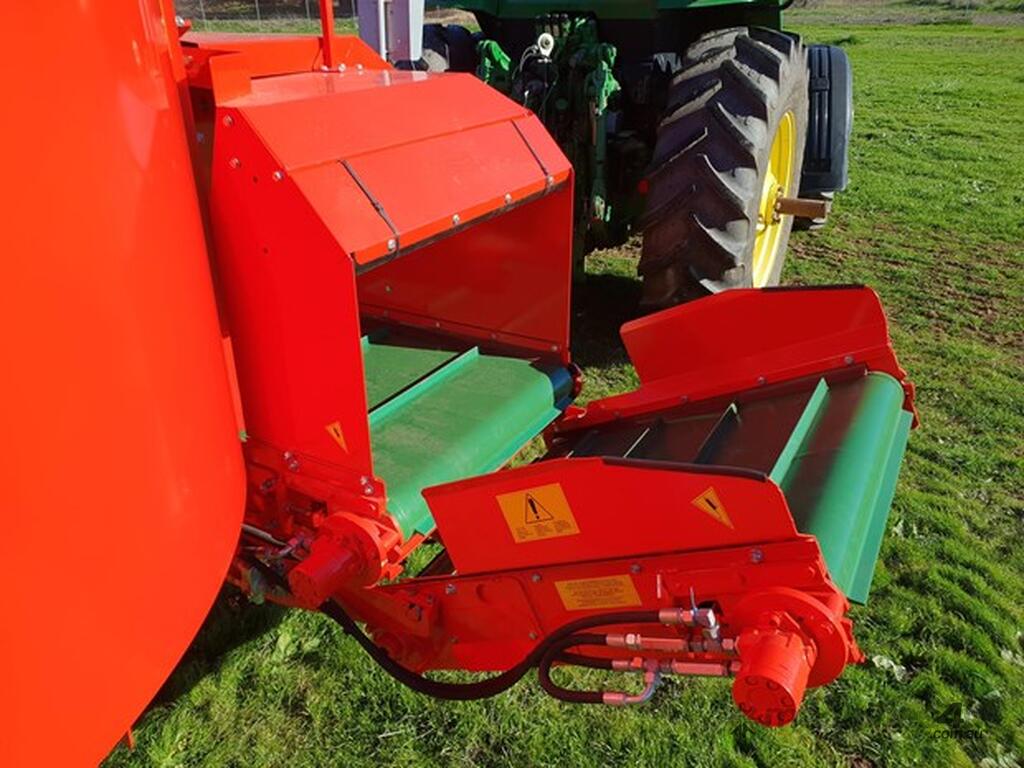

FEEDOUT :
Additional rear left direct outlet, with hydraulic indicator

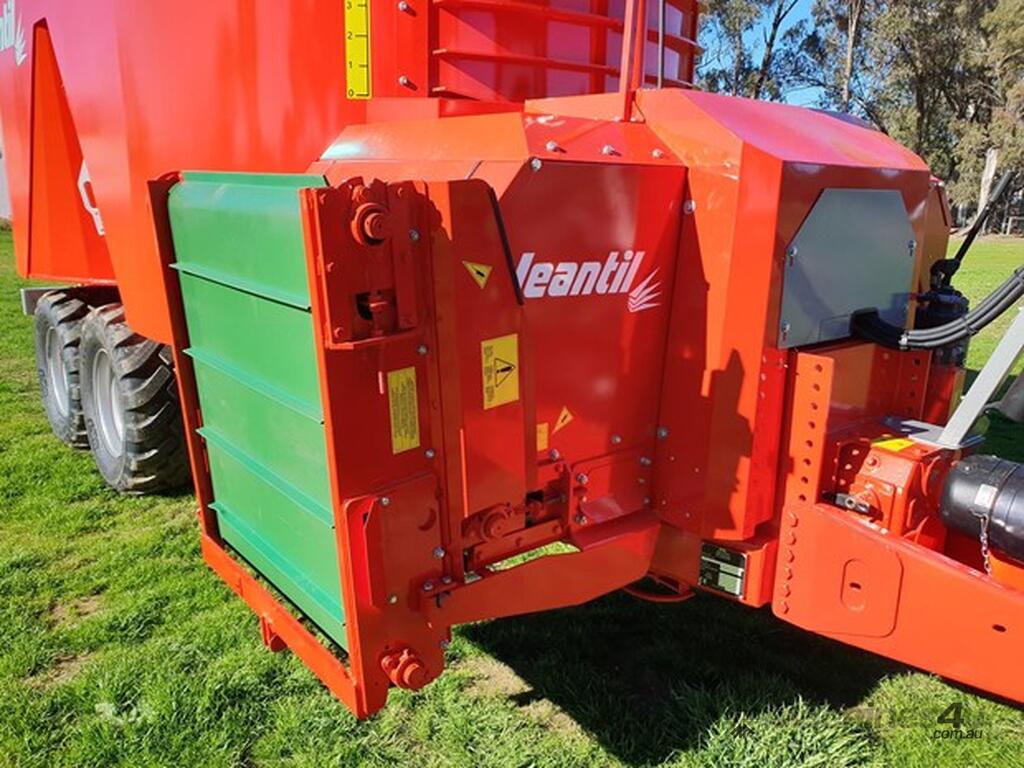

Side conveyor extension 1,10 m (front right)
CONTROLS :
5 functions BASIC electric controls
1. Electric controls for conveyor speed adjustment
2. Electric controls for counterknive adjustment
3. Electric controls shift of auger speed
4. Electric controls door adjustment
5. Electric controls for conveyor flip up adjustment
Specifications - MVV 22 TC
Discharge height: 0.90 m
Overall height: 3.00 m
Wheel base: 5.60 m
Overall length: 7.93 m
Rear Overhang: 1.34 m
Useful discharge length: 5.24 m
Overall width: 2.47 m
Width at the wheels: 2.08 m
Hopper Load Height: 1.50 m
Tub height: 2.00 m
Tub length: 6.00 m
Tub overhang: 0.48 m
System Type Twin
Configuration Vertical
Number of Augers 2
Tub Capacity - m3 22
Machine/Equipment base price only, additional price for optional extras.
We can deliver this machine Australia wide, just ask us for a delivered price.
Prefer to buy this machine through your local dealer? You can do that too, just ask!
Contact FarmTech today for sales or more information.
Refcode TA851489
