New sunmill CNC Machining Centre for sale - JHV 550

Sunmill - JHV 550

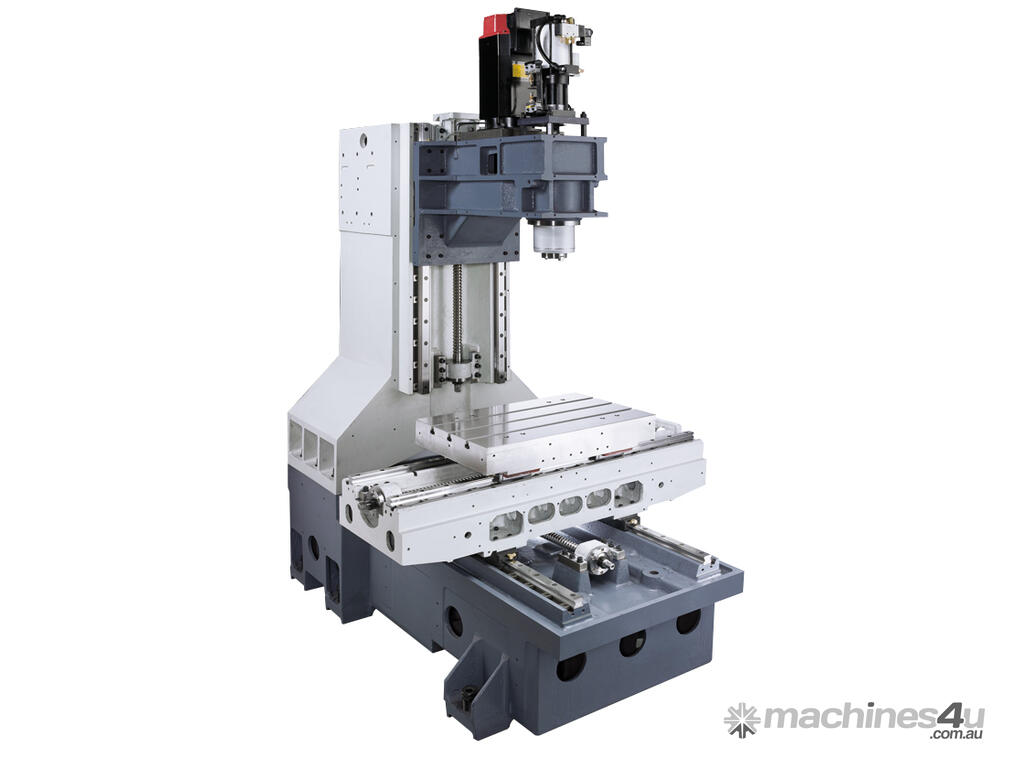

Optimal Structure Design High rigidity! Lifetime Stability!

The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great rigidity and prolonged precision.

All axes with high precision linear guideway ensure rapid movement and accurate positioning.

The column bottom is specially designed with A-shaped structure to increase machine stability while machining.

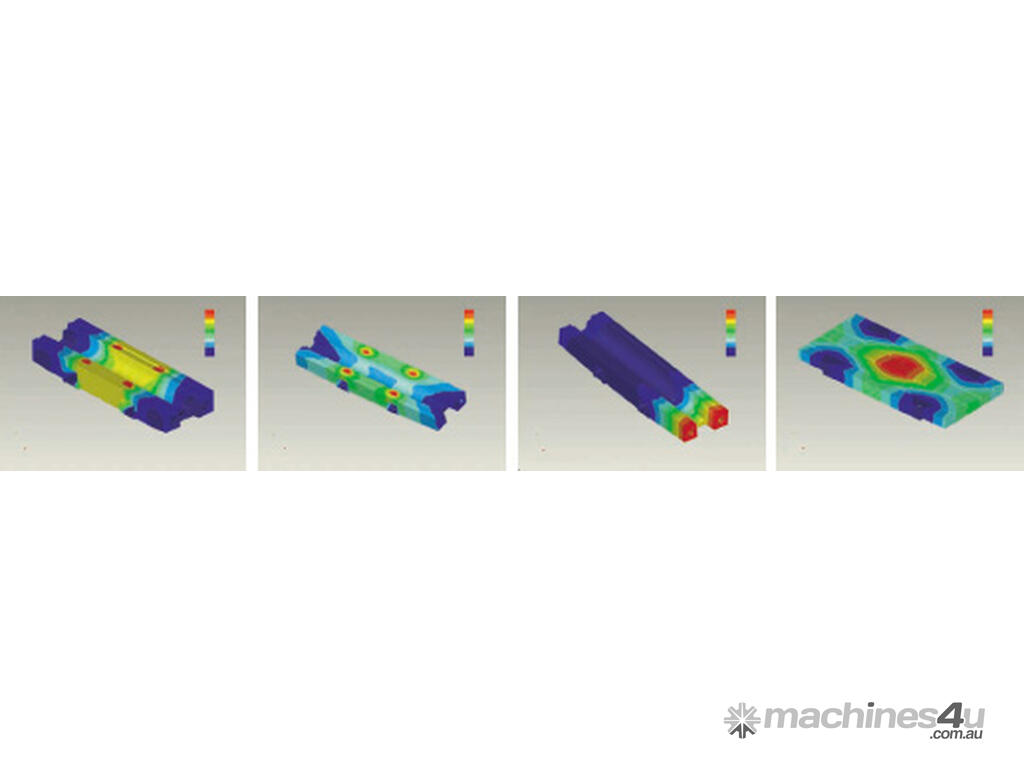

Finite Element Analysis:
The structural parts on JeenXi machine are analyzed and designed by the advanced Finite Element Analysis. It provides a detailed analysis for structural stress/strain condition, and ensures excellent machine rigidity and lifetime stability.

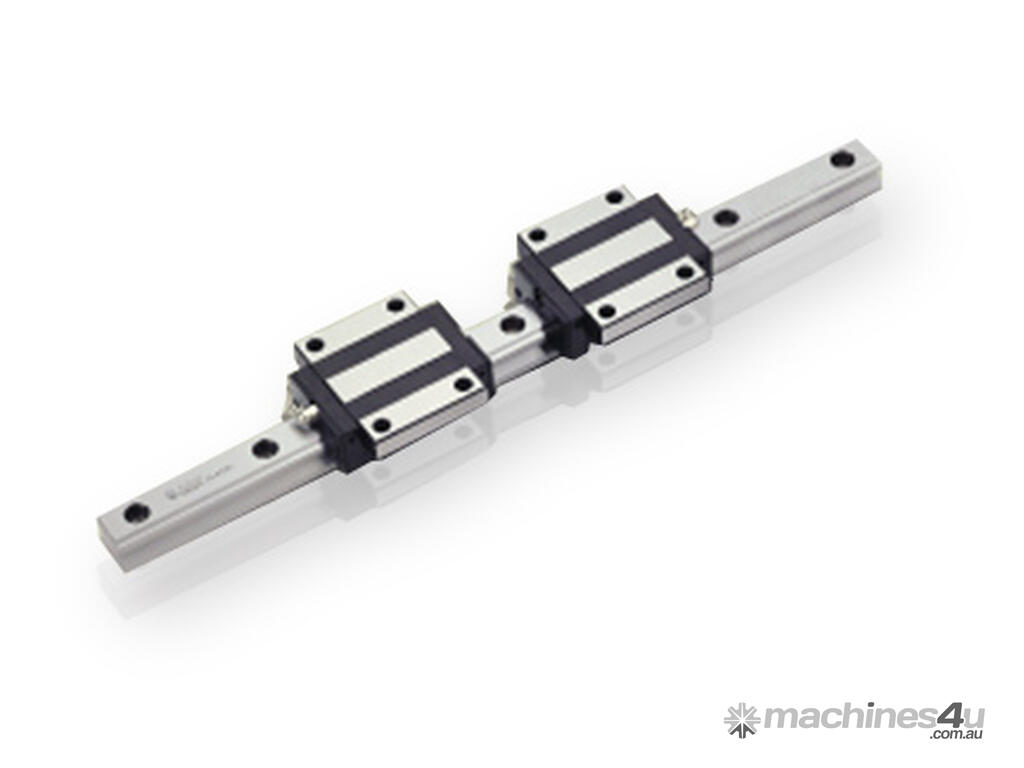

Linear Guide Way:
The machine employs 30/35/35mm wide ball-type linear guide ways.

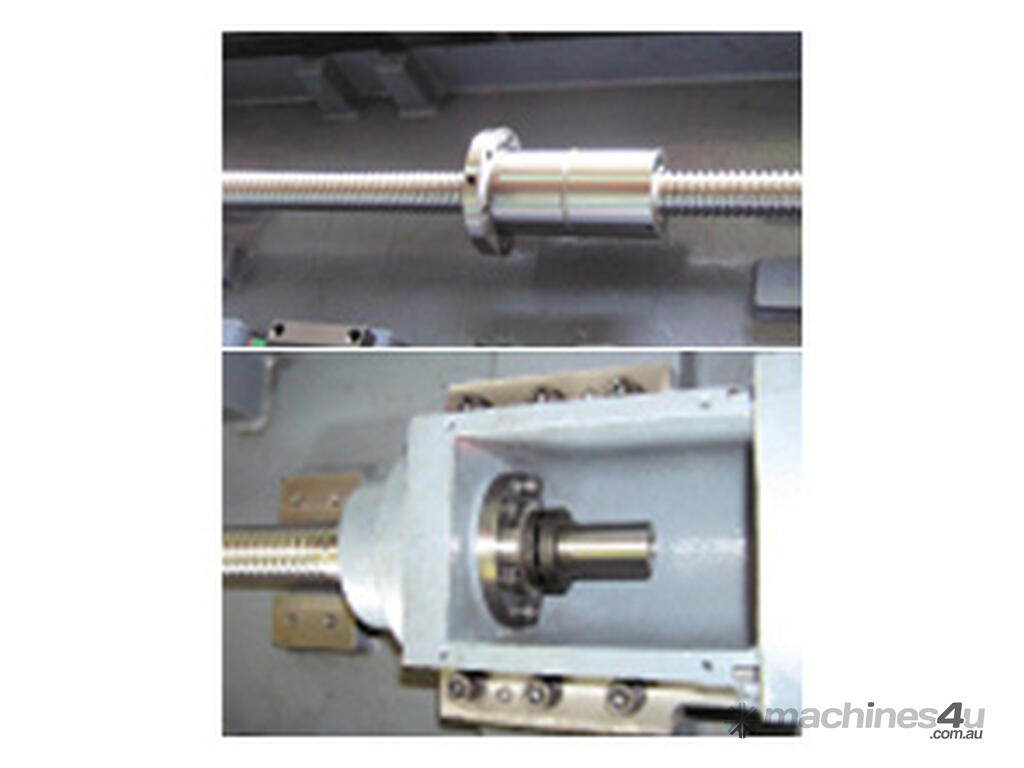

Precision Ball Screw:
Three axes are transmitted by high precision ball screws, preloaded, hardened and ground-assuring dependable feed accuracy.


Linear
X Axis Travel(mm) 550
Y Axis Travel(mm) 410
Z Axis Travel(mm) 460
Distance From Table Surface to Spindle nose(mm) 120-580
