JIH-18 C Type - Cold Sawing Machine Semi Automatic

Feature
- Simply treadle the foot switch, and the machine will perform automatic workpiece clamping, automatic oil spray, and automatic cutting, safely and without effort.

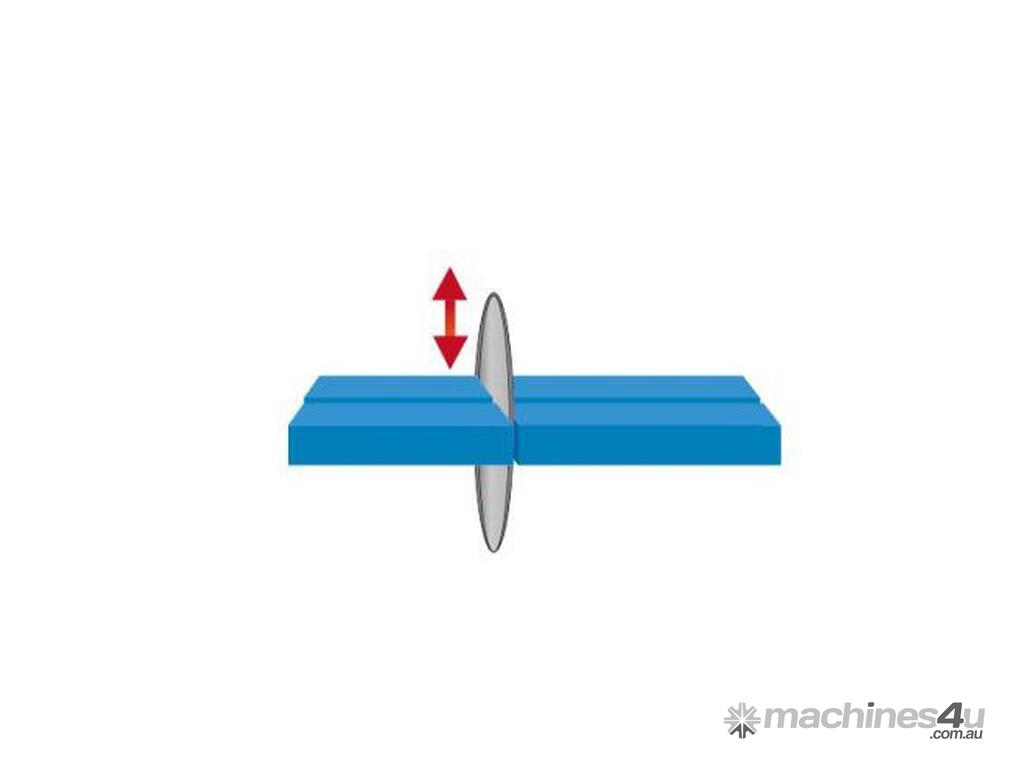

- Concealed sawblade performs cutting from bottom to top. It allows for the cutting of a Single workpiece or multiple workpieces simultaneously.
- Automatic oil mist spray during cutting provides cooling and lubrication effect.
- Cutting feed is driven by a hydraulic-pneumatic cylinder for extremely stable cutting speed.
- The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.
- The machine can conduct 90° cut-off or 45° cutting with the use of a fixture (Optional).
- Workpieces clamping pressure is adjustable.

Applicable Materials
Aluminum, Brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, Teflon, honeycomb board, wood and other non-ferrous metals.

Standard Equipment
18'' Saw Blade x1pce, Replace Saw Blade Tool, Toolbox

Optional Equipment
• CE Standard, Infeed, Outfeed Conveyor, Chip Collector, Horizontal Clamp, Hydraulic Feeding, 45° Fixture
• With Auto3000 for Automatic Positioning, Automatic Feeding (Pusher), Automatic Cutting functions.
