JIH - 3D - Three Head Drilling Machine

Features
X- Axis Stroke 4.5m(Optional).
3 Axis Stroke Adjust by Manual.
Z -Axis Auto Drilling .
3 Axis Position by M10 LCD Display
With Magnetic Tape.
3 Set drilling head can be movable together or choice individual start. Single or continue start for choice. Each head minimum distance is 300 mm.
Automatic Oil Mist System.
Y-axis max loading material width 250mm.
Two steps start: the first step high speed feed rate (feeding position can be adjusted), the second step lower speed feed rate (feeding position can be adjusted).
Hydraulic feed way.

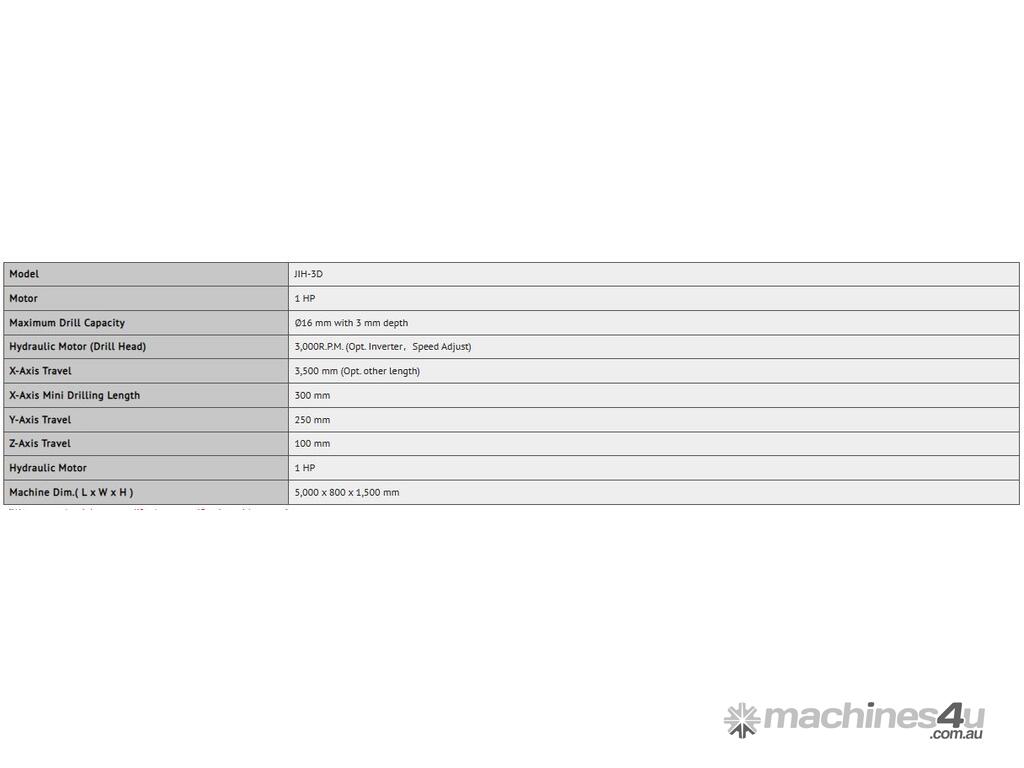

Product Specification
Model JIH-3D
Motor 1 HP
Maximum Drill Capacity ?16 mm with 3 mm depth
Hydraulic Motor (Drill Head) 3,000R.P.M. (Opt. Inverter?Speed Adjust)
X-Axis Travel 3,500 mm (Opt. other length)
X-Axis Mini Drilling Length 300 mm
Y-Axis Travel 250 mm
Z-Axis Travel 100 mm
Hydraulic Motor 1 HP
Machine Dim.( L x W x H ) 5,000 x 800 x 1,500 mm

Optional:
CE Standard
- Infeed
- Outfeed Roller Table
- Tool
