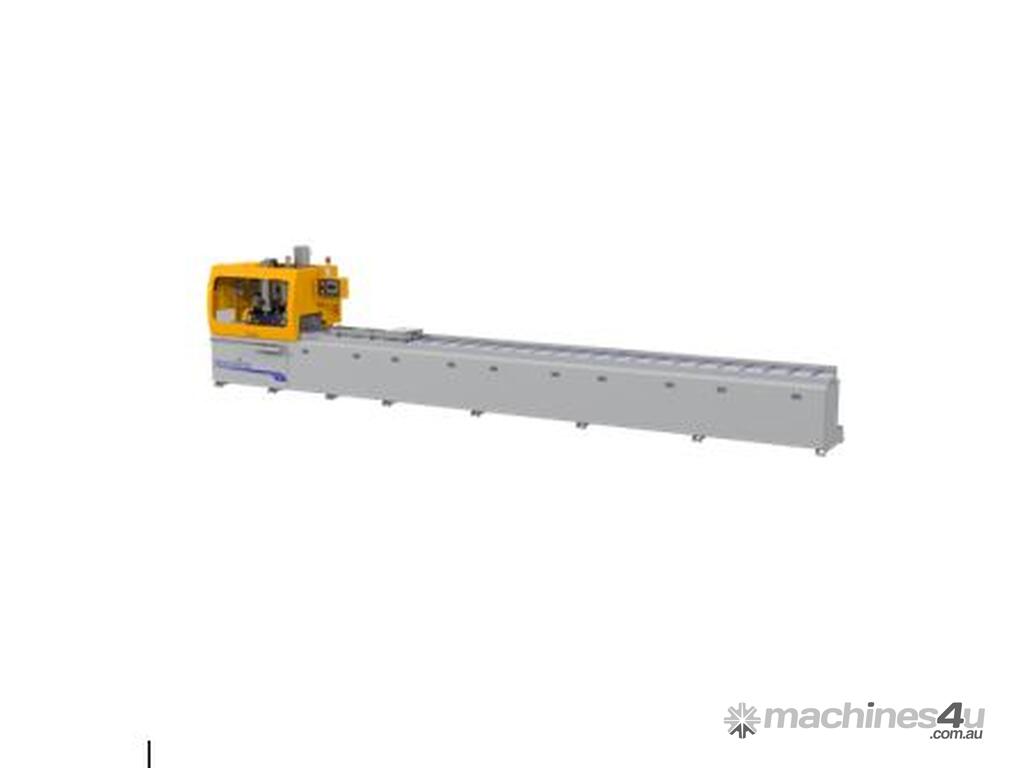

JIH – AUTO 18DTS – Aluminium Automatic Drilling Tapping Sawing Machine

AUTO 18DTS is designed for the small part which need drilling, tapping and cutting.

Automatic drilling, tapping and automatic sawing multi-function at one. (Three functions can be selected)

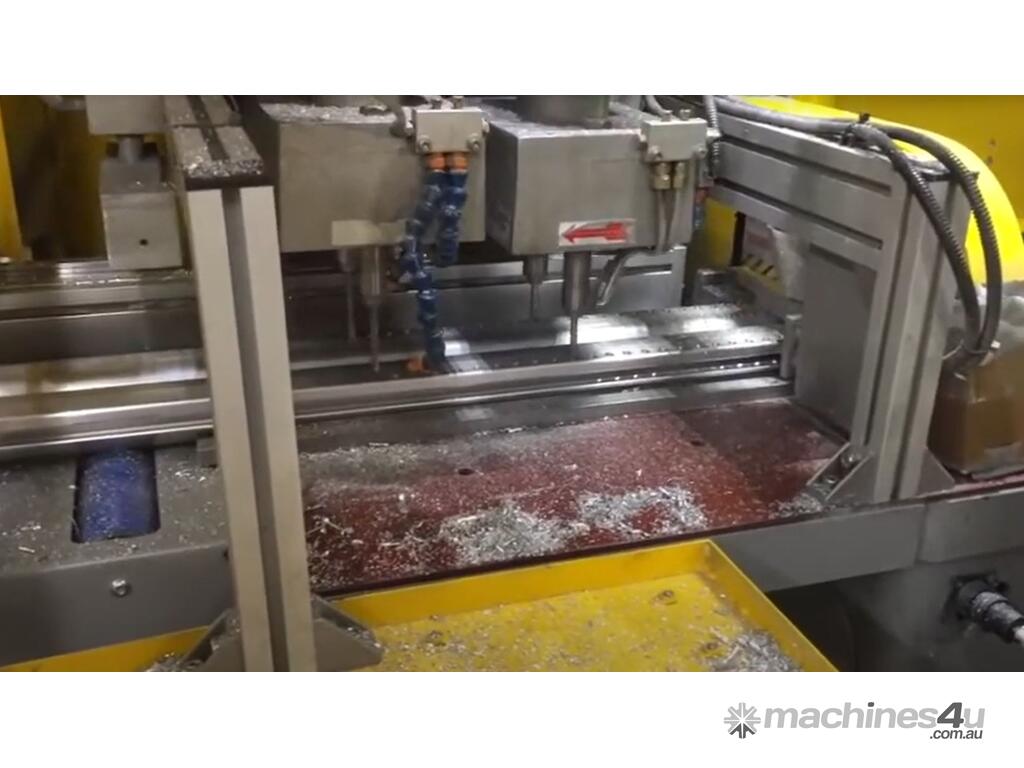

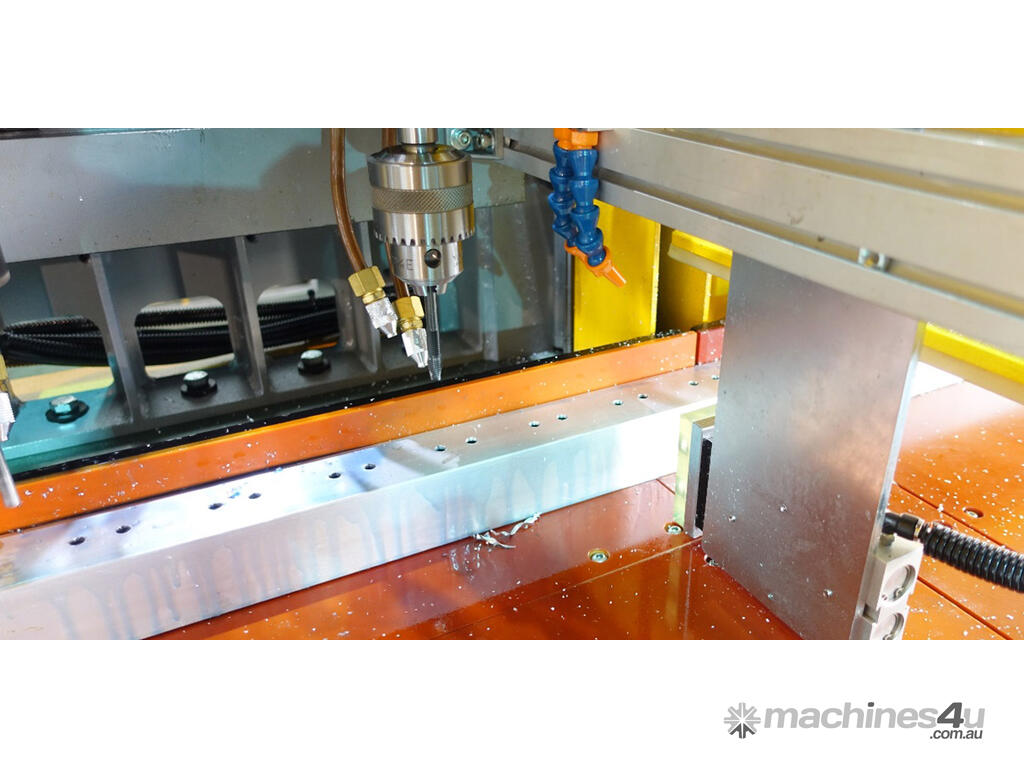

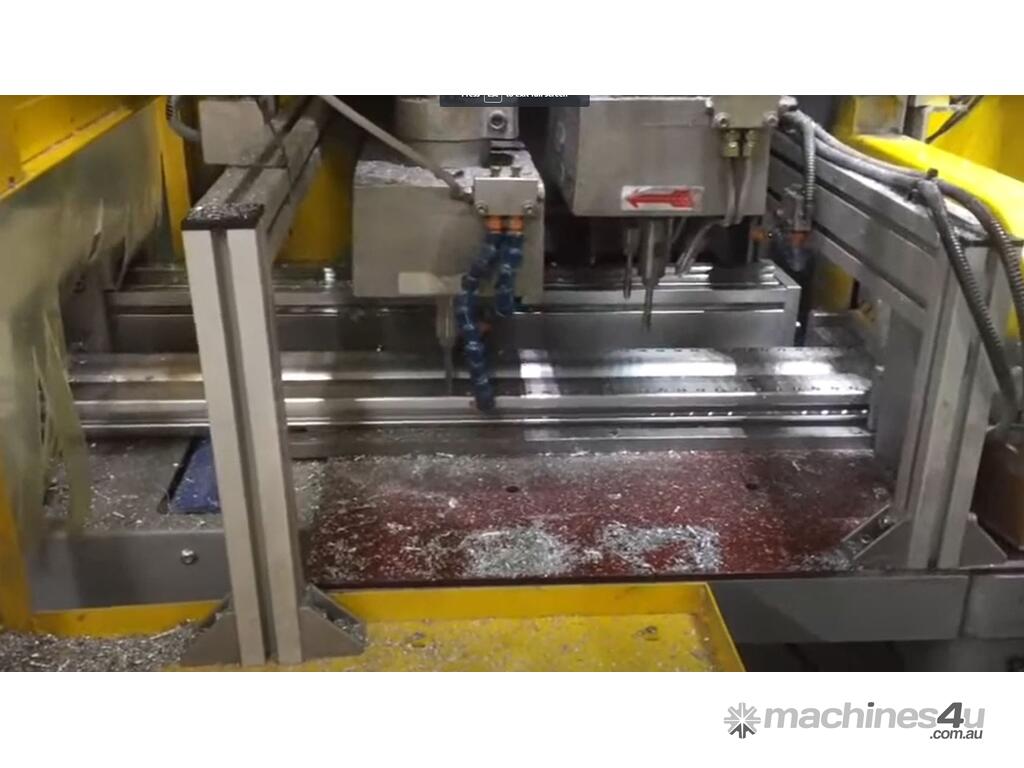

The automatic drilling and tapping head is in position by a servomotor with high accuracy.
Automatic feed stroke 6,500mm. (opt. 2,500~5,500mm)
High-performance and high-efficiency machines that can be cut in parallel several pieces at simultaneously in the processing range.
PLC control with easy operation by touch screen.


Model JIH-AUTO18DTS
Processing Methods Drilling?Tapping?Sawing
Servo Drive System belt
AUTO3000 ACTUALLY MEASURE 2.5~6.5M(opt.)
Cutting Capacity (HXW) 120X120, 100X230
Saw Blade Size 18”x1” bore
Saw Spindle Motor 7.5HP
Drilling motor 3HP
Drilling servomotor 400W
Tapping motor 3HP
Tapping servomotor 400W
Max. Drilling Travel 150mm
Feeding Speed 10~40m/min
Servomotor 750w
Table Height From Floor 870mm
Touch-Sensing Screen 9.7”
Air Pressure 4~6 kgs / cm2
Main Machine Dimensions (L x M x H) 2,530×1,350×2,230mm
Main Machine Packing Dimensions (L x M x H) 2,630×1,450×2,300mm
Main Machine Net / Gross Weight 830/900KGS
