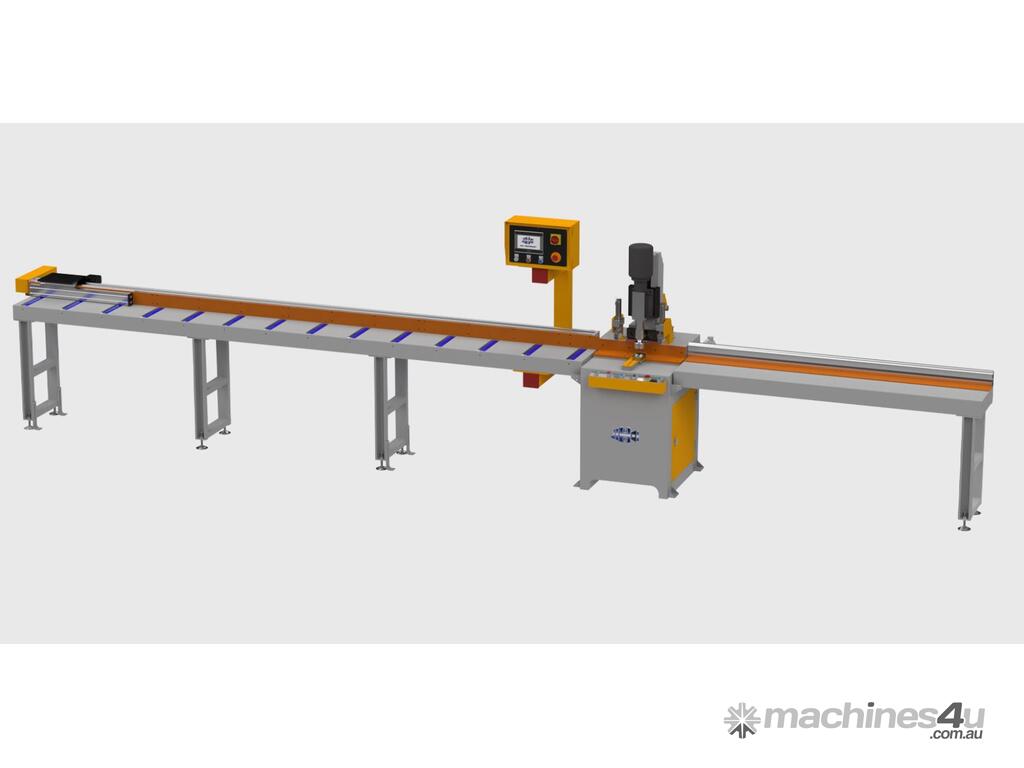

JIH- AUTO 1D – Aluminium NC Automatic Drilling Machine

Product Description
Automatic Drill Machine (X-Axis Automatic Positioning,Y-Axis Manual Positioning, Z-Axis Pinpoint Automatic Drilling).
Plc Control, Touch Control, Can Manufacture Both Equal And Unequal Distance Drilling.

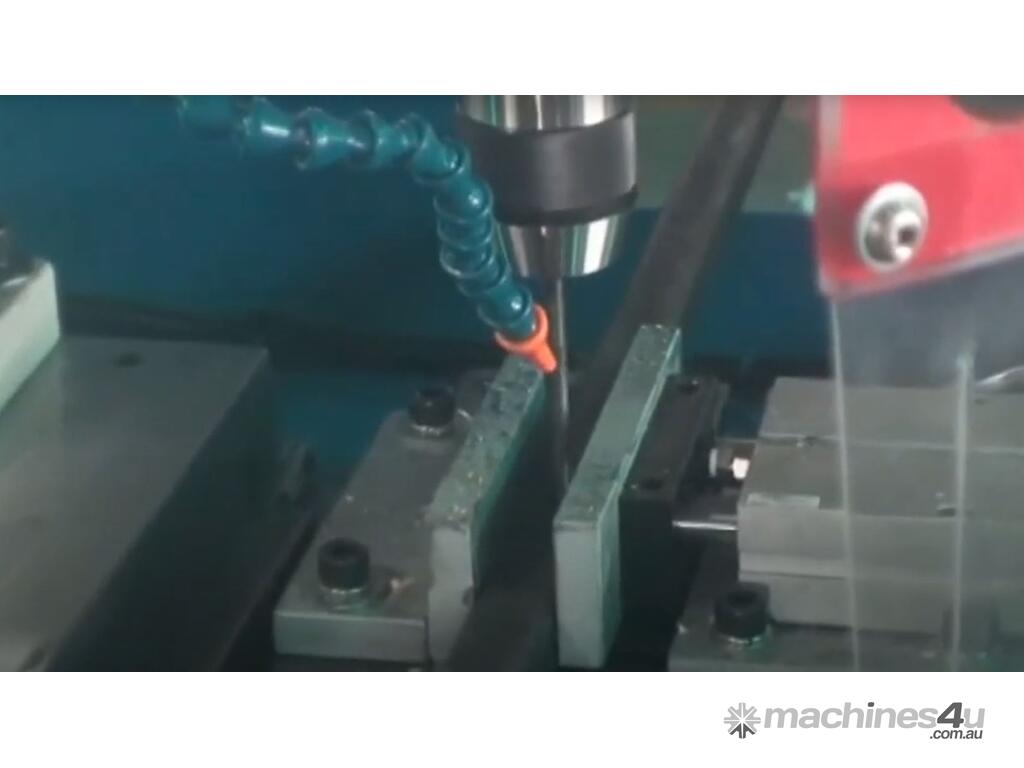

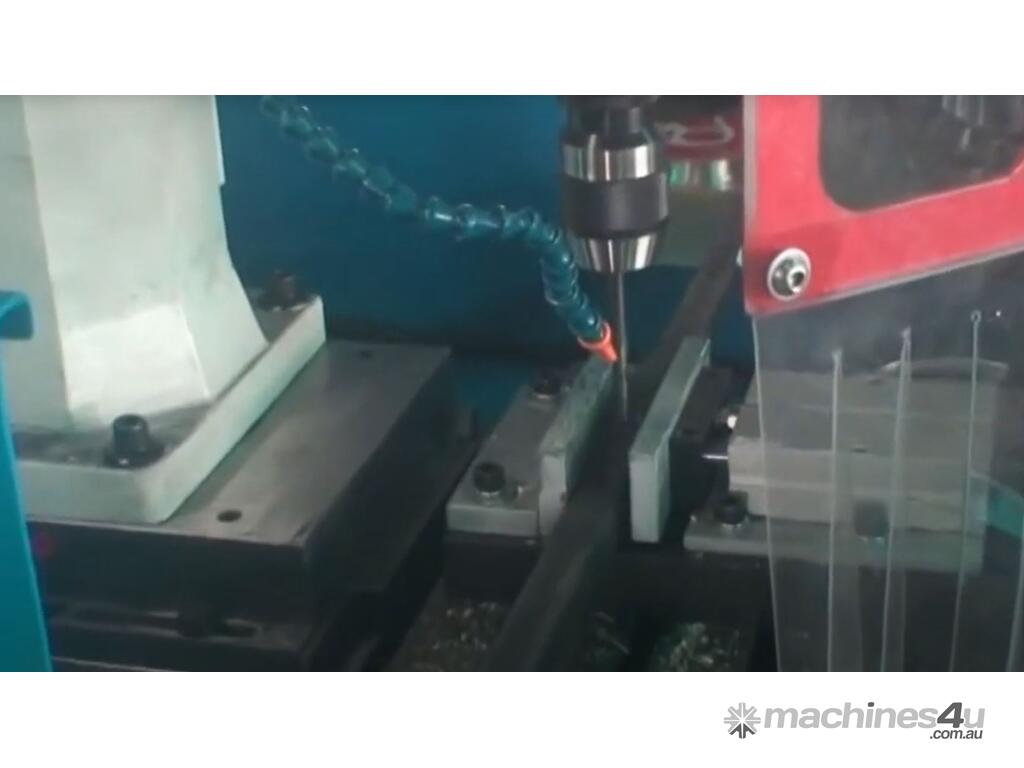

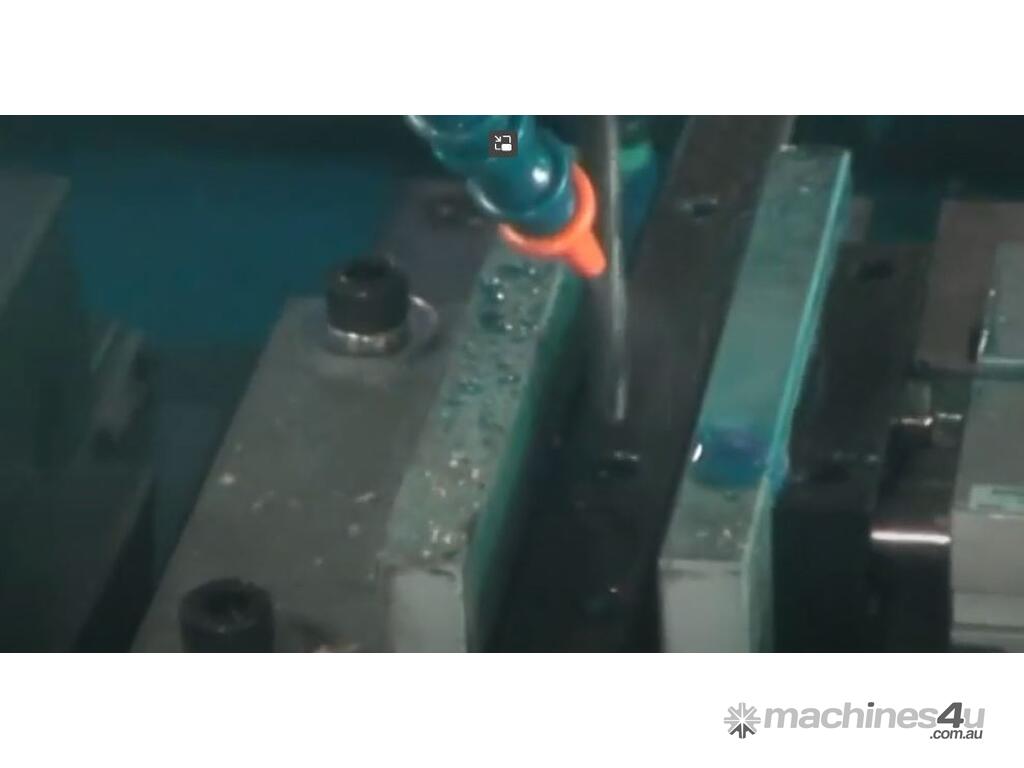

Accurately Controlled Oil Mist System Greatly Improves Lubrication And Cooling Effect.
Clamping System Is Optional.(Pneumatic Or Hydraulic).
Can Make Both Manual Drilling And Automatic Drilling.

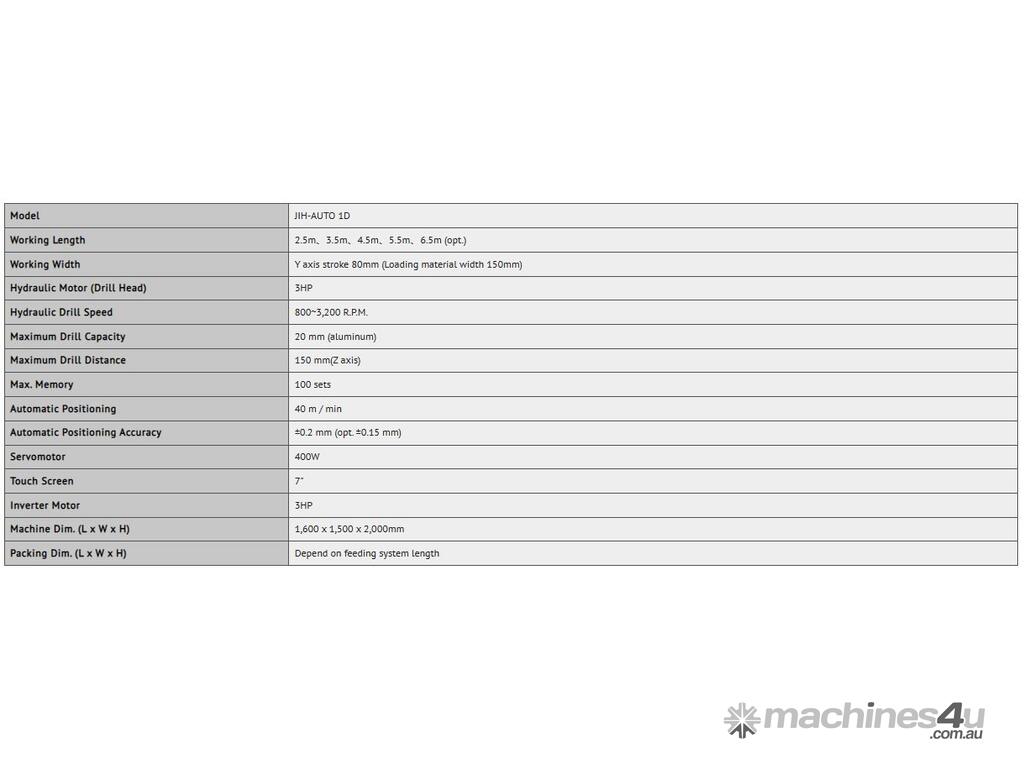

Product Specification


Model JIH-AUTO 1D
Working Length 2.5m?3.5m?4.5m?5.5m?6.5m (opt.)
Working Width Y axis stroke 80mm (Loading material width 150mm)
Hydraulic Motor (Drill Head) 3HP
Hydraulic Drill Speed 800~3,200 R.P.M.
Maximum Drill Capacity 20 mm (aluminum)
Maximum Drill Distance 150 mm(Z axis)
Max. Memory 100 sets
Automatic Positioning 40 m / min
Automatic Positioning Accuracy ±0.2 mm (opt. ±0.15 mm)
Servomotor 400W
Touch Screen 7?
Inverter Motor 3HP
Machine Dim. (L x W x H) 1,600 x 1,500 x 2,000mm
Packing Dim. (L x W x H) Depend on feeding system length


Optional:

CE Standard
Outfeed Roller Table
Tool
