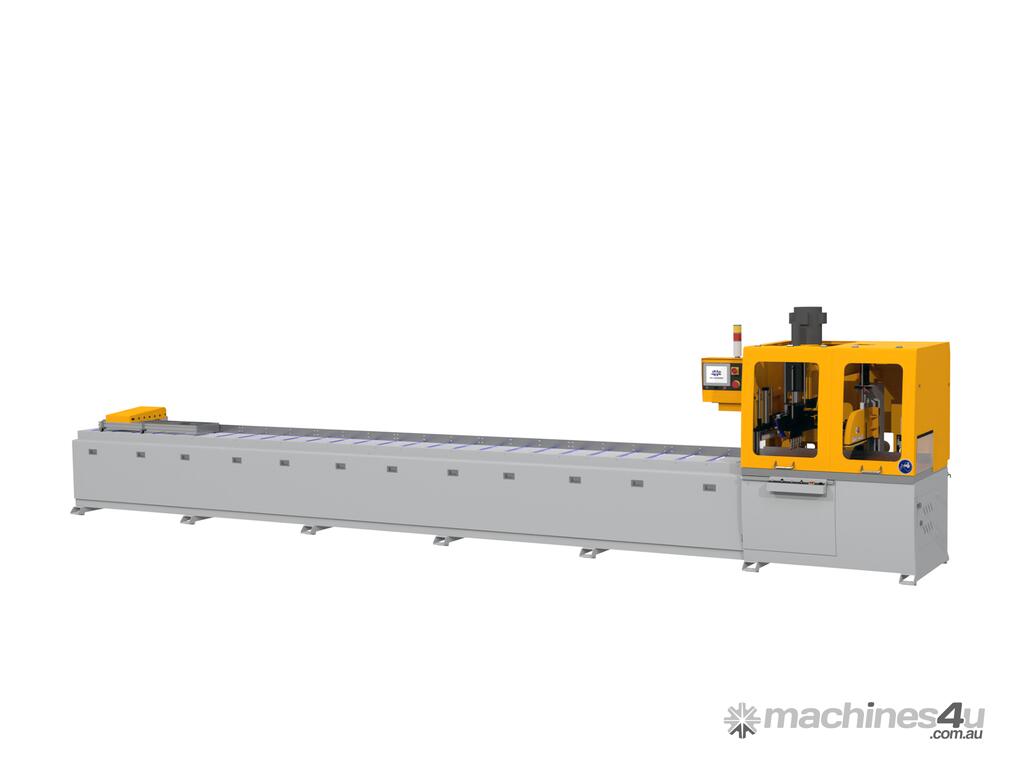

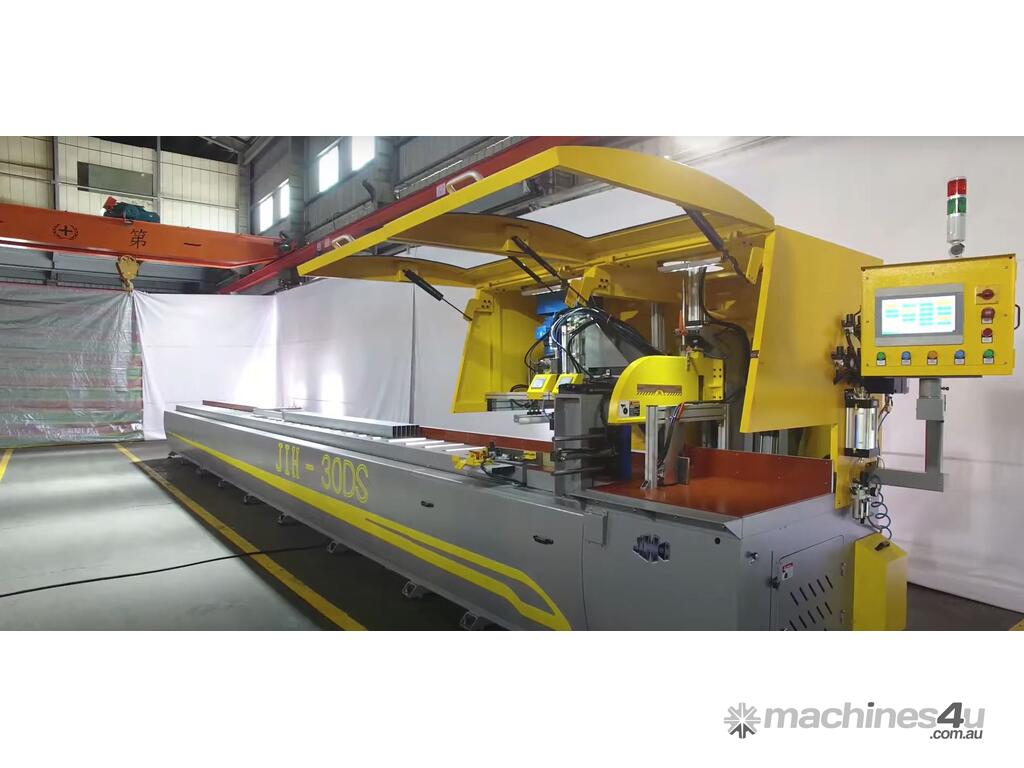

JIH- AUTO 30DSW – Automatic Drilling Sawing Machine

Name: JIH- AUTO 30DSW Automatic Drilling Sawing Machine
Brand: jih-i
SKU: 884498
Availability: InStock

KNOXFIELD, VIC - Delivers Nationally

Play Video

Contact this seller for accurate pricing

Finance Repayment Calculator

Get a quote from our independent finance provider

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Aluminium Saws

Make:

JIH-I

Model:

AUTO 30DSW

Year:

Not specified

Member Since: Jun 2008

Silver Member

Listings: 278

Description

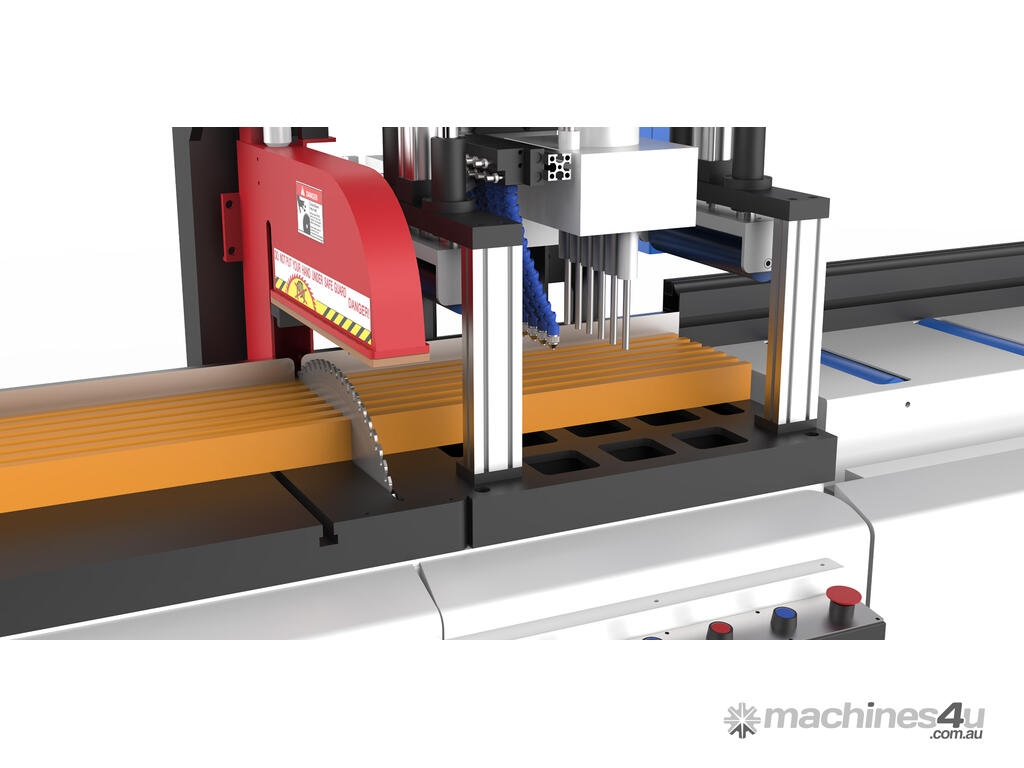

Automatic drilling and sawing multi-function at one(drilling and cutting functions can be selected )

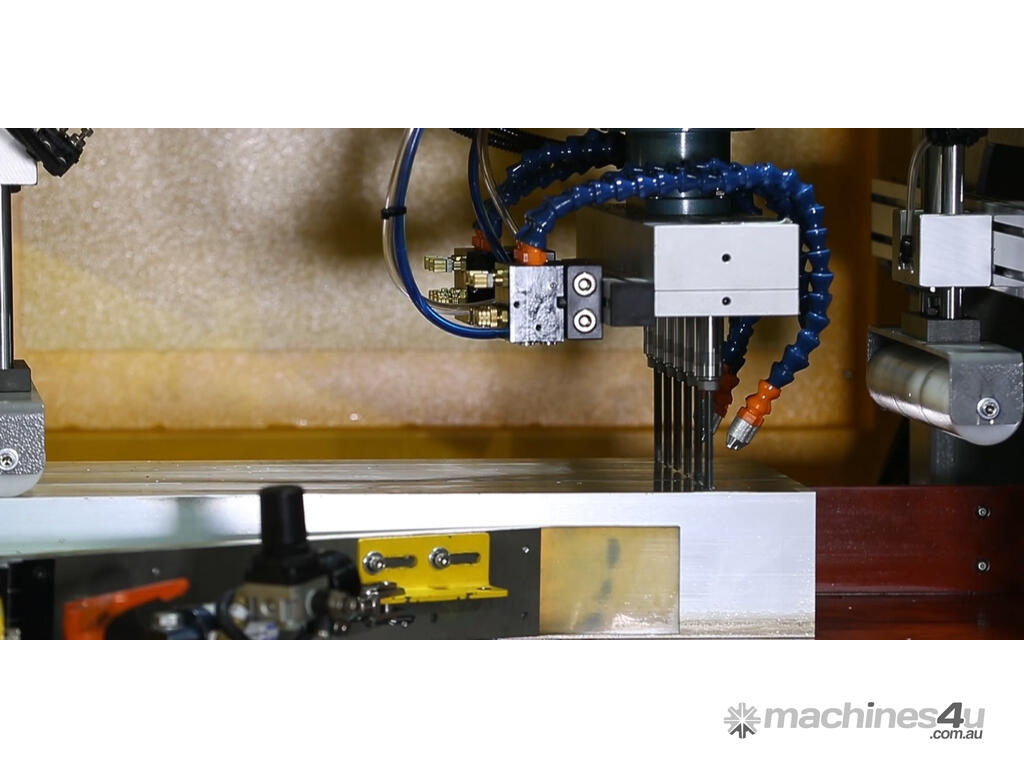

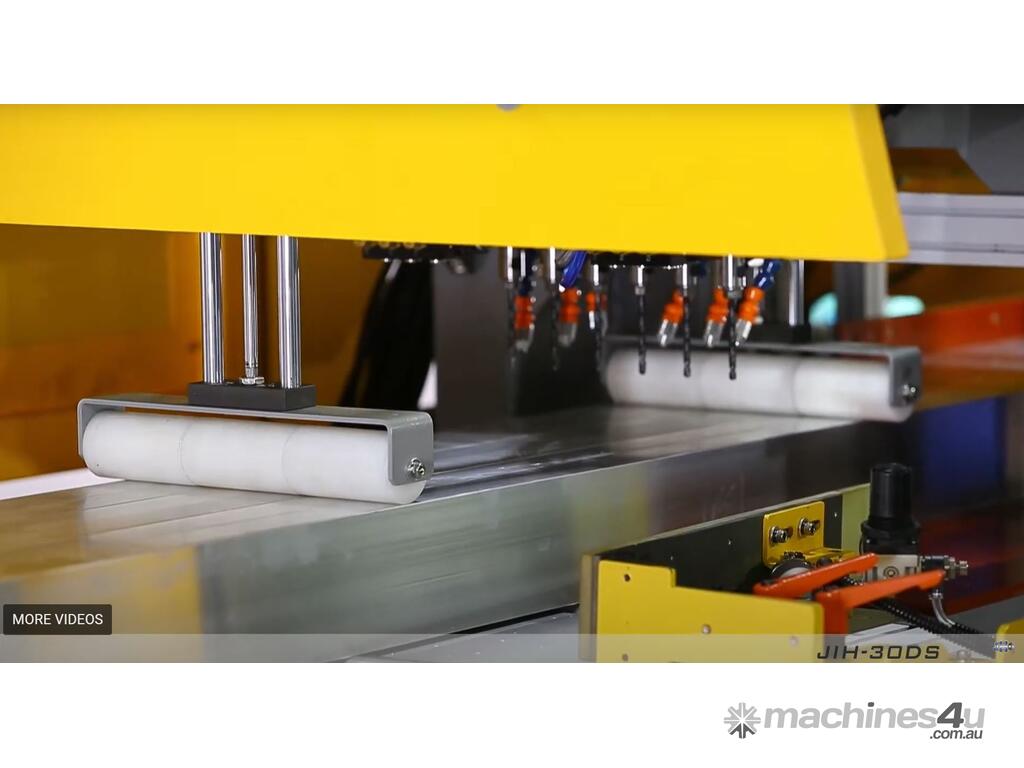

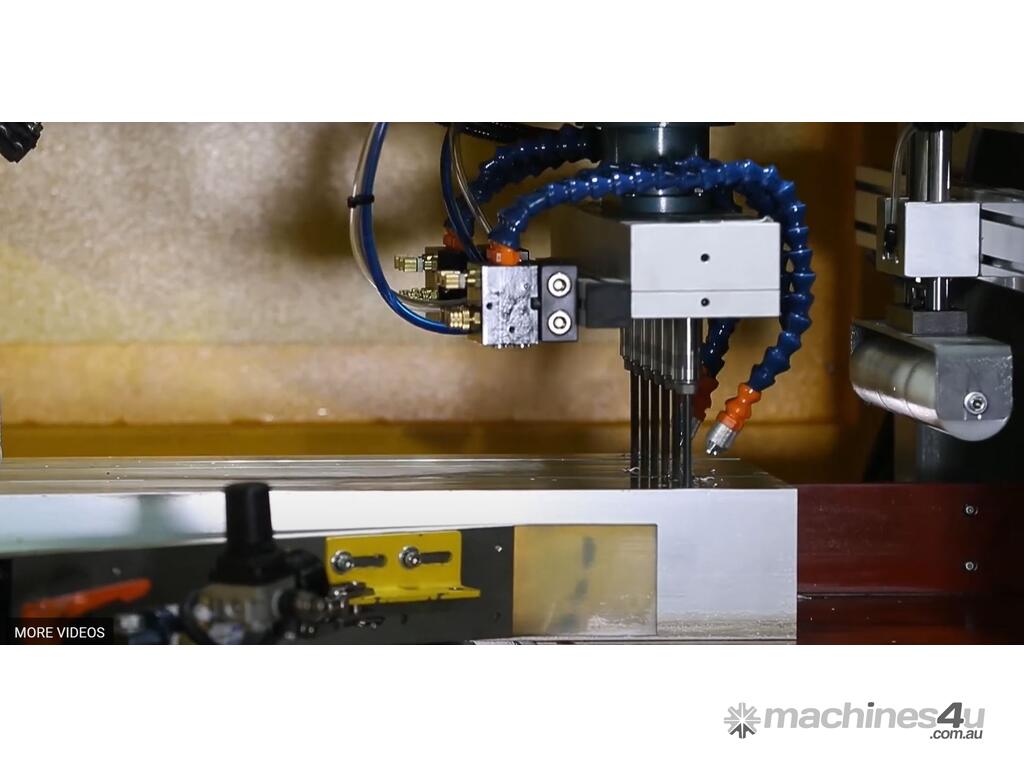

Automatic drilling head is in position by servomotor with high accuracy
Automatic feed stroke 6,500mm (opt 2,500~5,500mm)

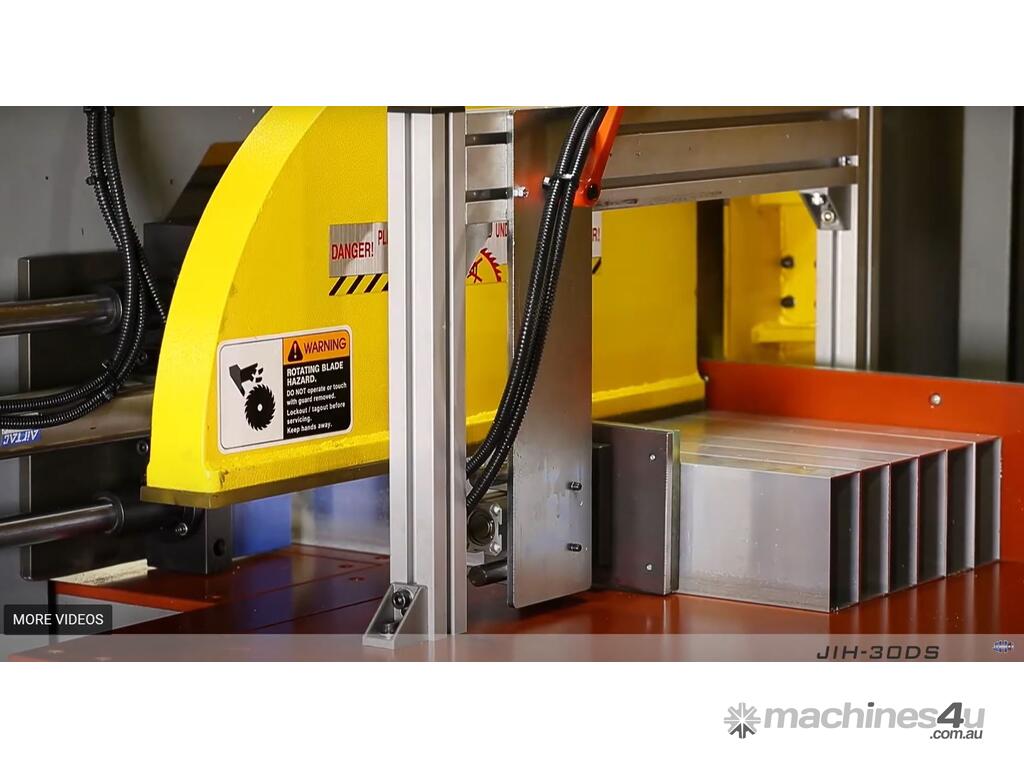

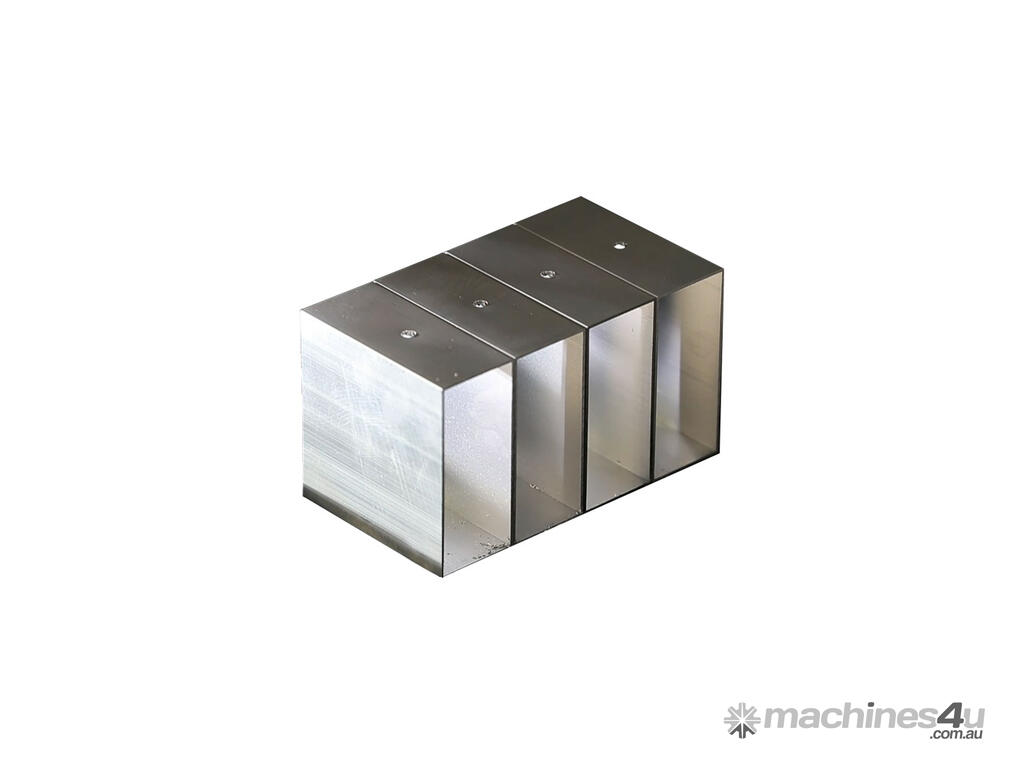

High-performance and high-efficiency machines that can be cut in parallel several pieces at simultaneously in the processing range

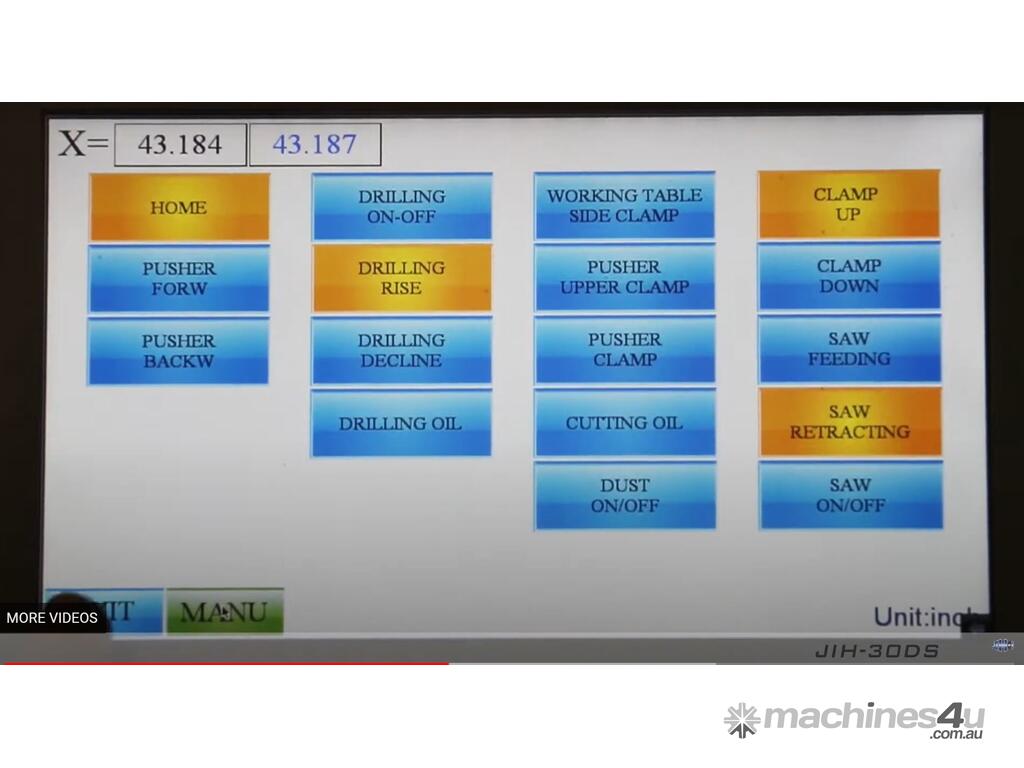

PLC control with easy operation by touch screen
Servo drive system is high precision gear rack

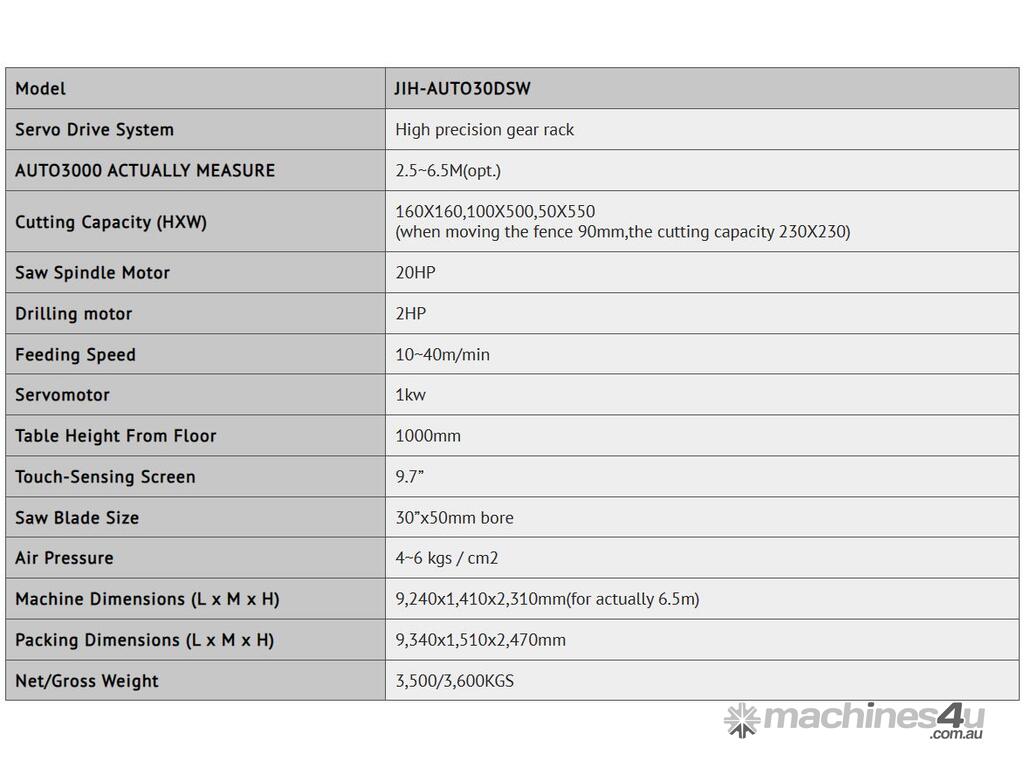

Model JIH-AUTO 30 DSW
Servo Drive System High precision gear rack
AUTO3000 ACTUALLY MEASURE 2.5~6.5M(opt.)
Cutting Capacity (HXW) 160X160,100X500,50X550
(when moving the fence 90mm,the cutting capacity 230X230)
Saw Spindle Motor 20HP
Drilling motor 2HP
Feeding Speed 10~40m/min
Servomotor 1kw
Table Height From Floor 1000mm
Touch-Sensing Screen 9.7”
Saw Blade Size 30”x50mm bore
Air Pressure 4~6 kgs / cm2
Machine Dimensions (L x M x H) 9,240×1,410×2,310mm(for actually 6.5m)
Packing Dimensions (L x M x H) 9,340×1,510×2,470mm
Net/Gross Weight 3,500/3,600KGS
