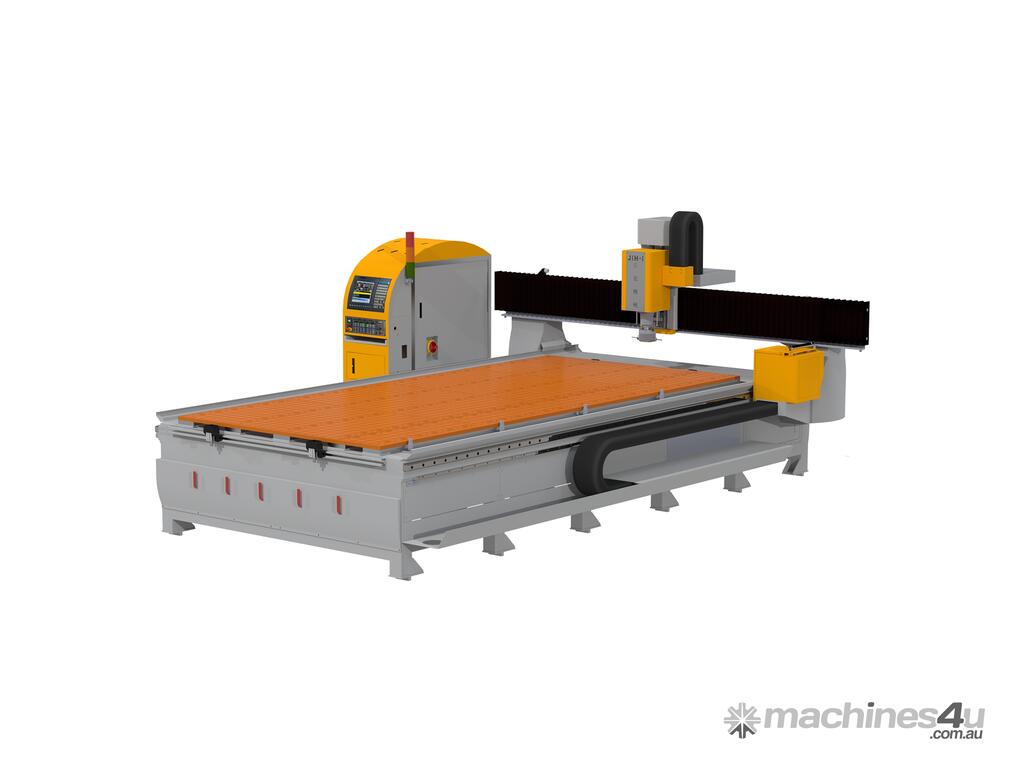

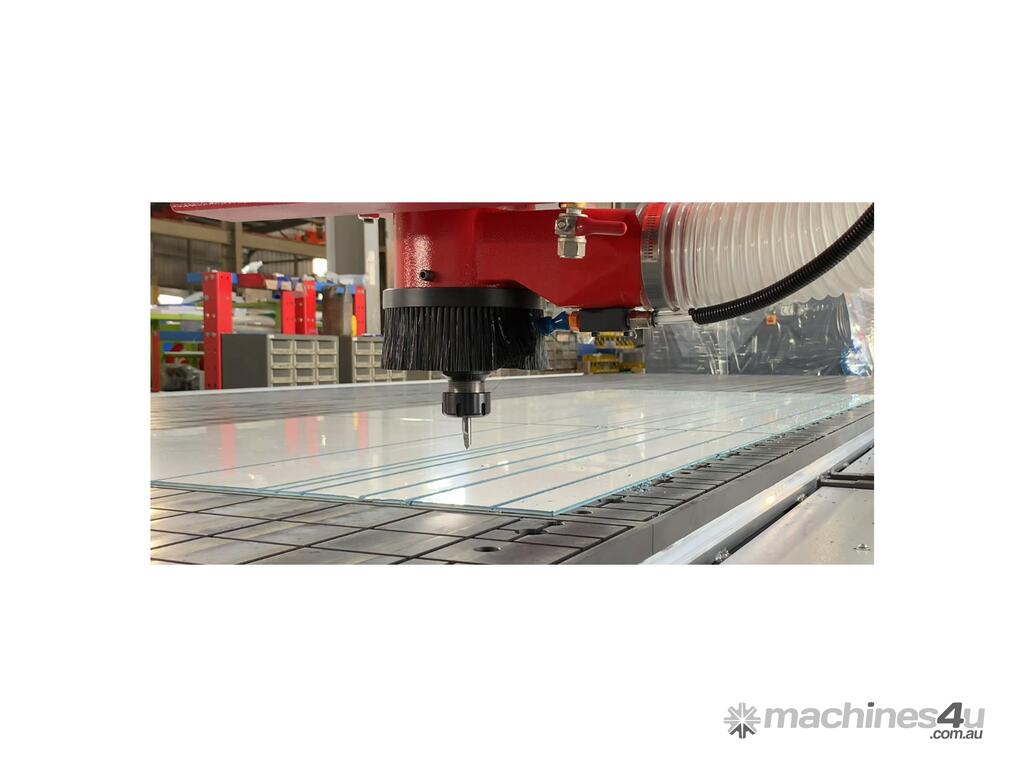

JIH - CNC 48B Type 3 Axis CNC Router

Applicable Industries
-Casting aluminum door
- Casting copper door
- Aluminum with PVC panel
- Any kind of panel, acrylic or non-ferrous metal etc......
- Wooden mould carving, solid wood door, plate type material
- Bakelite, glass fiber, aluminum plate, solid wood, lettering, carved, to fit customized furniture, home improvement
- Aluminum template processing

Machine Features
-Italian spindle with high frequency, power 8KW, low noise and long life .

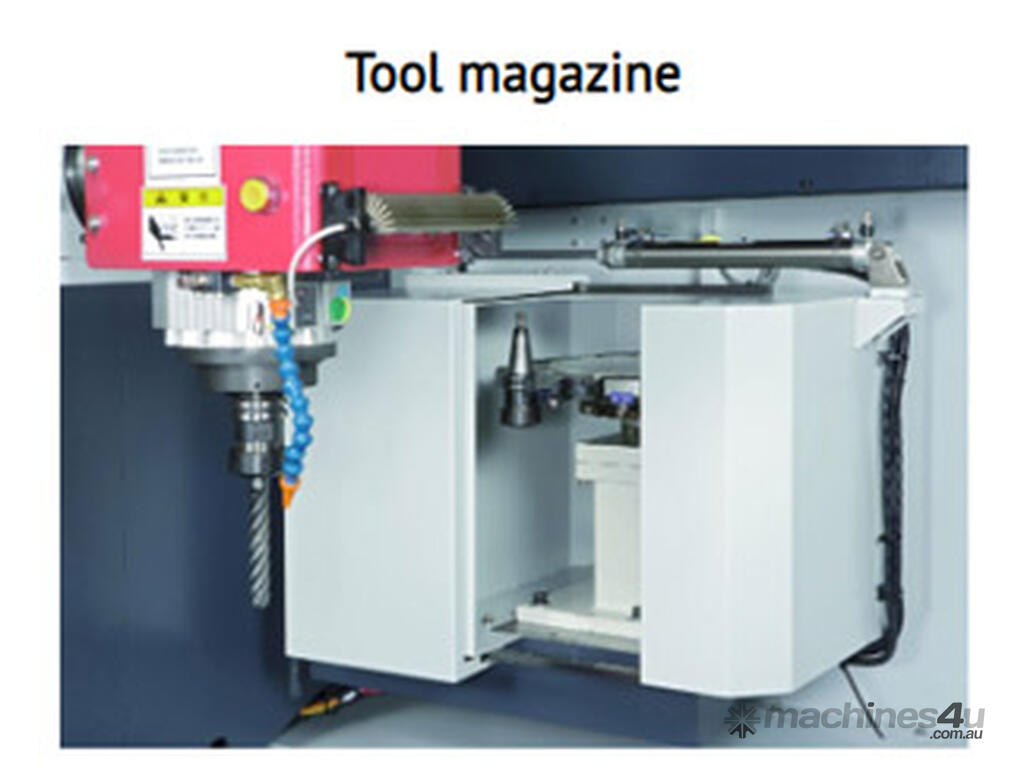

- High-efficiency carousel type automatic tool change system
- Tempering treatment,strong body won`t be out of shape, high rigidity (with customized table)
- Automatic tool length measure system, automatic position system
- X axis motor drive from both side, make it working stable
- 3 axis automatic lubrication
- Oil mist cooling

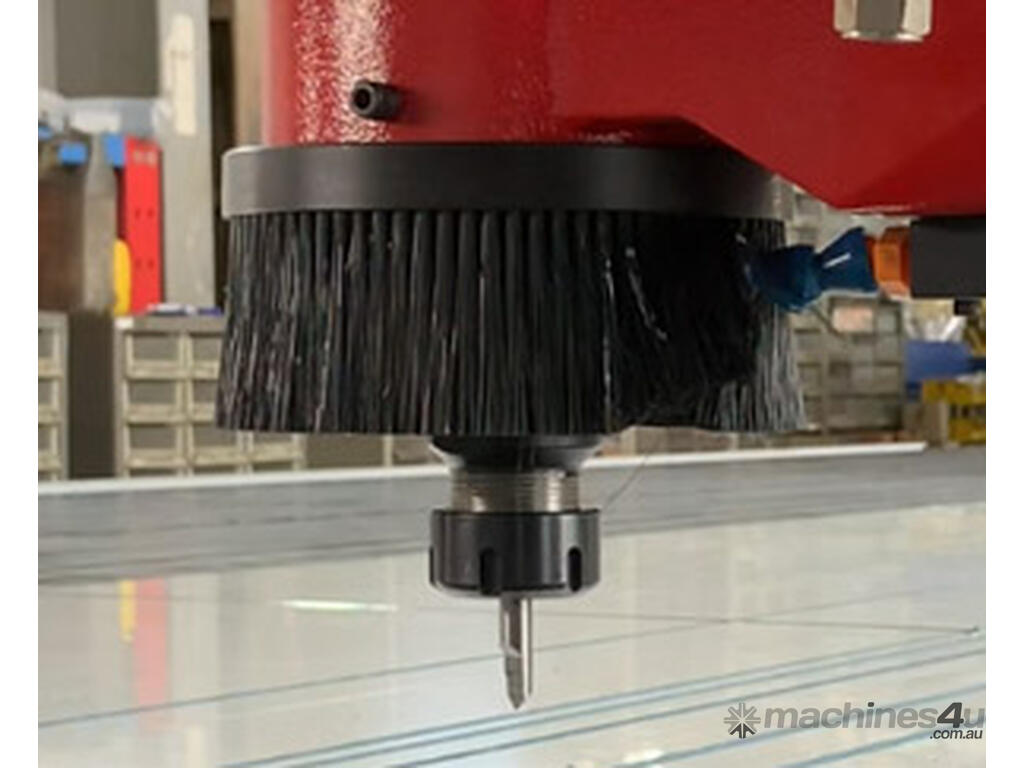

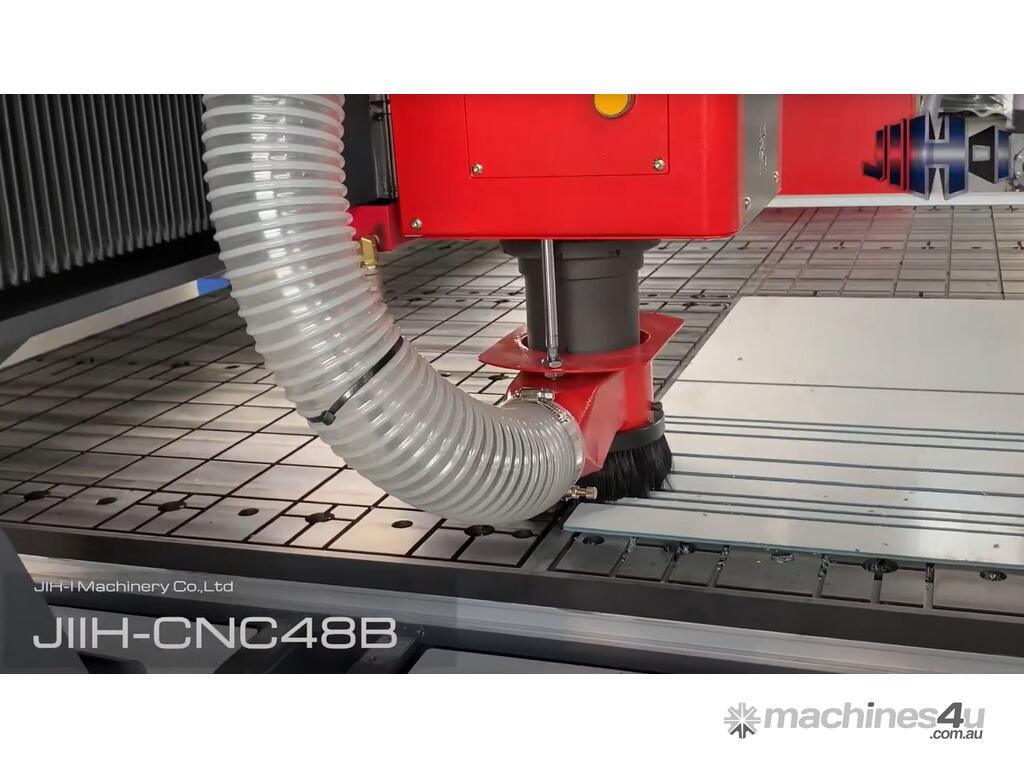

- Spindle head dust collector
- Vacuum table
- Standand:8 tools magazine


Model  JIH - CNC 48B

Stroke
X-Axis Stroke 2,470 mm
Y-Axis Stroke 1,250 mm
Z-Axis Stroke 250 mm (opt. 700 mm)
Distance from spindle nose to table surface 50~300 mm

Feed Rate
X-Axis Rapid Feed Rate 36M / min
Y-Axis Rapid Feed Rate 36M / min
Z-axis rapid feed rate 24M / min
Cutting Feed Rate F:1~5,000 mm/min
Repeatability Accuracy X: ±0.02mm Y: ±0.01mm Z :±0.01mm

Spindle
Motor 10HP (7.5kw)
X-Axis Motor 1.3 kw × 2
Y-Axis Motor 1.3 kw
Z-Axis Motor(brake) 1.3 kw
Table Height From Floor 820 mm
Max. Range of Processing 1,250~2,470 mm
Spindle Speed 1,000~24,000 R.P.M.
Tool Magazine Type
Magazine Capacity 8 pcs
Tool Holder ISO 30
Collet ER-32

Dimensions
Vacuum Zone 2 zone (vacuum table)40bar
Required Pneumatic Pressure 6 kgs/cm²
Machine Dimensions(LxWxH) 5,800×2,900×2,100 mm
Machine Weight 4,800 kg
