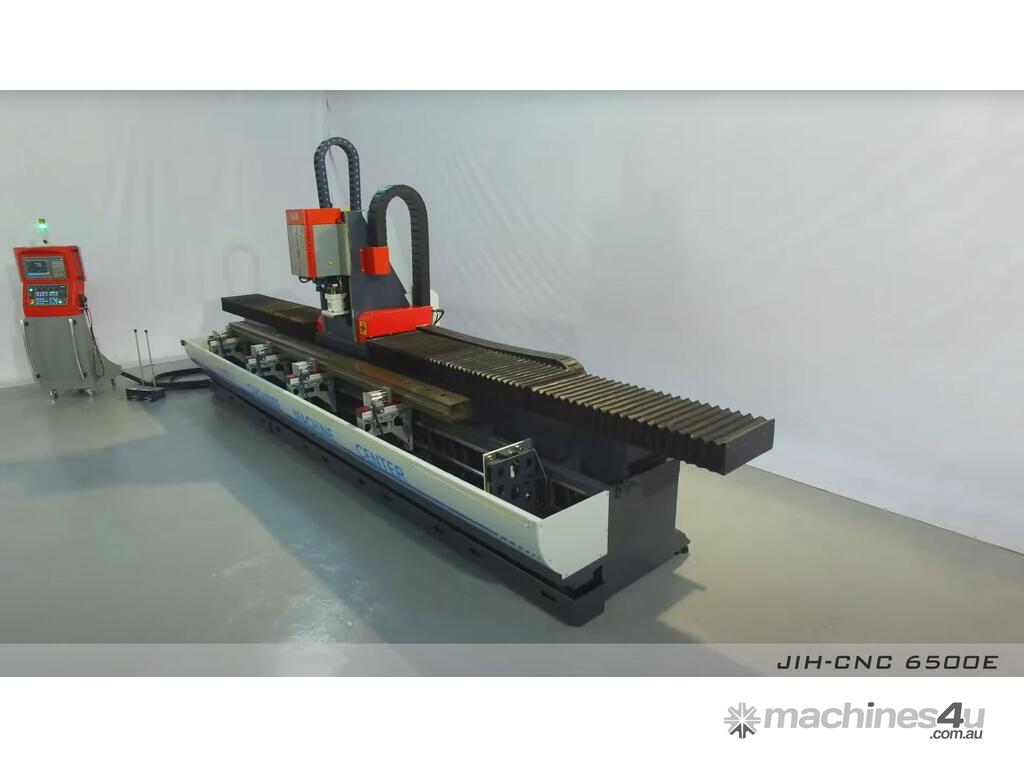

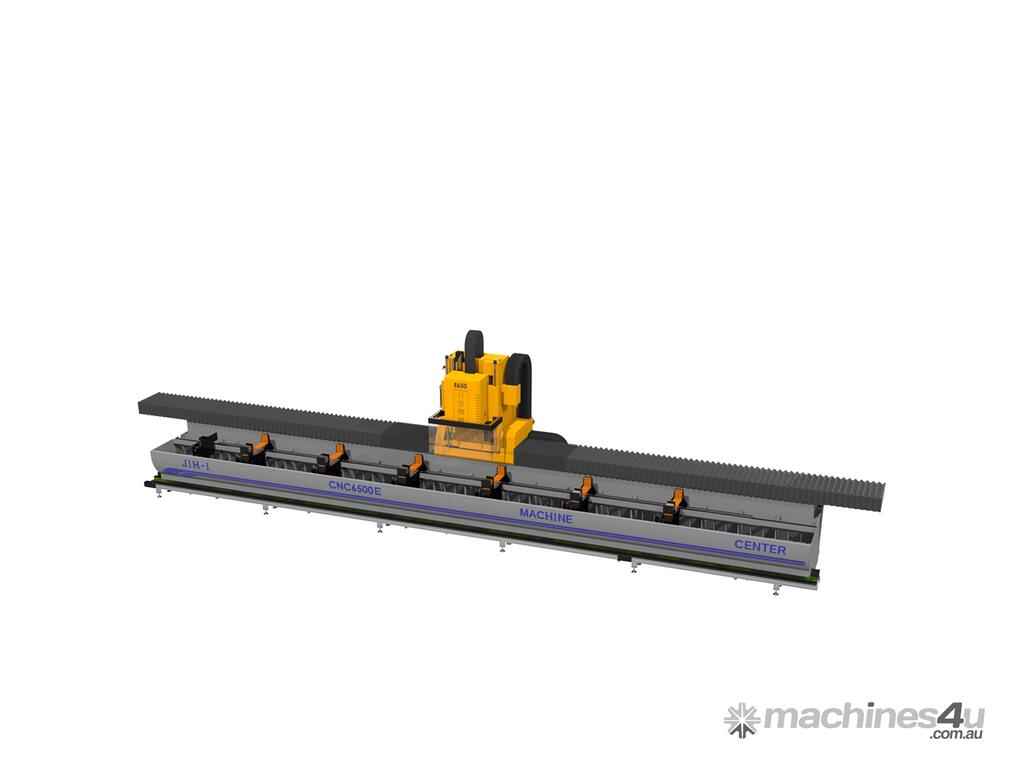

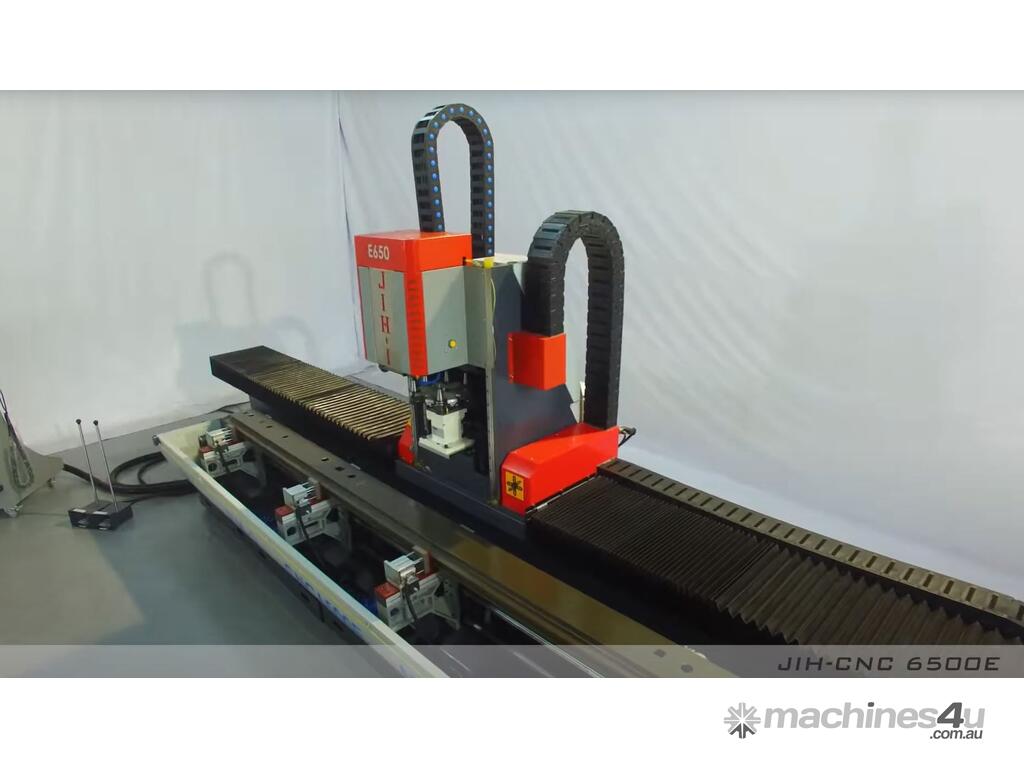

JIH - CNC 6500E Type 3 Axis CNC Machining Centre

Machine Features
-Choice of X-axis travels: 3,500/4,500/5,500/6,500mm.
- Table type: vise
- ISO 30 spindle
- Spindle speed: 18,000 RPM
- 8 tools carousel tool magazine.

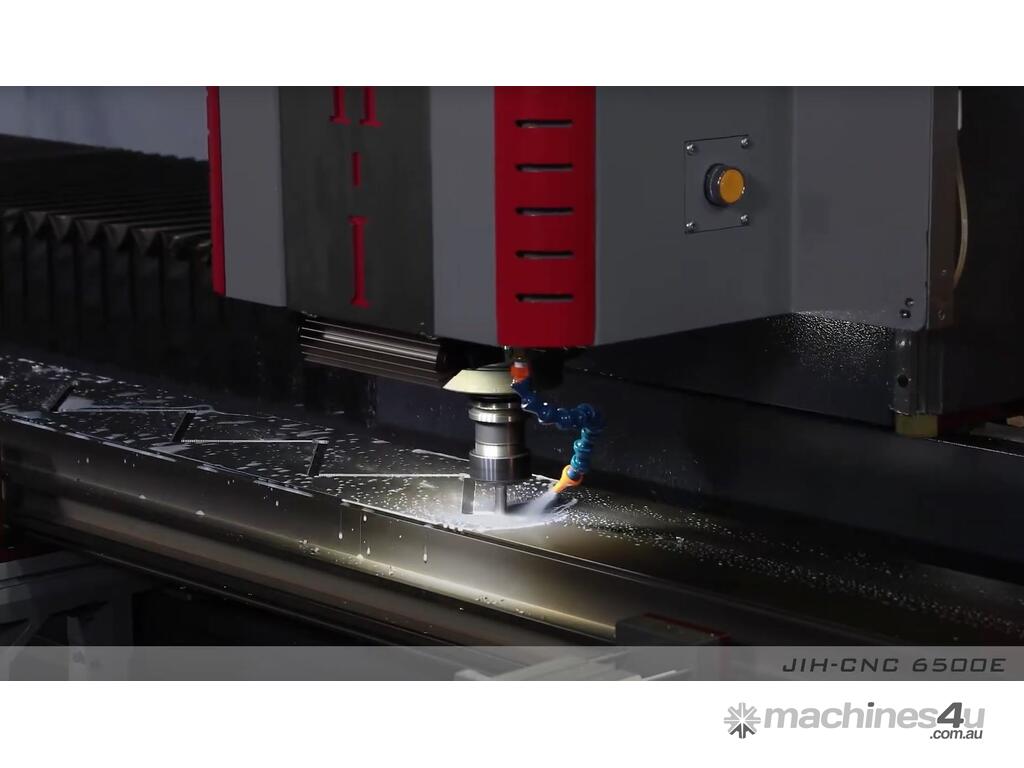

- Traveling column design features increased machining efficiency and accuracy.
- Three axes are equipped with high precision linear guide ways.
- Y&Z axis ball screw is coupled with servo motor, high transmission efficiency and high accuracy.

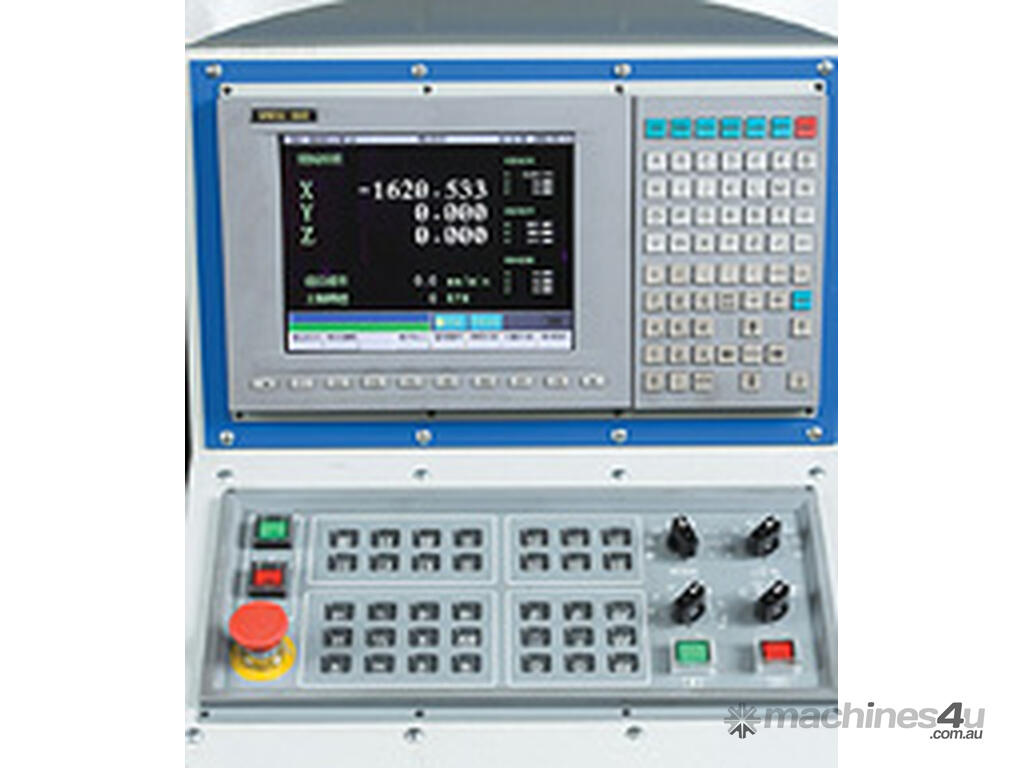

- Choice of controllers – PC based. (Mitsubishi, Fanuc and Siemens optional)
- Multi-Machining for Short Work Pieces: For machining short work pieces, the operator may mount the work pieces on the table to machine simultaneously.
- Extra Long Work Piece Machining: This machine is excellent for machining extra-long work pieces with only one setup.

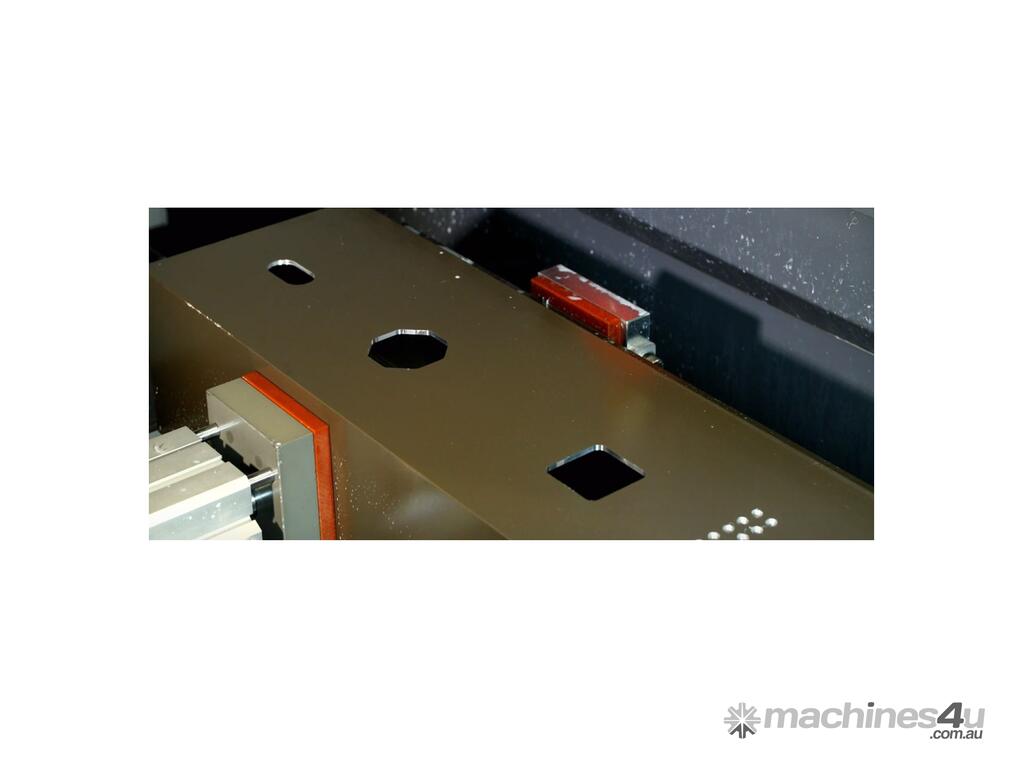

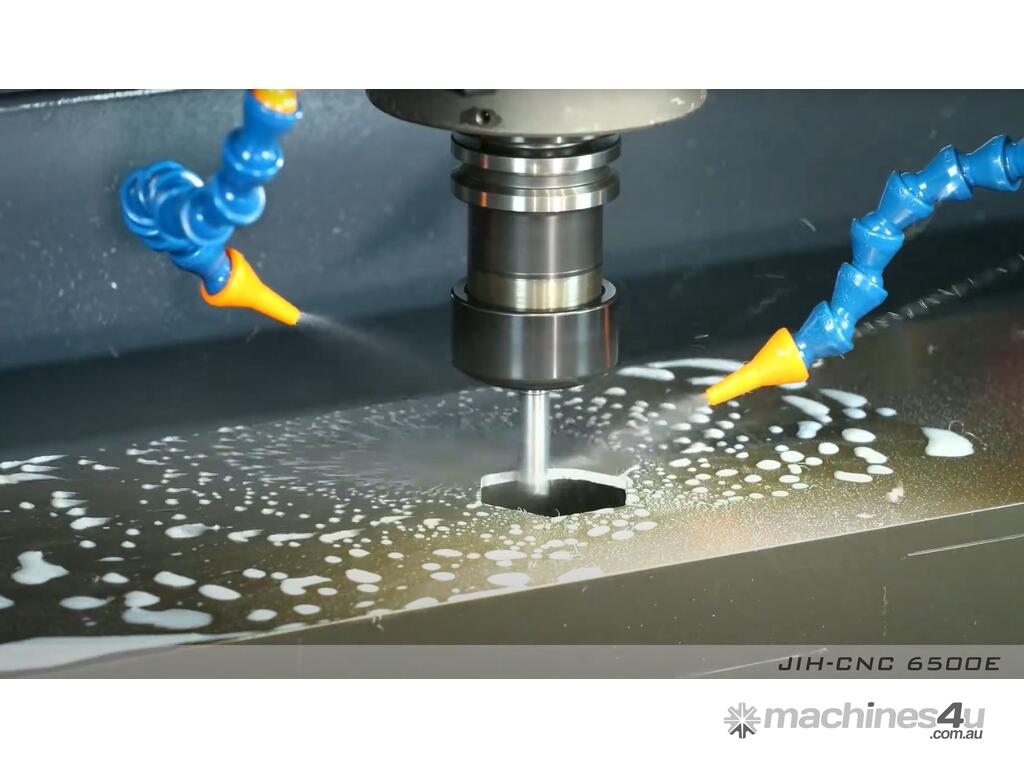

- Suitable machining includes milling, drilling and tapping. With such machining nodes, you can save considerable time.
- Different Parts Machining: With this mode of machining, greater efficiency can be obtained.

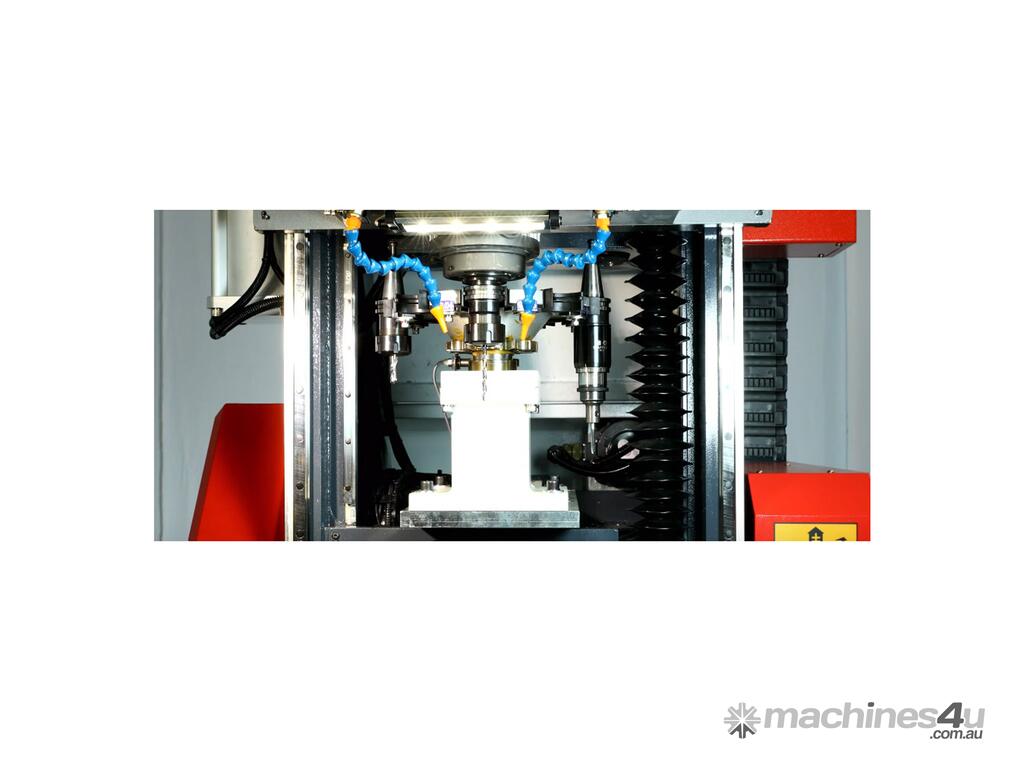

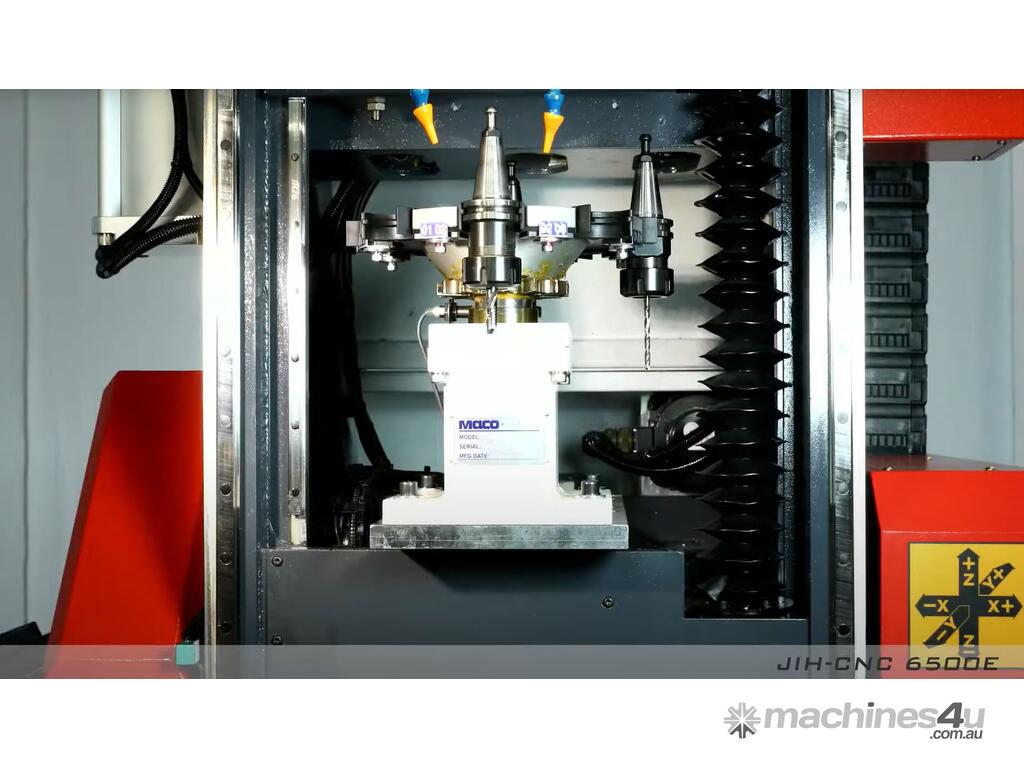

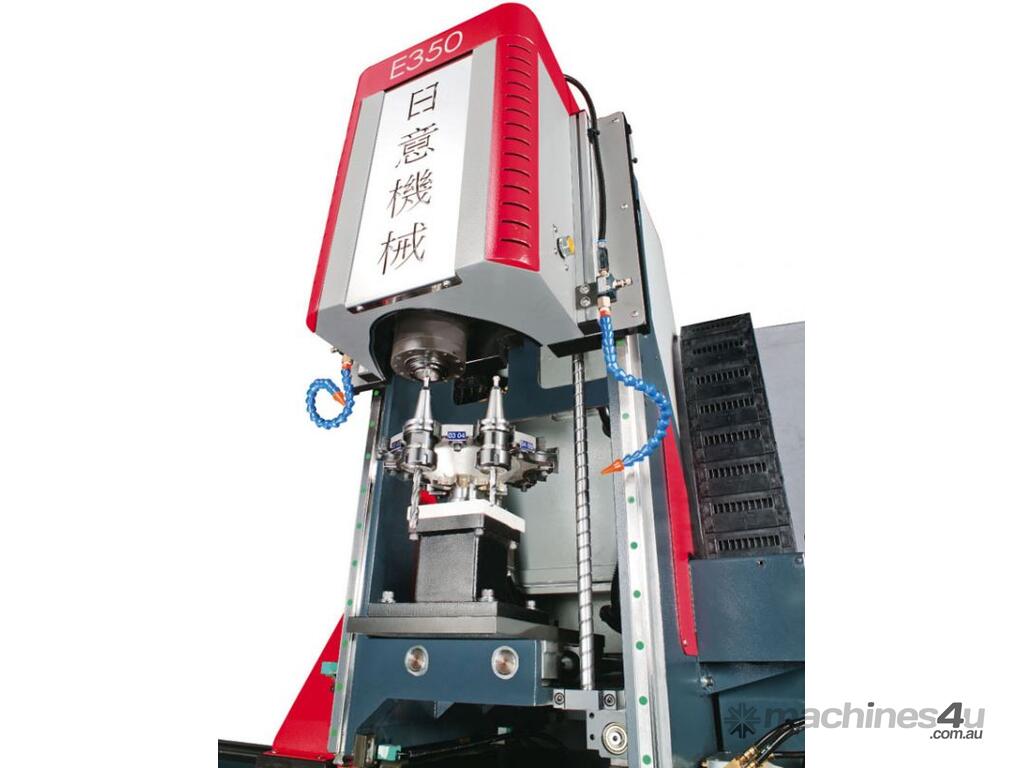

Automatic Tool Changer
- 8-tools carousel tool magazine.
- Accommodates ISO 30 tools.
- Tool selection method is bi-directional and random providing fast tool change and smooth motions.

Machine Dimensions

Mode 6500E
Machine Dimensions LxWxH 8,900×1,600×2,300mm
Table - 6,500x300mm

Model 3500E
Machine Dimensions LxWxH 5,900×1,600×2,300mm
Table - 3,500x300mm

Applicable Materials
- Aluminum, Plastic, Other non-ferrous metals, Applicable Industries

Aluminum doors and windows
- Curtain Wall (glass wall)
- Extruded aluminum
- Fiber glass

Model JIH-CNC6500E

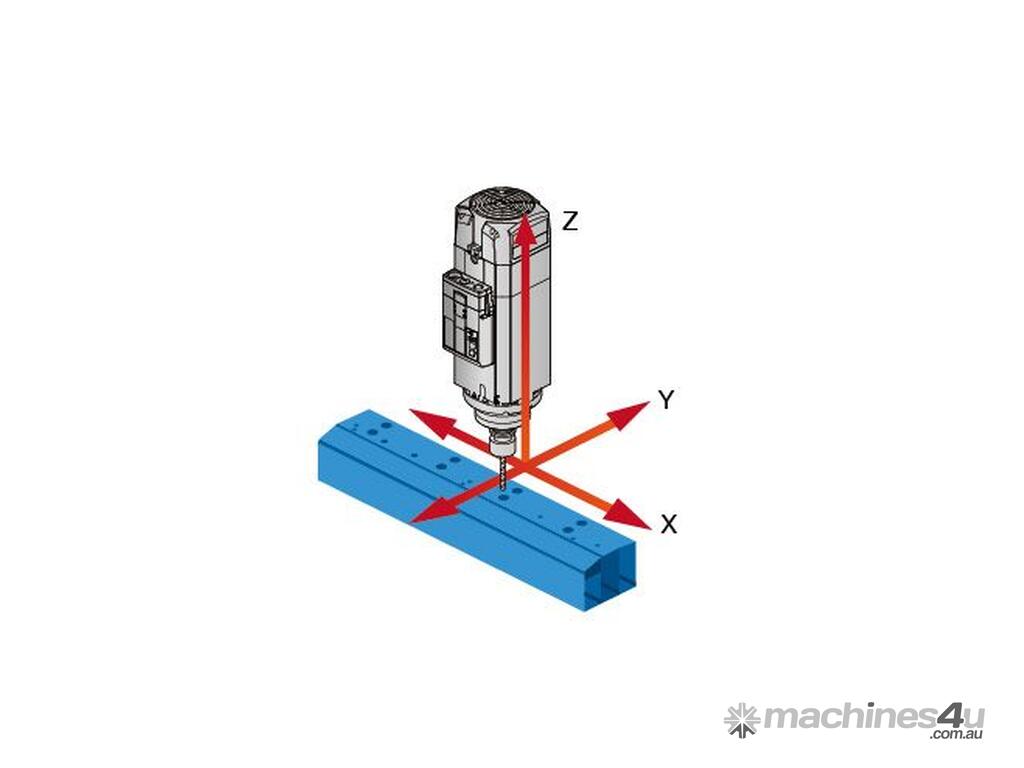

Stroke
X-Axis Stroke 3,500/4,500/5,500/6,500 mm(Opt.)
Y-Axis Stroke 300 mm
Z-Axis Stroke 200 mm
Distance from spindle nose to table surface Min. 150 mm, Max. 350 mm

Table
Table Type vise (1set/per meter)
Table Size 300 x (3,500~6,500) mm
T-Slot(NO. x Pitch x Size) 850 mm

Spindle
Spindle Speed 18,000 R.P.M.
Spindle Motor 10HP (7.5 kw)
Spindle Taper Cone ISO 30

Feed Rate
Rapid feed rate (X/Y/Z) X:60 m/min, Y:24 m/min, Z:24 m/min
Servo Motors 3 Axes X: 1.3kw, Y: 1.3kw, Z: 1.3kw
Cutting Feed Rate F:1~5,000 mm/min
Repeatability Accuracy X: ±0.03mm, Y: ±0.02mm, Z: ±0.02mm

ATC
Magazine Capacity 8 Tools
Tood Holder ISO 30
Max. Tool Diameter 50mm

Dimensions
Required Pneumatic Pressure 6 kgs/cm2
Machine Dimensions 5,400~8,900 x 1,600 x 2,300 mm
Packing Dimensions 5,600~9,100 x 1,700 x 2,300 mm

Machine Weight 3,500~5,500 kgs
