JIH - CNC 650G Type Gantry Type Double Column Machining Centre

Machine Features

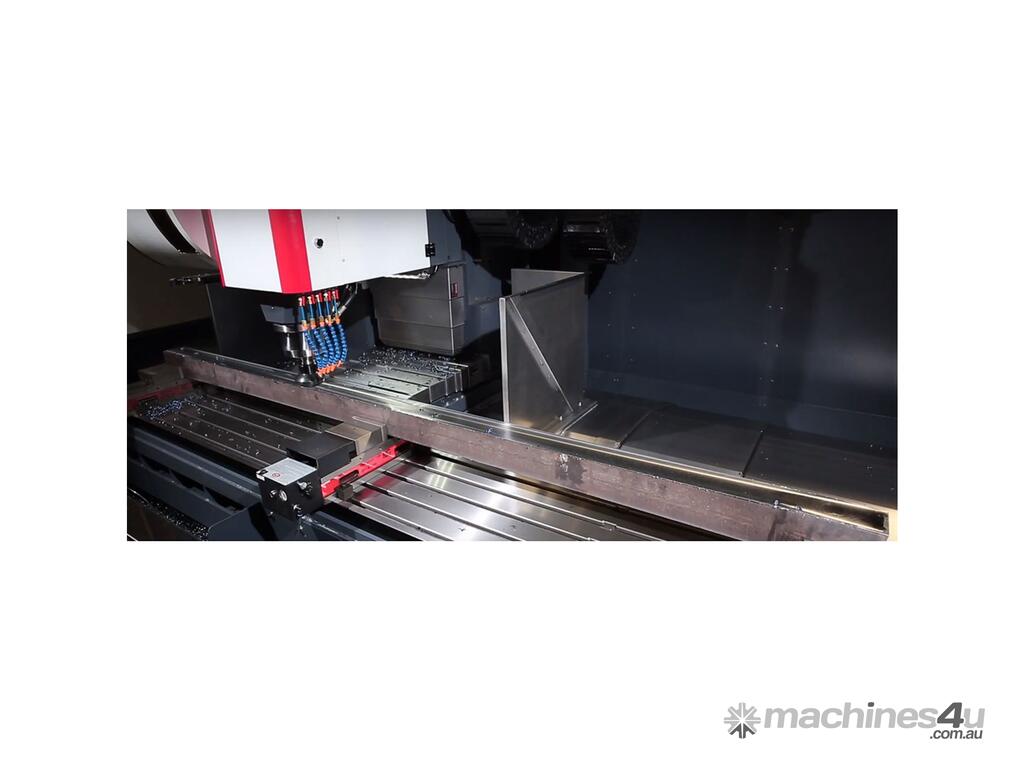

- Fixed table in combination with traveling column and beam that makes the machine suitable for machining extra large workpieces.
- X-axis travel is transmitted through pinion/rack and driven by a gearbox, featuring high torque output, no backlash and high positioning accuracy (optional).
- X-axis rapid traverse rate is 36 M/min. Upon request, high rapid traverse rate up to 50 M/min is available (optional).

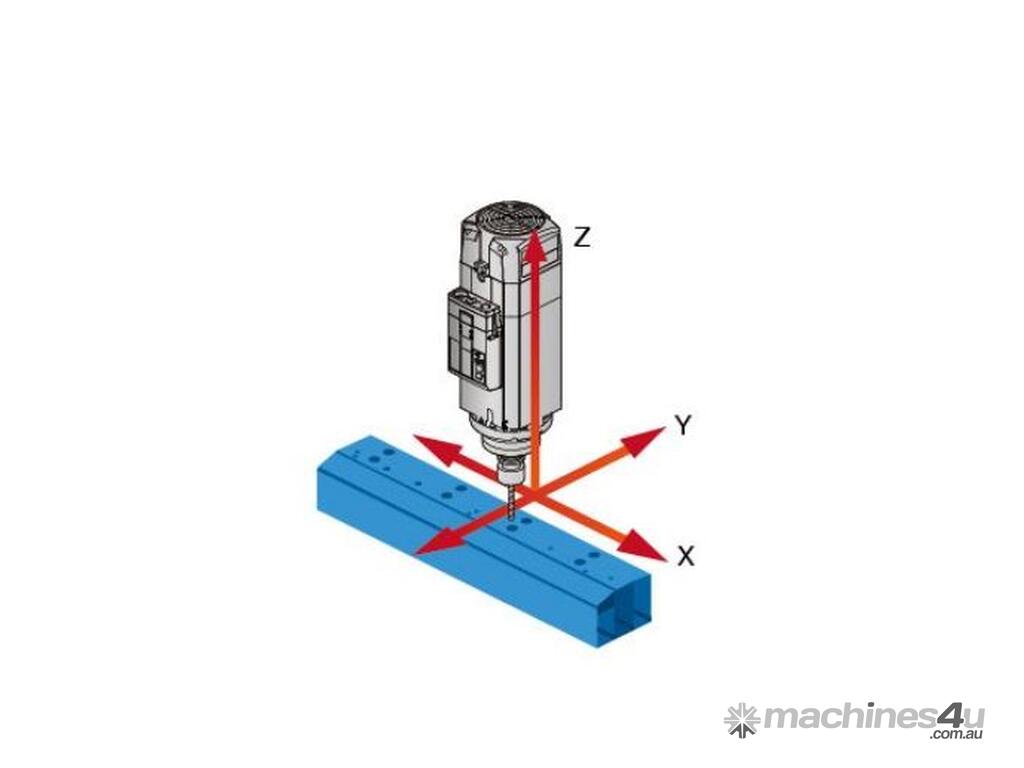

- Three axes are equipped with P class high precision linear guide ways. X,Y,Z-axis ball screws are coupled with servo motors.
- 24-tools magazine.
- Syntec controllers-PC-based, (Opt. Mitsubishi, Fanuc and Siemens).
- To avoid the tool interference , the design is conducive to machining complex part
- To the multiple-face machining in the once , good for the face position accuracy
- When the 5 axis machining, tool can fit the irregular face
- 4 linear guides for Z axis, with high rigidity head
- Z axis with pneumatic balance system, improve Z axis reactivity

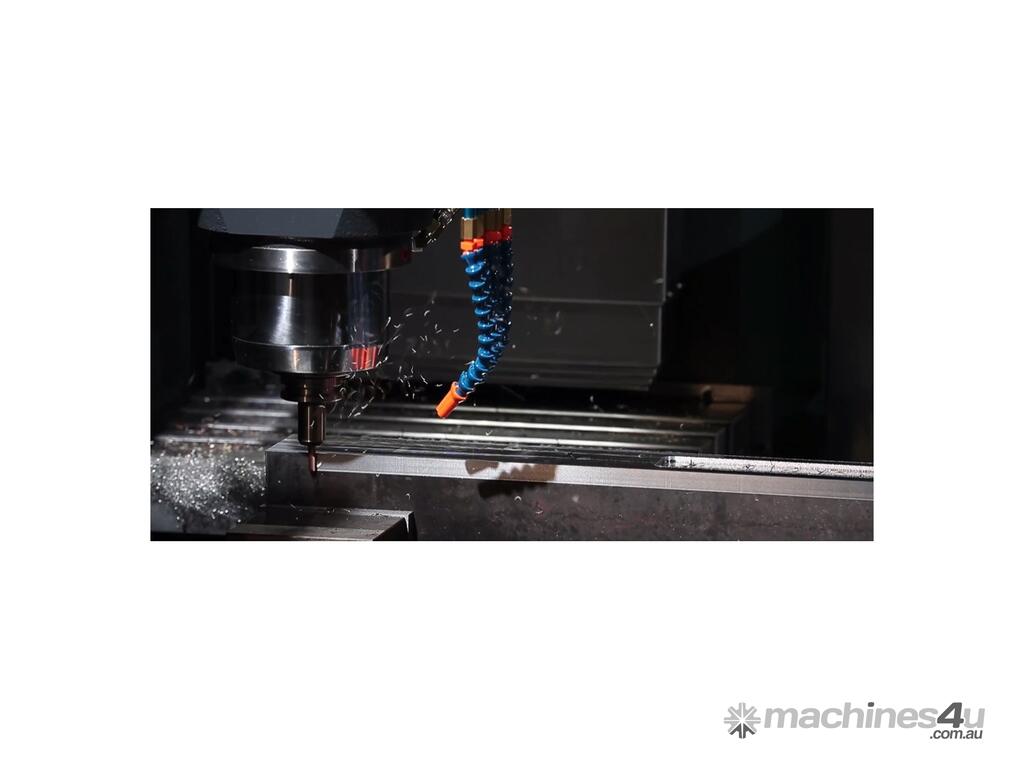

Applicable Materials
- Aluminum
- Steel, tools
- Metal (such as: linear way and round bar, etc.)
- Other non-ferrous metals
- Styrofoam, Bakelite, Wood, Non-metal, Carbonized hybrid material

Applicable Industries
- Aluminum door and windows
- Curtains wall (glass wall)
- Extruded aluminum
- Long material parts
- Mould Carving
- Mould industry: casting, automobile, wind energy, shipbuilding, aerospace and rail transportation

Product Specification - Model JIH-CNC 650G

Stroke
X Axis Stroke 6,500 mm(Opt)~10,000mm
Y Axis Stroke 2,500 mm
Z Axis Stroke 1,200 mm
Distance from spindle nose to table surface Min150 mm, Max1,350 mm
Table
Table Type T-slots (opt. T-slots Table)
Table Size 6,500 x 2,500 mm
Max. Loading Capactity 20 ton
T-Slot(NO. x Pitch x Size) 15 x18 x400 mm

Spindle
Spindle Speed 6,000 R.P.M.
Spindle Motor 15 kw (18kw opt.)
Spindle Taper Cone BT 50

Feed Rate
Rapid feed rate (X/Y/Z) X:16 m/min, Y:20 m/min, Z:20 m/min
Servo Motors of 3 Axis X1=X2: 4 kw; Y: 4kw; Z: 7kw
Cutting Feed Rate F: 1~5,000 mm/min
Repeatability Accuracy X:±0.03 mm, Y:±0.02 mm, Z:±0.02 mm

ATC
Magazine Capacity 24 Tools
ATC Type Arm Type
Tool Holder BT 50
Pull Stud 45°
Max. Tool Length 350 mm
Max. Tool Diameter 120 mm
Max. Tool Weight 16 kgs

Dimensions
Machine Weight 50 ton
Machine Dimensions 11,200 × 6,700 x 5,400 mm
Required Pneumatic Pressure 6 kgs/cm²
