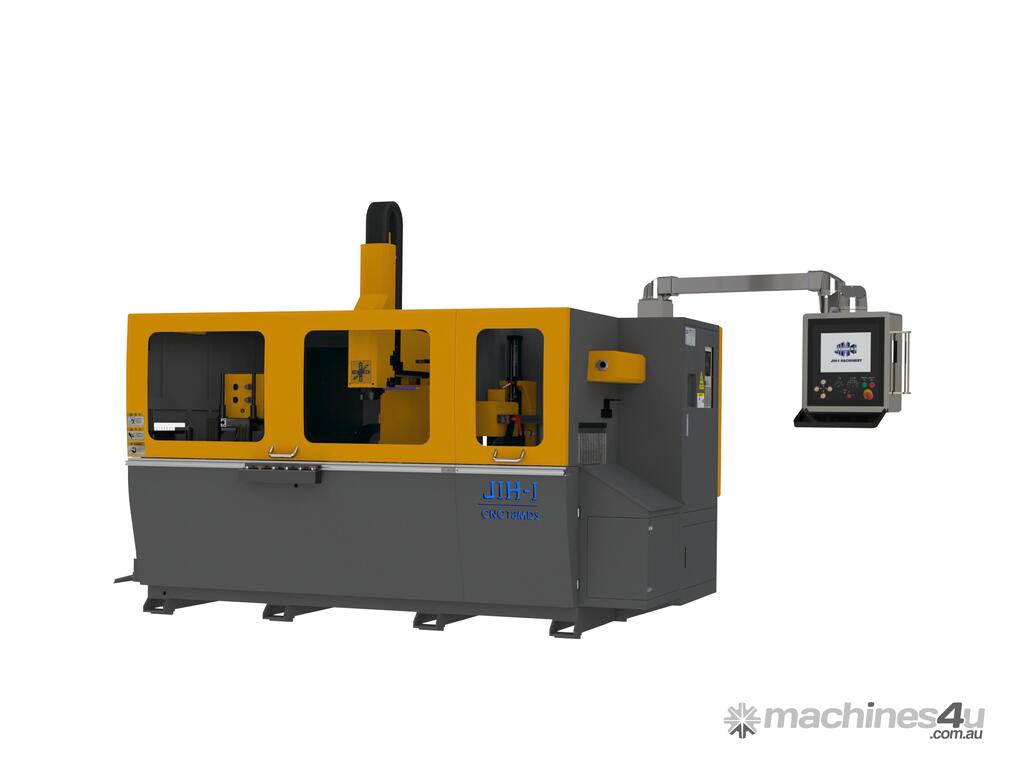

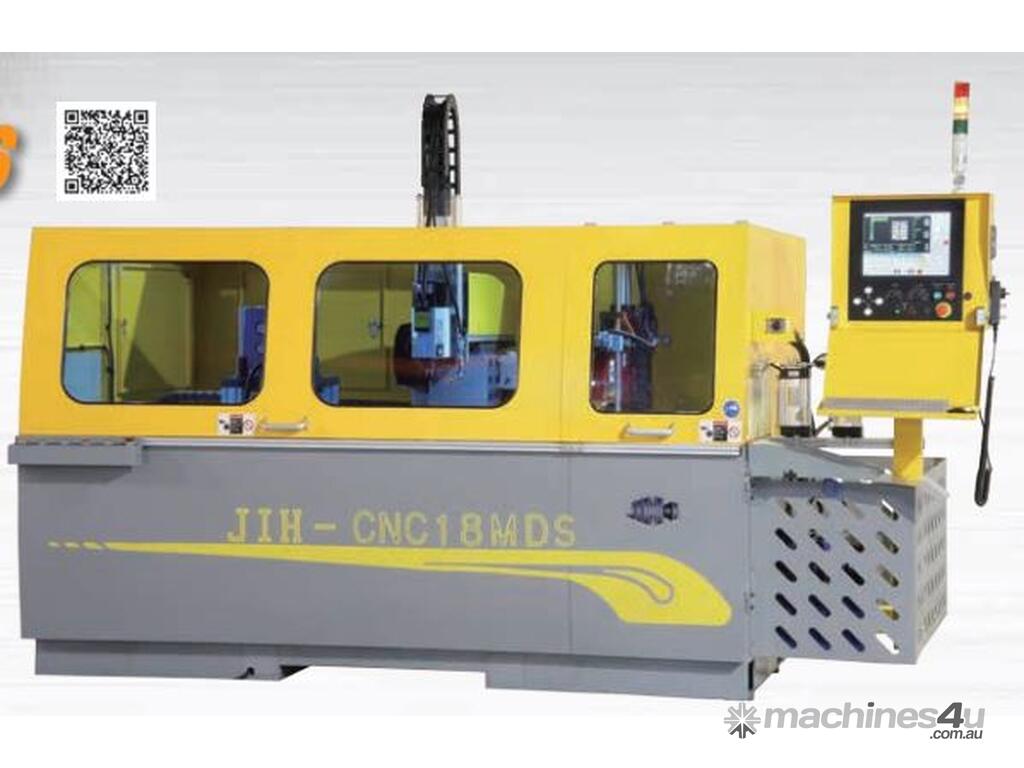

JIH - CNC18MDS - CNC Milling, Drilling, Tapping and Sawing Composite Machine

Machine Features
- To complete all step of machining in one machine 18MDS that is the best choice for aluminum, light alloys and PVC.

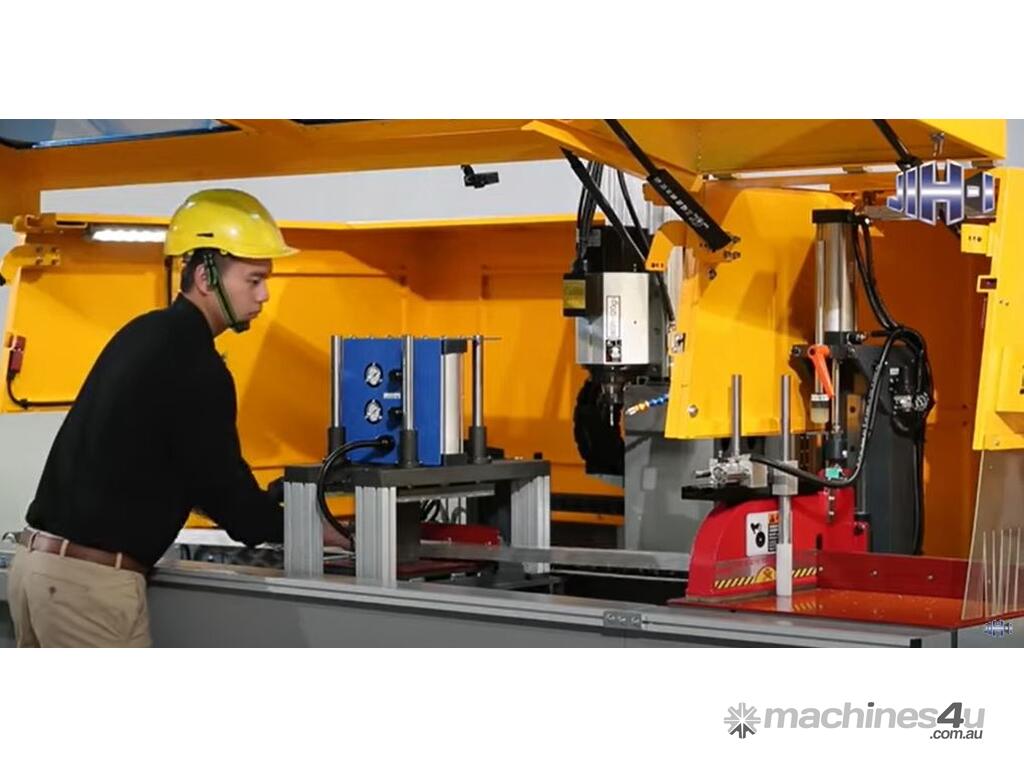

- Complete with strong pusher system for clamping and feeding in the operating unit.
- Performance high speed and high accuracy machining.
- With auto tool change we could have more options for processing and also 18MDS is available to add an angular head for special working.
- Automatic sawing, milling, drilling and tapping multi-function at one High pression high speed spindle for drilling, tapping and milling.
- CNC control with easy operation by touch screen based with SYNTEC system.
- According to process situation, separately choose sawing, drilling, milling and tapping at program.
- 18MDS provide 3 kinds of mode for processing:
1.CUT MODE
2.LONG PART MODE
3.MILL AND CUT MODE.
8 tools tool magazine for more convenience.

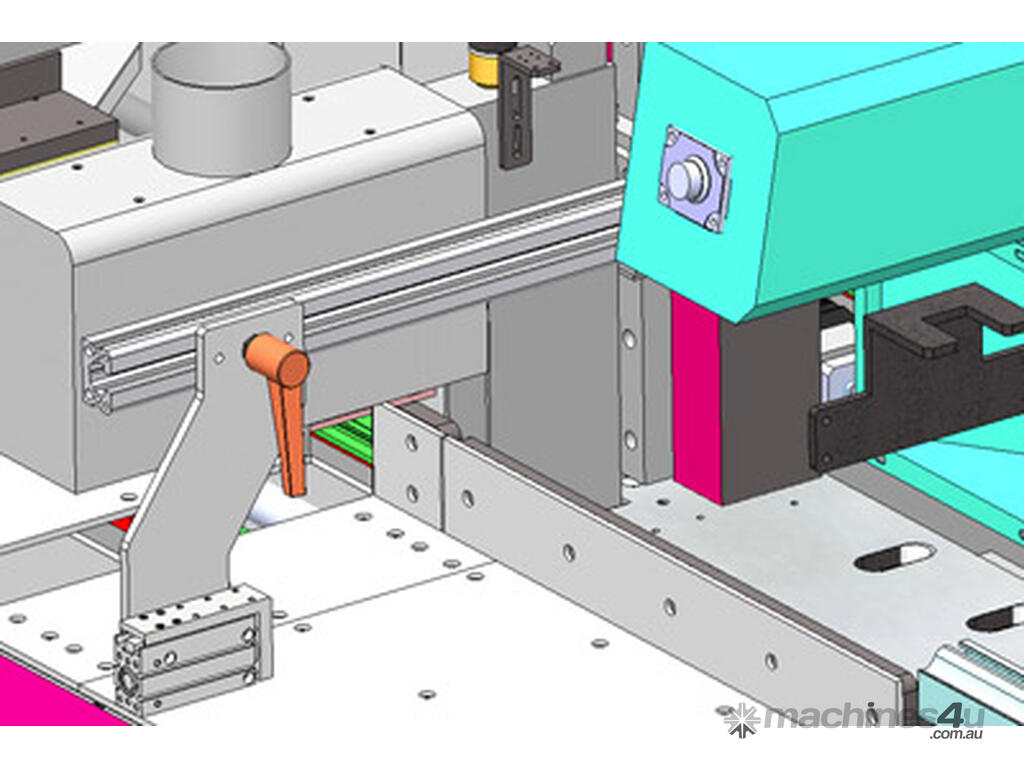

Schematic diagram

Applicable Materials
- Aluminum
- Plastic
- Other non-ferrous metals


Applicable Industries
- Public transportation, aluminum, light alloy profile processing.
- Aerospace industry
- long-shaped aluminum profiles
- Square tube profile cutting, drilling, slot milling.
- Aluminum doors and Windows industry
- Curtain wall(glass wall)
- Extruded aluminum
