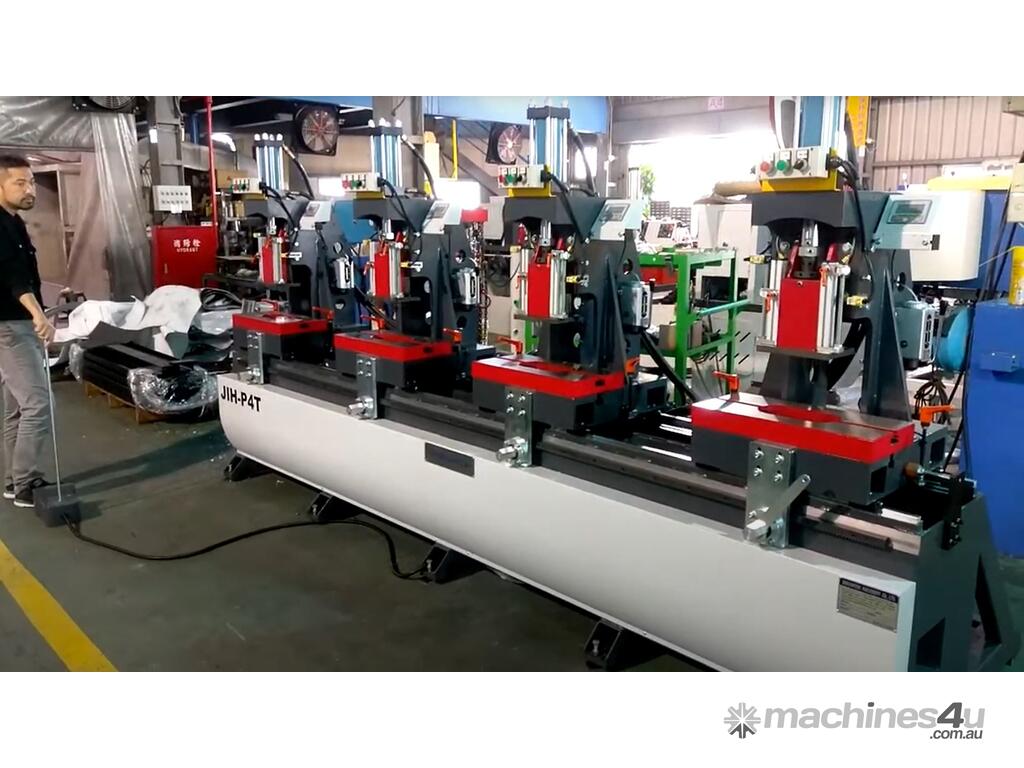

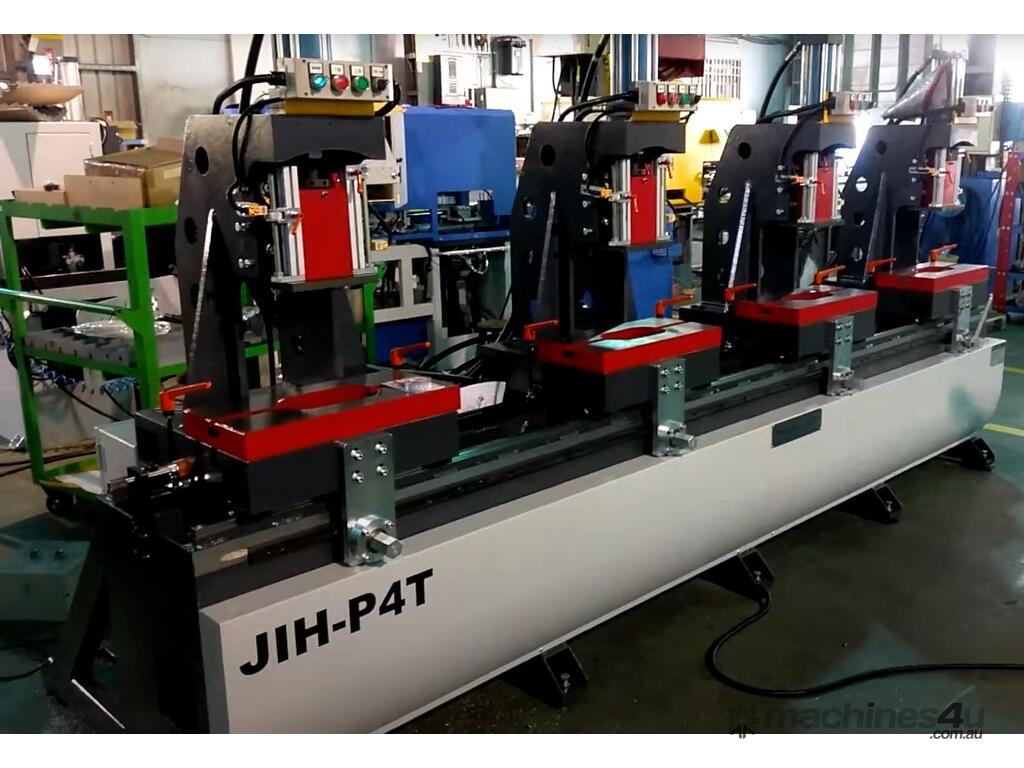

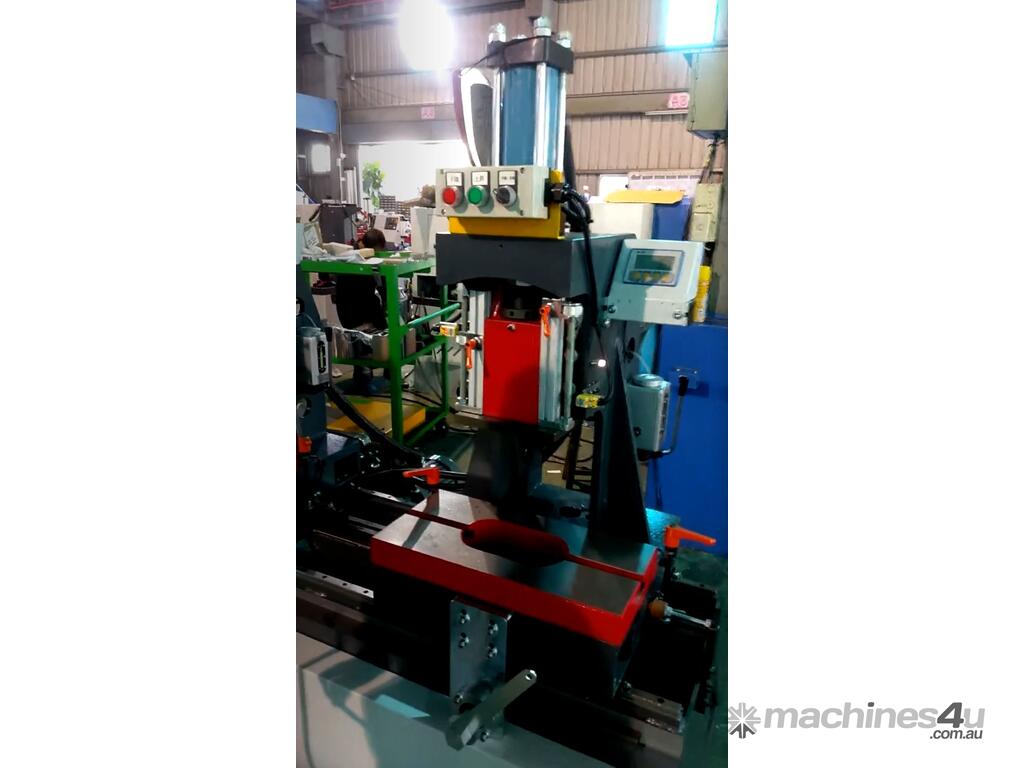

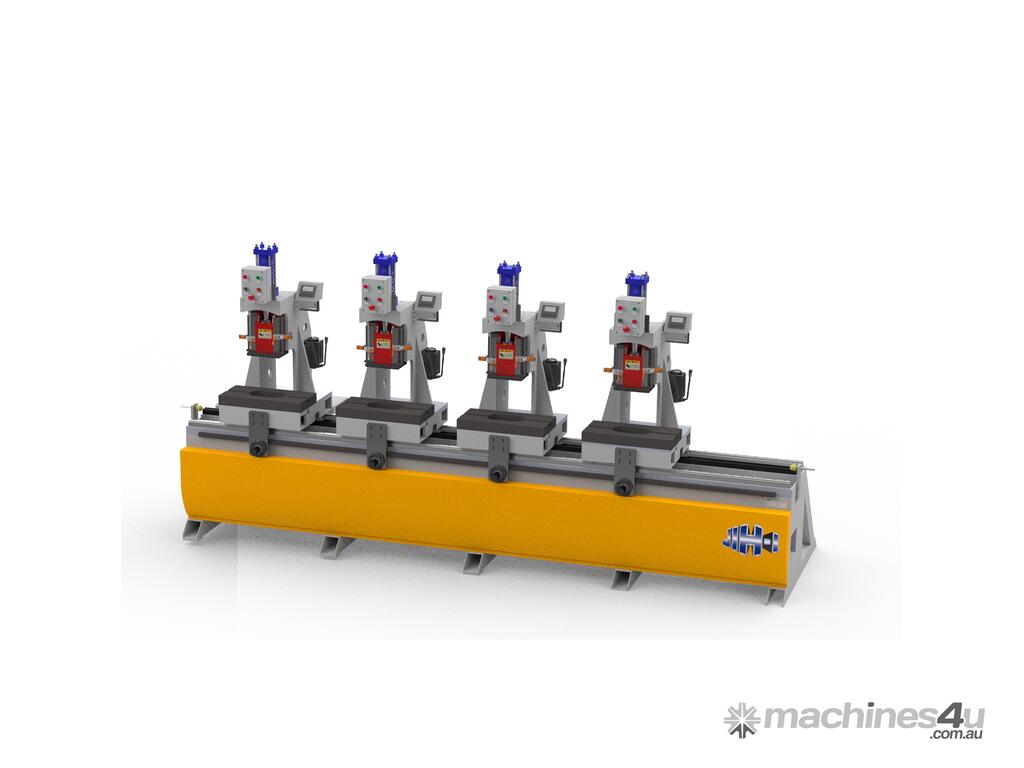

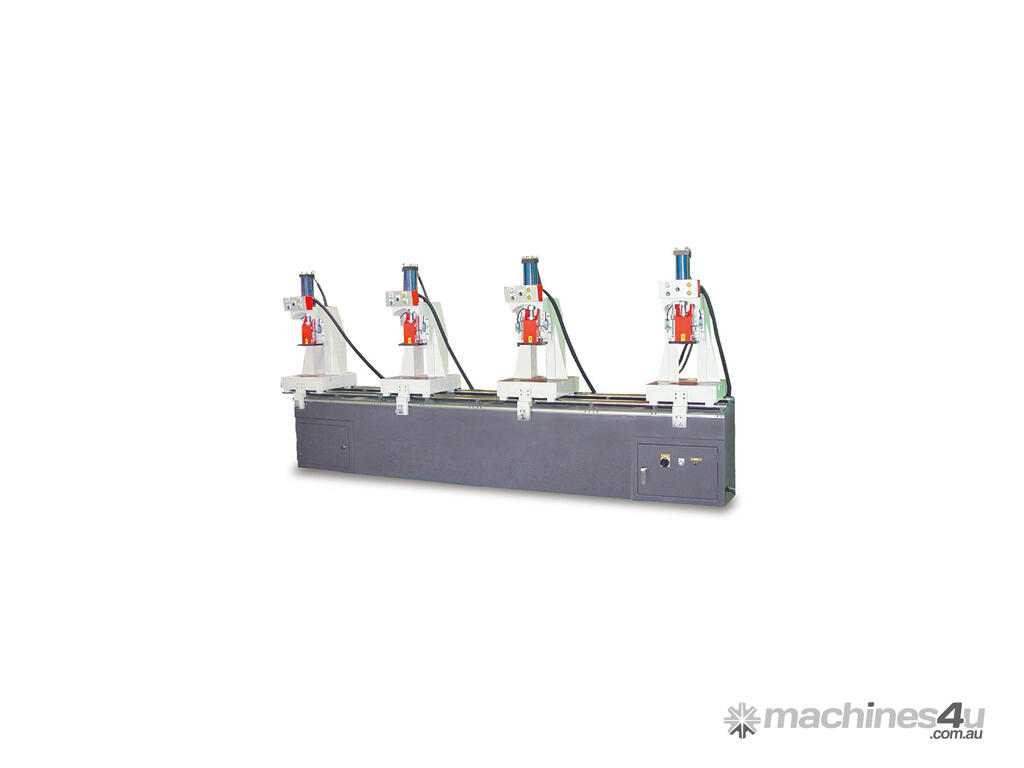

JIH - P4T – Four Head Hydraulic Press

Features

This machine is designed for punching hold and pressing.
It has an easy operate hydraulic system that delivers powerful punching performance at very low noise levels.

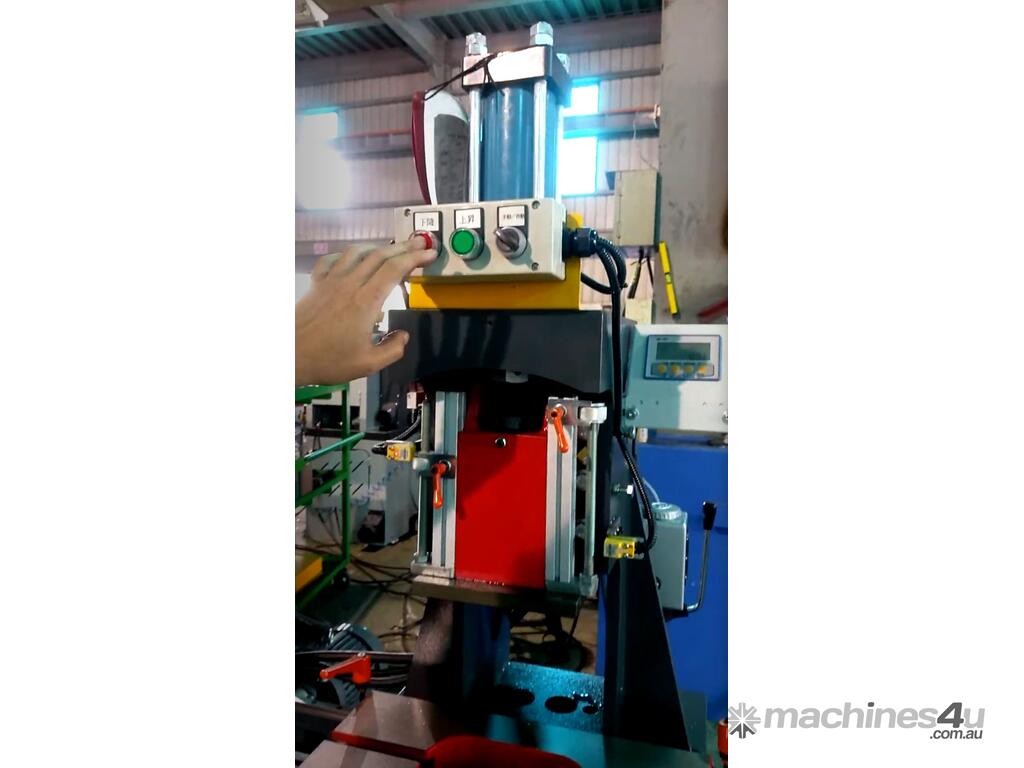

It has both manual and automatic operation capabilities. When the foot panel switch is press, the machine will perform punching hold (pressing) automatically.
Suitable for two-layer mold machining ( JIH-250B ).
The upper base is organic whole shaping, which has strong tenacity, maximum impact resistance and long service life
The feature of each punching head of this machine is like JIH-250B

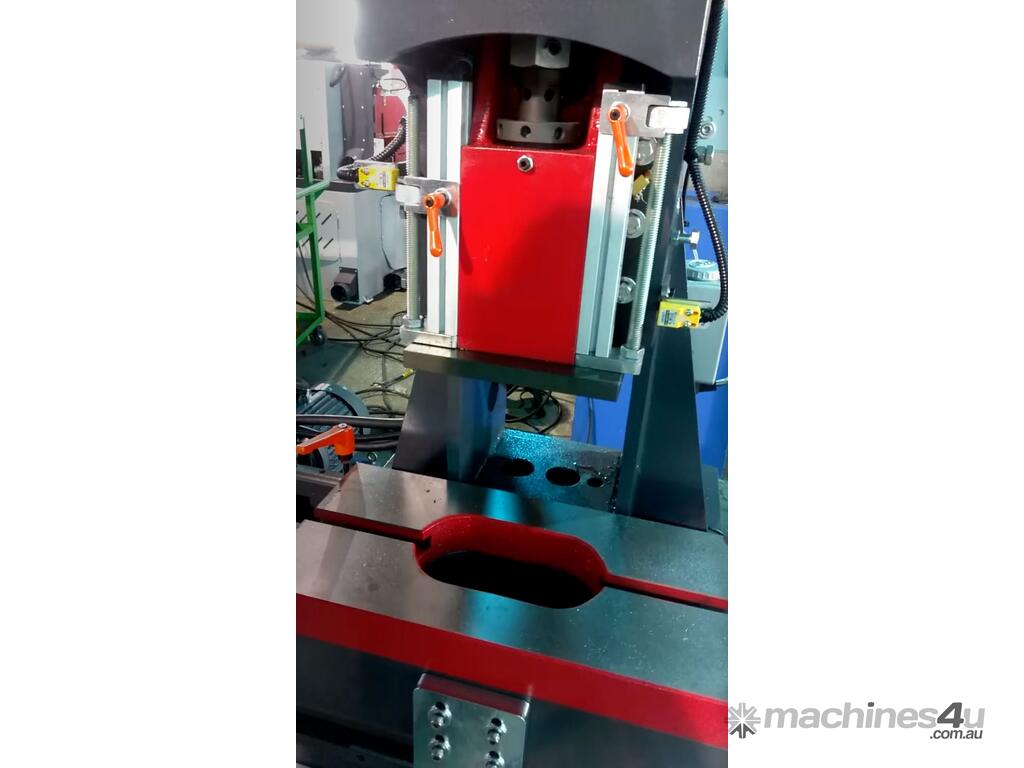

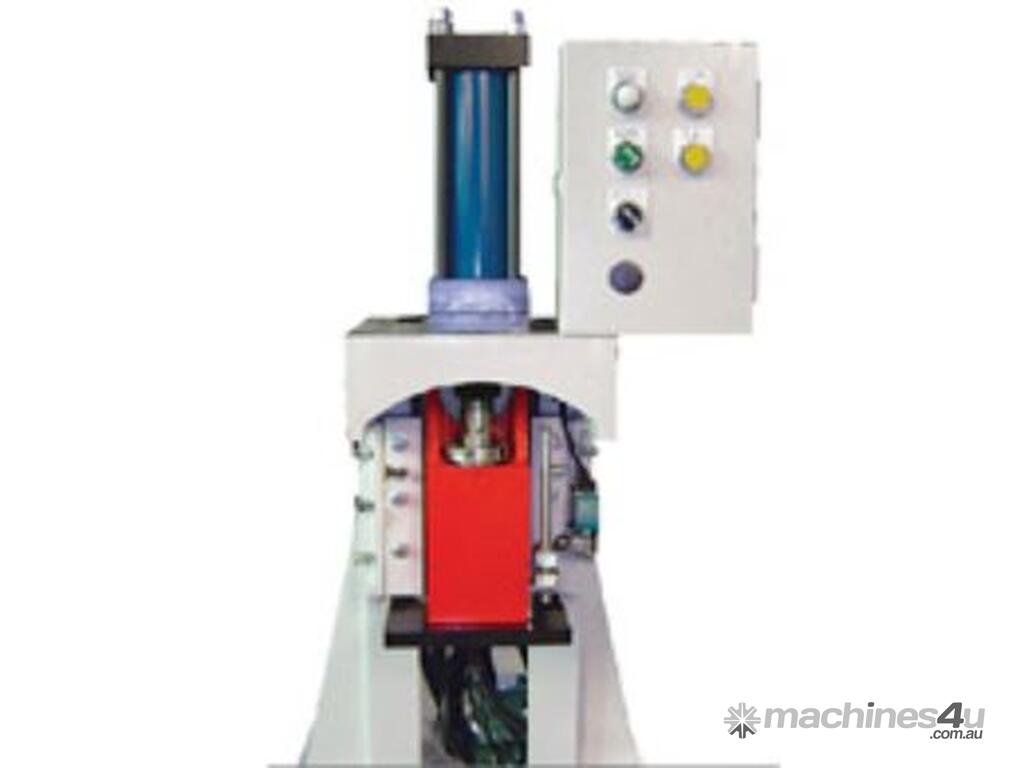

Suitable for the punching of multimolds.  Single head punching or multi-head punching are optional.  Each punching head is movable.
This machine can be refitted into a drilling machine or cutting table.

Model: JIH-P4T
Punching Force 10 ton x 4
Motor 3HP x 4 (5HP Opt. for increasing production)
Stroke 150 mm
Punching Height 260 mm
Hydraulic Pressure 170kg / cm2 x 4
Table Area 250 x 520mm ( 4 pieces )
Table Height From Floor 790 mm
Machine Dim.
(L x W x H) 3,700 x 1,000 x 1,820 mm
Packing Dim.
(L x W x H) 3,820 x 1,120 x 2,000 mm
Net / Gross Weight 1,300 / 1,700 kgs

Optional Safety Device
- Punching ( Pressing ) is controlled by foot panel switch with sensor of safety.
- Punching ( Pressing ) is controlled by double push-button switch.

Application Punching: Aluminum frame, aluminum extrusion, leather, brass, plastic, steel.
- Quicken punching head speed(high-speed punching head).
- The punch head can choose between equipped with a limit switch, equipped with a timer switch or equipped with pressure switch for controlling the stroke
