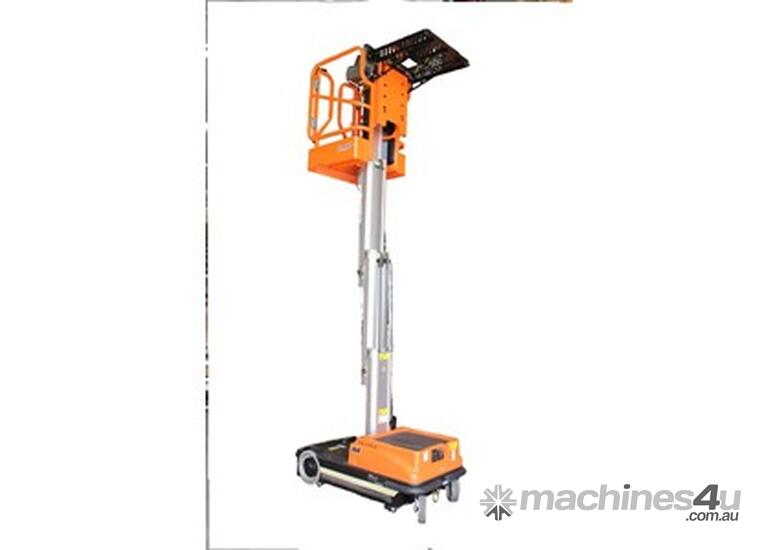

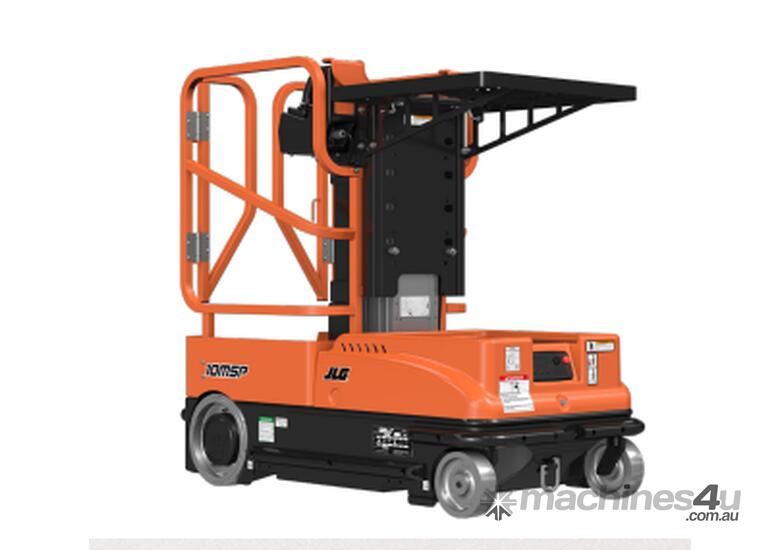

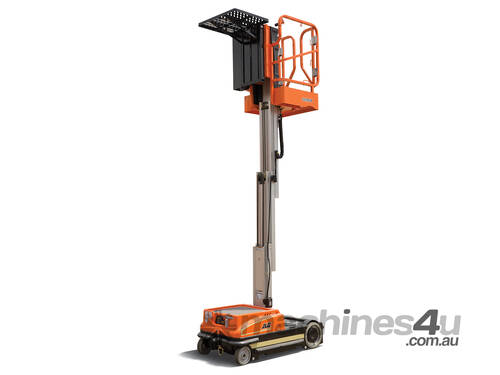

JLG 10MSP Mobile Stock Picker

**NEW JLG 10MSP Mobile Stock Picker with 4.9 m reaching height

Virtually eliminating the need for scaffolding or ladders, JLG® driveable vertical mast lifts allow you to get closer to your overhead work and maintenance applications. A single person can carry up to 500 lbs (people and materials) and reach up to 20 ft (20MVL). With innovative controls, maintenance-free components and automatic battery charging, JLG® driveable vertical mast lifts last longer and are more reliable then ever. You will be able to fit through standard doorways, manoeuvre your way through narrow aisles, and go more places then ever before. Vertical mast lifts are great for transporting supplies, lighting, routine maintenance, and even hanging holiday decorations.

10MSP Specifications

Performance:
Platform Height (max.) 3.05m
Working Height 4.88m
Lift Time 13 sec
Lower Time 11 sec
Platform Capacity Standard 160kg
Parcel Tray Capacity 115kg

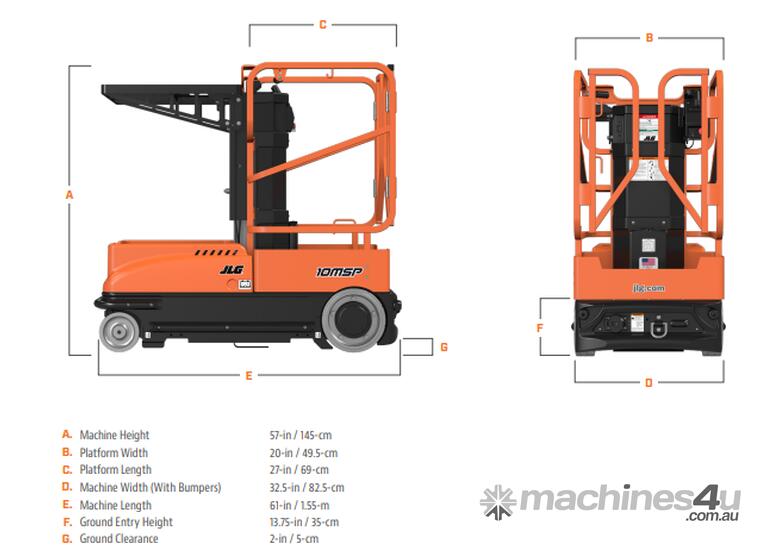

Dimensions:
Stowed Length 1.56m
Stowed Height 1.42m
Ground Clearance 0.05m
Platforms:
Standard Platform Type Standard
Overall Length 1.52m
Overall Width 0.84m
Standard Platform Size - (WxL) 0.69m x 0.50m
Parcel Tray Size - (WxL) 0.66m x 0.66m
Platform Entry Height 0.33m
Power:
Power Source Battery Sealed AGM
DC Voltage 24V
DC Power 200 amp h
Batteries 4 x 6V
Travel:
Tyre Type Solid
Inside Turn Radius 0m
Drive Speed Elevated 1km/h
Gradeability 15%
Wind Rating 0m/sec
Weights and capabilities:
GVW 500kg
