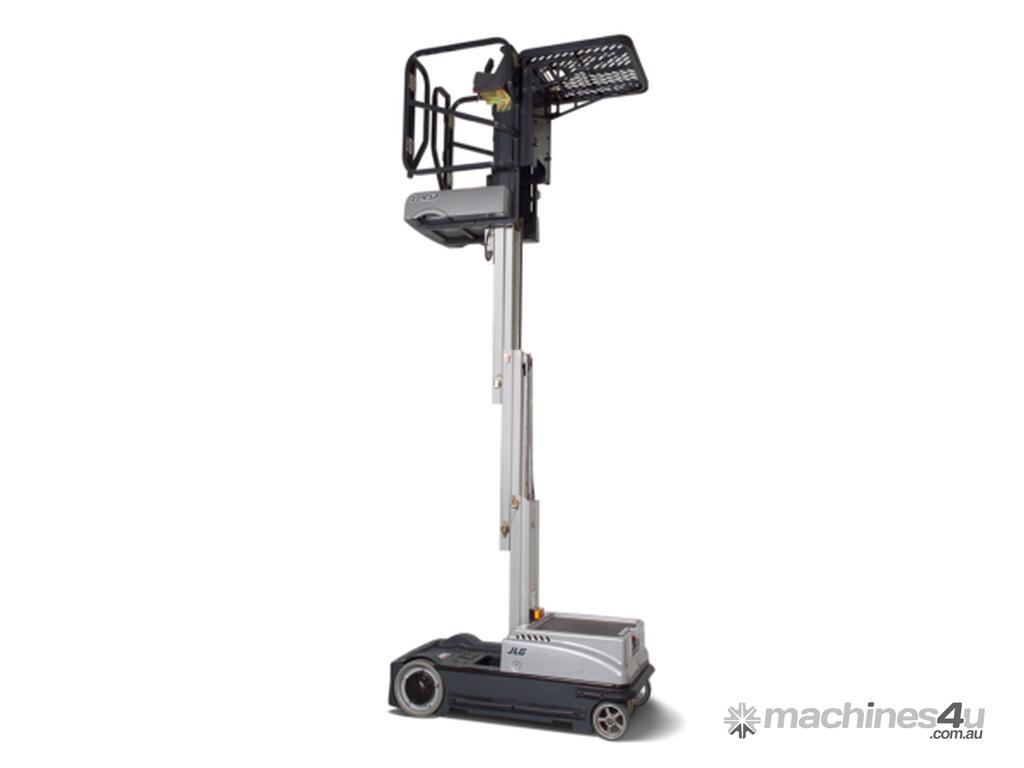

JLG 10MSP Stock Picker Vertical Lift

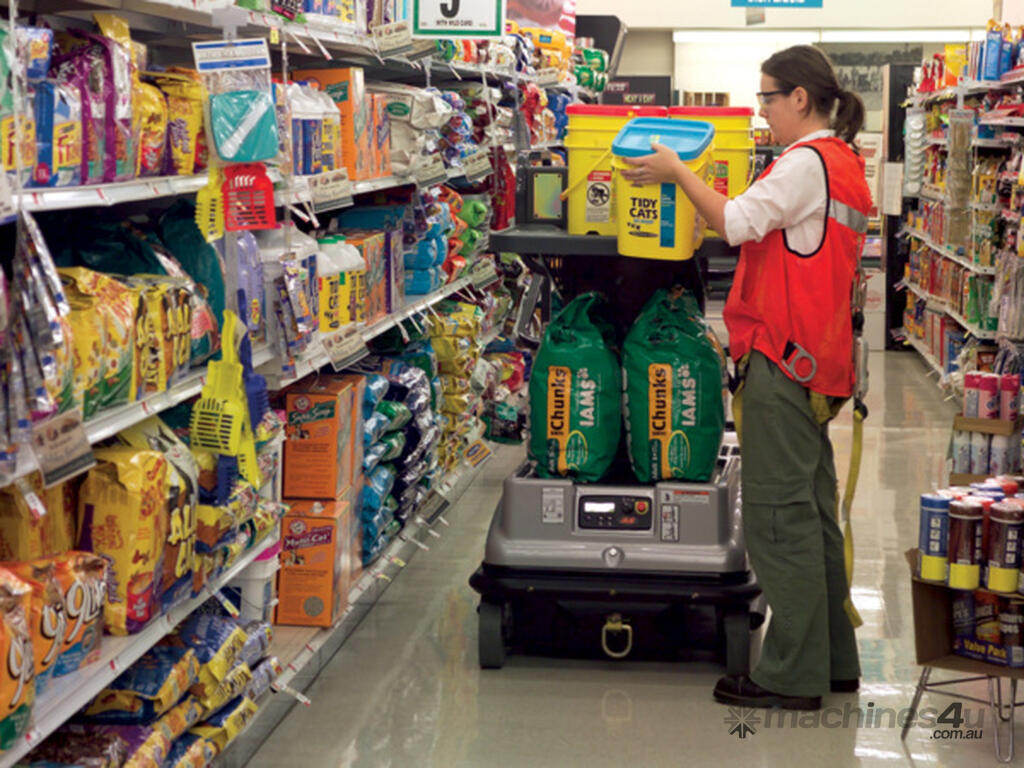

Whether you are transporting supplies, setting up displays or performing routine maintenance, the MSP Series makes your everyday tasks more efficient. Our line of stock pickers lets you carry both people and materials thanks to a flexible platform and extra-large material tray. They also feature a zero turning radius for superior manoeuvrability and long battery cycles for working a full shift or more.
Key Specs
Platform Height: 3.05 m / 10 ft
Machine Width: 0.83 m / 2.7 ft
Key Features
Zero turning radius for superior manoeuverability
Built-in automatic charger for less downtime on the job
One-hand operation for increased operator comfort
Driveable at full height for increased efficiency

Dimensional Data
Wheel Size - Front Caster 20 x 6 cm
Ground Clearance 0.05 m / 2 in.
Ground Entry Height 0.35 m / 1 ft 2 in.
Machine Height 1.45 m / 4.8 ft
Machine Length 1.55 m / 5.1 ft
Machine Width 0.83 m / 2.7 ft
Platform Dimension A 0.50 m / 1.6 ft
Platform Dimension B 0.69 m / 2.3 ft
Platform Height 3.05 m / 10 ft
Wheel Size - Rear 32 x 10 cm
Tyre Size N/A

Reach Specifications
Picking Height 4.55 m / 14.9 ft
Platform Height 3.05 m / 10 ft
Working Height 5.05 m / 16.6 ft

Performance Data
Drive Speed - Platform Elevated 1.10 km/h / 0.7 mph
Drive Speed - Platform Lowered 8 km/h / 5 mph
Drive System 4 Brush Direct Electric
Gradeability 15 %
Maximum Drive Height 3.05 m / 10 ft
Maximum Lift Height 3.05 m / 10 ft
Platform Capacity 160 kg / 352.7 lb

General Specifications
deleted - Tray-Capacity 115 kg / 253.5 lb
Machine Weight 500 kg / 1102.3 lb

Power Source
Batteries 210 A/hr AGM (x 4)
