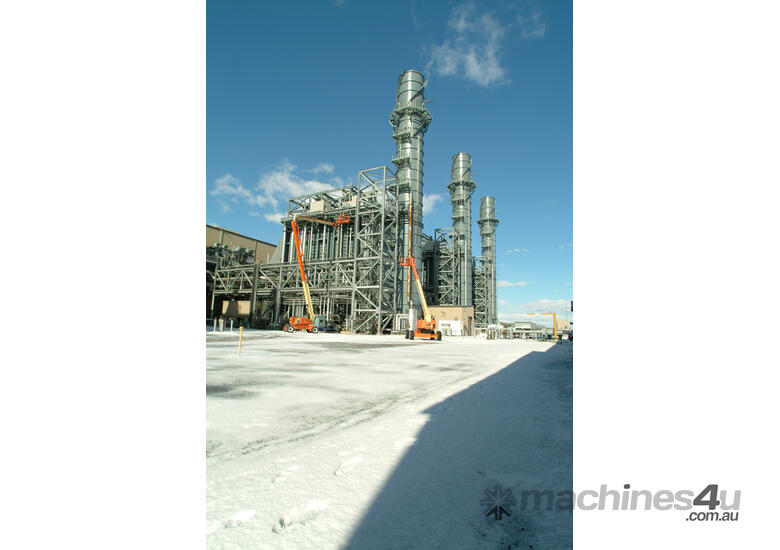

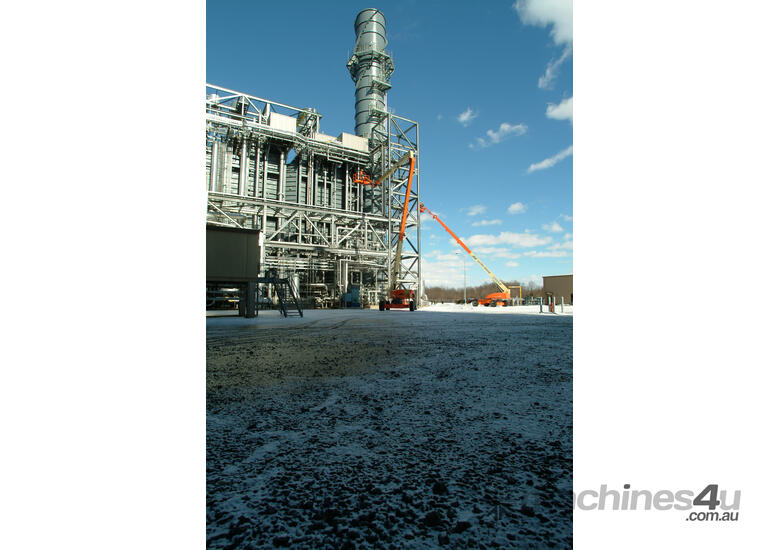

JLG - 1200SJP Telescopic Boom Lift
The JLG® Ultra Series has the largest working ranges in the industry, with the highest platform capacity and almost double the work envelope of other manufacturers’ boom lifts.
Key Specs
Platform Height: 36.73 m / 121 ft
Horizontal Outreach: 22.86 m / 75 ft
Platform Capacity - Restricted: 450 kg / 992 lb
Platform Capacity - Unrestricted: 230 kg / 507 lb
Key Features
Ground to 36.5m (120 ft) up in 95 seconds
Stability and capacity from 100,000-psi steel and a dual 230kg/450kg (500/ 1000 lb) capacity
Features:
-Ground to 120 ft up in 95 seconds
-Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity give you stability and capacity
Power Source:
Diesel Engine Deutz BF4M 2011 74.9 hp / 55.8 kW
Fuel Tank Capacity 31 gal. / 117.35 L
Hydraulic Reservoir 55 gal. / 208.2 L
Auxiliary Power 12V DC
Noise Level 70 dBa 7 meters
Reach Specifications:
Platform Height 120 feet
Swing 360º Continuous
Platform Capacity-Restricted 1,000 lb / 454 kg
Platform Capacity-Unrestricted 500 lb / 227 kg
Platform Rotator 180º
JibPLUS®
JibPLUS® - Length 8' / 2.44 m
JibPLUS® - Horizontal Motion 180º
JibPLUS® -Vertical Motion² 130º (+75, -55)
Chassis:
Drive Speed- 3.25 mph / 5.2 kmph
Gradeability- 45%
Turning Radius (Inside)-
Turning Radius (Inside) - Axles Retracted 14' 5" / 4.39 m
Turning Radius (Inside) - Axles Extended 8' / 2.44 m
Turning Radius (Outside)
Turning Radius (Outside) - Axles Retracted 22' 6" / 6.86 m
Turning Radius (Outside) - Axles Extended 19' 4" / 5.89 m
Crab Steer Ratio³ 1:1
Axle Oscillation 12" / 30 cm
Tire Size 445/50D710
Tyre Type Foam-Filled
Dimensions:
Platform Size 36 x 96" / 0.91 x 2.44 m
Overall Width-Axles Retracted 8' 2" / 2.49 m
Overall Width-Axles Extended 12' 6" / 3.81 m
Tailswing 5' 6" / 1.67 m
Stowed Height 10' / 3.05 m
Stowed Length 38' 11" / 11.86 m
Wheelbase 12' 6" / 3.81 m
Ground Clearance
Ground Clearance - Axle 12" / 30 cm
Ground Clearance - Chassis 25.5" / 65 cm
Max. Ground Bearing Pressure* 107 psi / 7.52 kg/cm²
