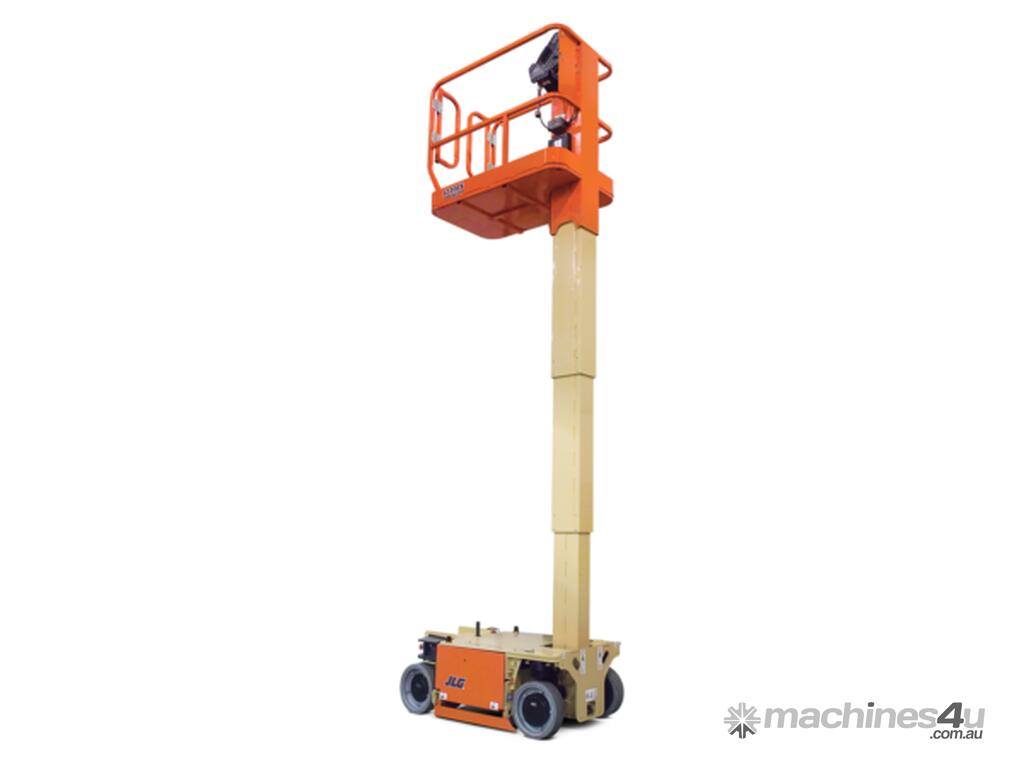

JLG 1230ES Vertical Lift

The 1230ES mast lift is compact enough to fit in a freight elevator and lightweight enough to be used on weight-sensitive floors. A platform height of 12 ft allows you to work comfortably at 16 ft. A super-efficient electric drive increases uptime—plus, it’s extremely low maintenance.
Whether you’ve got work to do in factories, retail centres, airports or public buildings, JLG® Mobile Vertical Lifts keep you on the job longer. A pair of reliable direct electric drive motors deliver power while maintenance-free long cycle batteries hold their charge. The built-in, automatic charger has a five-hour recharge capability.

Key Specs
Platform Height: 3.66 m / 12 ft
Machine Width: 0.76 m / 2.5 ft
Key Features
Low maintenance, energy efficient and environmentally clean
Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
Lightweight design for transport in freight elevators

Dimensional Data
Wheel Size - Front Caster N/A
Ground Clearance 0.07 m / 3 in.
Ground Entry Height 0.56 m / 1 ft 10 in.
Machine Height 1.65 m / 5.4 ft
Machine Length 1.36 m / 4.5 ft
Machine Width 0.76 m / 2.5 ft
Platform Dimension A 0.69 m / 2.3 ft
Platform Dimension B 1.26 m / 4.1 ft
Platform Height 3.66 m / 12 ft
Wheel Size - Rear N/A
Tyre Size 100 x 323 (Solid, non-marking)

Reach Specifications
Platform Height 3.66 m / 12 ft
Working Height 5.66 m / 18.6 ft

Performance Data
Drive Speed - Platform Elevated 0.80 km/h / 0.5 mph
Drive Speed - Platform Lowered 4.80 km/h / 3 mph
Drive System 24V Electric
Gradeability 25 %
Maximum Drive Height 3.66 m / 12 ft
Maximum Lift Height 3.66 m / 12 ft
Platform Capacity 230 kg / 507.1 lb

General Specifications
Machine Weight 806 kg / 1776.9 lb

Power Source
Batteries 4 x 6V, 220 A-h
