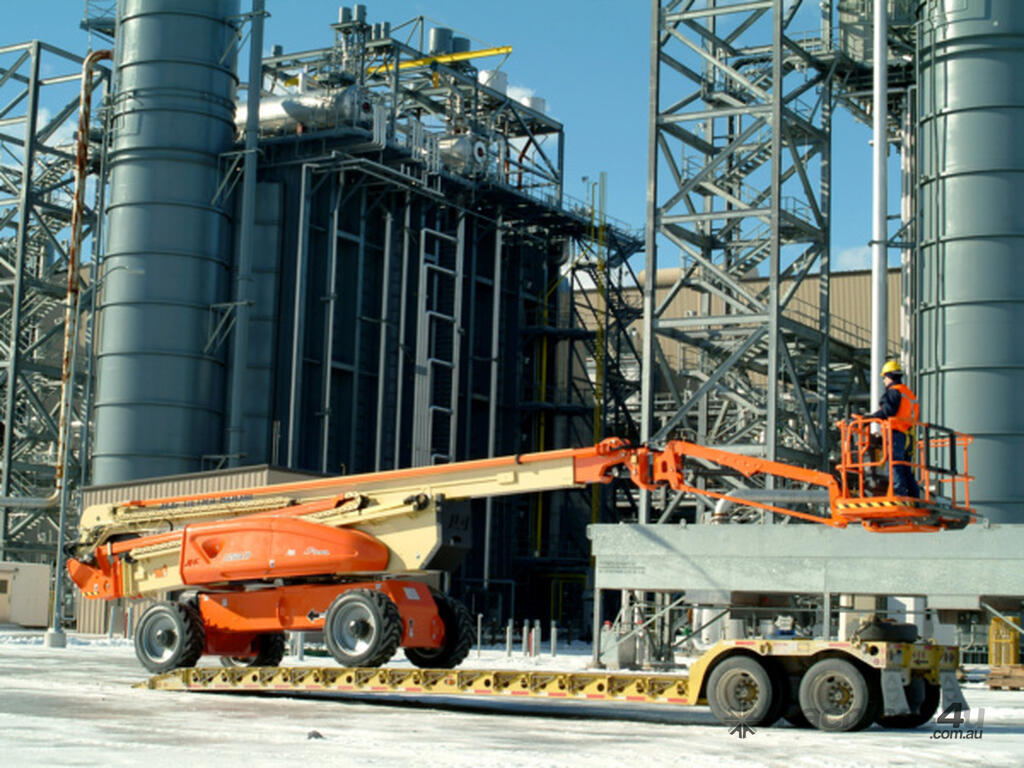

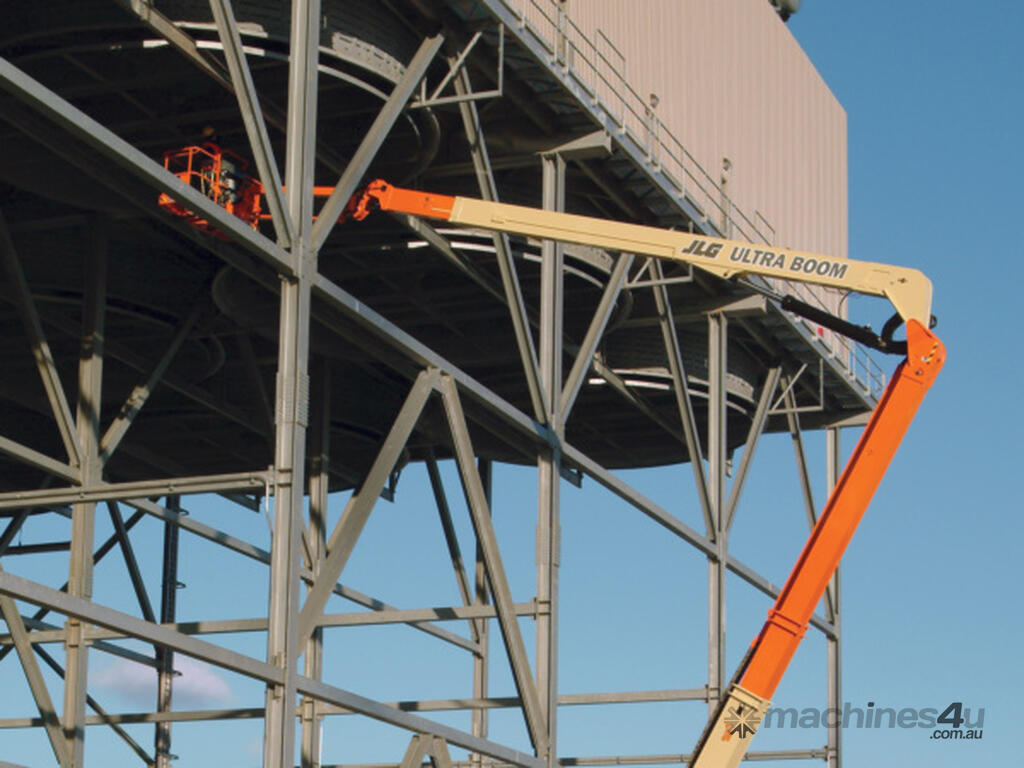

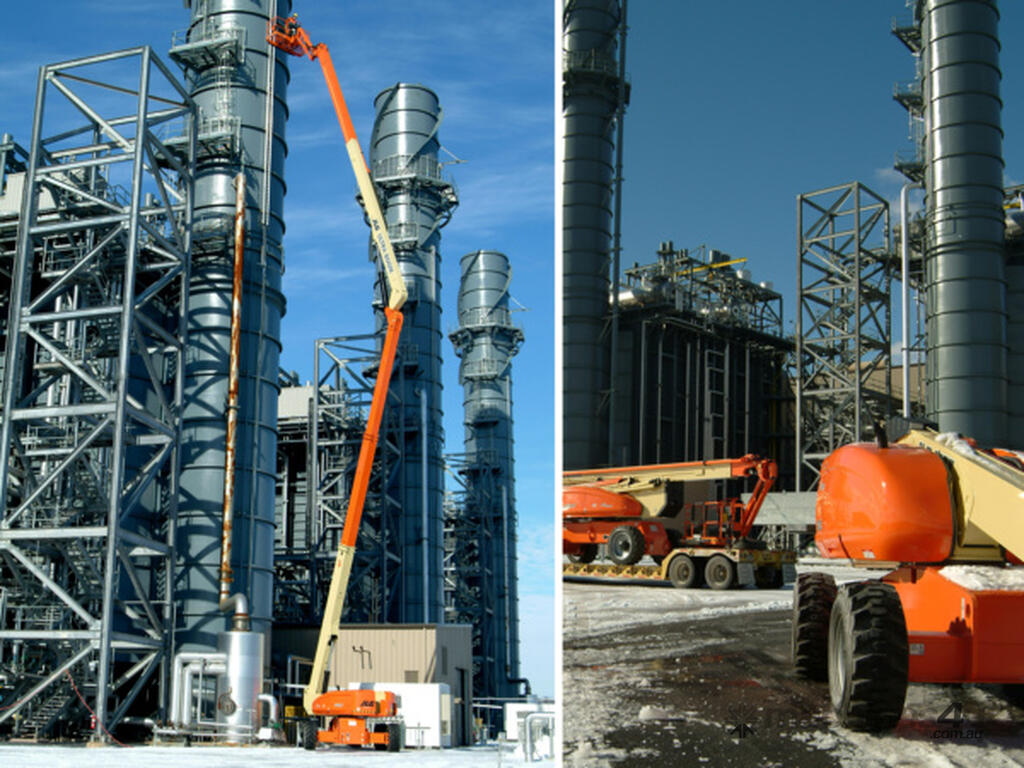

JLG 1250AJP Boom Lift

The 1250AJP offers surprising mobility, a tight turning radius and crab steer in an ultra-sized package with a standard oscillating axle for improved traction on uneven surfaces.

Key Specs
Platform Height: 38.30 m / 125.7 ft
Horizontal Outreach: 19.25 m / 63.2 ft
Platform Capacity - Restricted: 450 kg / 992.1 lb
Platform Capacity - Unrestricted: 230 kg / 507.1 lb
Key Features
Ground to 38.1 m (125 ft) in 95 seconds
Strong 100,000-psi steel and a dual 230kg / 450kg ( 500 lb / 1,000 lb) capacity give you stability and capacity

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 117 L / 30.9 gal.
Engine Type - Diesel (LRC) Deutz TD2011L4 56 kW 75 hp

Performance Data
Axle Oscillation 0.3 m / 1 ft
Drive Speed - 4WD 5.20 km/h / 3.2 mph
Gradeability - 4WD 45 %
Platform Capacity - Restricted 450 kg / 992.1 lb
Platform Capacity - Unrestricted 230 kg / 507.1 lb
Swing 360 Degrees
Swing Type Continuous
Turning Radius - Outside (axles extended) 5.89 m / 19.3 ft
Turning Radius - Outside (axles retracted) 6.86 m / 22.5 ft

Dimensional Data
Height 11.46 m / 37.6 ft
Ground Clearance 0.3 m / 1 ft
Machine Height 3.05 m / 10 ft
Machine Length 14.48 m / 47.5 ft
Machine Width 2.49 m / 8.2 ft
Interior Width 3.81 m / 12.5 ft
Platform Dimension A 0.91 m / 3 ft
Platform Dimension B 2.44 m / 8 ft
Platform Height 38.30 m / 125.7 ft
Tailswing 0.91 m / 3 ft
Tyre Size 445/50D710 Foam-Filled

Reach Specifications
Working Height 40.30 m / 132.2 ft
Working Outreach 19.90 m / 65.3 ft
Horizontal Jib Rotation 125 Degrees
Horizontal Outreach 19.25 m / 63.2 ft
Platform Height 38.30 m / 125.7 ft
Up and Over Height 18.44 m / 60.5 ft

General Specifications
Capacity - Hydraulic Reservoir 200.63 L / 53 gal.
Ground Bearing Pressure 7.03 Kg/cm2
Machine Weight 20080 kg / 44268.8 lb
