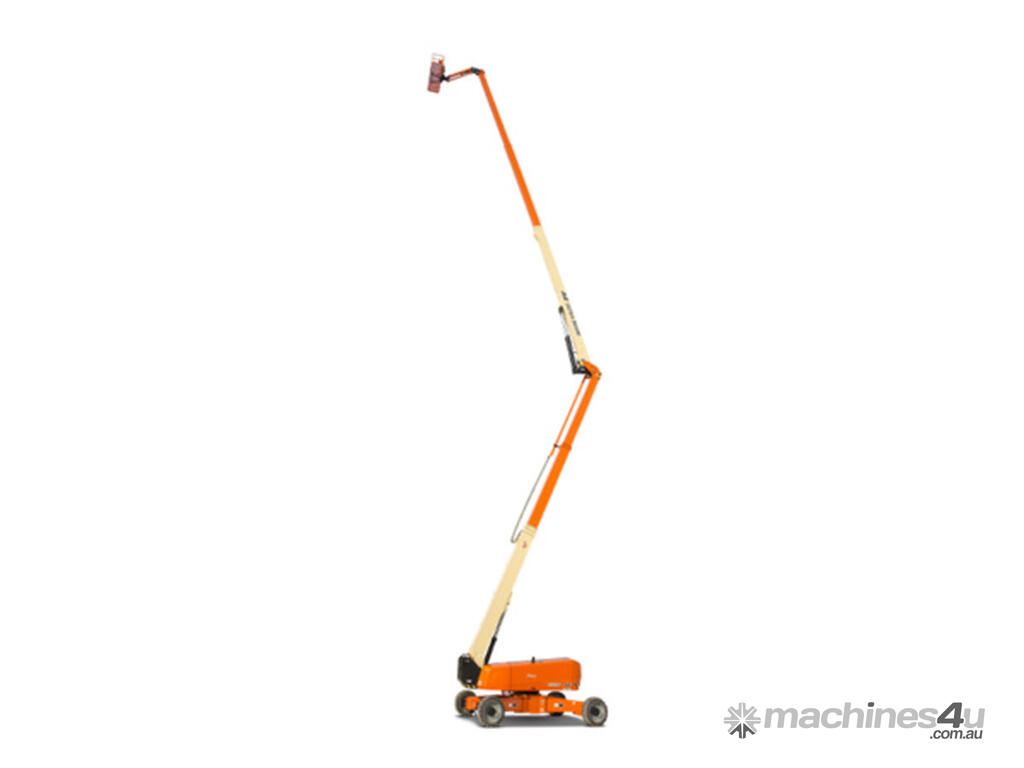

JLG 1500AJP New Boom Lift

Discover the world’s tallest articulating boom lift and learn more about its superior reach and industry-leading lift speeds.

Key Specs
Platform Height: 46.15 m / 151.4 ft
Platform Capacity - Restricted: 450 kg / 992.1 lb
Platform Capacity - Unrestricted: 270 kg / 595.2 lb
Key Features
Productivity redefined
World’s largest working envelope with high capacity throughout
JLG QuickStickTM capability allows for full height to ground in ~2 minutes

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 170 L / 44.9 gal.
Engine Type - Diesel (LRC) Deutz TCD 3.6 T4F

Performance Data
Drive Speed - 4WD 4.50 km/h / 2.8 mph
Gradeability - 4WD 40 %
Platform Capacity - Restricted 450 kg / 992.1 lb
Platform Capacity - Unrestricted 270 kg / 595.2 lb
Swing 360 Degrees
Swing Type Continuous
Turning Radius - Outside (axles extended) 6.60 m / 21.7 ft
Turning Radius - Outside (axles retracted) 9.50 m / 31.2 ft

Dimensional Data
Ground Clearance 0.3 m / 1 ft
Machine Height 3.10 m / 10.2 ft
Height 12.10 m / 39.7 ft
Machine Width 2.50 m / 8.2 ft
Interior Width 5 m / 16.4 ft
Platform Dimension A 0.91 m / 3 ft
Platform Dimension B 2.44 m / 8 ft
Platform Height 46.15 m / 151.4 ft
Tailswing 0.7 m / 2 ft 4 in.
Tyre size 1115 x 428 x 800 Solid with apertures

Reach Specifications
Horizontal Jib Rotation 125 Degrees
Platform Height 46.15 m / 151.4 ft
Up and Over Height 18.40 m / 60.4 ft
Working Height 48.15 m / 158 ft
Working Outreach 23.55 m / 77.3 ft

General Specifications
Capacity - Hydraulic Reservoir 352 L / 93 gal.
deleted - Ground-Bearing-Pressure 7.03 Kg/cm2
Machine Weight 26027 kg / 57379.7 lb
