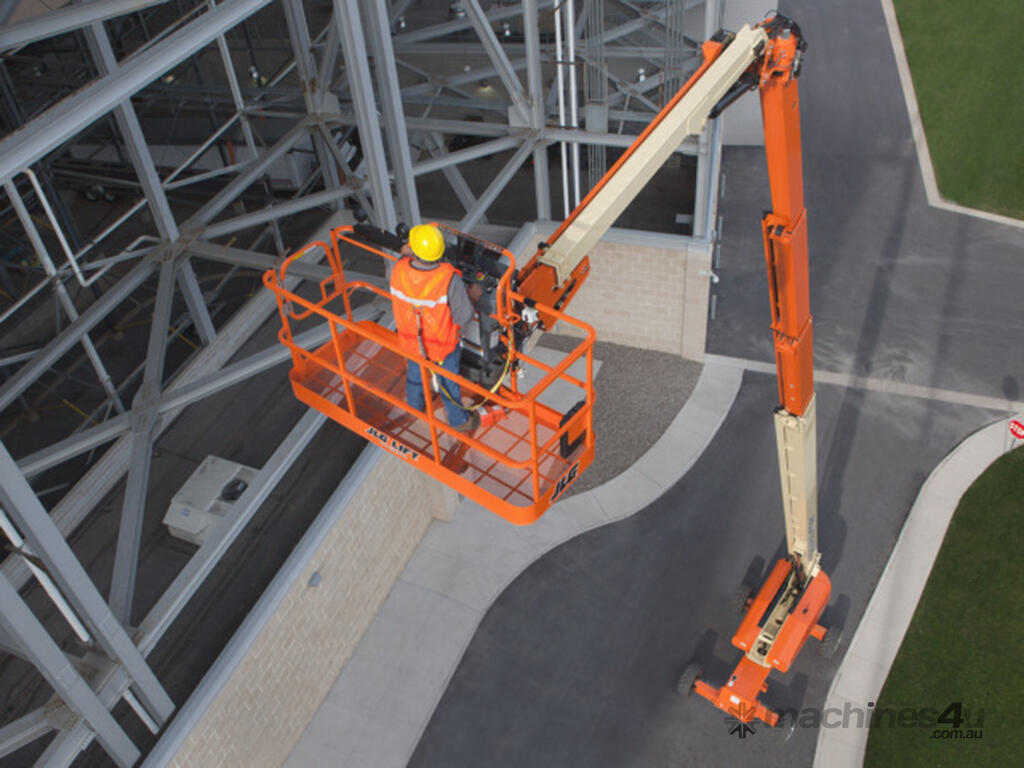

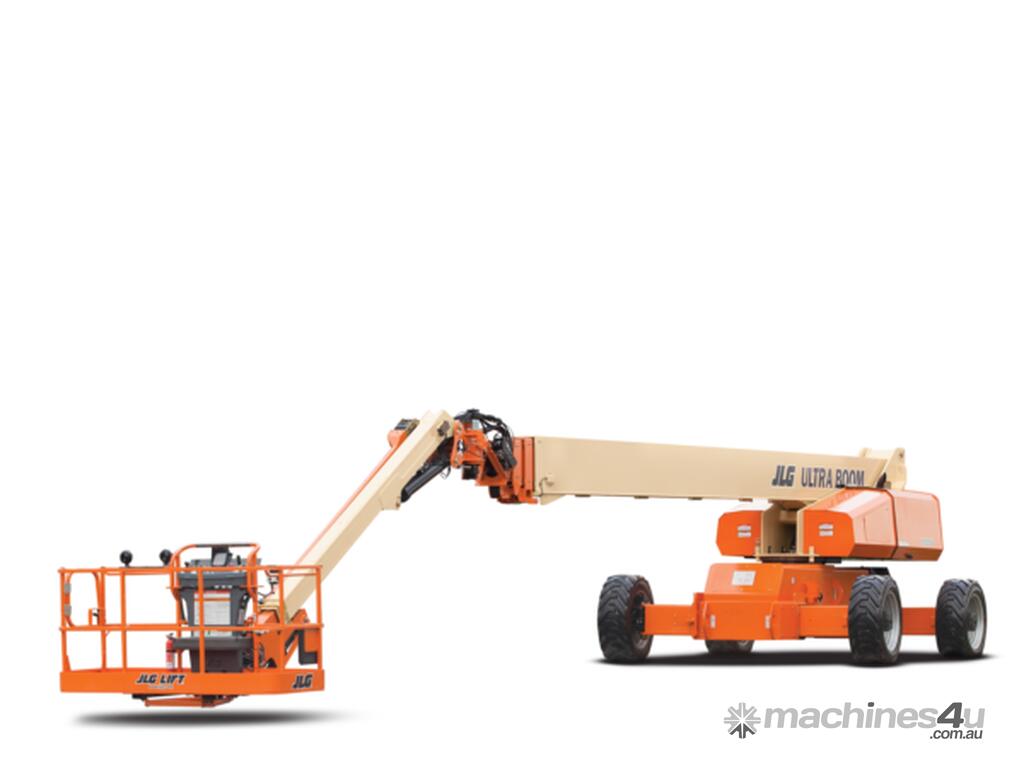

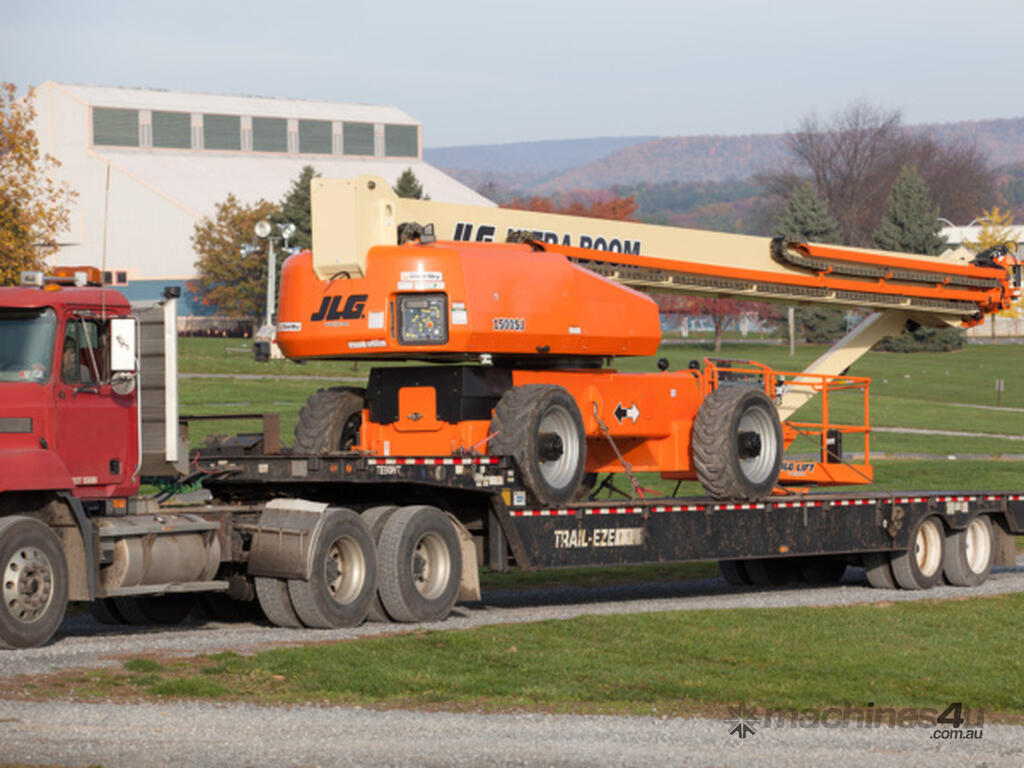

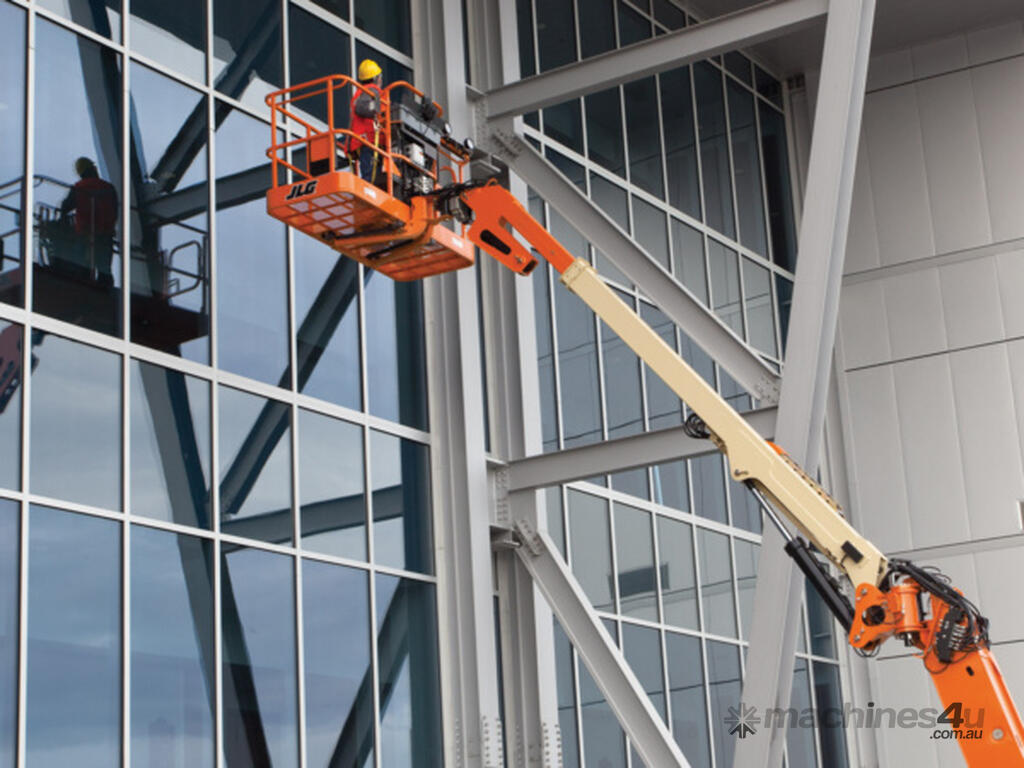

JLG 1500SJ Boom Lift

Dominate the job site with the JLG® Ultra Series. The ultra-strong 100,000 PSI steel of the boom gives you the confidence and support you need to handle 454 kg (1,000 lb) capacity. The exclusive controlled arc regulates speeds at the edges of the work envelope so that you feel the same velocity in all positions for enhanced comfort.

Key Specs
Platform Height: 45.72 m / 150 ft
Horizontal Outreach: 24.38 m / 80 ft
Platform Capacity - Restricted: 450 kg / 992.1 lb
Platform Capacity - Unrestricted: 230 kg / 507.1 lb
Key Features
Telescopic jib provides work envelope flexibility and even more outreach at elevation
Strong 100,000-psi steel and a dual 230kg / 450kg (500 / 1,000 lb) capacity
Ideal for general contractors, glaziers, window cleaners, welders and more

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 117 L / 30.9 gal.
Engine Type - Diesel (LRC) Deutz TD2011L4 55.9 kW 74.9 hp

Performance Data
Axle Oscillation 0.3 m / 1 ft
Drive Speed - 4WD 4.80 km/h / 3 mph
Gradeability - 4WD 40 %
Platform Capacity - Restricted 450 kg / 992.1 lb
Platform Capacity - Unrestricted 230 kg / 507.1 lb
Swing 360 Degrees
Swing Type Continuous
Turning Radius - Outside (axles extended) 5.89 m / 19.3 ft
Turning Radius - Outside (axles retracted) 6.86 m / 22.5 ft

Dimensional Data
Height 13.11 m / 43 ft
Ground Clearance 0.3 m / 1 ft
Machine Height 3.05 m / 10 ft
Machine Length 18.81 m / 61.7 ft
Machine Width 2.49 m / 8.2 ft
Interior Width 3.81 m / 12.5 ft
Platform Dimension A 0.91 m / 3 ft
Platform Dimension B 2.44 m / 8 ft
Platform Height 45.72 m / 150 ft
Tailswing 1.68 m / 5.5 ft
Tyre Size 445/50D710 Foam-Filled

Reach Specifications
Working Height 47.72 m / 156.6 ft
Working Outreach 25.03 m / 82.1 ft
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 24.38 m / 80 ft
Platform Height 45.72 m / 150 ft

General Specifications
Capacity - Hydraulic Reservoir 250 L / 66 gal.
Ground Bearing Pressure 7.95 Kg/cm2
Machine Weight 21772 kg / 47999 lb
