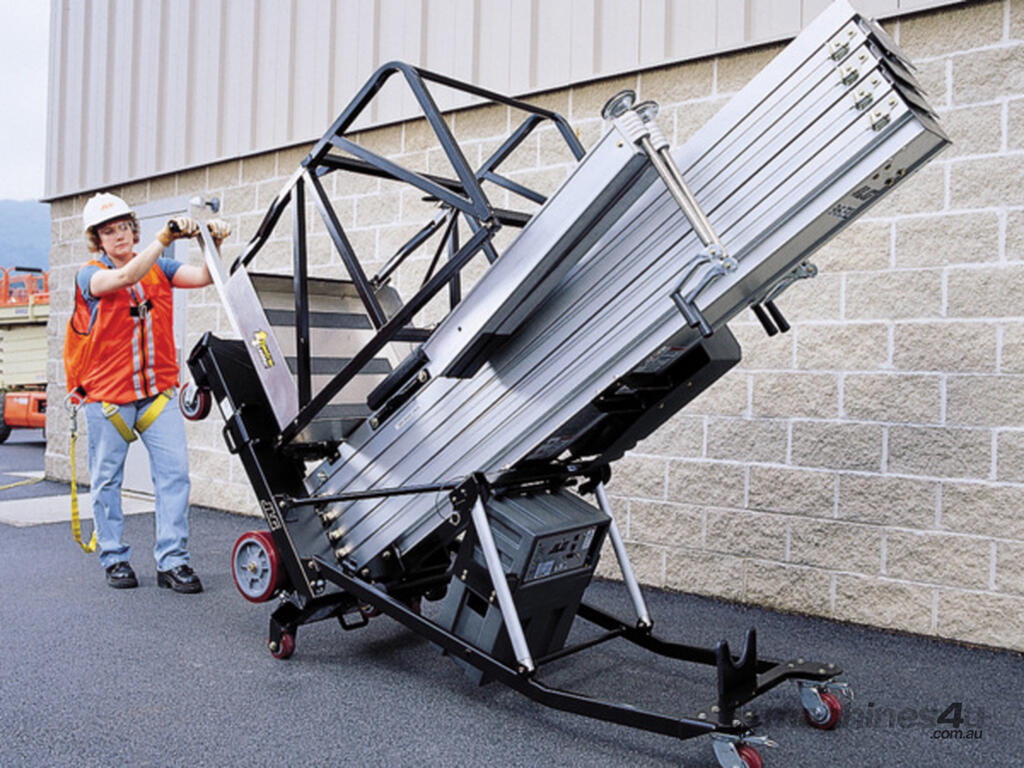

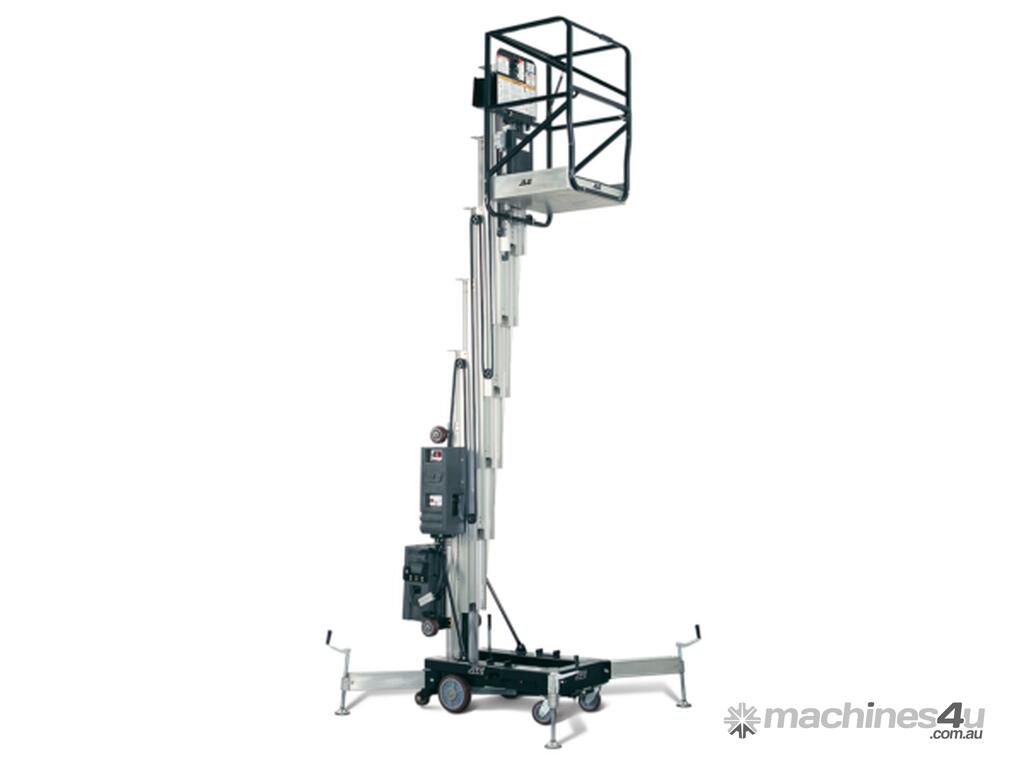

JLG 25AM Push Around Vertical Mast Lift

The AM Series (AccessMaster®) is easily portable, offers up to 160 kg (350 lb) platform capacity and is ideal for many uses including industrial, maintenance, entertainment and institutional. Platform heights range from 6.15 m (20 ft) to 12.49 m (41 ft), allowing work to be done up to 14.32 m (47 ft).
Key Specs
Platform Height: 7.67 m / 25.2 ft
Machine Width: 0.74 m / 2.4 ft
Key Features
Most rigid mast in the industry for operator comfort and stability
Six-wheel design for improved manoeuverability
Long battery duty cycles and an automatic charger for more productivity

Dimensional Data
Wheel Size - Front Caster 15 x 5 cm
Ground Entry Height 0.48 m / 1 ft 7 in.
Machine Height 1.97 m / 6.5 ft
Machine Length 1.24 m / 4.1 ft
Machine Width 0.74 m / 2.4 ft
Outrigger Footprint Length 1.73 m / 5.7 ft
Outrigger Footprint Width 1.57 m / 5.2 ft
Platform Dimension A 0.66 m / 2.2 ft
Platform Dimension B 0.66 m / 2.2 ft
Platform Height 7.67 m / 25.2 ft
Wheel Size - Rear 25 x 5 cm

Reach Specifications
Platform Height 7.67 m / 25.2 ft
Working Height 9.67 m / 31.7 ft

Performance Data
Outriggers Up Max Lift Height 7.65 m / 25.1 ft
Outriggers or Stabilizers Yes
Platform Capacity 160 kg / 352.7 lb

General Specifications
Machine Weight-AC 374 kg / 824.5 lb
Machine Weight-DC 410 kg / 903.9 lb
