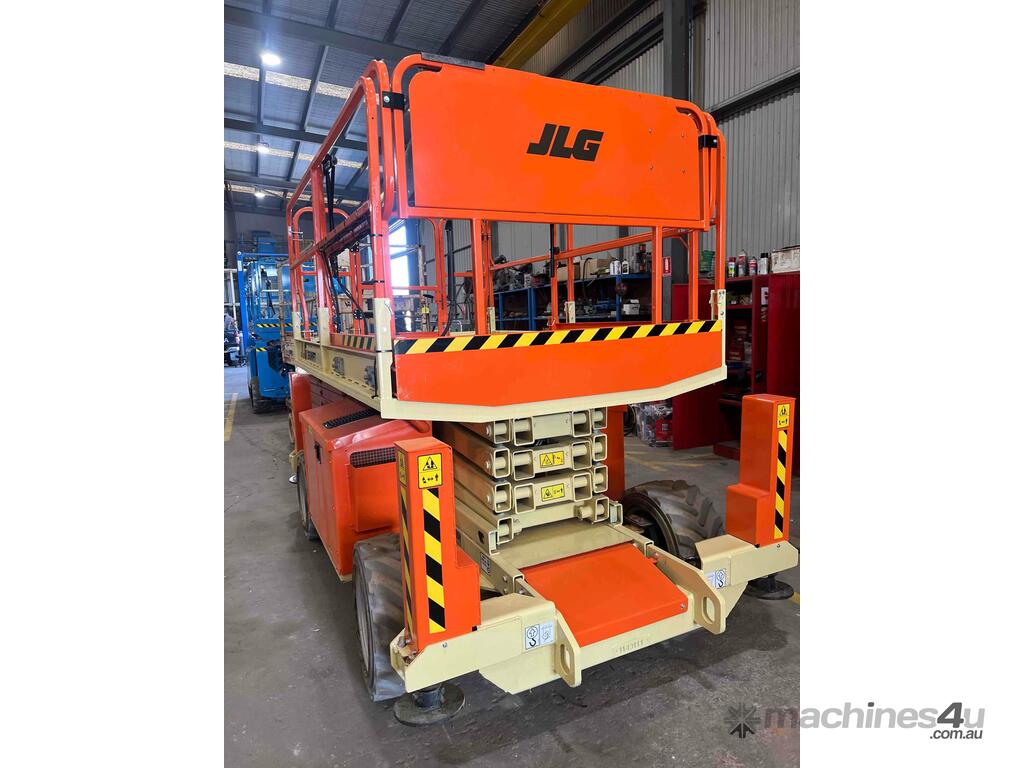

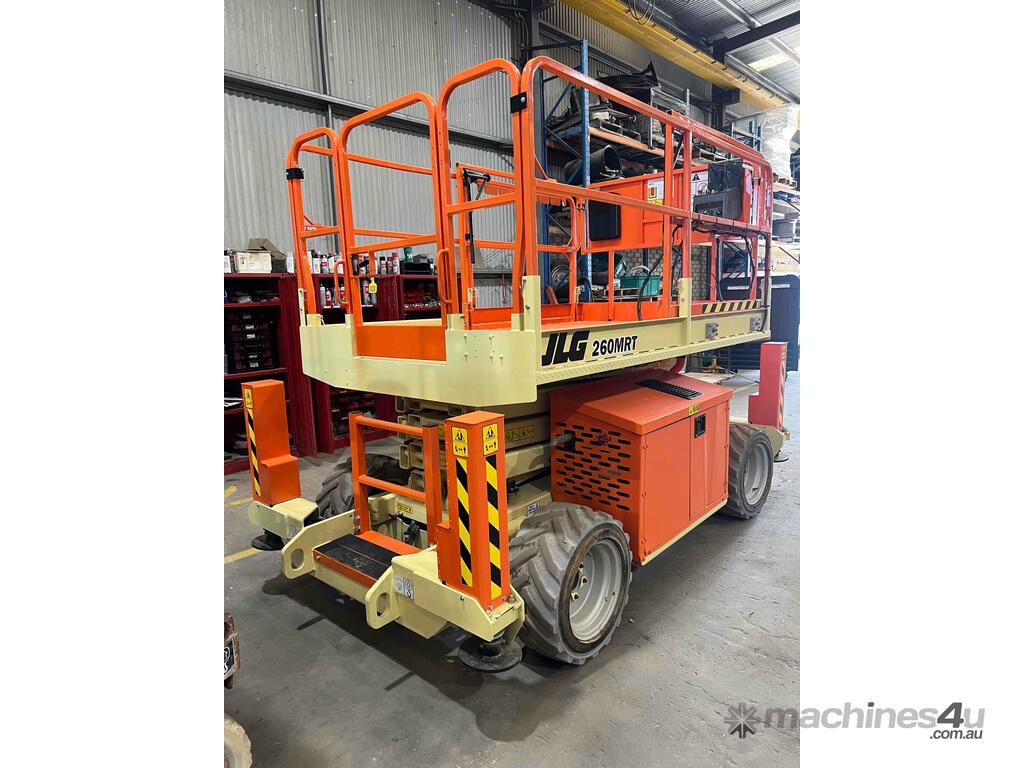

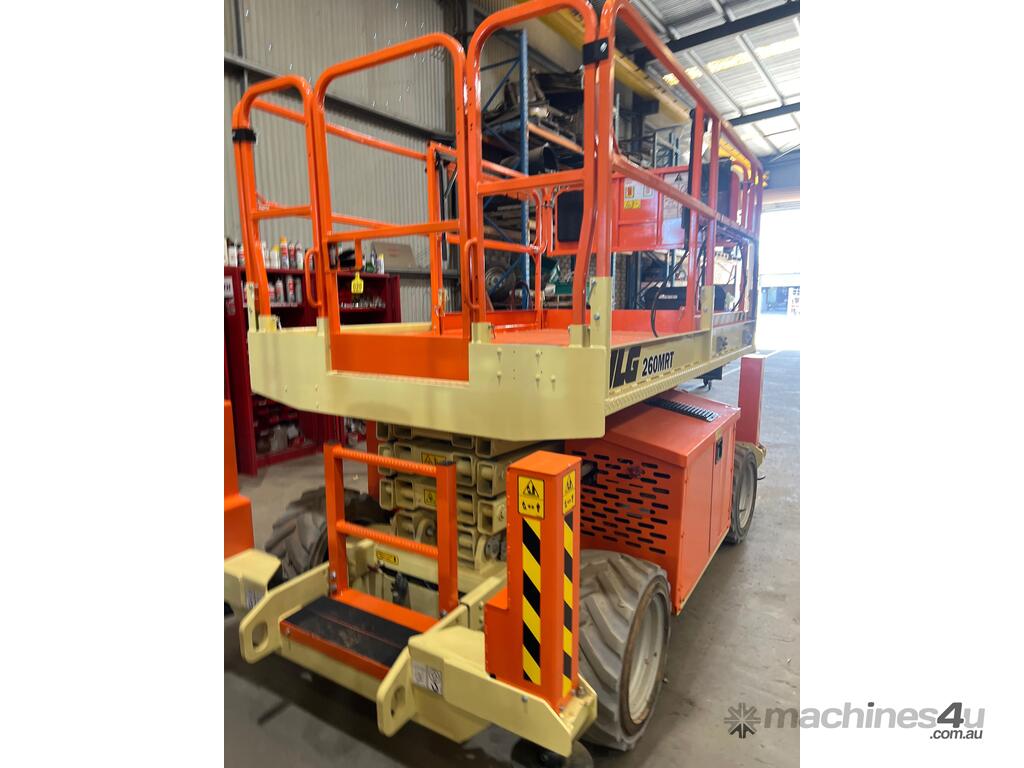

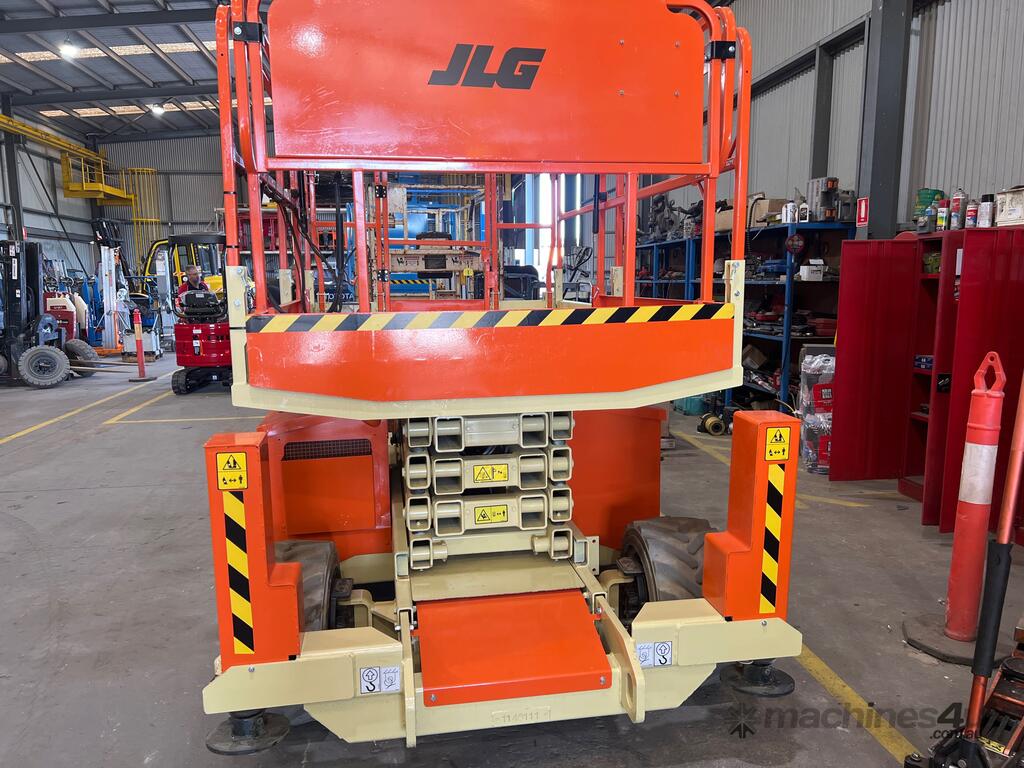

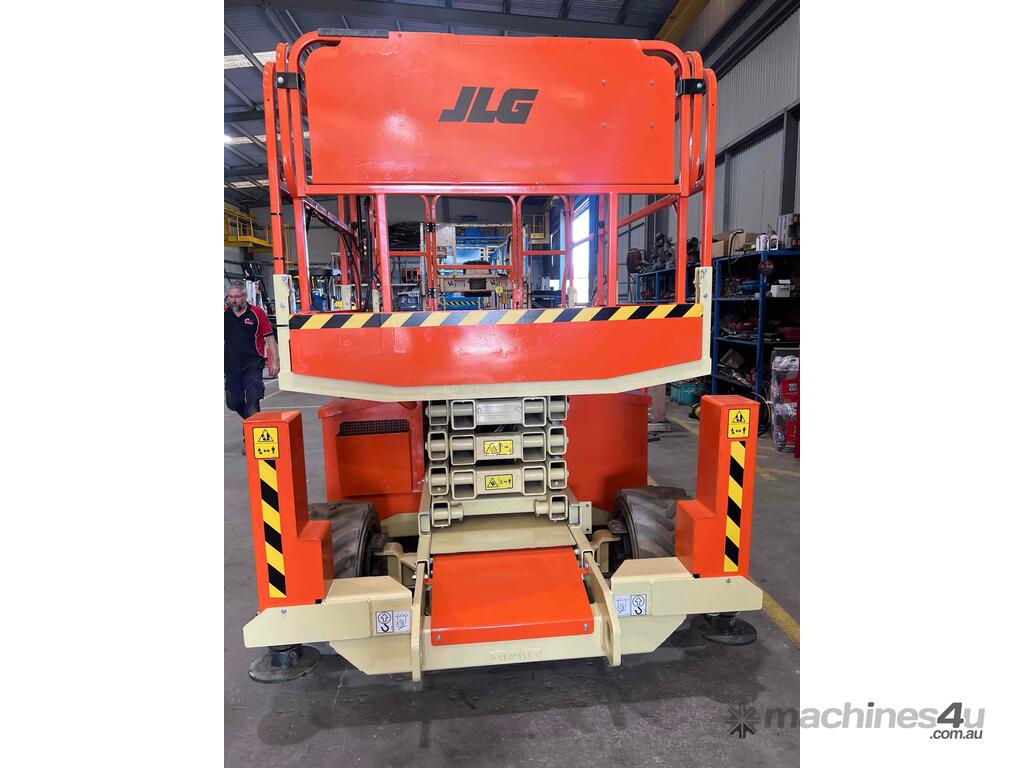

JLG 260MRT Scissor Lift

Major Inspection has been done.
5 Years Compliance.
Hours, 1387
1.65 m x 2.59 m steel platform (deck extension retracted)
1.22 m manual front deck extension
Fold down handrails
Lanyard attach points
Proportional drive control with thumb steer
Proportional lift/lower speed control
Joystick enable for lift and drive
Moveable and removable platform console box
Load sensing system

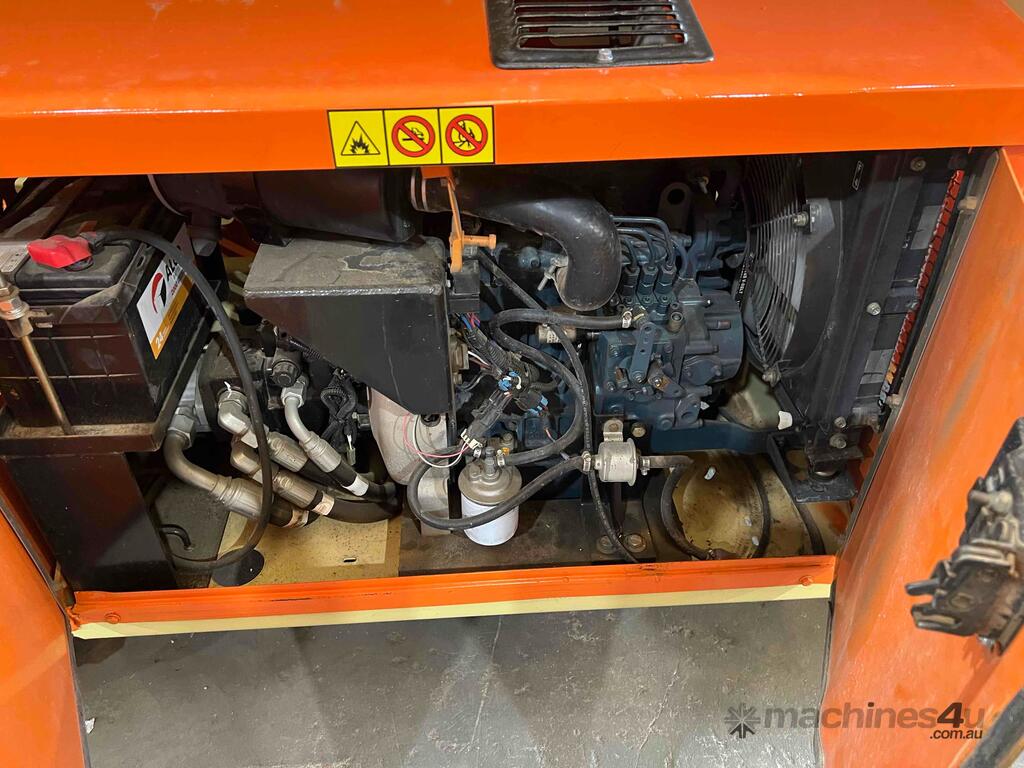

Kubota D1005 E4B (17.5 kW) diesel engine
On-board self-diagnostic testing
Hydrostatic drive with anti stall function
Two speed drive selection
Four wheel drive
3 degree tilt alarm and indicator light
Steel scissor guards

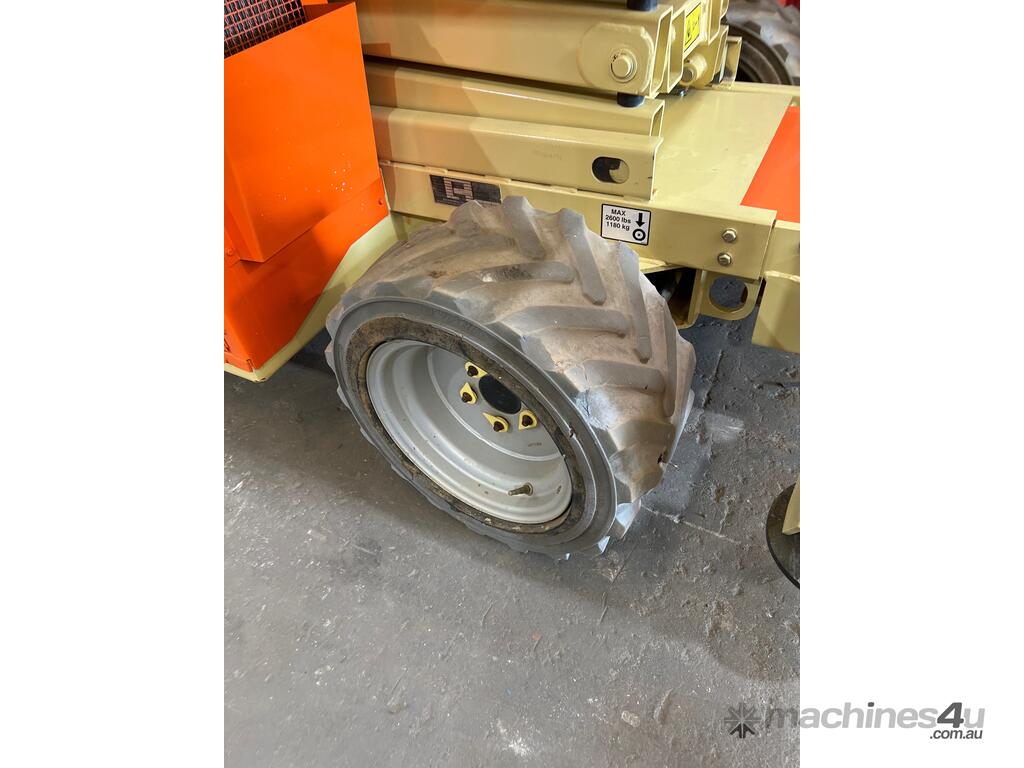

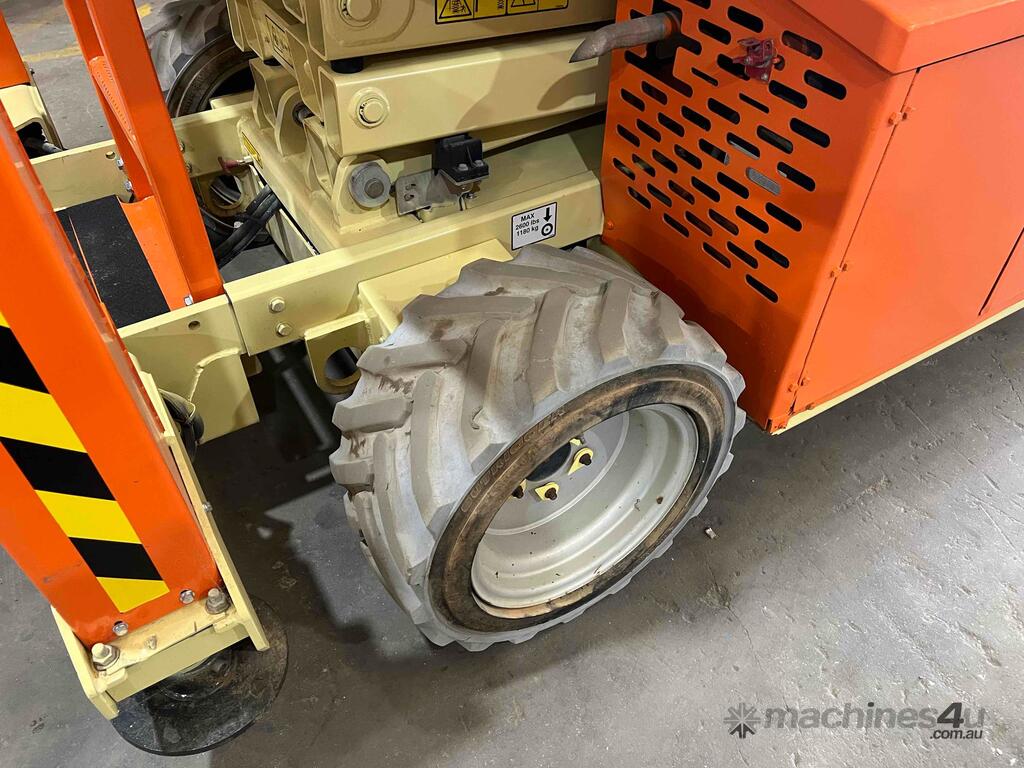

26 x 12 foam filled loader lug tread tyres
Lifting/tie down lugs
Hour meter
Ground control selector switch with key lock
Scissor maintenance prop
Horn
AC power cable to platform
Platform Height – Elevated 7.92 m
Platform Height – Lowered 1.26 m
Platform Railing Height 1.10 m
Stowed Height (Rails Folded) 1.47 m
Platform Size Inside (W x L) 1.65 m x 2.59 m
Deck Extension 1.22 m
Overall Width 1.75 m
Overall Length 2.67 m
Wheelbase 1.98 m
Platform Capacity – indoor 570 kg
Capacity on Deck Extension 140 kg
Lift/Lower Time (no load) 37/24 sec.
Maximum Drive Height 7.92 m
Machine weight 1 3,390 kg
Maximum Ground Bearing Pressure 8.30 kg/cm2
Drive Speed – Lowered 5.6 km/h
Drive Speed – Elevated 0.8 km/h
Gradeability 35%
Turning Radius – Inside 2.13 m
Turning Radius – Outside 4.39 m
