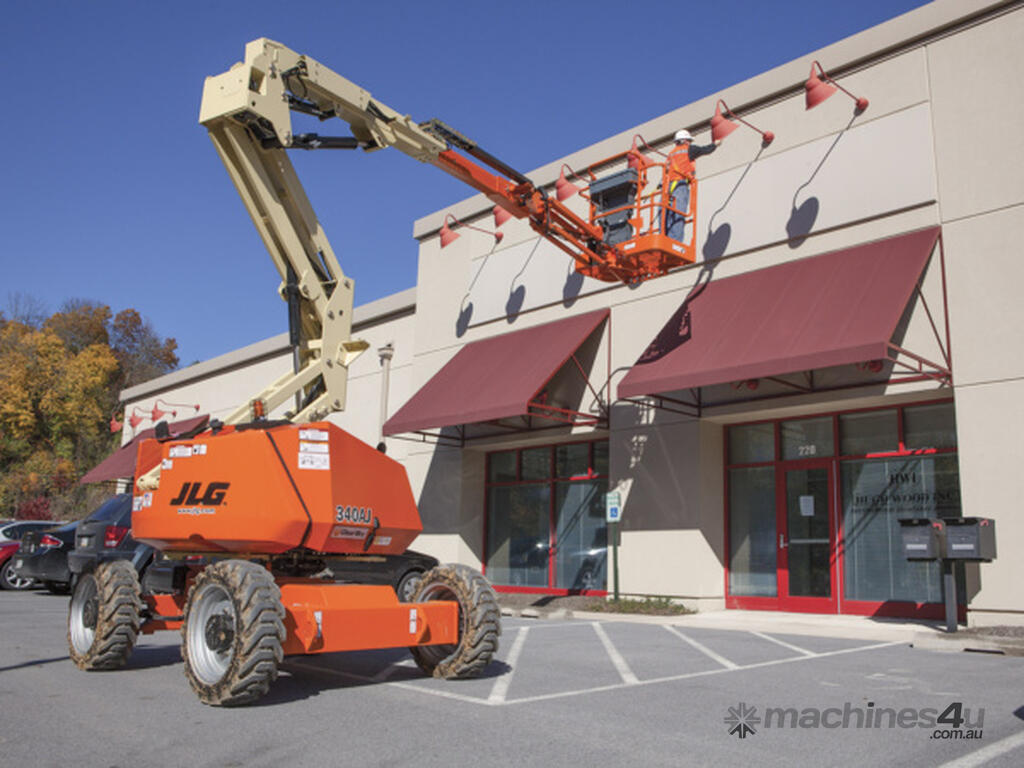

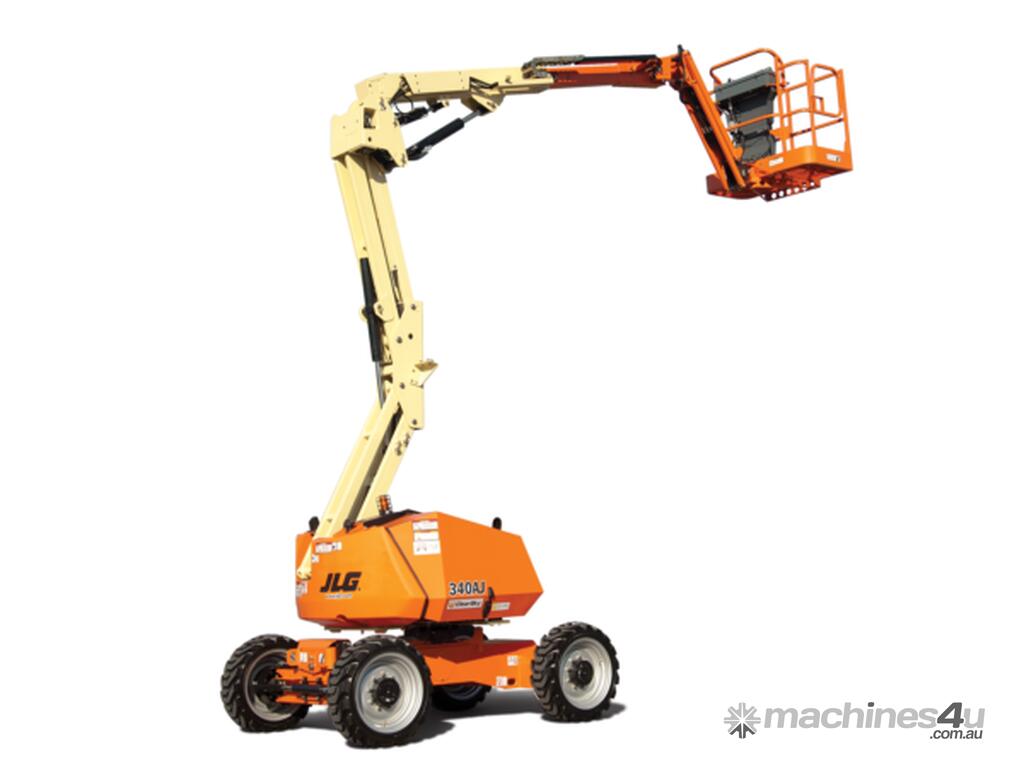

JLG 340AJ Boom Lift

The 340AJ offers lower cost of ownership, industry-leading terrainability and an environmentally friendly tier 4 diesel engine.

Key Specs
Platform Height: 10.33 m / 33.9 ft
Horizontal Outreach: 6.06 m / 19.9 ft
Platform Capacity - Unrestricted: 230 kg / 507.1 lb
Key Features
Your cost-effective alternative for mid-height applications
Best in class off-road performance
Environmentally friendly machine with lower fuel consumption and fewer potential leaking points

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 49 L / 12.9 gal.
Engine Type - Diesel (LRC) Kubota D1105 18.5 kW 24.8 hp

Performance Data
Axle Oscillation 0.15 m / 6 in.
Turning Radius - Outside 3.96 m / 13 ft
Drive Speed - 4WD 5 km/h / 3.1 mph
Gradeability - 4WD 45 %
Platform Capacity - Unrestricted 230 kg / 507.1 lb
Swing 355 Degrees
Swing Type Non-Continuous
Turning Radius - Outside (2WS) 3.96 m / 13 ft

Dimensional Data
Ground Clearance 0.24 m / 9 in.
Machine Height 2 m / 6.6 ft
Machine Length 5.52 m / 18.1 ft
Machine Width 1.93 m / 6.3 ft
Platform Dimension A 0.76 m / 2.5 ft
Platform Dimension B 1.52 m / 5 ft
Platform Height 10.33 m / 33.9 ft
Tailswing 0.05 m / 2 in.
Tyre Size 30×10-18 FA Solid Flex Cushion/Non-marking

Reach Specifications
Working Height 12.33 m / 40.5 ft
Working Outreach 6.71 m / 22 ft
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 6.06 m / 19.9 ft
Platform Height 10.33 m / 33.9 ft
Up and Over Height 5.17 m / 17 ft

General Specifications
Capacity - Hydraulic Reservoir 75 L / 19.8 gal.
Ground Bearing Pressure 4.50 Kg/cm2
Machine Weight 4400 kg / 9700.3 lb
