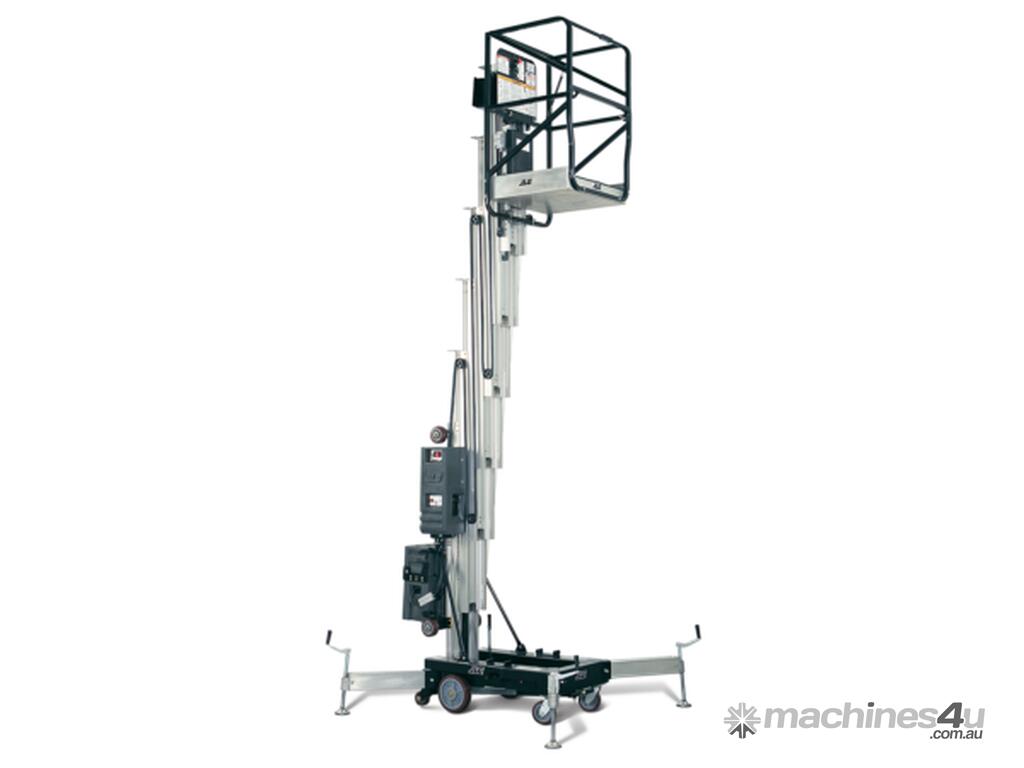

JLG 38AM Vertical Lift

The AM Series (AccessMaster®) is easily portable, offers up to 160 kg (350 lb) platform capacity and is ideal for many uses including industrial, maintenance, entertainment and institutional. Platform heights range from 6.15 m (20 ft) to 12.49 m (41 ft), allowing work to be done up to 14.32 m (47 ft).
Key Specs
Platform Height: 11.58 m / 38 ft
Machine Width: 0.74 m / 2.4 ft
Key Features
Most rigid mast in the industry for operator comfort and stability
Six-wheel design for improved maneuverability
Long battery duty cycles and an automatic charger for more productivity

Dimensional Data
Ground Entry Height 0.48 m / 1 ft 7 in.
Machine Height 2.64 m / 8.7 ft
Machine Length 1.46 m / 4.8 ft
Machine Width 0.74 m / 2.4 ft
Outrigger Footprint Length 2.18 m / 7.2 ft
Outrigger Footprint Width 2.13 m / 7 ft
Platform Dimension A 0.66 m / 2.2 ft
Platform Dimension B 0.65 m / 2.1 ft
Platform Height 11.58 m / 38 ft
Wheel Size - Front Caster 15 x 5 cm
Wheel Size - Rear 25 x 5 cm

Reach Specifications
Platform Height 11.58 m / 38 ft
Working Height 13.40 m / 44 ft

Performance Data
Outriggers or Stabilizers Yes
Platform Capacity 135 kg / 297.6 lb

General Specifications
Machine Weight-AC 574 kg / 1265.5 lb
Machine Weight-AC 574 kg / 1265.5 lb
Machine Weight-AC 485 kg / 1069.2 lb
Machine Weight-DC 633 kg / 1395.5 lb
Machine Weight-DC 633 kg / 1395.5 lb
Machine Weight-DC 520 kg / 1146.4 lb
