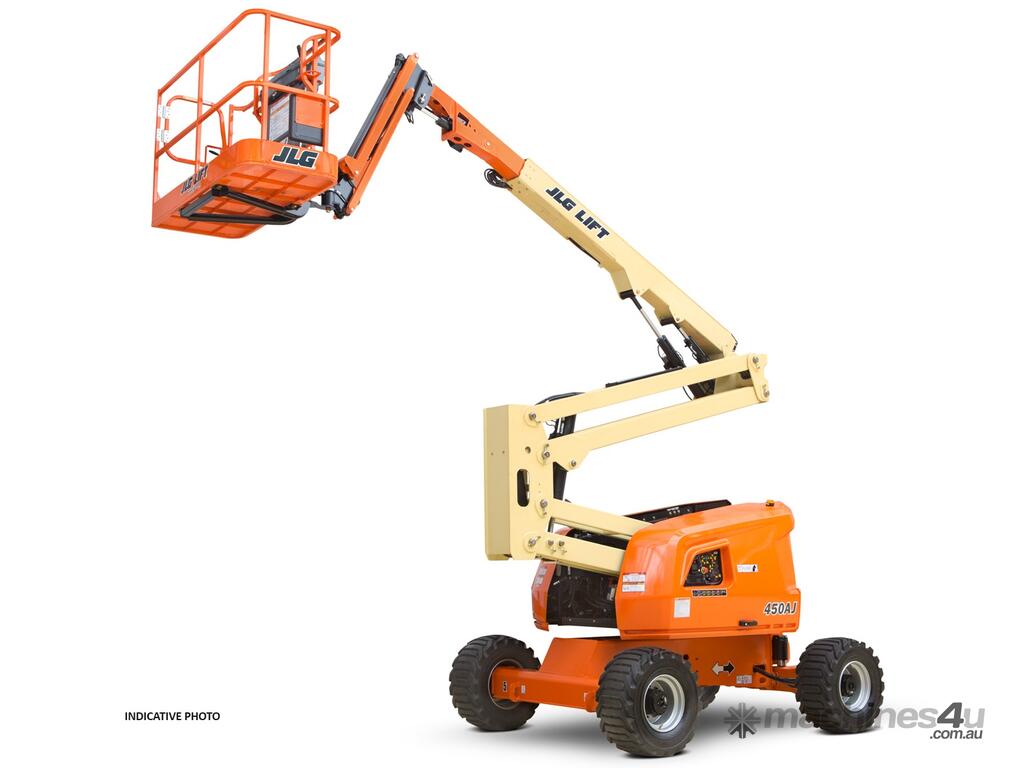

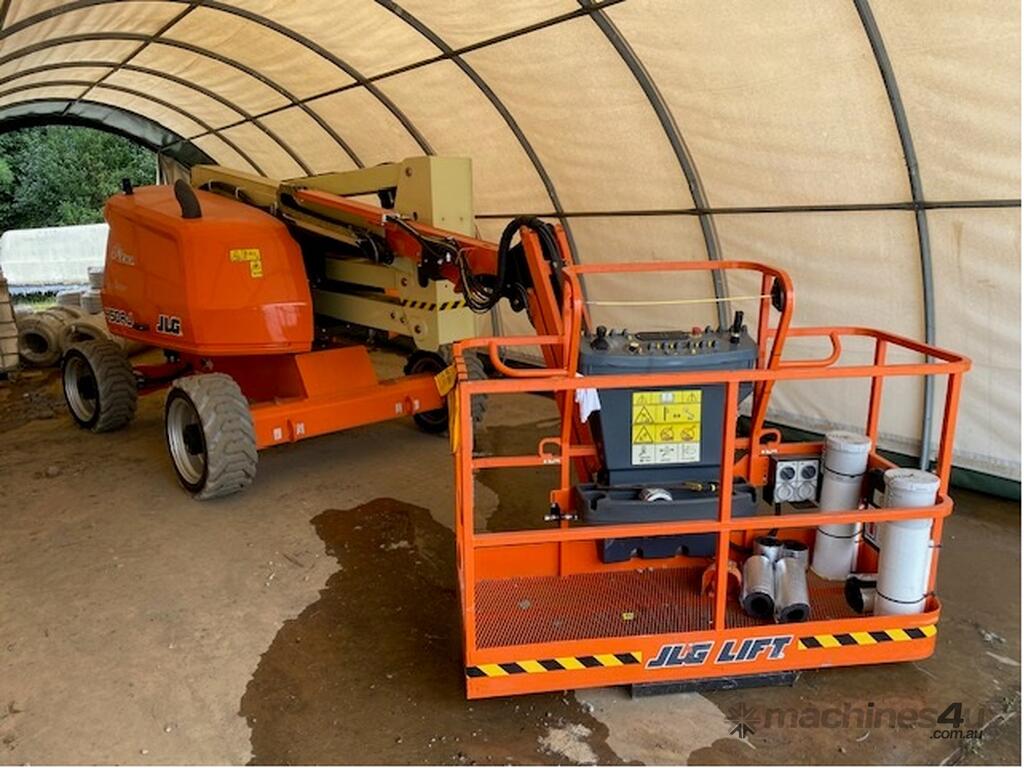

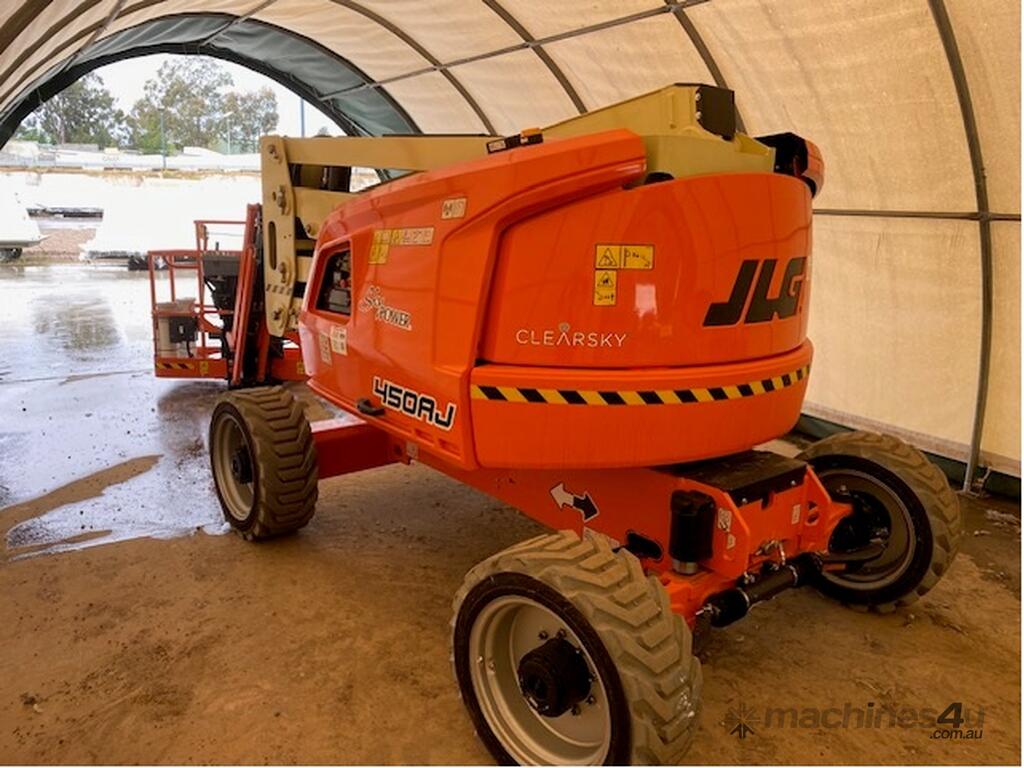

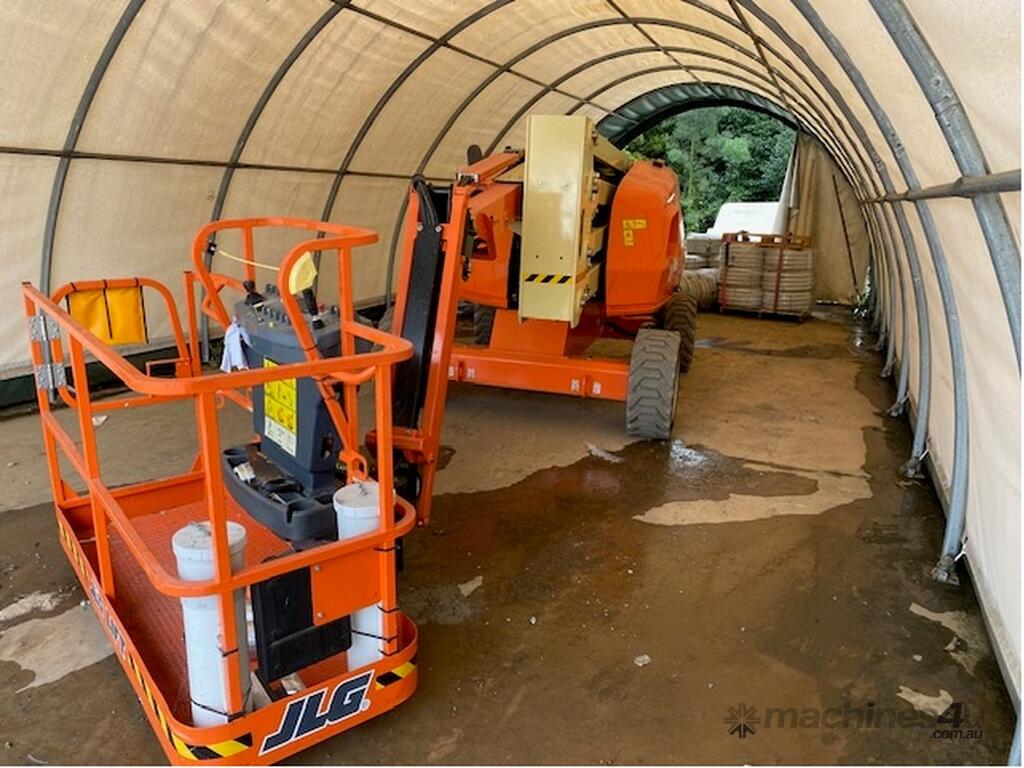

Used 450AJ Series II Articulating Boom Lift
Would suit a new buyer with a saving of around $30,000 + GST on new machine.
First into service October 2022

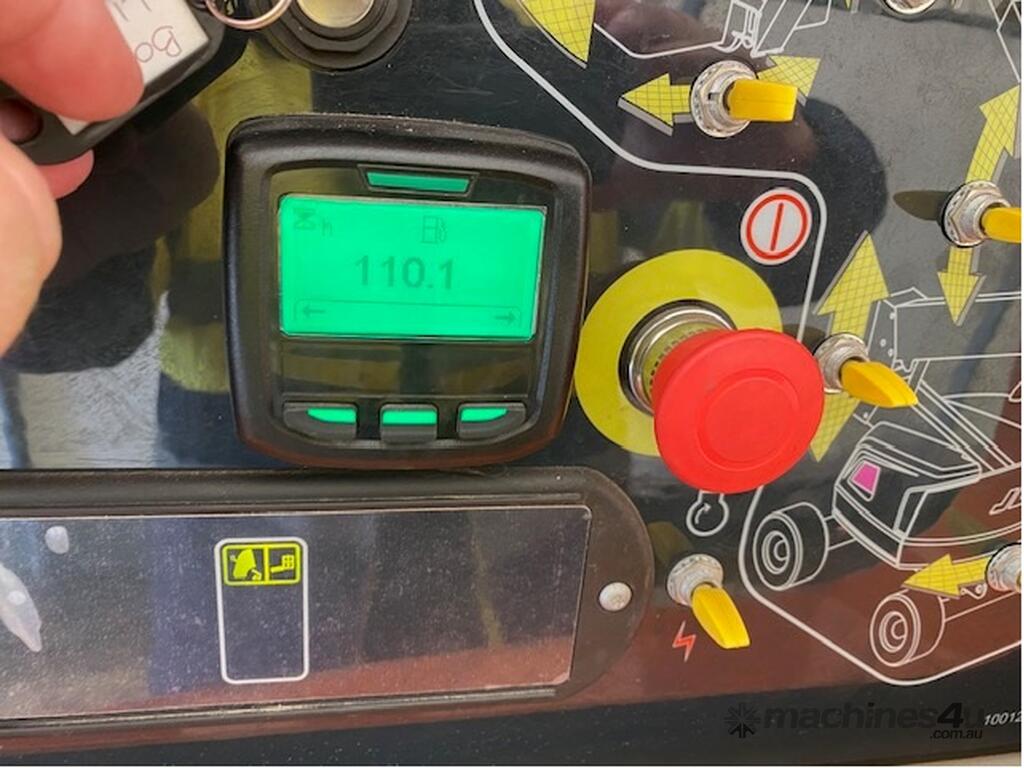

Hours - 110
Includes Skyguard & Sky Power

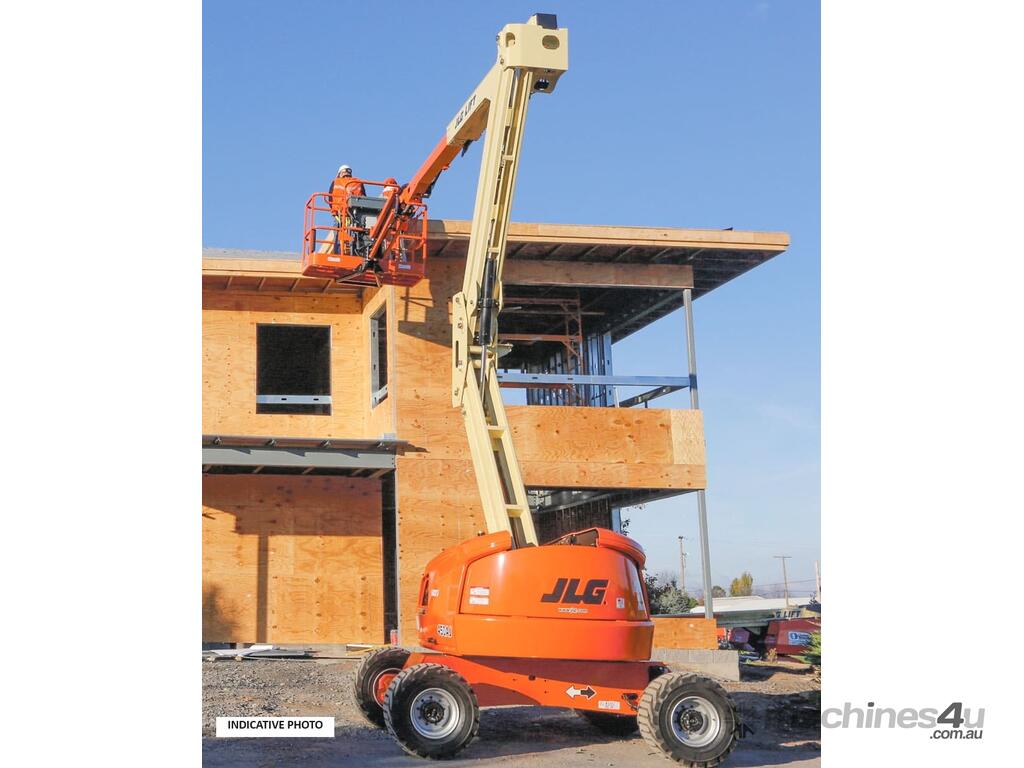

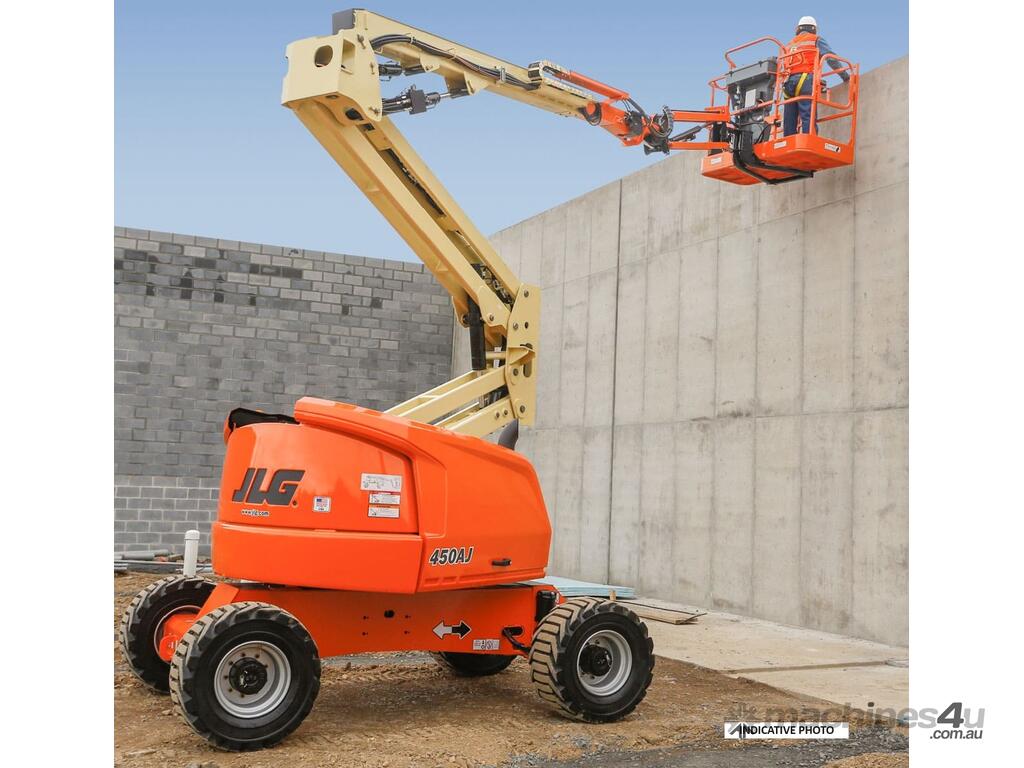

JLG engine powered boom lifts get you into position quickly and efficiently for optimum productivity. They offer exceptional reach, high capacity, versatile performance, and easy maintenance.
Features:
-Reach those tight spaces that you can’t reach with other lifts
-Best-in-class lift speed increases productivity and efficiency
-Easy-to-use controls reduces training time and increases time on the job
Quick Specs:
Platform Height Elevated – 45 ft
Overall Width – 6 ft 10 in
Platform Capacity – 500 lb

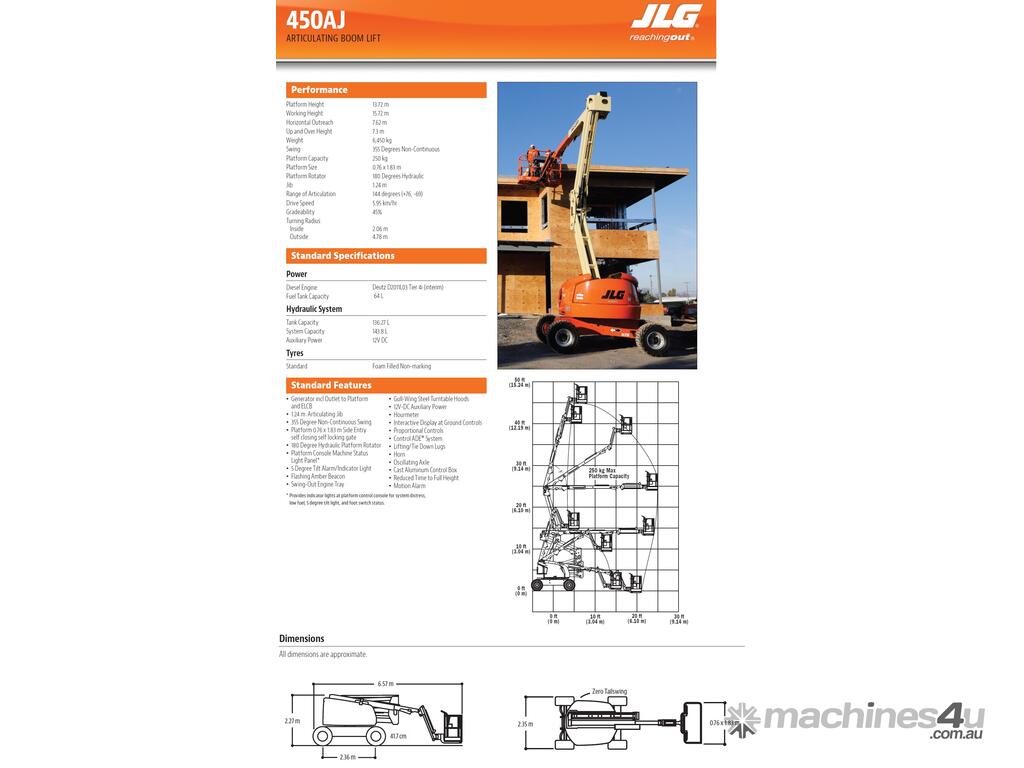

Reach Specifications:
Platform Height 45' / 13.72 m
Horizontal Outreach 24' 6" / 7.47 m
Up and Over Height 25' 2" / 7.67 m
Swing 360º Non-Continuous
Platform Capacity 500 lb / 227 kg
Platform Rotator 180º Hydraulic
Jib (Range of Articulation) 145º (+78, -67)
Dimensions:
Platform Size 30 x 72" / 0.76 x 1.83 m
Overall Width 6' 10" / 2.08 m
Tailswing Zero
Stowed Height 7' 5" / 2.26 m
Stowed Length 21' 5" / 6.53 m
Wheelbase 6' 6" / 1.98 m
Ground Clearance 14" / 36 cm
Weight* 16,000 lb / 7,257 kg
Max. Ground Bearing Pressure*** 36 psi / 2.5 kg/cm²
Power Source:
Diesel Engine Deutz D2011LO3 Tier 4i 49hp 36.4kW
Chassis:
Drive Speed 4WD 4.5 mph / 7.2 kmph
Gradeability 4WD 45%
Turning Radius (Inside) 5' 8" / 1.73 m
Turning Radius (Outside) 14' / 4.27 m
Axle Oscillation 8" / 20 cm
Tire Size 33/1550 x 16.5
Tyre Type Superwide
Type of Tracks** Open Bar Steel Track
Tracks Width** 12" / 30.5 cm
FEEL FREE TO CALL PRONTO ACCESS FOR ALL INFORMATION CONCERNING THIS MACHINE AND ANY OTHER PRODUCT WE SELL
