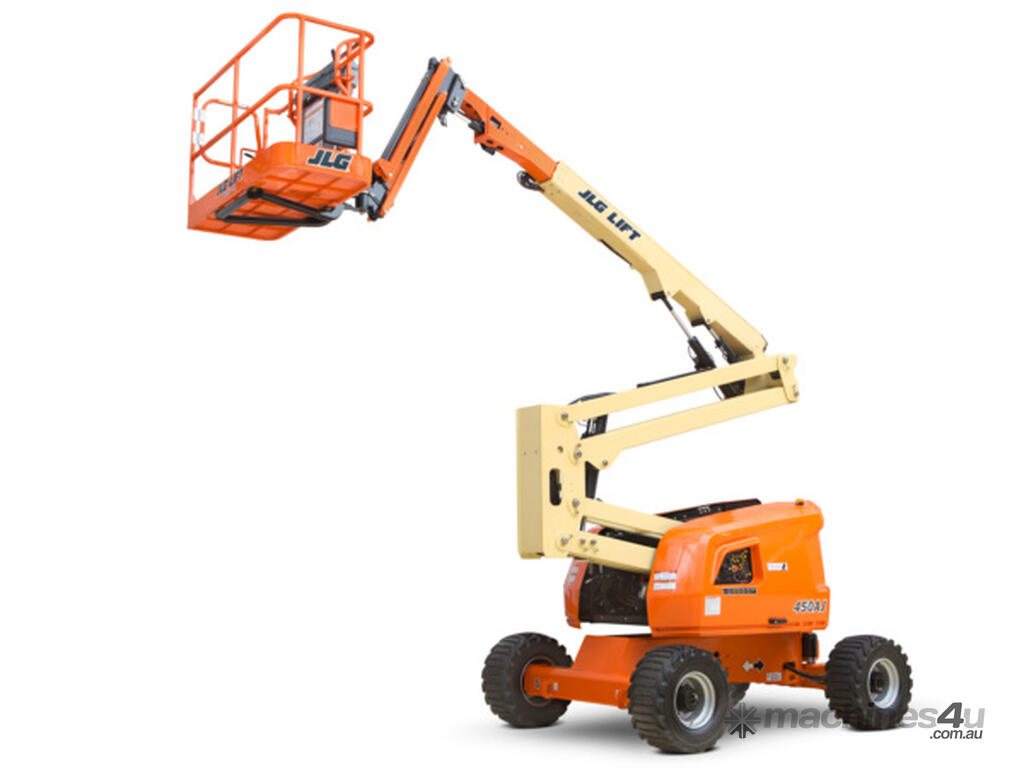

JLG 450AJ New Boom Lift

When you’re working around tricky architecture or smaller spaces where access can be limited, the 450AJ helps you stay on track.

Key Specs
Platform Height: 13.72 m / 45 ft
Horizontal Outreach: 7.62 m / 25 ft
Platform Capacity - Unrestricted: 249.50 kg / 550.1 lb
Key Features
Variable speed engine control for improved fuel efficiency reducing operating costs.
50%* faster full elevation time (*actuals might vary) increasing workers efficiency.
Half a meter more horizontal reach for an increased work envelope.
250 kg in basket vs 230 kg before allowing you to carry more tools or materials to stay on a job longer.

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 60.50 L / 16 gal.
Engine Type - Diesel (LRC) Deutz D2.3L3 T4i 49 hp 36.4 kW

Performance Data
Axle Oscillation 0.1 m / 4 in.
Drive Speed - 4WD 6.80 km/h / 4.2 mph
Gradeability - 4WD 45 %
Platform Capacity - Unrestricted 249.50 kg / 550.1 lb
Swing 355 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 4.78 m / 15.7 ft

Dimensional Data
Ground Clearance 0.42 m / 1 ft 5 in.
Machine Height 2.27 m / 7.4 ft
Machine Length 6.58 m / 21.6 ft
Height 6.58 m / 21.6 ft
Machine Width 2.34 m / 7.7 ft
Platform Dimension A 0.76 m / 2.5 ft
Platform Dimension B 1.83 m / 6 ft
Platform Height 13.72 m / 45 ft
Tailswing Zero

Reach Specifications
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 7.62 m / 25 ft
Platform Height 13.72 m / 45 ft
Up and Over Height 6.09 m / 20 ft
Working Height 15.77 m / 51.7 ft
Working Outreach 8.27 m / 27.1 ft

General Specifications
Capacity - Hydraulic Reservoir 144 L / 38 gal.
deleted - Ground-Bearing-Pressure 4 Kg/cm2
