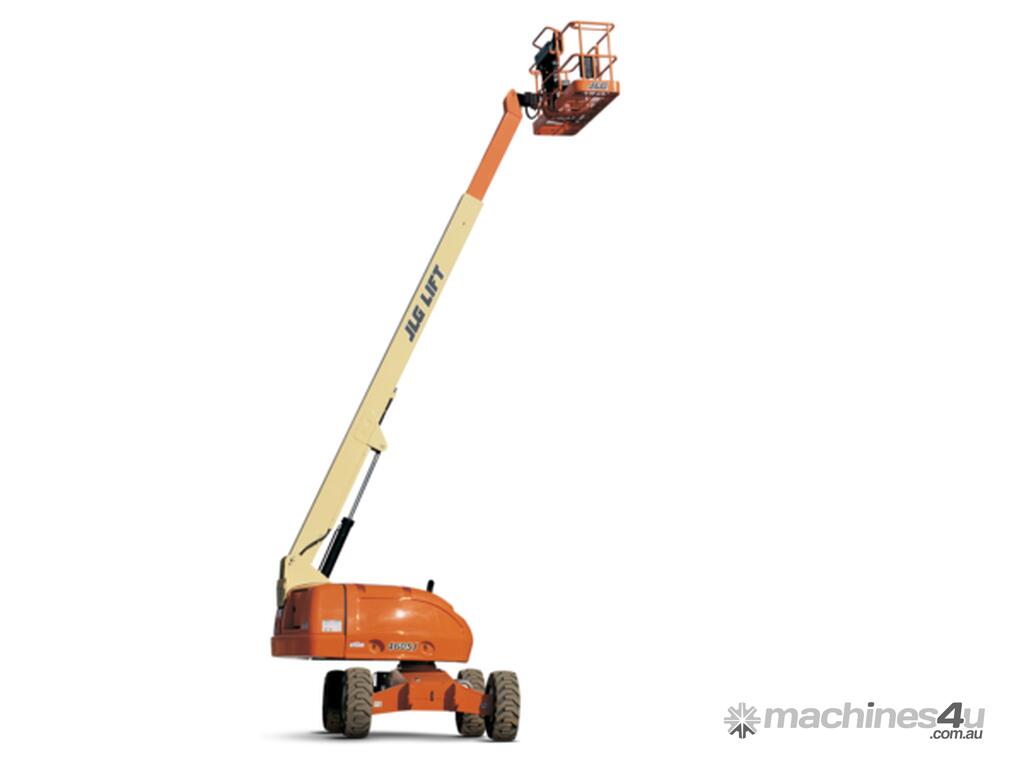

JLG 460SJ Boom Lift

The 460SJ features the fastest lift and drive speeds in its class, for unmatched productivity.

Key Specs
Platform Height: 14.02 m / 46 ft
Horizontal Outreach: 12.34 m / 40.5 ft
Platform Capacity - Unrestricted: 270 kg / 595.2 lb
Key Features
Best-in-class gradeability and reach
Fastest lift and drive speeds for unmatched productivity
Low cost of ownership

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 98 L / 25.9 gal.
Engine Type - Diesel (LRC) Deutz D2011L03 36.4 kW 49 hp

Performance Data
Axle Oscillation 0.2 m / 8 in.
Drive Speed - 2WD 7.20 km/h / 4.5 mph
Drive Speed - 4WD 7.20 km/h / 4.5 mph
Gradeability - 2WD 30 %
Gradeability - 4WD 45 %
Platform Capacity - Unrestricted 270 kg / 595.2 lb
Swing 360 Degrees
Swing Type Continuous
Turning Radius - Outside 5 m / 16.4 ft

Dimensional Data
Ground Clearance 0.32 m / 1 ft 1 in.
Machine Height 2.39 m / 7.8 ft
Machine Length 8.84 m / 29 ft
Machine Width 2.31 m / 7.6 ft
Platform Dimension A 0.91 m / 3 ft
Platform Dimension B 2.44 m / 8 ft
Platform Height 14.02 m / 46 ft
Tailswing 0.86 m / 2 ft 10 in.
Tyre Size 12 x 16.5 Foam Filled

Reach Specifications
Working Height 16.09 m / 52.8 ft
Working Outreach 12.72 m / 41.7 ft
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 12.34 m / 40.5 ft
Platform Height 14.02 m / 46 ft

General Specifications
Capacity - Hydraulic Reservoir 159 L / 42 gal.
Ground Bearing Pressure 4.42 Kg/cm2
Machine Weight 7930 kg / 17482.7 lb
