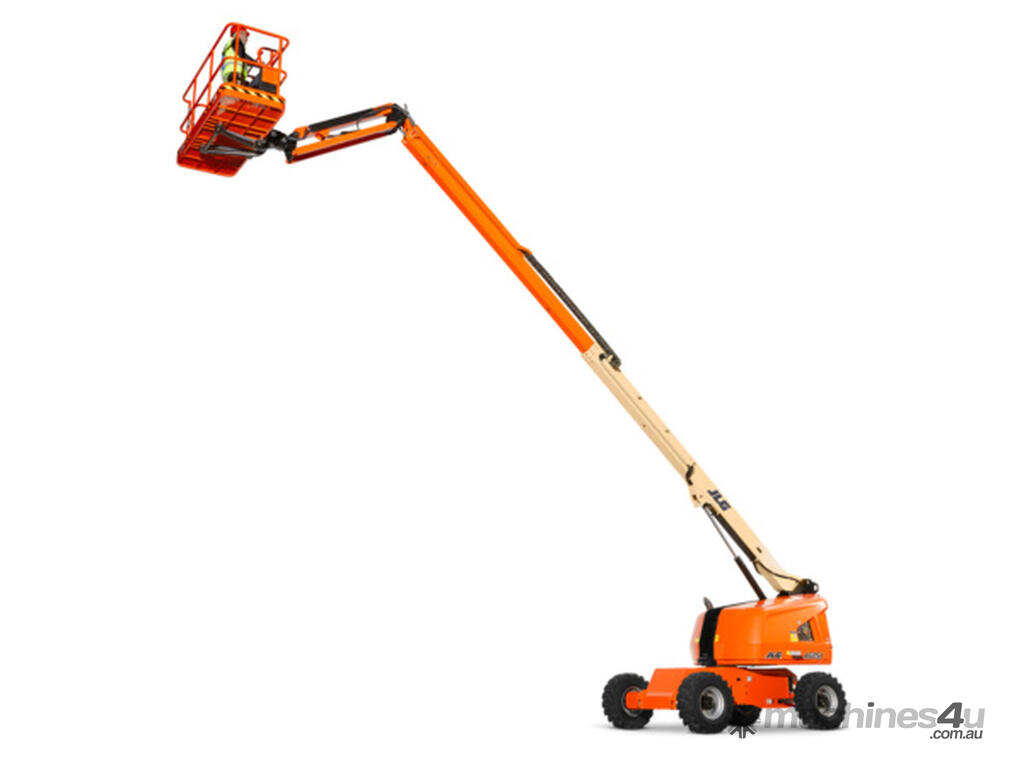

JLG 460SJ HC3 Boom Lift

The 460SJ features the fastest lift and drive speeds in its class, for unmatched productivity.

Key Specs
Platform Height: 14 m / 45.9 ft
Horizontal Outreach: 12.35 m / 40.5 ft
Platform Capacity - Restricted: 454 kg / 1000.9 lb
Platform Capacity - Unrestricted: 300 kg / 661.4 lb
Key Features
More Flexibility at Height: With three working zones and enhanced capacity, up to three workers and tools can fit into the platform
Increased Efficiency: A zero calibration automatic load sensing system eliminates the need to use external weights to calibrate the machine
Enhanced Operator Experience: An upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 83.28 L / 22 gal.
Engine Type - Diesel 36.4 kW Deutz T4I D 2.3 L3

Performance Data
Axle Oscillation 0.11 m / 0.4 ft
Drive Speed - 4WD 6.84 km/h / 4.3 mph
Gradeability - 4WD 45 %
Platform Capacity - Restricted 454 kg / 1000.9 lb
Platform Capacity - Restricted 2 340 kg / 749.6 lb
Platform Capacity - Unrestricted 300 kg / 661.4 lb
Swing 360
Swing Type Continuous
Turning Radius - Outside (4WS) 5.16 m / 16.9 ft

Dimensional Data
Ground Clearance 0.30 m / 1 ft
Machine Width 2.30 m / 7.5 ft
Platform Dimension A 0.91 m / 3 ft
Platform Dimension B 2.44 m / 8 ft
Platform Height 14 m / 45.9 ft
Tailswing 0.93 m / 3.1 ft
Tyre Size 14 x 17.5
Height 9.05 m / 29.7 ft
Wheelbase 2.38 m / 7.8 ft

Reach Specifications
Horizontal Outreach 12.35 m / 40.5 ft
Platform Height 14 m / 45.9 ft
Working Height 16.21 m / 53.2 ft
Working Outreach 13 m / 42.7 ft

General Specifications
Machine Weight 8736 kg / 19259.6 lb
