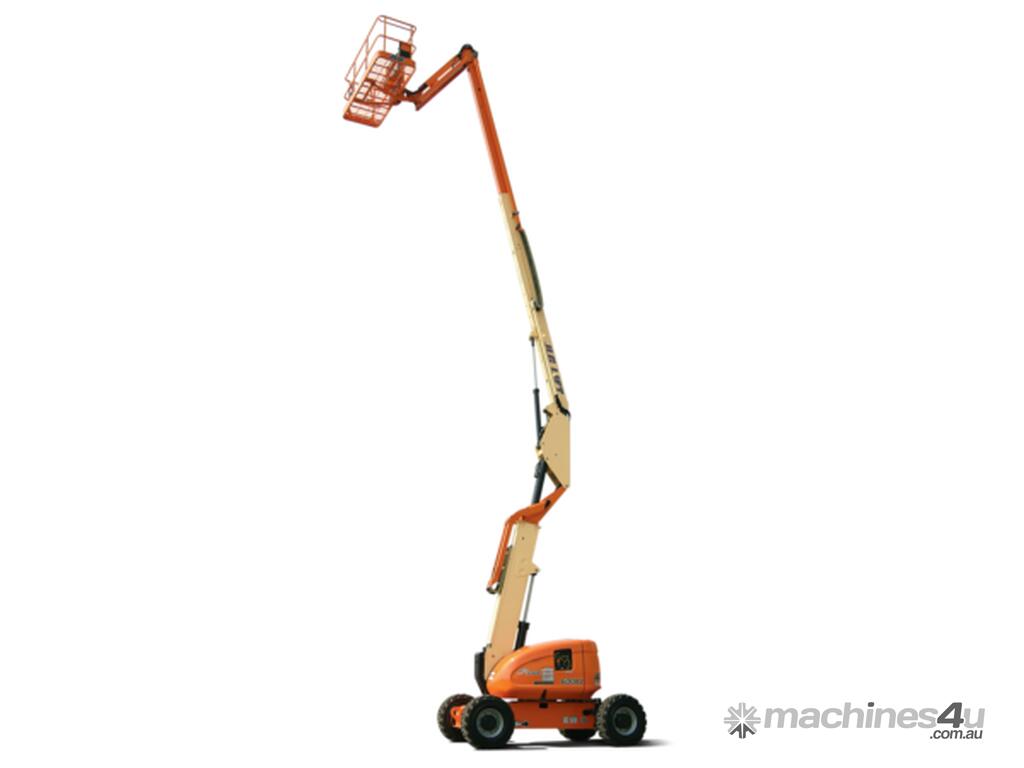

JLG 600AJ Boom Lift

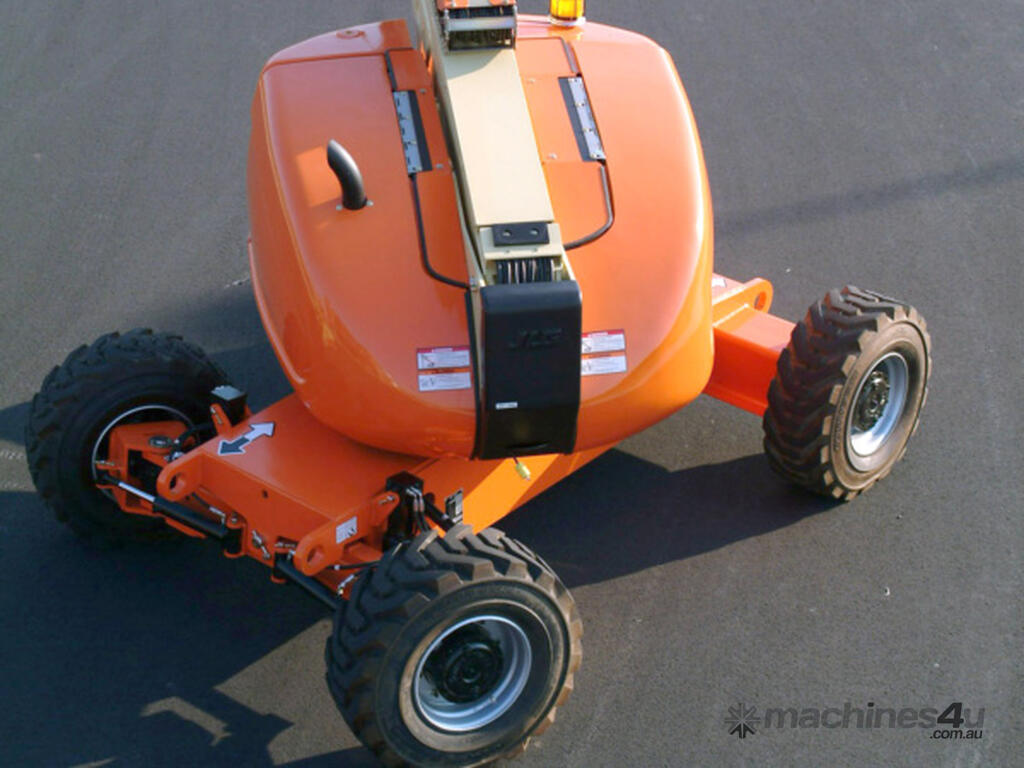

The 600 Series articulating booms have the strength to handle loads up to 230 kg (500 lb) and the best reach envelope in its class, giving you optimum performance no matter what the job. A standard oscillating axle and four-wheel drive give you outstanding drive performance on rough terrain.

Key Specs
Platform Height: 18.46 m / 60.6 ft
Horizontal Outreach: 12.10 m / 39.7 ft
Platform Capacity - Unrestricted: 230 kg / 507.1 lb
Key Features
Best reach envelope in its class
Optional articulating jib gets you into hard-to-reach places
Unmatched maneuverability for confined work areas

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 114 L / 30.1 gal.
Engine Type - Diesel (LRC) Deutz D2011L04 36.4 KW (49 Hp)

Performance Data
Axle Oscillation 0.2 m / 8 in.
Drive Speed - 2WD 6.80 km/h / 4.2 mph
Drive Speed - 4WD 6.80 km/h / 4.2 mph
Gradeability - 2WD 30 %
Gradeability - 4WD 45 %
Platform Capacity - Unrestricted 230 kg / 507.1 lb
Swing 360 Degrees
Swing Type Continuous
Turning Radius - Outside (2WS) 5.36 m / 17.6 ft
Turning Radius - Outside (4WS) 3.56 m / 11.7 ft

Dimensional Data
Ground Clearance 0.3 m / 1 ft
Machine Height 2.57 m / 8.4 ft
Machine Length 8.82 m / 28.9 ft
Machine Width 2.49 m / 8.2 ft
Platform Dimension A 0.91 m / 3 ft
Platform Dimension B 2.44 m / 8 ft
Platform Height 18.46 m / 60.6 ft
Tailswing 0 m / 0 in.
Tyre Size 14 x 17.5 Urethane Filled

Reach Specifications
Working Height 20.46 m / 67.1 ft
Working Outreach 12.75 m / 41.8 ft
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 12.10 m / 39.7 ft
Platform Height 18.46 m / 60.6 ft
Up and Over Height 8.09 m / 26.5 ft

General Specifications
Capacity - Hydraulic Reservoir 151 L / 39.9 gal.
Ground Bearing Pressure 5.30 Kg/cm2
Machine Weight 11900 kg / 26235 lb
