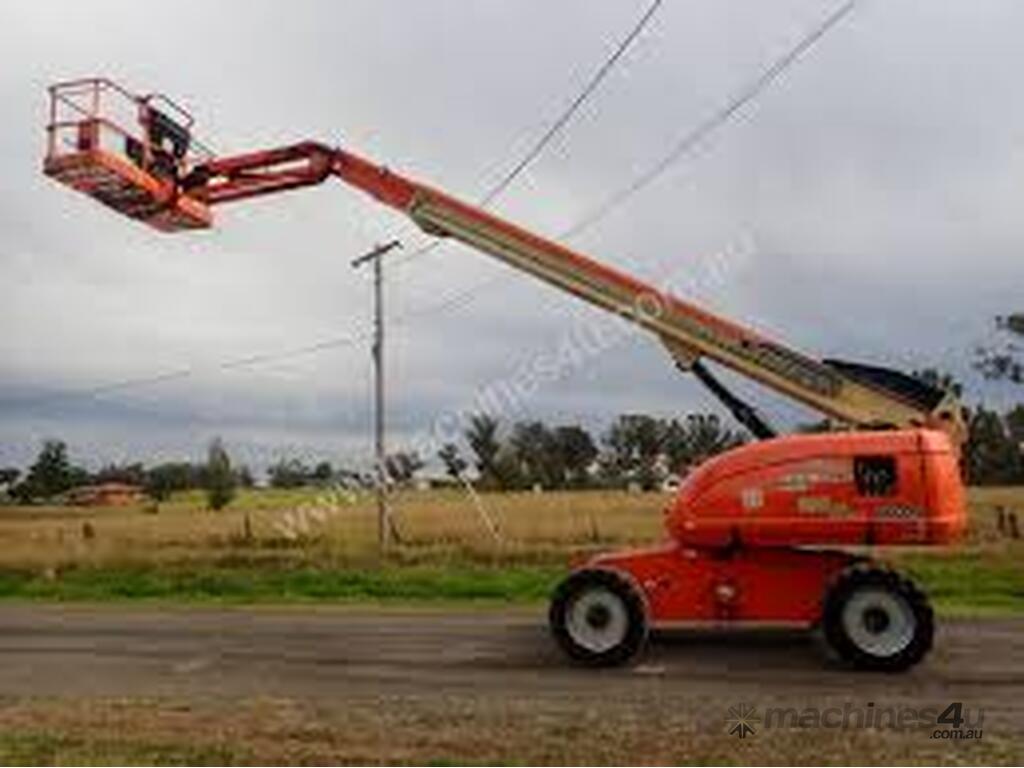

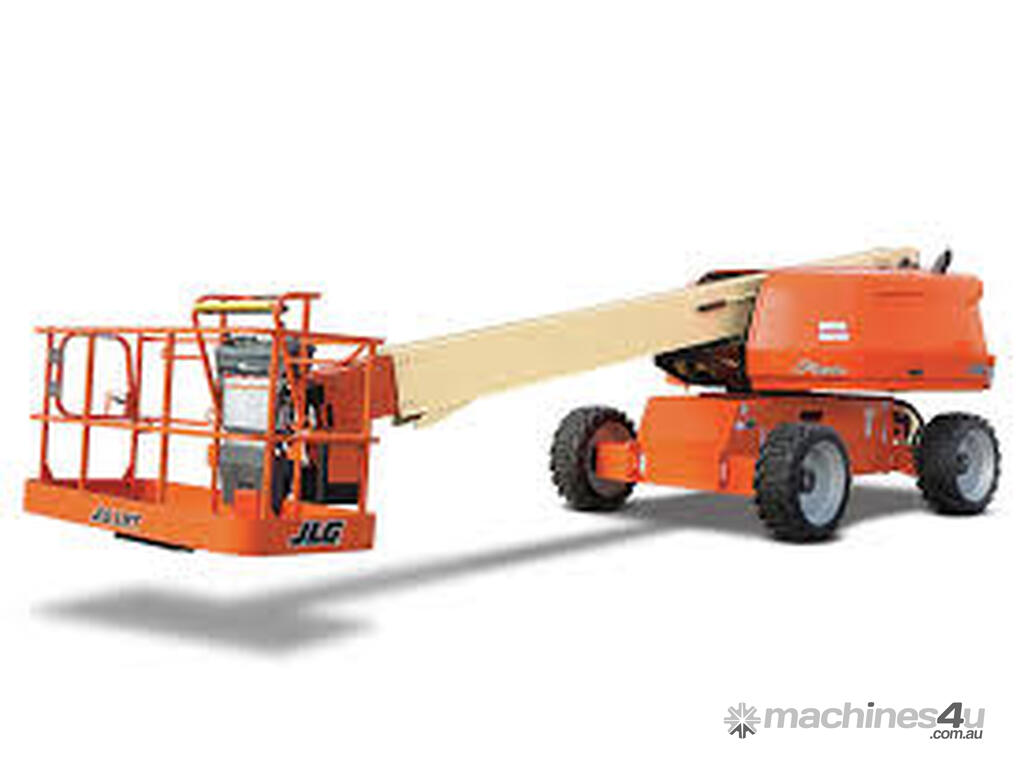

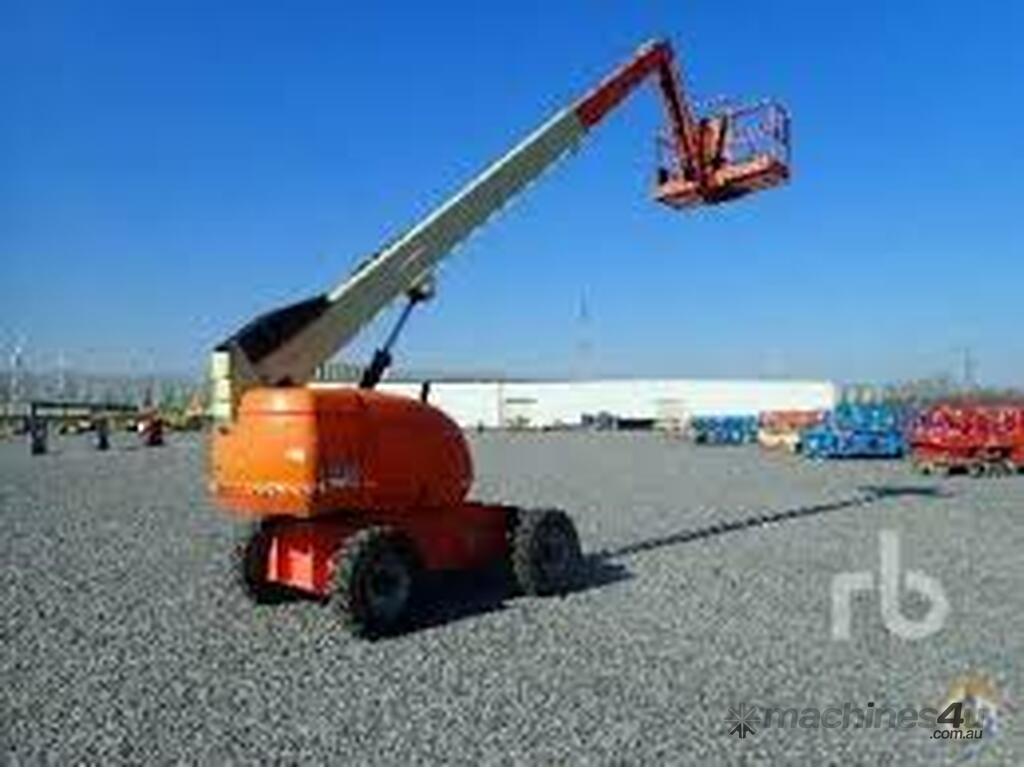

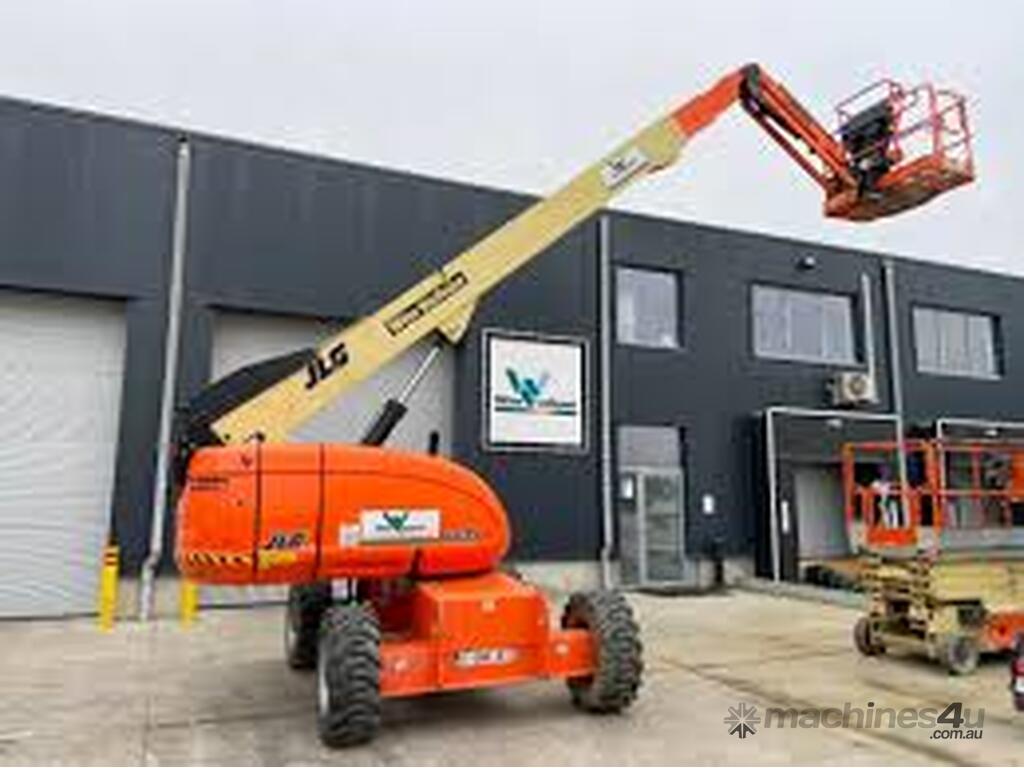

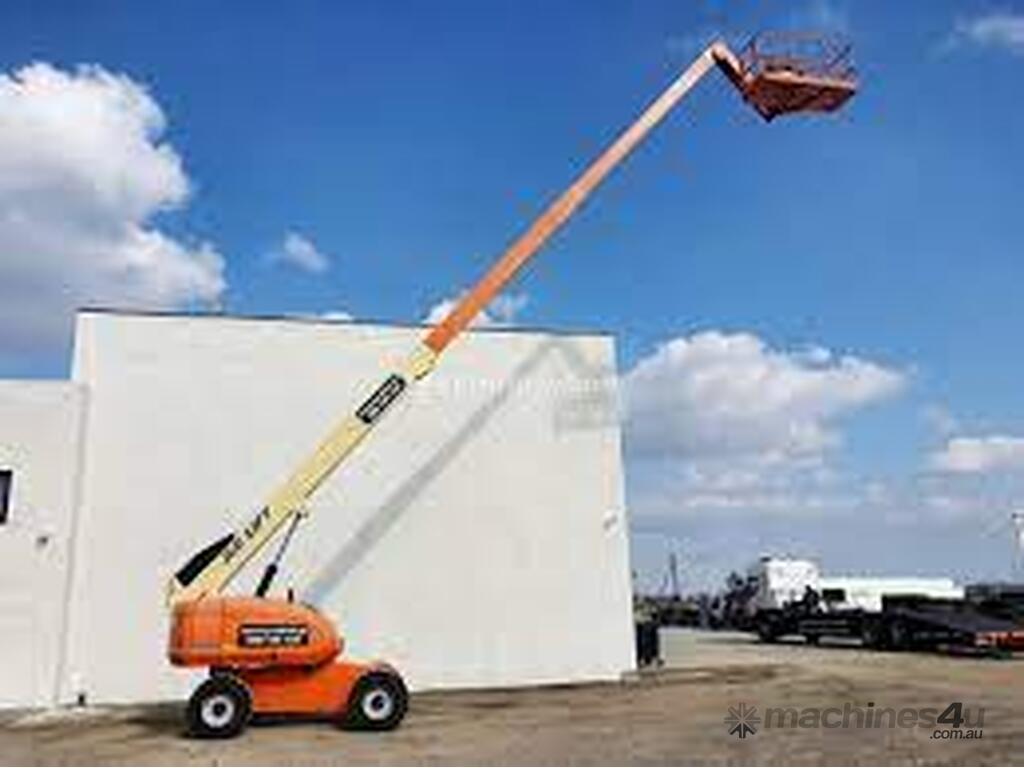

JLG 660 SJ 66ft Straight Stick Boom Lift

BRISBANE SCISSOR LIFT HIRE SINCE 1997 FOR QUALITY, RANGE AND SERVICE


Brand new, we can have this unit delivered to you within one week of purchase.
Full warranty and ongoing servicing available. Free delivery to all metro areas.

Jlg - 660SJ
Engine Powered Boom Lifts - 600 Series Telescopic Boom Lift

Features:
Best selling 60 ft boom lifts
Select from 12 models
Easy-to-use platform controls reduce operator training time

Quick Specs:
Platform Height Elevated – 66 ft 8 in
Overall Width – 7 ft 11 in
Platform Capacity – 500 lb

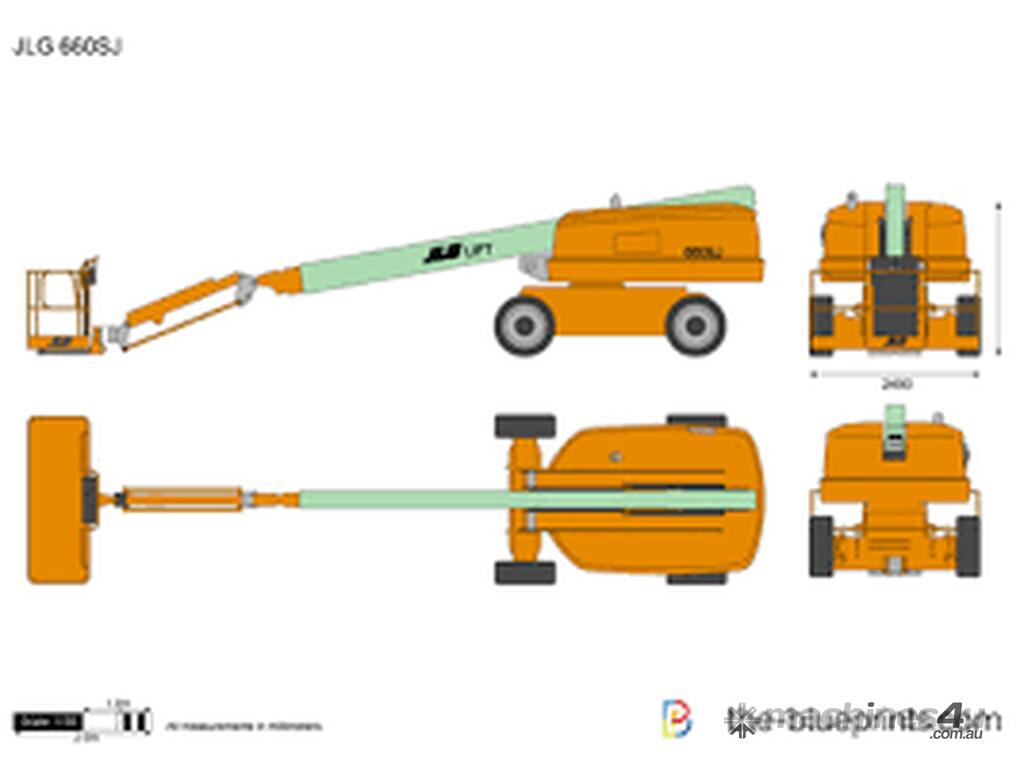

Dimensions:
Platform Size 36 x 96`` / 0.91 x 2.44 m
Overall Width 7' 11`` / 2.41 m
Tailswing 3' 9`` / 1.14 m
Stowed Height 8' 5`` / 2.57 m
Stowed Length 33' 6`` / 10.21 m
Wheelbase 8' 1`` / 2.46 m
Ground Clearance 12`` / 30 cm
Weight* 27,600 lb / 12,519 kg
Max. Ground Bearing Pressure** 75 psi / 5.27 kg/cm²

Power Source:
Dual Fuel Engine GM Vortec 3000 MPFI, 82 hp / 61 kW
Diesel Engine Deutz D2011L04 49 hp/36.5 kW - Caterpillar 3044C, 63.3 hp / 47.2 kW
Fuel Tank Capacity 40 gal. / 151.42 L
Hydraulic Reservoir 32 gal. / 121.13 L
Auxiliary Power 12V DC
Noise Level 70 dBa 7 meters

Chassis:
Drive Speed 2WD/4WD 4.25 mph / 6.8 kmph
Gradeability 2WD 30%
Gradeability 4WD 45%
Turning Radius (Inside)
Turning Radius (Inside) - 2WS 11' 4`` / 3.45 m
Turning Radius (Inside) - 4WS 5' 5`` / 1.65 m
Turning Radius (Outside)
Turning Radius (Outside) - 2WS 17' 9`` / 5.41 m
Turning Radius (Outside) - 4WS 11' 4`` / 3.45 m
Axle Oscillation 8`` / 20 cm
Tire Size 15 x 19.5
Tyre Type Lug Tread

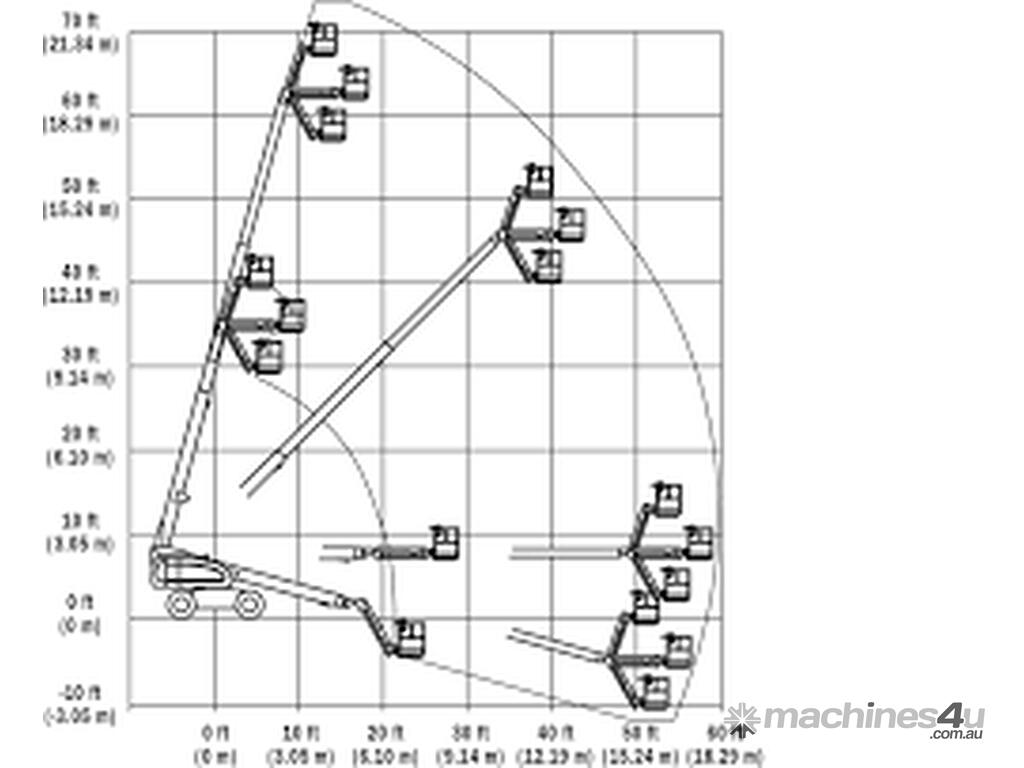

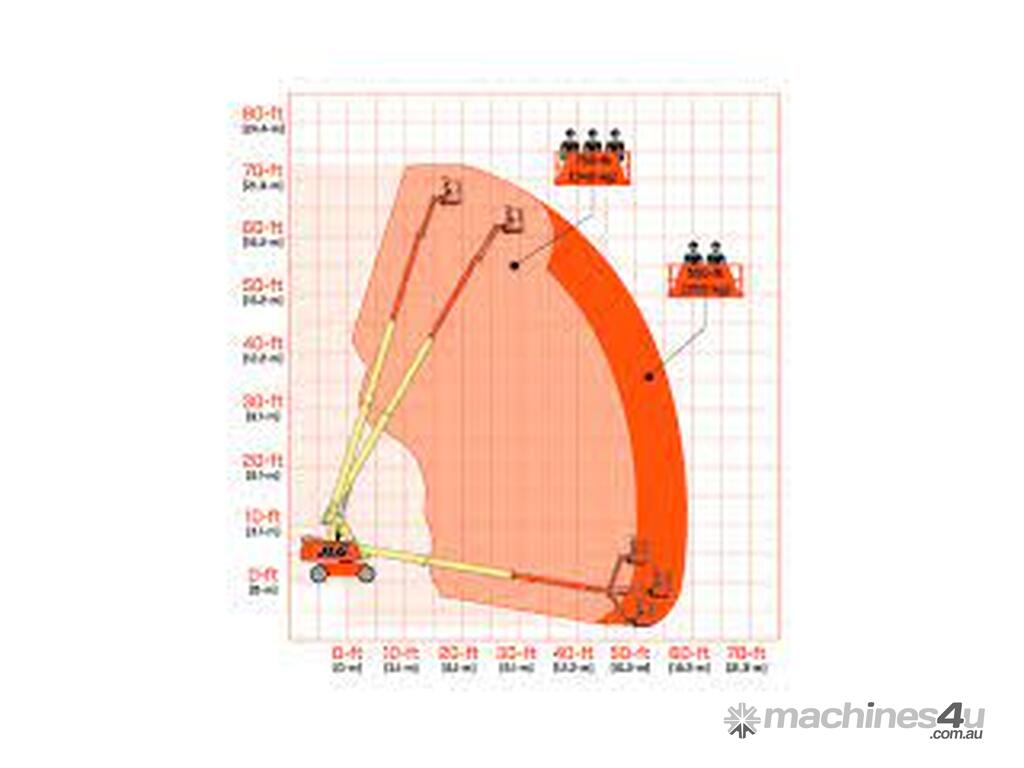

Reach Specifications:
Platform Height 66' 8`` / 20.32 m
Horizontal Outreach 56' 9`` / 17.3 m
Swing 360º Continuous
Platform Capacity-Restricted n/a
Platform Capacity-Unrestricted 500 lb / 227 kg
Platform Rotator 180º Hydraulic
Jib (Range of Articulation) 6' 132º (+71, -61) / 1.83 m 132º (+71, -61)

Available Options:
Soft Touch System 6 ft/8 ft
2500W Generator
36 x 72`` (0.91 x 1.83 m) Platform
43.5 lb (19.73 kg) Propane Tank
Arctic Package - Deutz and CAT
Cold Weather Start Kit
Flashing Amber Beacon
Hostile Environment Kit


Established in 1997, Brisbane Scissor Lift Hire has evolved into a premier provider of aerial work platforms. With a continuously growing fleet featuring global branded equipment, we serve over 500 clients with unparalleled professionalism and reliability. Our vast range ensures precise solutions that are on budeget for your requirements. Count on Brisbane Scissor Lift Hire for top-tier, low-hour machinery, excellence in service, minimizing downtime and maximizing efficiency.

Go the Brisbane Scissor Lift Hire showroom to see the range of our equipment, send us a message about the item that you are are interested in or give us a call, we are more than happy to answer your questions and provide advice.

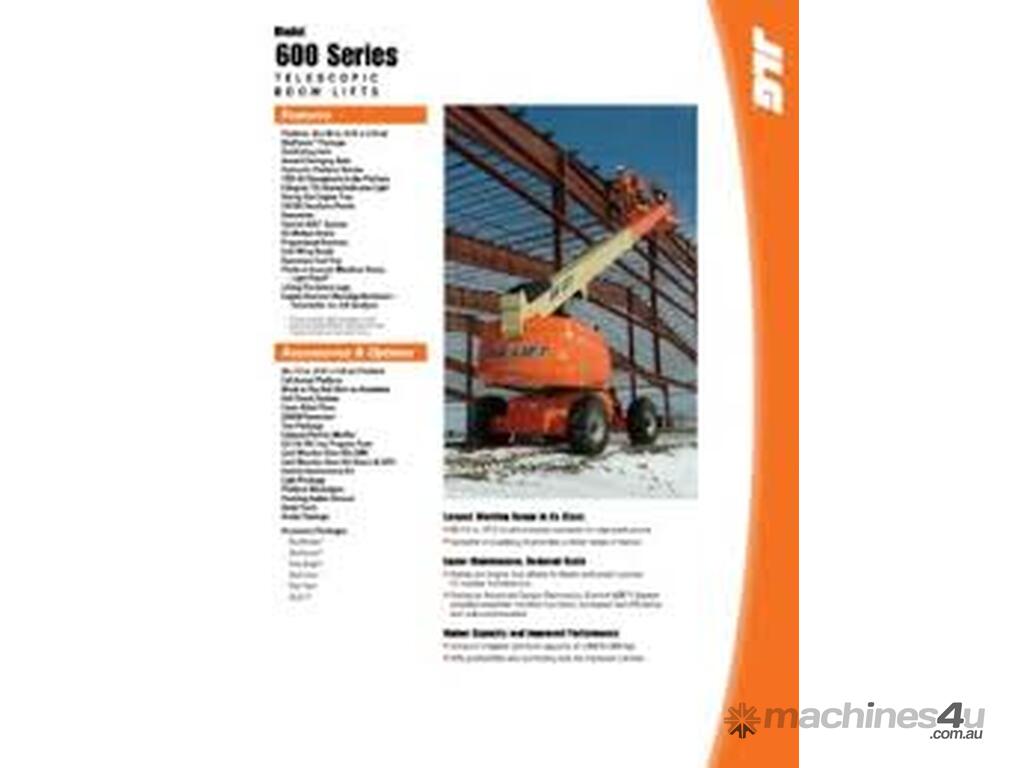

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
