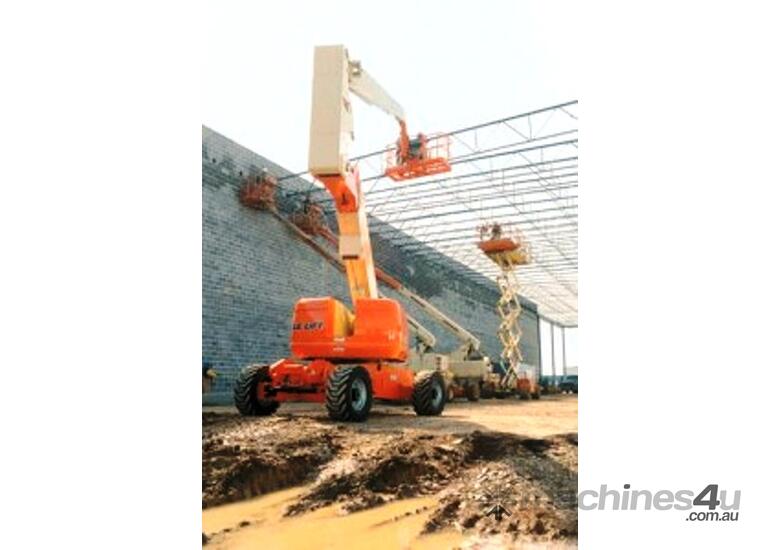

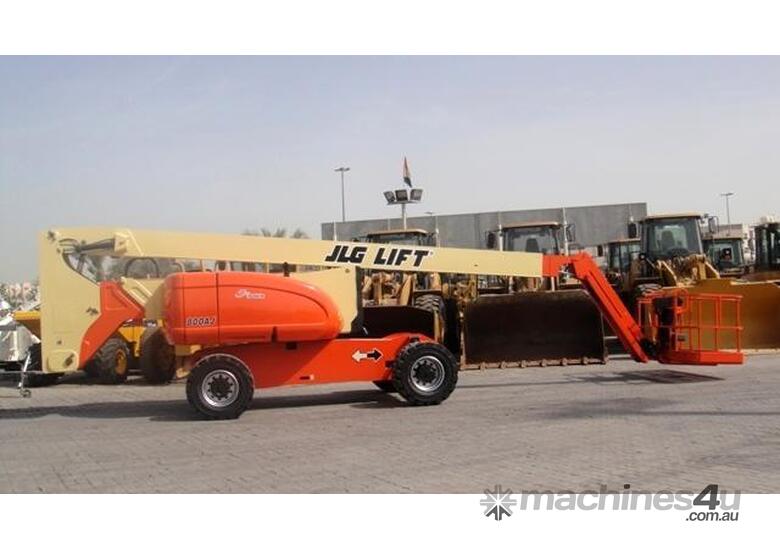

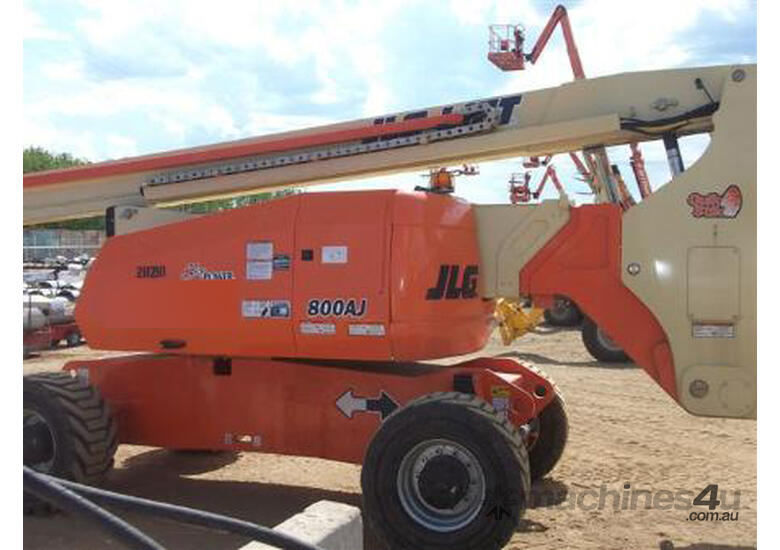

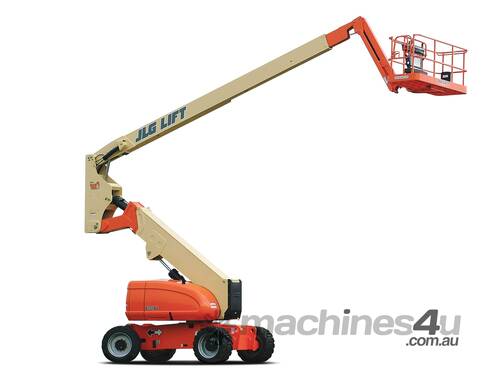

JLG 800AJ Articulating Boom Lift

New JLG 800AJ Articulating 80 foot Boom Lift

On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. Larger work envelopes provide you with access to those hard-to-reach places.

Specifications

performance:
Platform Height (max.) 24.38m
Working Height 26.38m
Platform Rotation Angle 180°
Jib Raise Angle 70°
Jib Lower Angle 60°
Jib Articulation Range 130°
Maximum Horizontal Outreach 15.80m
Platform Capacity 230kg
Slewing Angle 360°
Continuous Slew Yes
Dimensions:
Stowed Length 11.13m
Stowed Height 3.00m
Overall Width 2.44m
Wheelbase 3.05m
Ground Clearance 0.30m
Platform Width 2.44m
Platform Length 0.91m
Overall Jib Length 1.83m
Tailswing 0.76m
Axle Oscillation Std
power:
Power Source Diesel
Engine Make Deutz
Engine Model D2011 L04
Engine Power 48kW
Genset 5.5kVA Miller
Auxiliary Power 12V Pump
travel:
Tyre Size 445/55 x 19.5
Tyre Type Urethane Filled
Inside Turn Radius 2.13m
Outside Turn Radius 4.42m
Gradeability with 4WD 45%
Drive Speed - 4WD 4.8km/h
Maximum Ground Bearing Pressure 5.3kg/cm2
Weights and capabilities:
Fuel Tank Capacity 147.63 Ltr
Hydraulic Tank Capacity 151.42 Ltr
Operating Weight 15,558kg
