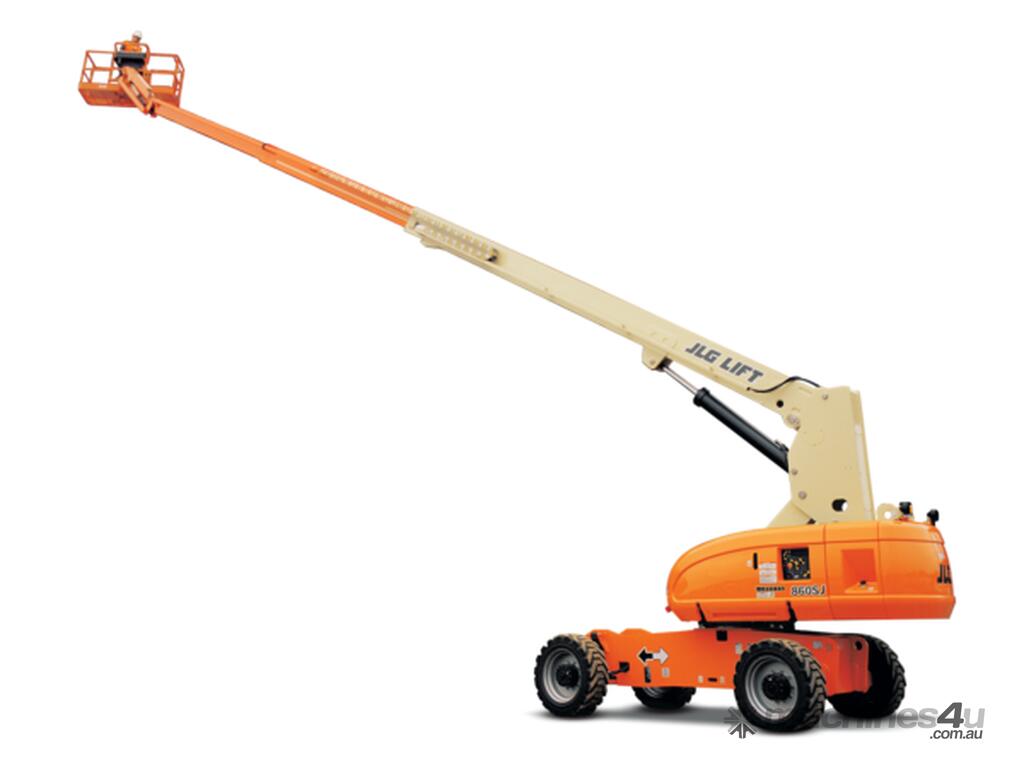

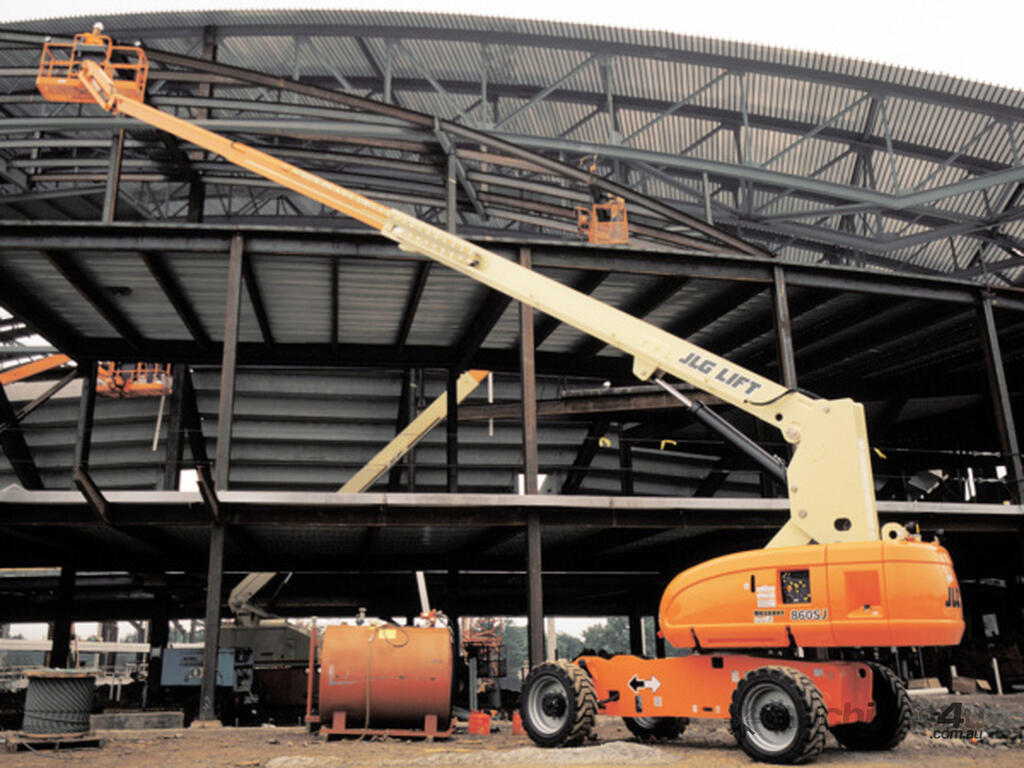

JLG 800SJ Boom Lift

Get to work faster with the 860SJ - its narrow frame allows for quicker setup, and it’ll take you to 26.21 m (86 ft) in under 70 seconds.

Key Specs
Platform Height: 26.21 m / 86 ft
Horizontal Outreach: 22.86 m / 75 ft
Platform Capacity - Unrestricted: 230 kg / 507.1 lb
Key Features
Reach full elevation in less than 70 seconds
Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 117 L / 30.9 gal.
Engine Type - Diesel (LRC) Deutz D2011 L04 w/EGR 46 kW 61.6 hp

Performance Data
Axle Oscillation 0.2 m / 8 in.
Drive Speed - 2WD 5.60 km/h / 3.5 mph
Drive Speed - 4WD 5.60 km/h / 3.5 mph
Gradeability - 2WD 30 %
Gradeability - 4WD 45 %
Platform Capacity - Unrestricted 230 kg / 507.1 lb
Swing 360 Degrees
Swing Type Continuous
Turning Radius - Outside (2WS) 6.86 m / 22.5 ft

Dimensional Data
Ground Clearance 0.3 m / 1 ft
Machine Height 3.05 m / 10 ft
Machine Length 12.19 m / 40 ft
Machine Width 2.49 m / 8.2 ft
Platform Dimension A 0.91 m / 3 ft
Platform Dimension B 2.44 m / 8 ft
Platform Height 26.21 m / 86 ft
Tailswing 1.42 m / 4.7 ft
Tyre Size 15-625 Foam Filled

Reach Specifications
Working Height 28.21 m / 92.6 ft
Working Outreach 23.51 m / 77.1 ft
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 22.86 m / 75 ft
Platform Height 26.21 m / 86 ft

General Specifications
Capacity - Hydraulic Reservoir 235 L / 62.1 gal.
Ground Bearing Pressure 5.69 Kg/cm2
Machine Weight 17200 kg / 37919.5 lb
