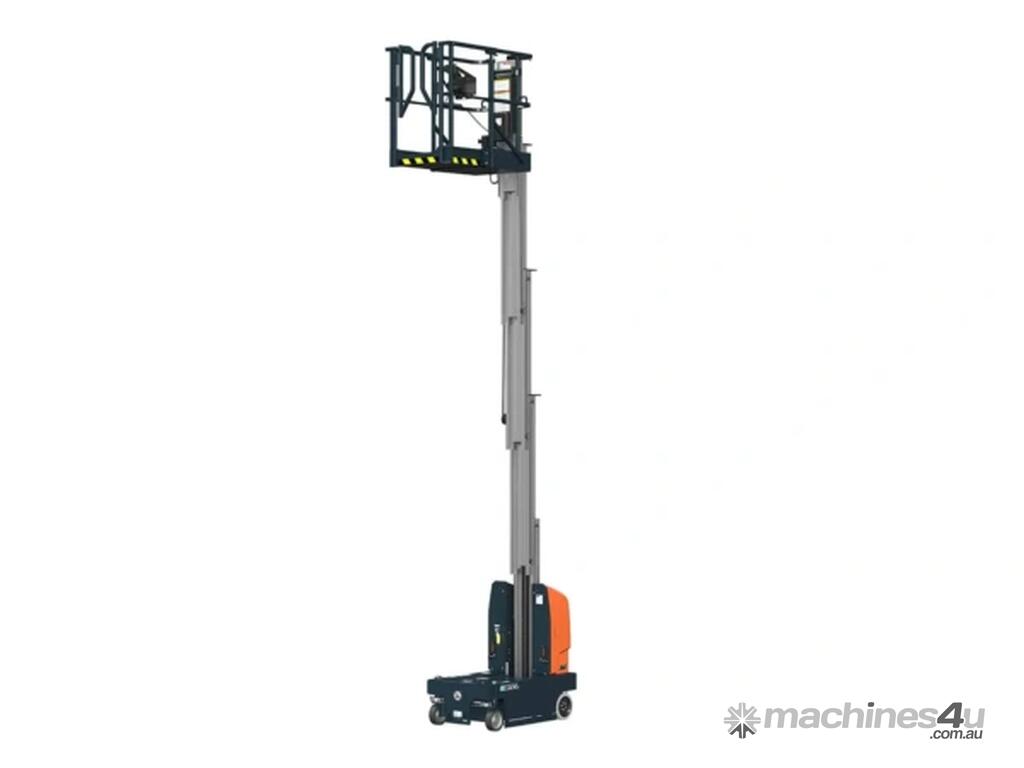

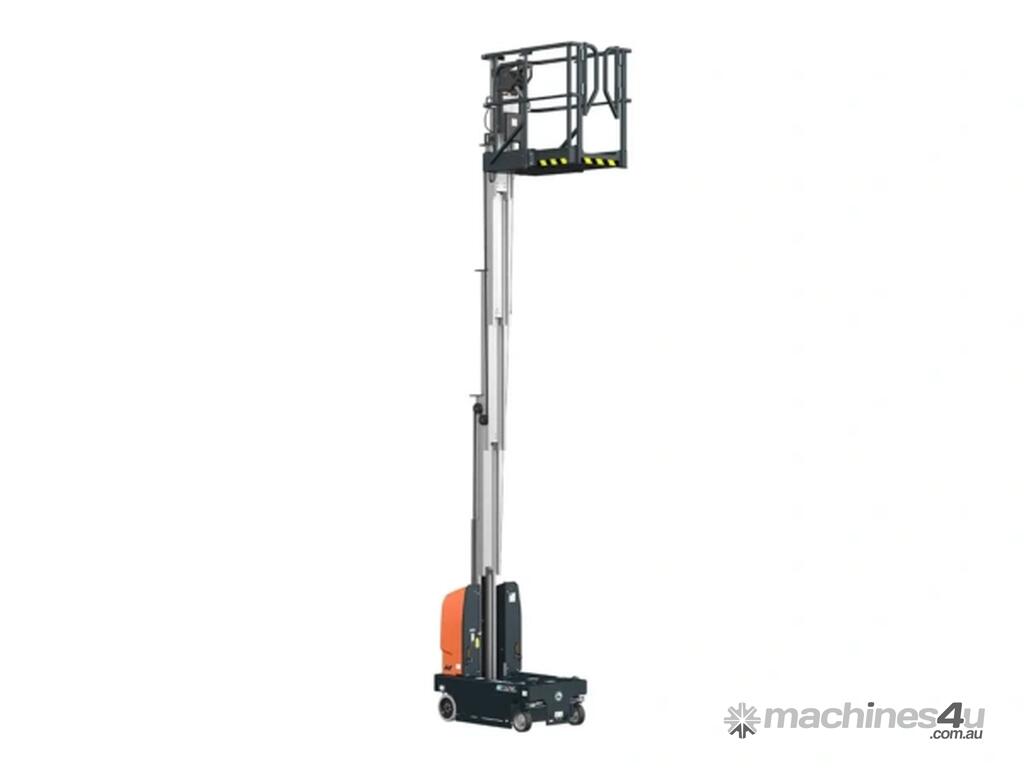

JLG E18MCL Driveable Vertical Lift

Key Specs
Platform Height: 5.49 m / 18 ft
Machine Width: 0.76 m / 2 ft 6 in.
Key Features
Designed With the Operator in Mind: Features scissor steering, familiar controls, ergonomic joystick and ease of entry/exit from platform
Lightweight and Compact Footprint: Work on sensitive flooring and access tight spaces with high transportability
Increased Productivity: Experience longer-running batteries and optional platforms, trays and accessories
Efficient Serviceability: Quickly access key, known scissor components and rely on durable mast protection to maximize uptime
Ideal for the Construction Market: Indoor and outdoor capabilities to complete a variety of tasks

Dimensional Data
Ground Clearance 0.06 m / 3 in.
Ground Entry Height 0.47 m / 1 ft 7 in.
Machine Height 1.98 m / 6 ft 6 in.
Machine Length 0.66 m / 2 ft 2 in.
Machine Width 0.76 m / 2 ft 6 in.
Occupant Capacity 1
Platform Height 5.49 m / 18 ft
Tyre Size 8-in / 10 x 3-in Non-Marking
Wheel Size - Front Caster 8-in
Wheel Size - Rear 10×3-in

Reach Specifications
Platform Height 5.49 m / 18 ft
Working Height 7.32 m / 24 ft

Performance Data
Drive Speed - Platform Elevated 0.80 km/h / 0.5 mph
Drive Speed - Platform Lowered 4.02 km/h / 2.5 mph
Drive System 4 Brush Direct Electric Drive (Planetary Gear)
Gradeability 30 %
Maximum Drive Height 5.49 m / 18 ft
Platform Capacity 181.44 kg / 400 lb

General Specifications
Machine Weight 884.51 kg / 1950 lb
Machine Weight 884.51 kg / 1950 lb

Power Source
Batteries 220AH 6V FLA (4)
