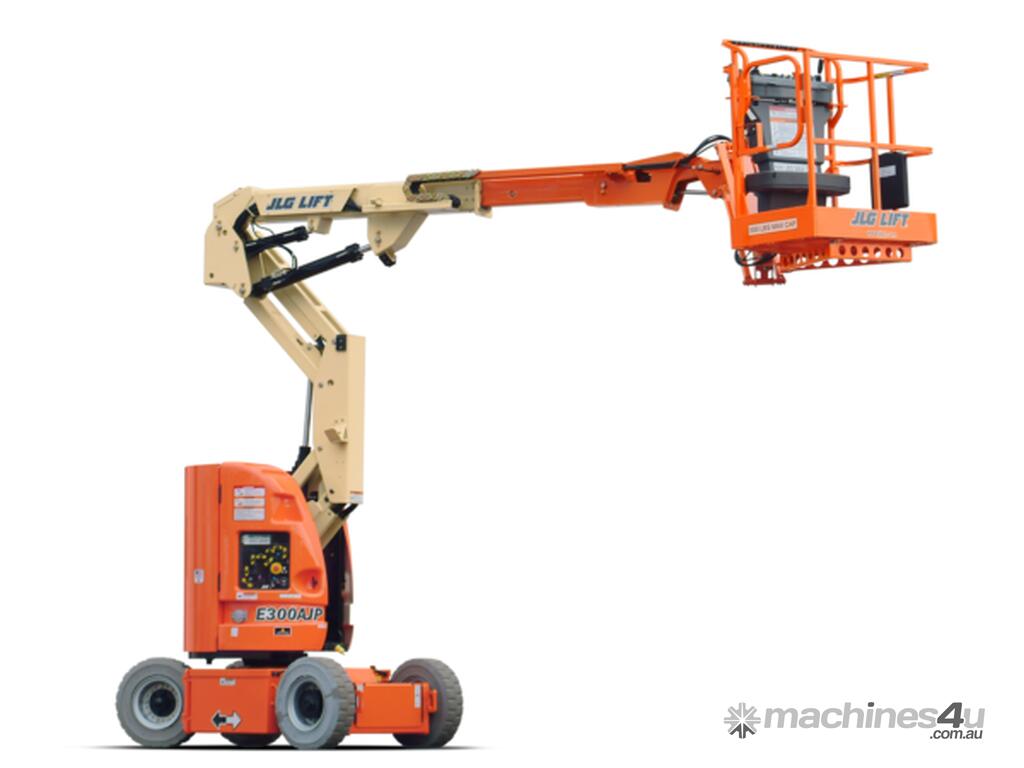

JLG E300AJP Boom Lift

The E300AJP features industry-leading duty cycles, a JibPLUS® articulating jib option and automatic traction control for on and off slab mobility.

Key Specs
Platform Height: 8.97 m / 29.4 ft
Machine Width: 1.22 m / 4 ft
Platform Capacity - Unrestricted: 226.80 kg / 500 lb
Key Features
Versatility - three options and three different chassis widths to fit any workspace
Accessibility - up and over access, optional jib
Maneuverability - move over uneven surfaces with the Automatic Traction Control option
Productivity - longer with longer duty cycles
Environmentally friendly - zero emissions

Power Source
Batteries 8 x 6V, 305 A-h
Electrical System 48 Volts DC

Performance Data
Drive Speed - Platform Lowered 4.80 km/h / 3 mph
Gradeability - 2WD 25 %
Platform Capacity 230 kg / 507.1 lb
Platform Capacity - Unrestricted 226.80 kg / 500 lb
Swing 350 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 3.10 m / 10.2 ft

Dimensional Data
Ground Clearance 0.1 m / 4 in.
Machine Height 2.01 m / 6.6 ft
Machine Length 5.74 m / 18.8 ft
Machine Width 1.22 m / 4 ft
Platform Dimension A 0.76 m / 2.5 ft
Platform Dimension B 1.22 m / 4 ft
Platform Height 8.97 m / 29.4 ft
Tailswing 0 m / 0 in.
Tyre Size 25 x 7 x 12 Non-marking
Wheelbase 1.65 m / 5.4 ft

Reach Specifications
Working Height 10.97 m / 36 ft
Working Outreach 6.77 m / 22.2 ft
Horizontal Jib Rotation 180 Degrees
Horizontal Outreach 6.12 m / 20.1 ft
Platform Height 8.97 m / 29.4 ft
Up and Over Height 4.01 m / 13.2 ft

General Specifications
Capacity - Hydraulic Reservoir 10.98 L / 2.9 gal.
Machine Weight 6990 kg / 15410.3 lb
