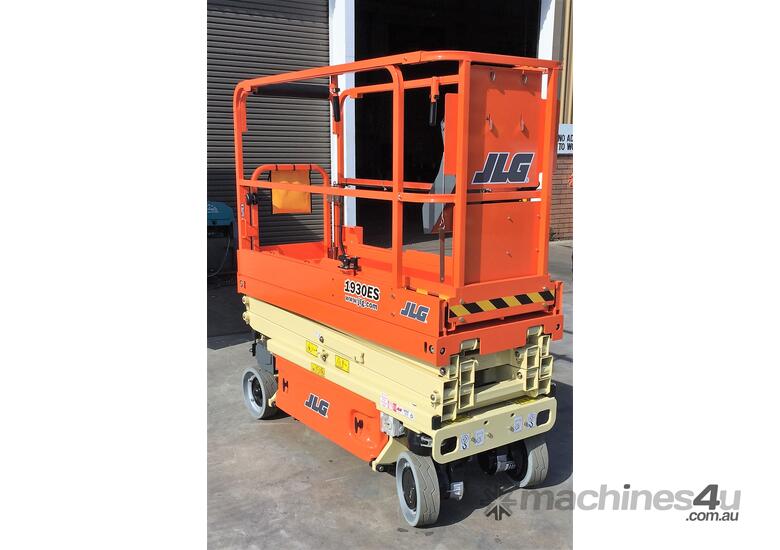

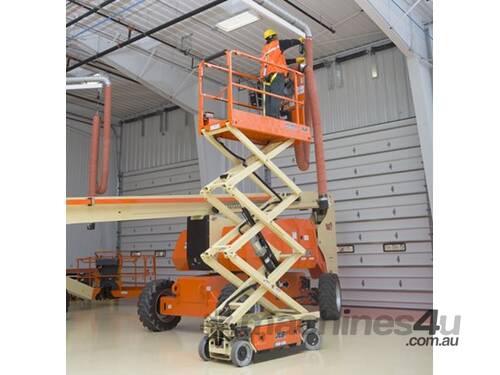

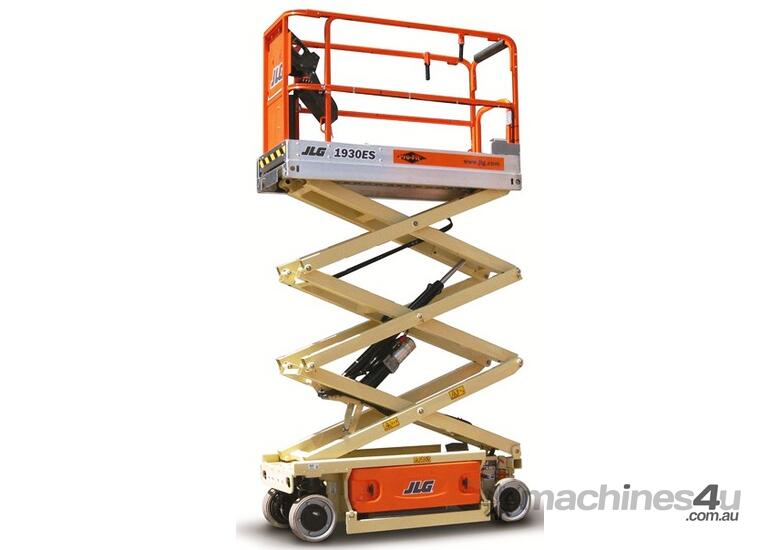

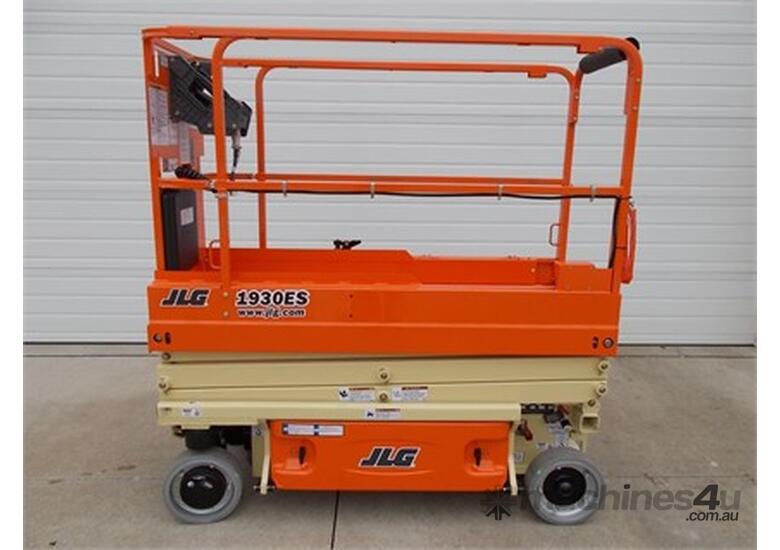

NEW JLG ES1932 19 foot (5.72m platform height) Electric Scissor Lift
Quieter, cleaner operation for a variety of environments, both indoors and outdoors
Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
Narrow width fits through most standard doorways and tight aisles
Trailer available
Specifications:
Platform Height (max.) 5.72m
Working Height 7.72m
Lift Time 20 sec
Lower Time 30 sec
Platform Capacity Standard 230kg
Dimensions:
Stowed Height 1.98m
Minimum Transport Length 1.87m
Minimum Transport Height 1.98m
Wheelbase 1.60m
Ground Clearance 0.09m
Platform Width 0.76m
Platform Length 1.87m
Standard Platform Extension 0.9m
Platform Height Lowered 0.86m
Maximum Drive Height 5.72m
Power:
Power Source Battery
DC Voltage 24V
DC Power 225 Amp h
Hydraulic Pump Type Gear
Batteries 4 x 6V
Charger Electronic IP46 Input Voltage 190-250 VAC
Travel:
Tyre Size 323 x 100
Tyre Type (Non Marking) Solid
Inside Turn Radius 0m
Outside Turn Radius 1.75m
Drive Speed Elevated 0.8km/h
Gradeability with 2WD 25%
Indoor Rating Persons on Platform 2
Outdoor Rating 12.5m/sec Persons on Platform 1
Elevated Drive Time 22 hr
Weights and Capabilities:
Hydraulic Tank Capacity 3.60 Ltr
Operating Weight 1,550kg
