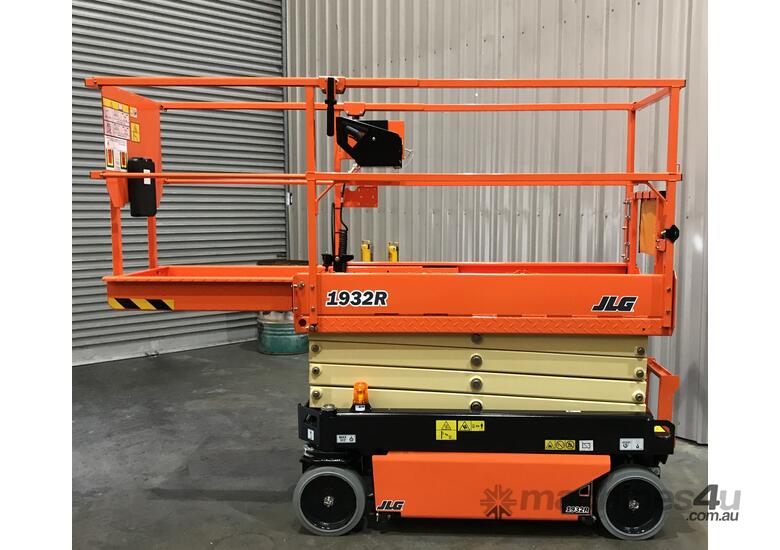

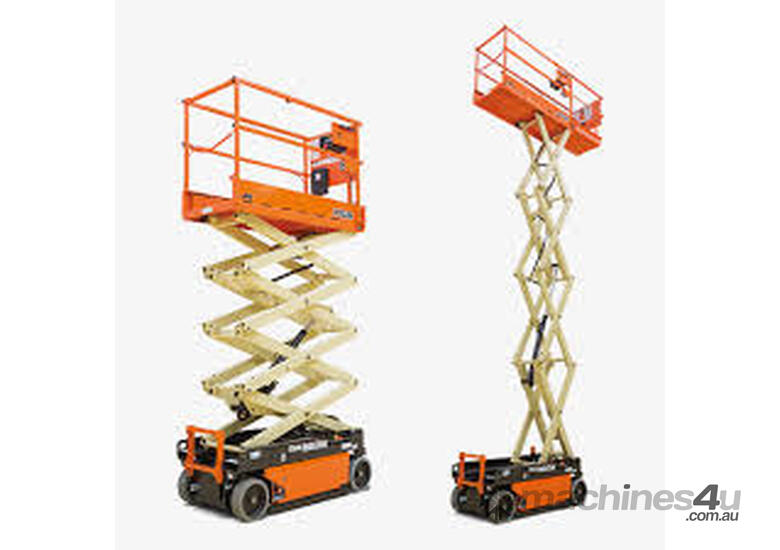

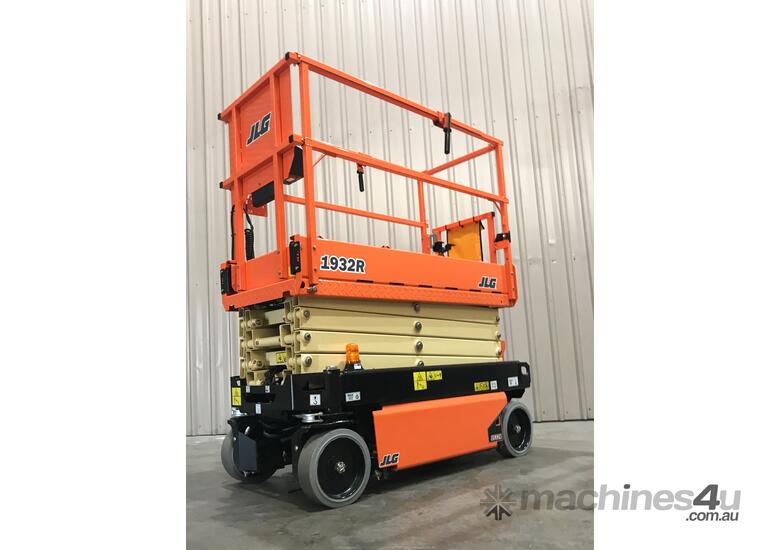

JLG R1932 19' Scissor Lift

New From JLG the R1932
Performance
Platform Height–Elevated 5.8 m
Platform Capacity 230 kg
Capacity on Platform Extension 120 kg
Lift/Lower Time 25/26 seconds
Maximum Drive Height Fully Elevated
Weight* 1,590 kg
Drive Speed–Elevated 0.8 km/h
Drive Speed–Lowered 3.2 km/h
Gradeability 25%
Turning Radius (Inside) Zero
Turning Radius (Outside) 1.60
Power Source
Batteries 4 x 6V 220 amp-hr
Charger 20 amp (Universal Algorithm)
Drive Hydraulic Front-wheel
Hydraulic Reservoir
•• Capacity 17 L
•• Pump Fixed Displacement Gear
Tyres
•• Tyre Size/Type (Non-Marking) 323 x 100 mm
Brakes
•• Multi-Disc Friction
Standard Features
•• Proportional Controls
•• Battery Condition Indicator
•• All Motion Alarm
•• 20 Amp Automatic SCR Charger
•• Horn
•• Hourmeter
•• Tilt Alarm and Light
•• Lanyard Attach Points
•• Movable, Removable Platform Control
•• Nickel Plated Pins
•• Lubrication Free Scissor Arm Bushings
•• Scissor Maintenance Prop
•• Active Pothole Protection System
•• Lifting and Tie Down Points
•• Fork Lift Pockets
•• 86 cm Foot-Actuated
Deck Extension
•• Steel Swing-Out Doors
•• Variable Tilt Window
•• Manual Descent Cable
•• Diamond Tread Steel Deck
•• Greaseless Kingpin Joints
•• Analyzer Port for Diagnostics
•• Dynamic Braking
•• Flashing Amber Beacon
•• Self-Closing, Self-Latching Gate


STM Equipment is the market leader in sales of new & used EWP equipment. We are the factory-appointed, Authorised Merlo Telehandler Dealer for the Sydney Basin, South Coast NSW, Canberra, and Surrounds.

At STM Equipment we strive to be Australia’s number one provider of Access & Lifting solutions to new and existing customers. Our Sales & Operations team has over 50 years of experience in the access industry. We specialise in 10-year re-certification of EWP equipment, preventative maintenance, and scheduled servicing. In addition to this STM Equipment carry out all Merlo warranty and service work in our area.

At STM Equipment no job is too big or small, and we are happy to assist you in any of your equipment needs Australia-wide.

Need Transport? Then ask about our Nationwide delivery service today.

Call our team of specialists today
