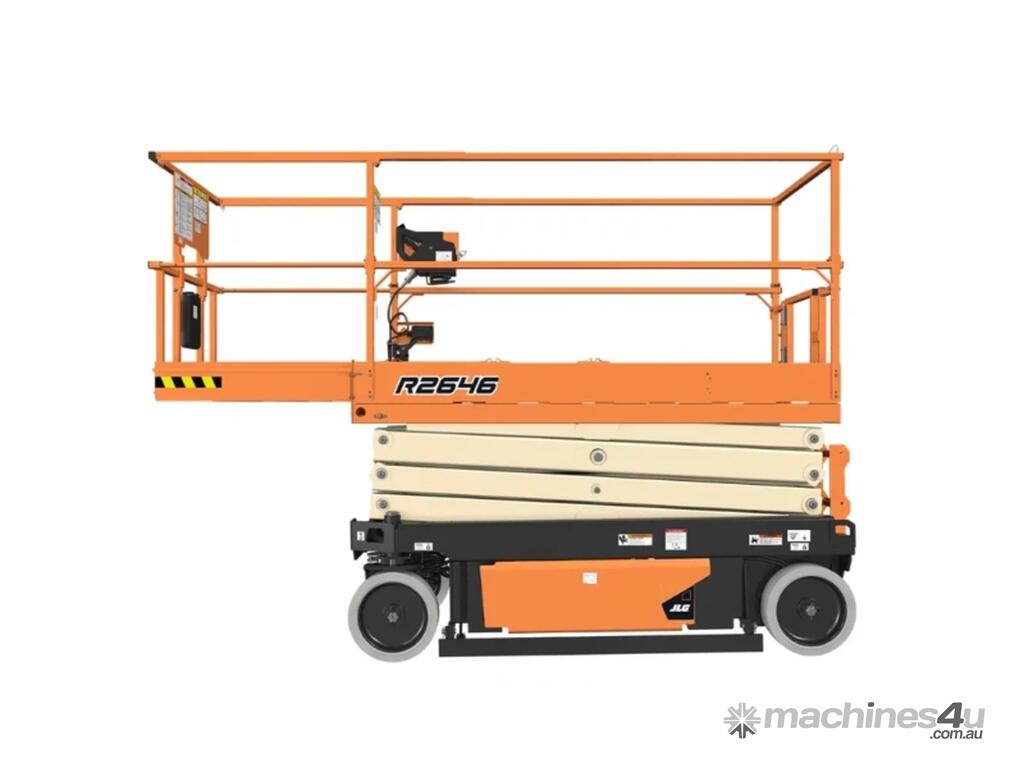

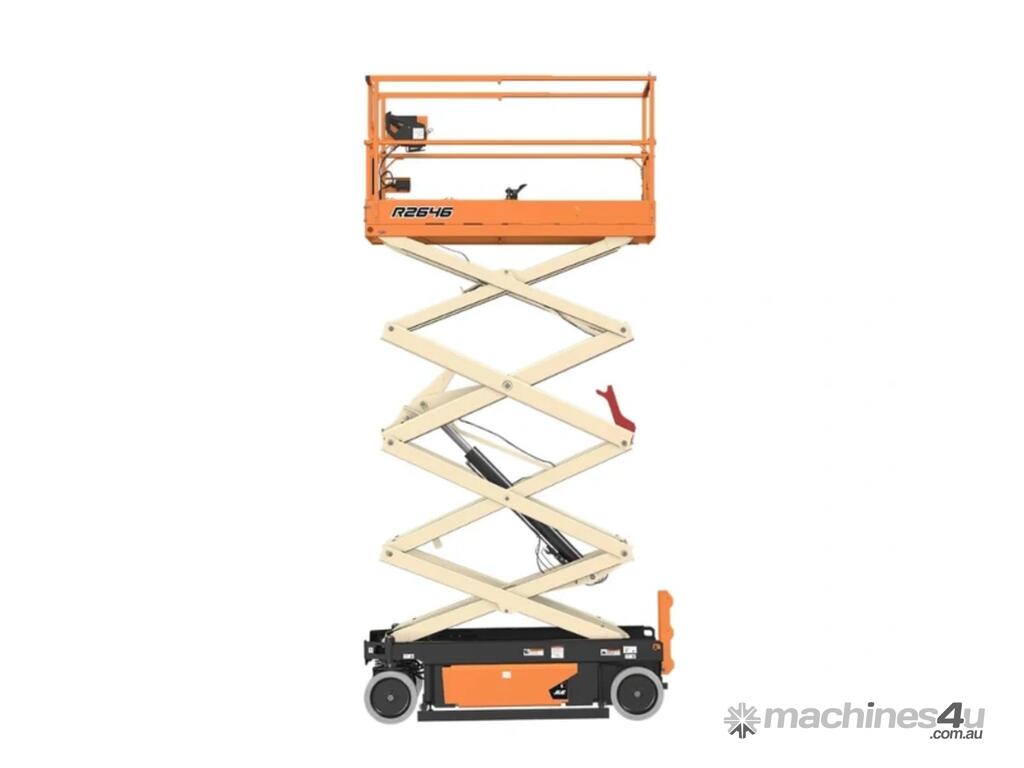

JLG R2646 Scissor Lift

Key Specs
Platform Height: 26 ft / 7.92 m
Machine Width: 3 ft 10 in. / 1.17 m
Working Height: 32 ft / 9.75 m
Key Features
Maximize Productivity: Class-leading 1,200-lb capacity, indoors and outdoors
Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
Meet the Highest Standards: Complies with A92.20 ANSI regulations
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware

Power Source
Batteries 4 x 6V 220 A-h
Charger 27 amp High Frequency Charger

General Specifications
Brakes Multi-disc Friction
Capacity - Hydraulic Reservoir 21 L / 5.5 gal.
Hydraulic Pump Fixed Displacement Gear
Machine Weight 2454 kg / 5410.1 lb
Maximum-Ground-Bearing-Pressure 9.21 Kg/cm2

Performance Data
Drive Speed - Platform Elevated 0.5 mph / 0.80 km/h
Drive Speed - Platform Lowered 3 mph / 4.83 km/h
Gradeability 25 %
Lift Time 54 sec.
Lower Time 37 sec.
Maximum Drive Height 26 ft / 7.92 m
Platform Capacity - Extension 265 lb / 120.20 kg
Platform Capacity - Unrestricted 1200 lb / 544.31 kg
Turning Radius - Inside 0 ft / 0 m
Turning Radius - Outside 7 ft 4 in. / 2.24 m

Dimensional Data
Ground Clearance 4 in. / 0.1 m
Machine Height 7 ft 6 in. / 2.28 m
Machine Height - Rails Folded 6 ft / 1.82 m
Machine Length 7 ft 10 in. / 2.4 m
Machine Width 3 ft 10 in. / 1.17 m
Platform Extension Length 3 ft / 0.91 m
Platform Height - Lowered 3 ft 9 in. / 1.14 m
Platform Railing Height 3 ft 9 in. / 1.13 m
Tire Size 16 x 5 in
Wheelbase 6 ft 2 in. / 1.88 m

Reach Specifications
Platform Height 26 ft / 7.92 m
Working Height 32 ft / 9.75 m
