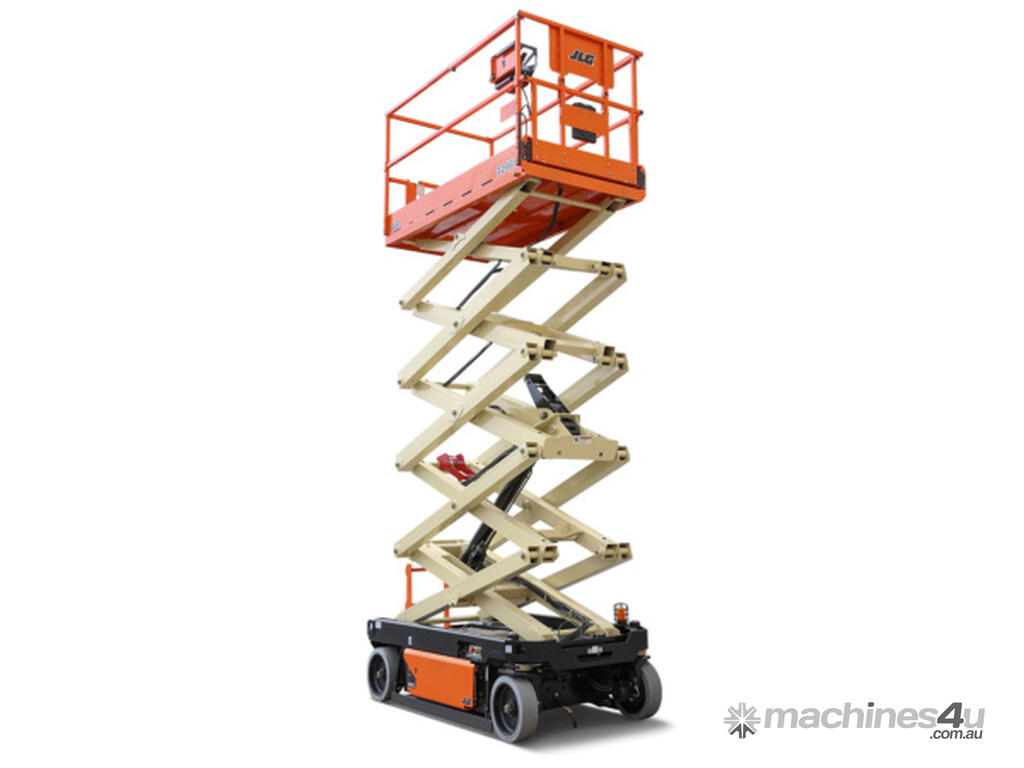

JLG R3246 Scissor Lift

R Series electric scissor lifts are a rental-ready solution for all types of job sites. Offering greater affordability, reliability and serviceability, these scissor lifts have fewer parts and all-steel swing-out component trays. Their compact dimensions are ideal for confined spaces. Plus, the improved battery charger reduces guesswork by informing you on how your batteries are performing.

Key Specs
Working Height: 11.58 m / 38 ft
Key Features
Experience the Lightest Scissor in Its Class: Lightweight with simplified lift system
Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
Meet the Highest Standards: Complies with 92.20 ANSI regulations

Power Source
Batteries 4 x 6V 220 A-h
Charger 27 amp High Frequency Charger

General Specifications
Brakes Multi-disc Friction
Capacity - Hydraulic Reservoir 21 L / 5.5 gal.
Hydraulic Pump Fixed Displacement Gear
Machine Weight 2454 kg / 5410.1 lb
Maximum-Ground-Bearing-Pressure 9.21 Kg/cm2

Performance Data
Drive Speed - Platform Elevated 0.80 km/h / 0.5 mph
Drive Speed - Platform Lowered 3.50 km/h / 2.2 mph
Drive System Hydraulic Front-wheel
Gradeability 25 %
Lift Time 50 sec.
Lower Time 37 sec.
Maximum Drive Height 9.75 m / 32 ft
Platform Capacity - Extension 120 kg / 264.6 lb
Platform Capacity - Indoor 320 kg / 705.5 lb
Platform Capacity - Outdoor 230 kg / 507.1 lb
Turning Radius - Inside 0 m / 0 ft
Turning Radius - Outside 2.37 m / 7.8 ft

Dimensional Data
Ground Clearance 0.1 m / 4 in.
Machine Height - Rails Folded 1.97 m / 6.5 ft
Machine Length 2.40 m / 7.9 ft
Machine Width 1.17 m / 3.8 ft
Platform Extension Length 0.91 m / 3 ft
Platform Height 9.75 m / 32 ft
Platform Height - Lowered 1.29 m / 4.2 ft
Platform Railing Height 1.13 m / 3.7 ft
Tyre Size 16 x 5 Non-Marking
Wheelbase 1.88 m / 6.2 ft

Reach Specifications
Platform Height 9.75 m / 32 ft
Working Height 11.58 m / 38 ft
