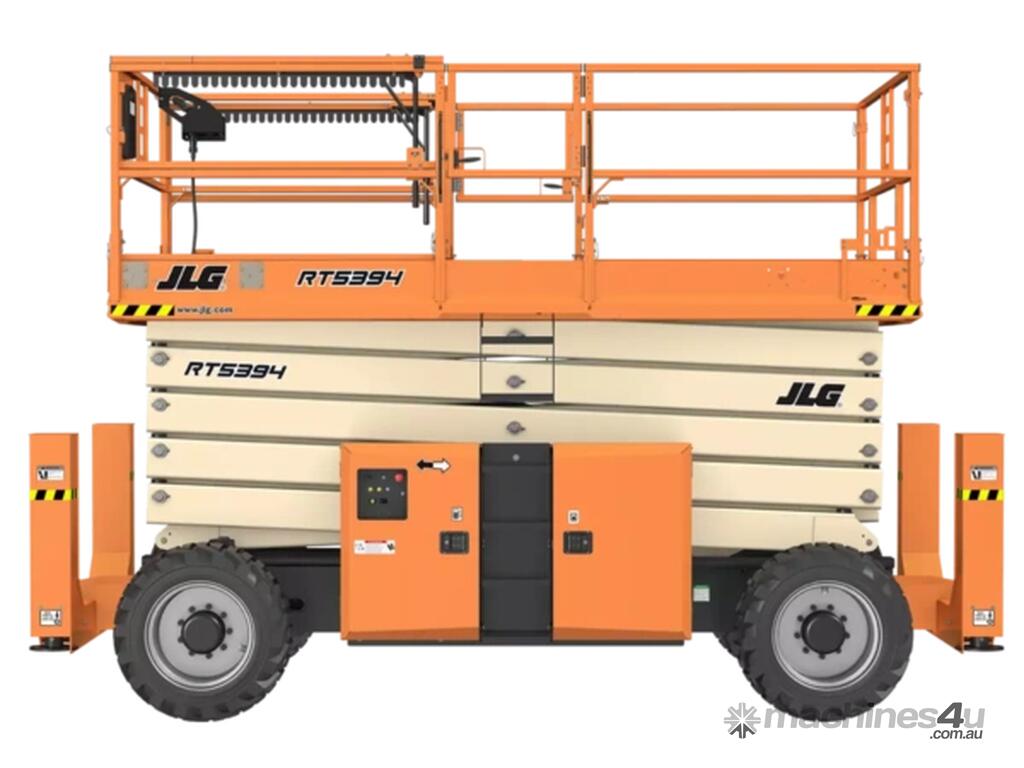

JLG RT5394 Rough Terrain Scissor Lift

Key Specs
Working Height: 18.15 m / 59.5 ft
Platform Capacity: 680 kg / 1499.1 lb
Drive Speed - Platform Lowered: 5.60 km/h / 3.5 mph
Key Features
Optimized power train: Allows for greater fuel efficiency
Standard 4 ft deck extension: Provides more space for people and materials; makes this model the biggest scissor lift JLG offers
Standard oscillating axle: Enhances terrainability across uneven surfaces while maintaining stability
The RT5394 is the new model designation of the previous 530LRT model

Power Source
Batteries NA
Capacity - Fuel Tank 83.30 L / 22 gal.
Engine Type - Diesel Kubota D1305- E4B,18.5 kW (25 hp)

General Specifications
Capacity - Hydraulic Reservoir 121.42 L / 32.1 gal.
Machine Weight 7711 kg / 16999.8 lb
Machine Weight 7995 kg / 17626 lb
Oscillating Axle - 4×4 Standard / Standard

Performance Data
Drive Speed - Platform Elevated 0.80 km/h / 0.5 mph
Drive Speed - Platform Lowered 5.60 km/h / 3.5 mph
Gradeability 40 %
Lift Time 65 sec.
Lower Time 60 sec.
Maximum Drive Height 9.14 m / 30 ft
Platform Capacity 680 kg / 1499.1 lb
Platform Capacity - Extension 230 kg / 507.1 lb
Turning Radius - Inside 4.04 m / 13.3 ft
Turning Radius - Outside 6.02 m / 19.8 ft

Dimensional Data
Machine Height 3.20 m / 10.5 ft
Machine Height - Rails Folded 2.36 m / 7.7 ft
Machine Length 4.88 m / 16 ft
Machine Width 2.31 m / 7.6 ft
Platform Dimension A 1.81 m / 5.9 ft
Platform Dimension B 3.96 m / 13 ft
Platform Extension Length 1.14 m / 3.7 ft
Platform Height 16.20 m / 53.1 ft
Platform Height - Lowered 2.13 m / 7 ft
Platform Railing Height 1.10 m / 3.6 ft
Tire Size 12 x 16.5 FF
Tyre Size 12 x 16.5 FF
Tyre size 12 x 16.5 FF
Wheelbase 2.97 m / 9.7 ft

Reach Specifications
Platform Height 16.20 m / 53.1 ft
Working Height 18.15 m / 59.5 ft
