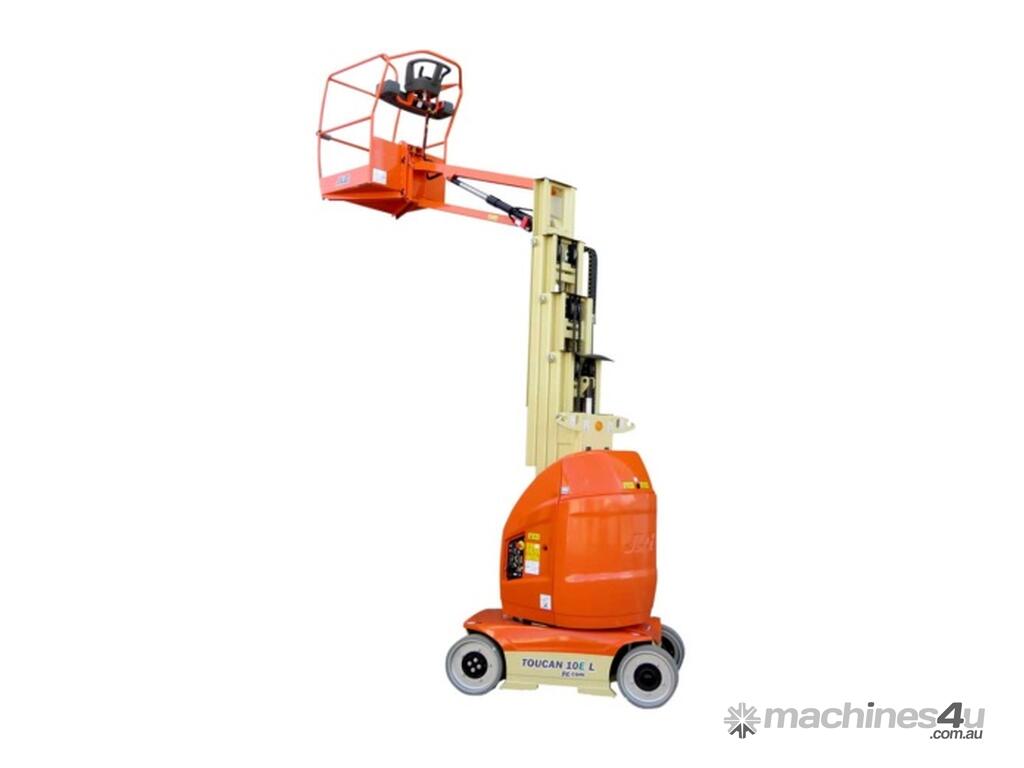

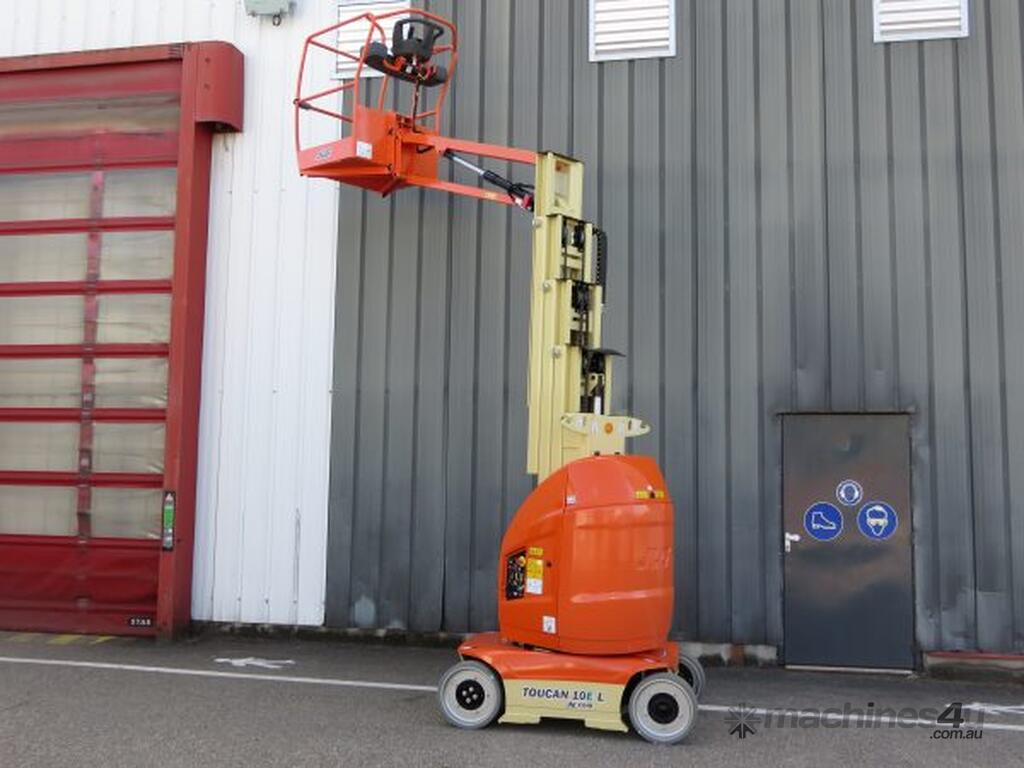

JLG Toucan 10E-L Boom Lift

Key Specs
Platform Height: 8.10 m / 26.6 ft
Machine Width: 0.99 m / 3.2 ft
Platform Capacity: 200 kg / 440.9 lb
Key Features
Electric power for zero emissions and near-silent running indoors.
No waiting with immediate-response AC drive motors for greater torque and efficiency.
Get into more places with compact dimensions and precise control system.
Extended reach and up-and-over height with heavy duty forklift-style mast and versatile articulating jib.

Power Source
Batteries 24V DC ( 4X6V - 260Ah / 20h ) - AGM
Electrical System 24 Volts DC


Performance Data
Drive Speed - Platform Elevated 0.75 km/h / 0.5 mph
Drive Speed - Platform Lowered 5.50 km/h / 3.4 mph
Gradeability - 2WD 25 %
Platform Capacity 200 kg / 440.9 lb
Swing 345 Degrees
Swing Type Non-Continuous
Turning Radius - Inside 0.55 m / 1.8 ft
Turning Radius - Outside 1.99 m / 6.5 ft


Dimensional Data
Ground Clearance 0.1 m / 4 in.
Machine Height 1.99 m / 6.5 ft
Machine Length 2.82 m / 9.3 ft
Machine Width 0.99 m / 3.2 ft
Platform Dimension A 0.70 m / 2.3 ft
Platform Dimension B 0.90 m / 3 ft
Platform Height 8.10 m / 26.6 ft
Tailswing 0.12 m / 5 in.
Tyre size 406 x 125 mm
Wheelbase 1.20 m / 3.9 ft


Reach Specifications
Horizontal Jib Rotation 0 Degrees
Platform Height 8.10 m / 26.6 ft
Up and Over Height 6.51 m / 21.4 ft
Working Height 10.10 m / 33.1 ft
Working Outreach 3.38 m / 11.1 ft


General Specifications
Capacity - Hydraulic Reservoir 7.50 L / 2 gal.
Machine Weight 2600 kg / 5732 lb
