Sunmill - JMV 1100 - Box Way Series

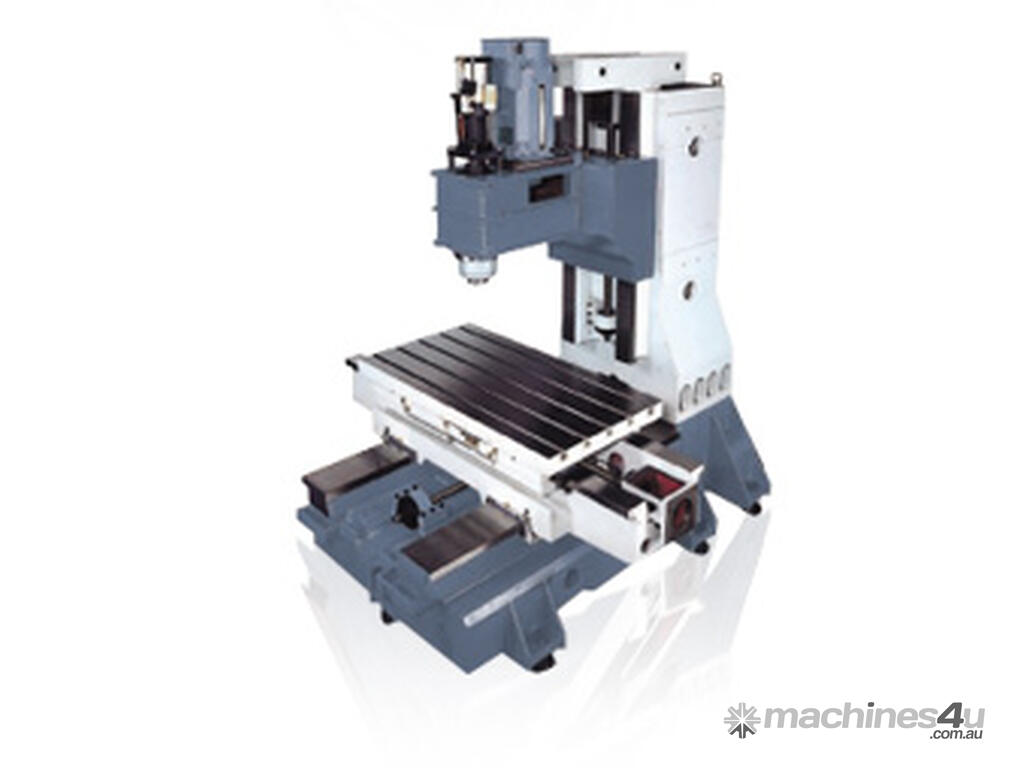

EXTRA RIGID MACHINE STRUCTURE:
Oversized column
Increased width on the column bottom, combined with box type structure, greatly upgrades rigidity and stability during machining.
Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coated with Turcite-B and precision scraped.
Extra wide slide ways and distance between slide ways and distance between at low speed travel while ensuring high stability.
The major structures are manufactured from Meehanite cast iron with scientific rib reinforcement. This reduces structural deformation to a minimum.

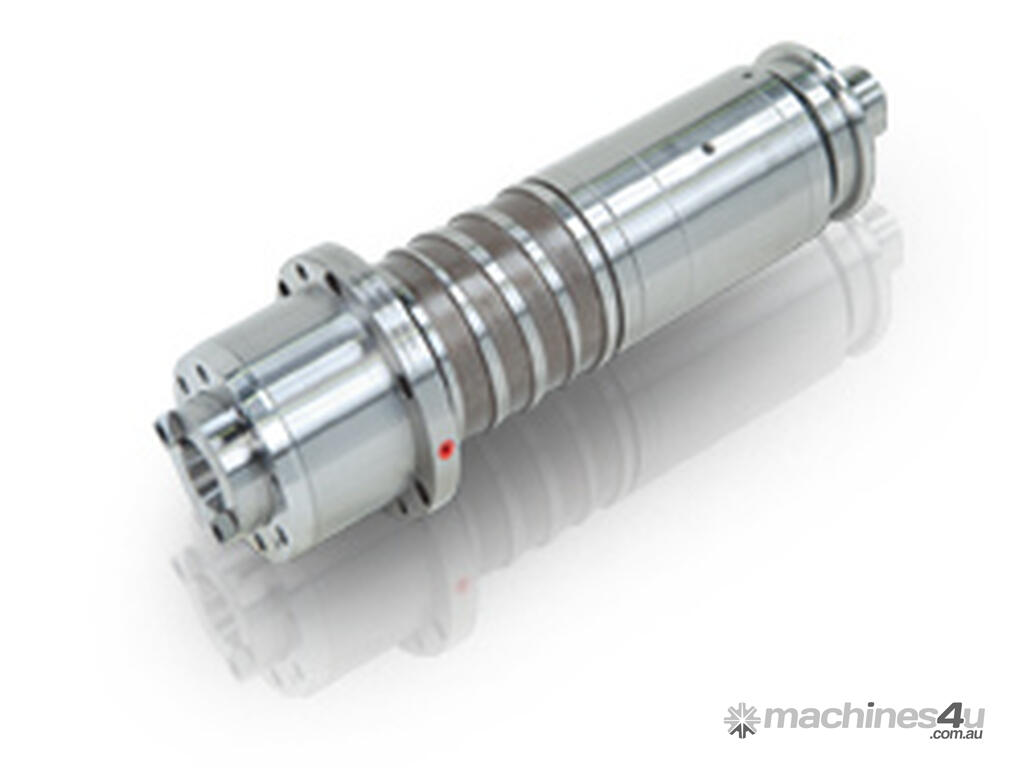

Direct Drive spindle:
Spindle Speeds 10,000RPM, 12,000RPM 15,000 RPM
Standard Accessories:
-Spindle oil cooler unit
-Full splash guard
-Cutting coolant unit
-Heat exchanger for control box
-Auto power off
-Auto lubrication system
-Air blast through spindle
-Work lamp
-Call light
-Tool box
-Carousel type ATC(16 tools)
-Rigid tapping
-Mechanical, electrical, operation manuals
-RS - 232 lnterface
